John Deere 483, 583, 683 Corn Heads, 810, 812, 812SH, 814, 814SH, 816, 816SH, 818 and 820 Platforms (Europe) Technical Manual (TM4468)

Number: 21258
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Corn Head, Platform
  • Region
    Europe
  • Model
    483, 583, 683, 810, 812, 812SH, 814, 814SH, 816, 816SH, 818, 820
Details
Table of Contents:
   800 SERIES CUTTING PLATFORMS

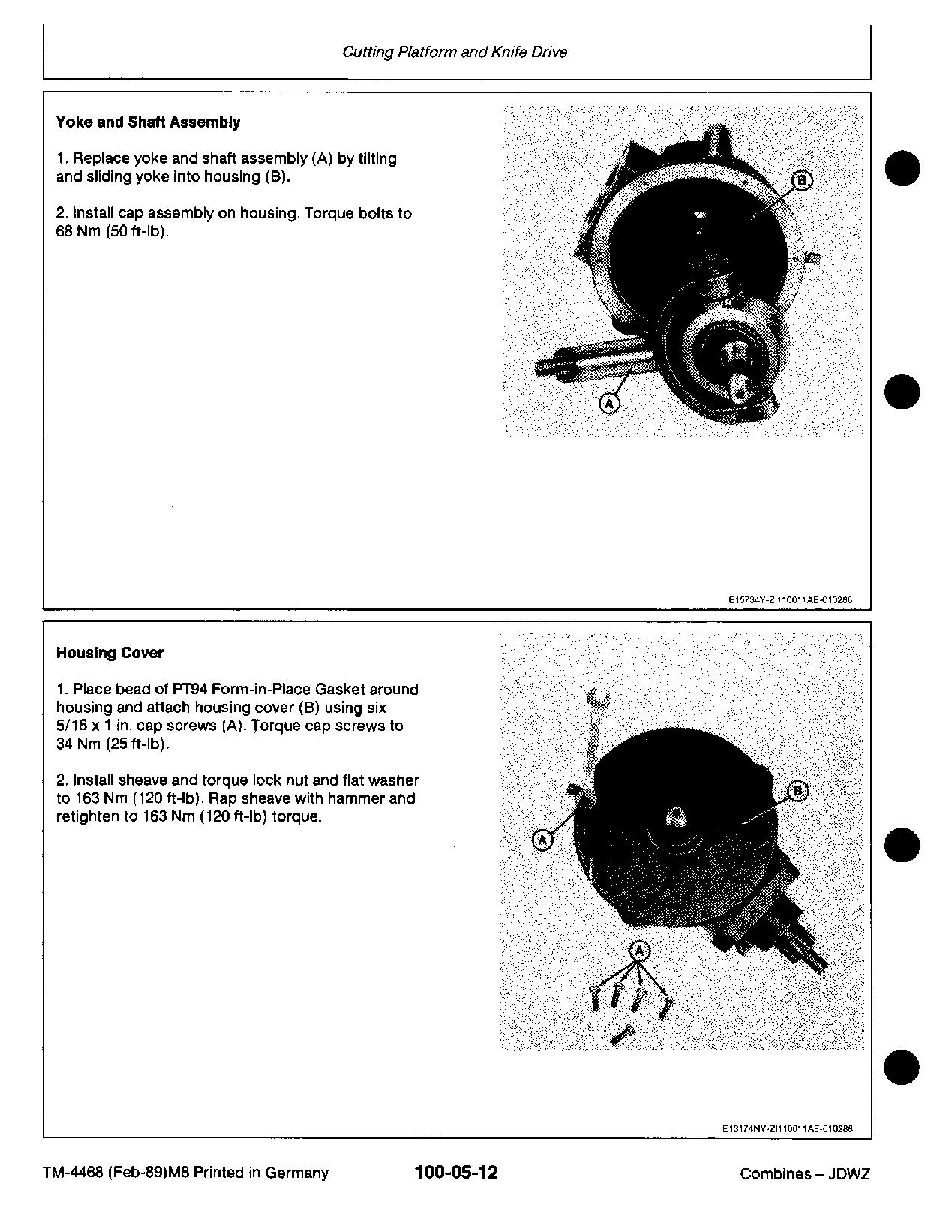

      Cutting platform and knife drive
      Cutting platform auger
      Variable reel speed drive
      Reel

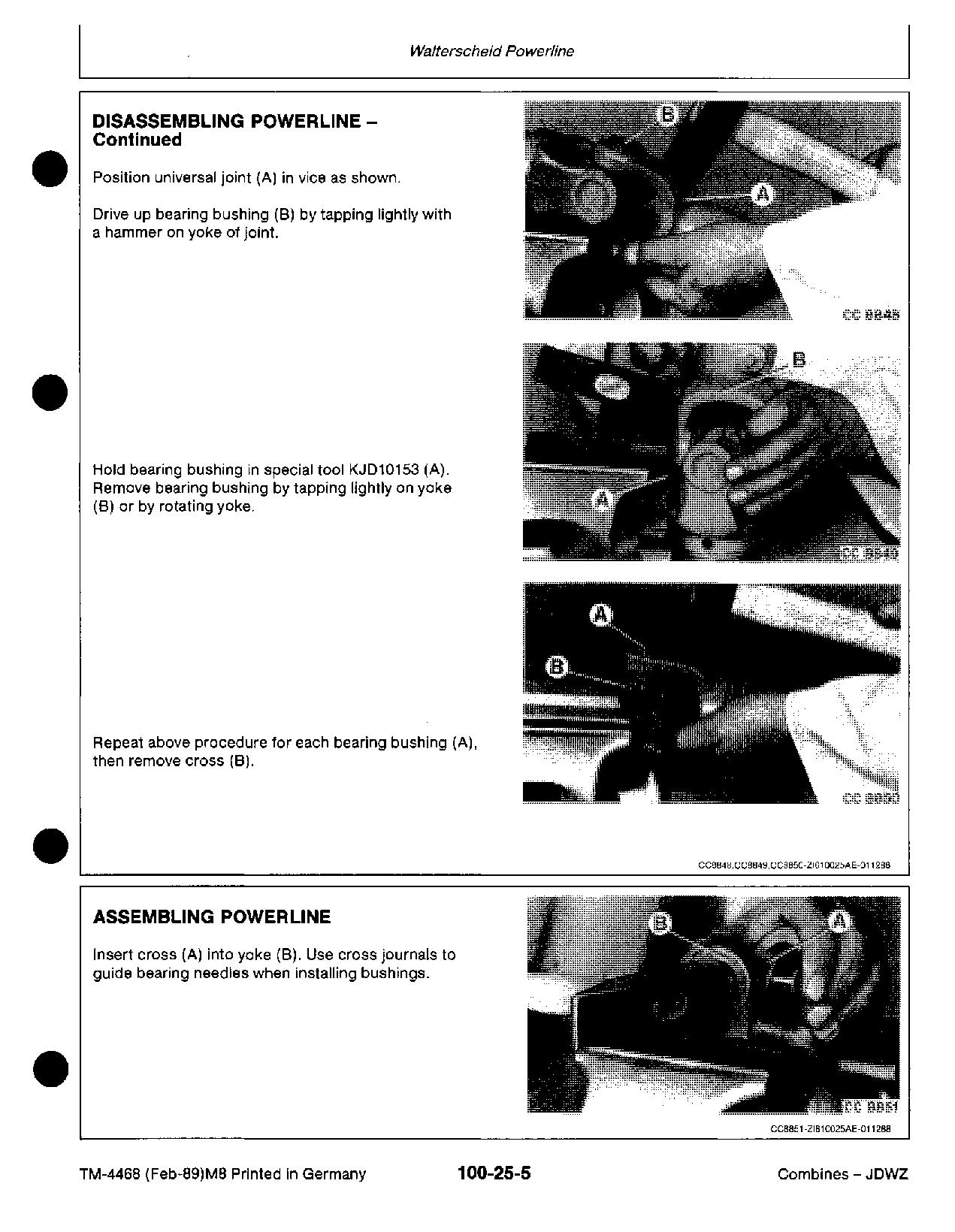

      Walterscheid powerline
   80 SERIES CORN HEADS
      Corn head
      Special Tools
      Making special tools
      Auger:
      Remove
      Install
      Adjust
      Gatherer chains, deck plates, trash knives and row unit frame:
      Remove
      Install
      Adjust deck plates
      Adjust gatherer chain tension
      Adjust trash knives
      Stalk rolls:
      Remove
      Install
      Gear case:
      Diagnosing malfunctions
      Remove
      Disassemble
      Replace gatherer drive shaft bushings and remove seal
      Replace countershaft bushings

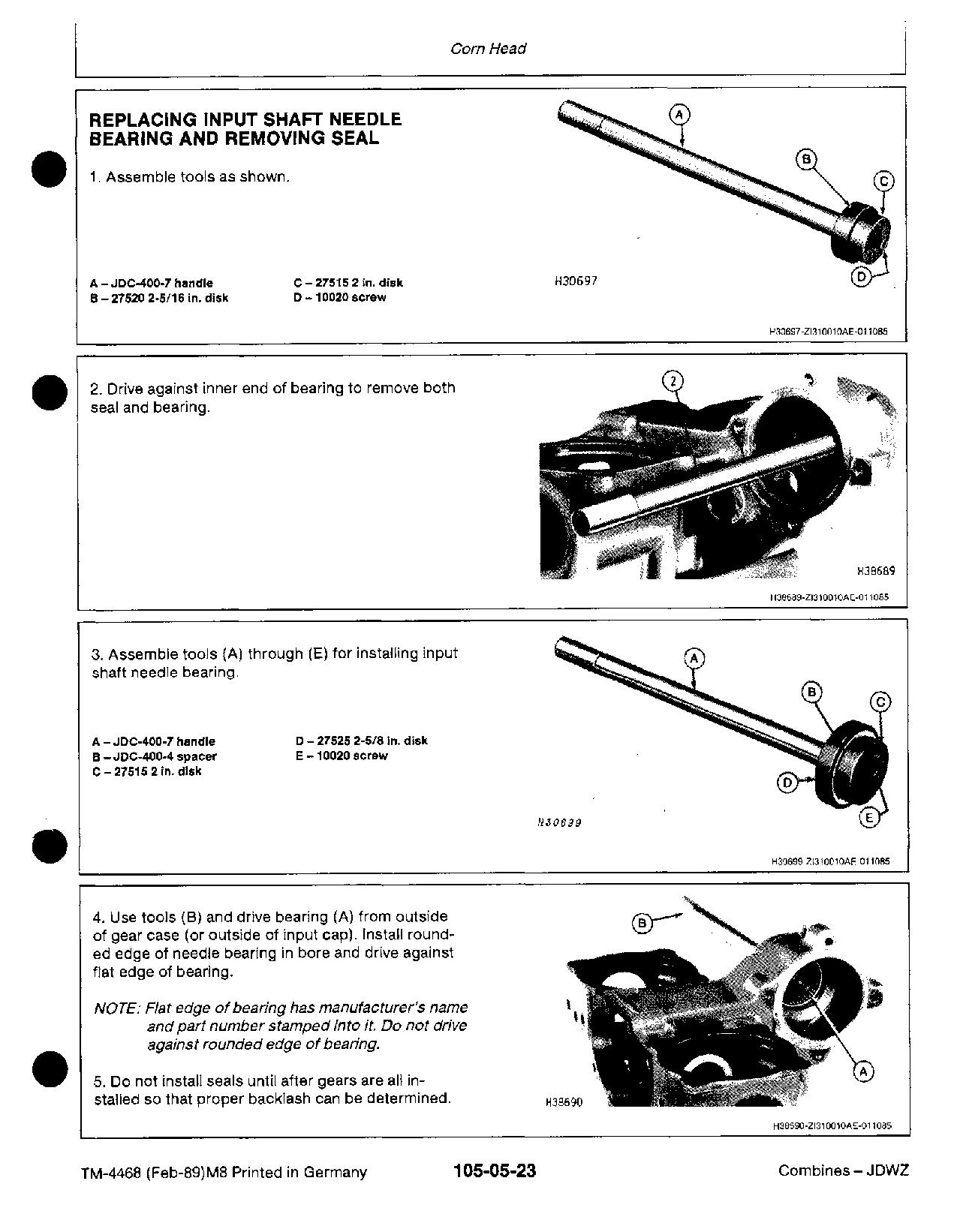

      Replace input shaft needle bearing and remove seal
      Replace gatherer cap bushings
      Replace idler gear bearings
      Assemble
      Service barrel assembly and stalk roll shafts
      Attach barrel assembly to gear case
      Install
      Row unit slip clutches Repair
      Assemble
      Harvesting corn with weakened or broken stalks
      Main drive shaft
      Row unit drives
