John Deere 483 and 484 Stalkers Technical Manual (TM1168)

Number: 23108
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Stalker
  • Model
    483, 484
Details
Table of Contents:
   483 and 484 Stalkers
   Introduction
   Safety and You
   Specifications, Torque Values and Special Tools
      Special Tools
   General Information
      Row Units
      Serial Number
   Diagnosing Malfunctions
      Organizing The Diagnosis
      Diagnosing
   Lubrication
      Greases
   Torque Chart
   Row Units
      General Information
      Removal
      Row Unit Drive Shaft
      Inspection
      Installation
      Adjusting Backlash
   Feed Roll
      Removal
      Inspection
      Installation
   Main Drive Shaft
      Removal
      Inspection
      Installation
   Fenders, Gatherer Points and Caps
      Removal
      Installation
      Outer Gatherer Points
      Center Gatherer Points
      Rear Cap
   Removing Row Unit
   Removing Row Unit Gear Case

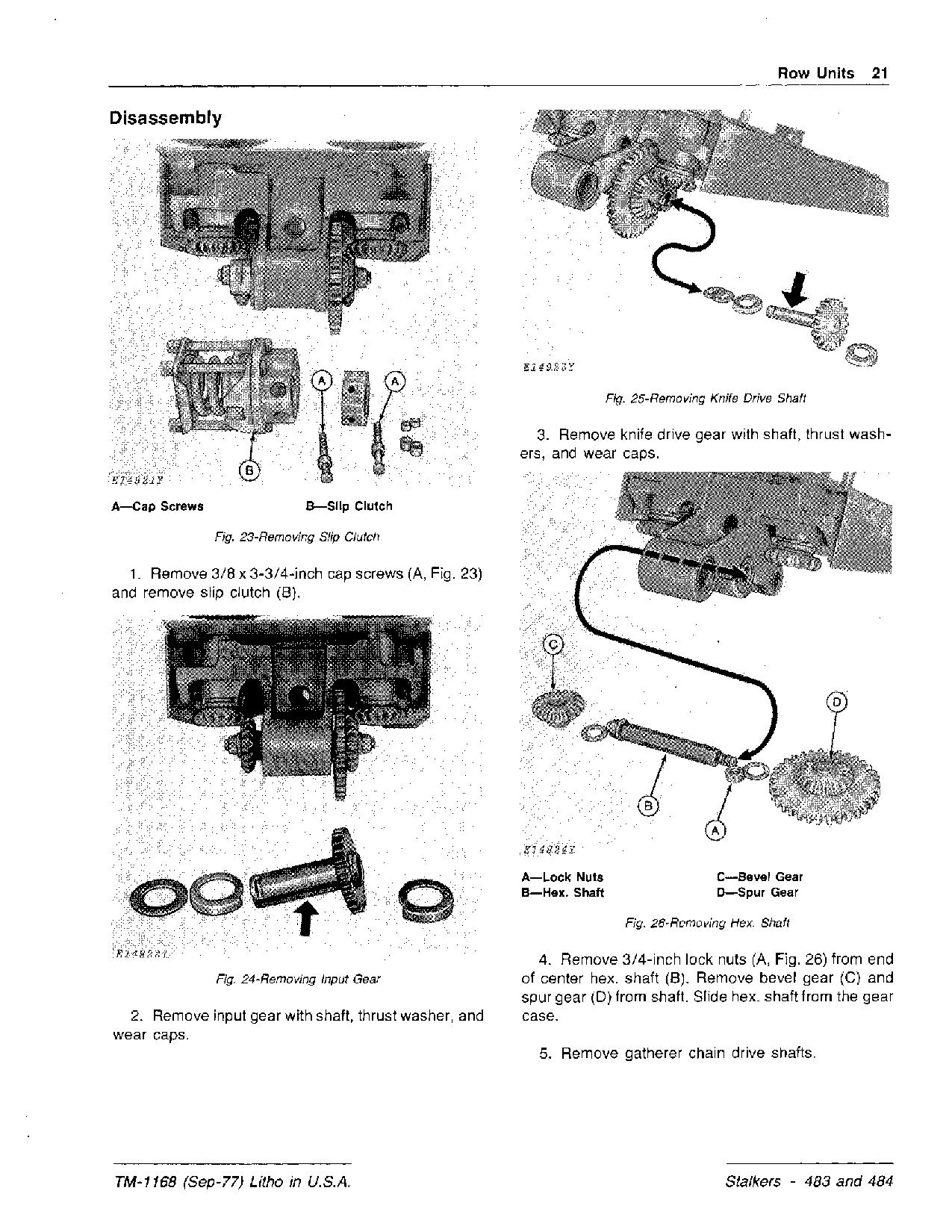

      Disassembly
      Inspection
      Assembly
   Knife Assembly
      Disassembly
      Inspection
      Assembly
   Replacing Idlers
   Auger
      General Information
      Feeder Fingers
      Removal
      Inspection
      Assembly (Feeder Fingers)
      Assembly (Auger)

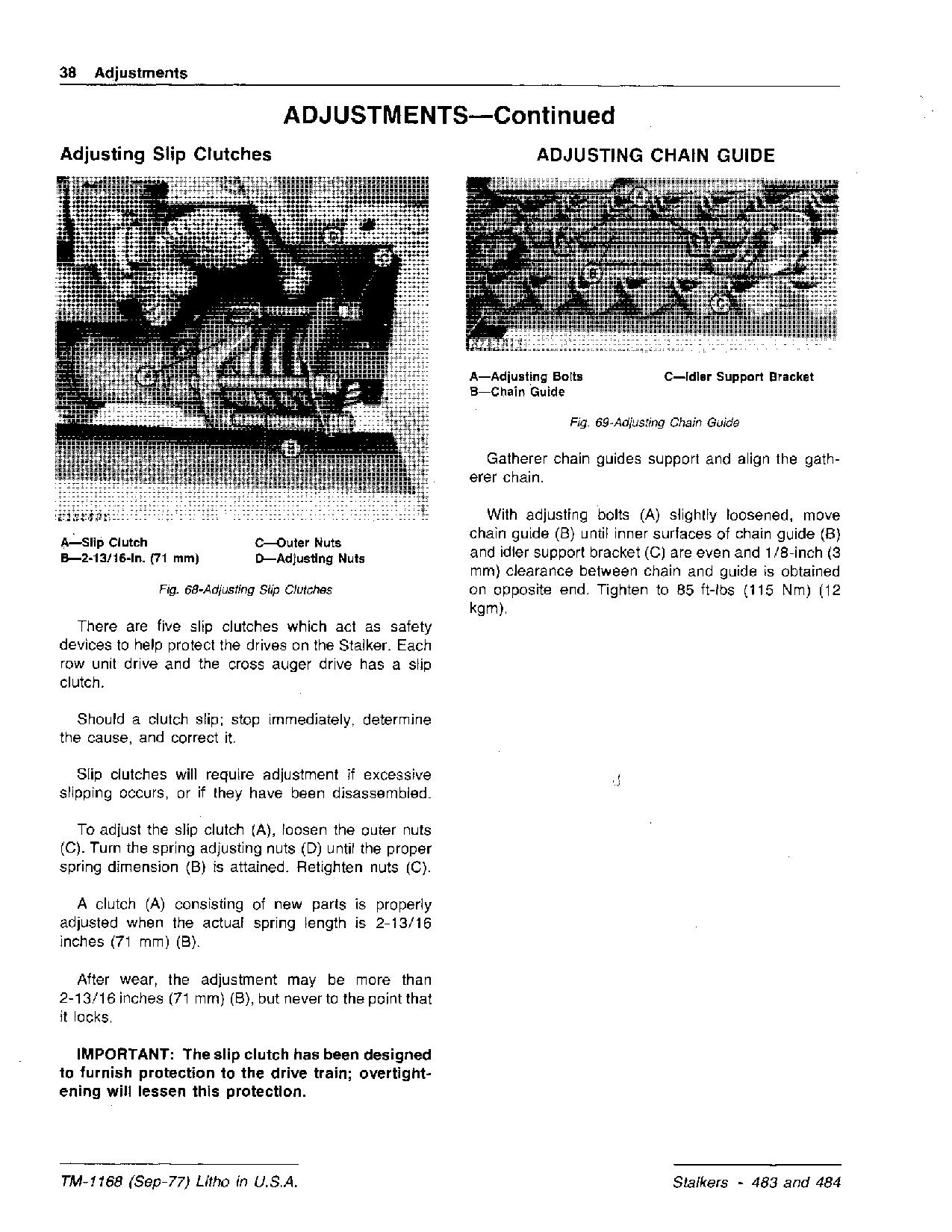

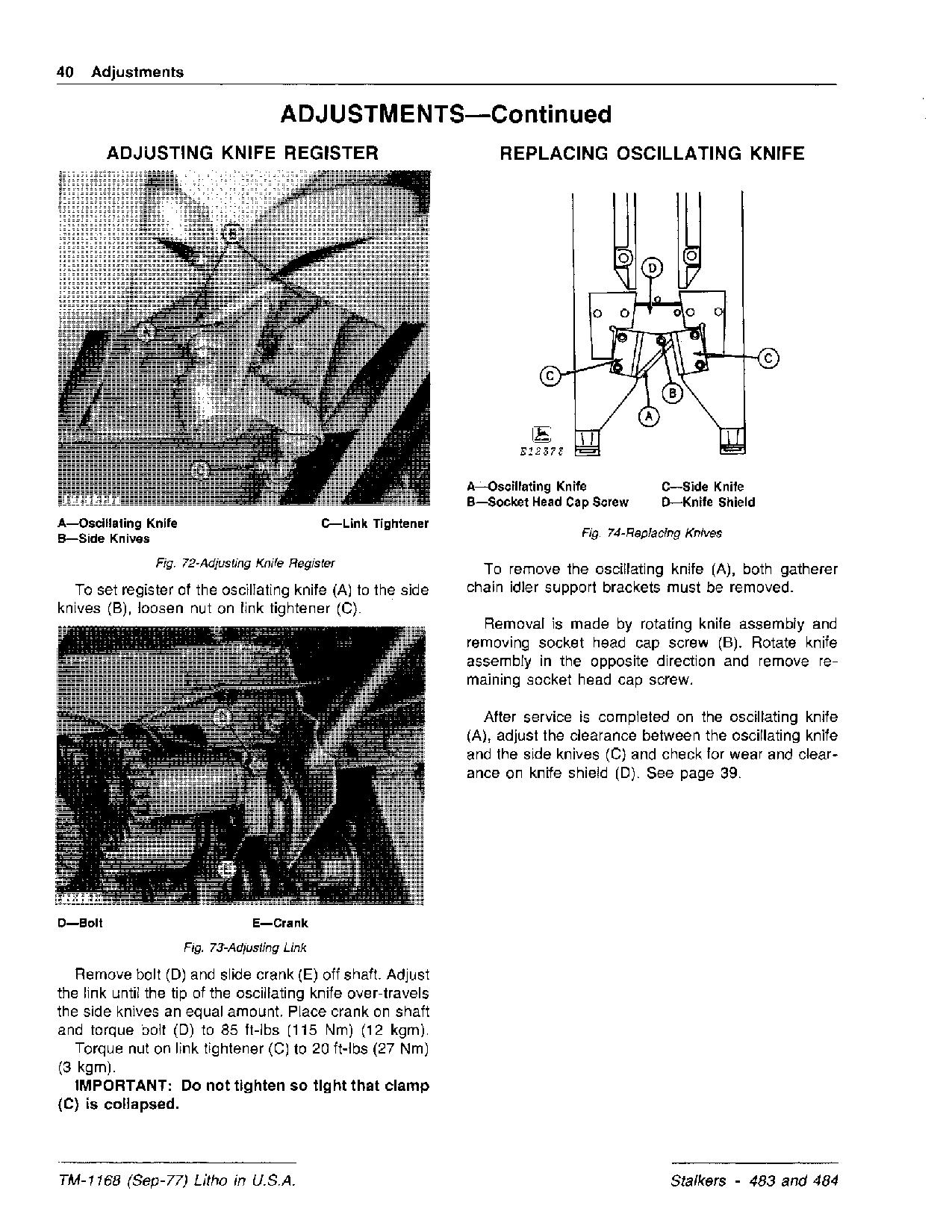

   Adjustments
