John Deere BP15 Belt Pickups Repair Manual (TM161119)

Number: 23072
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Belt Pickup Platform
  • Model
    BP15
Details
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      Specifications
   Belt Pick-Up and Windscreen
      Pick-Up and Transfer Belts
      Adjustable Windscreen

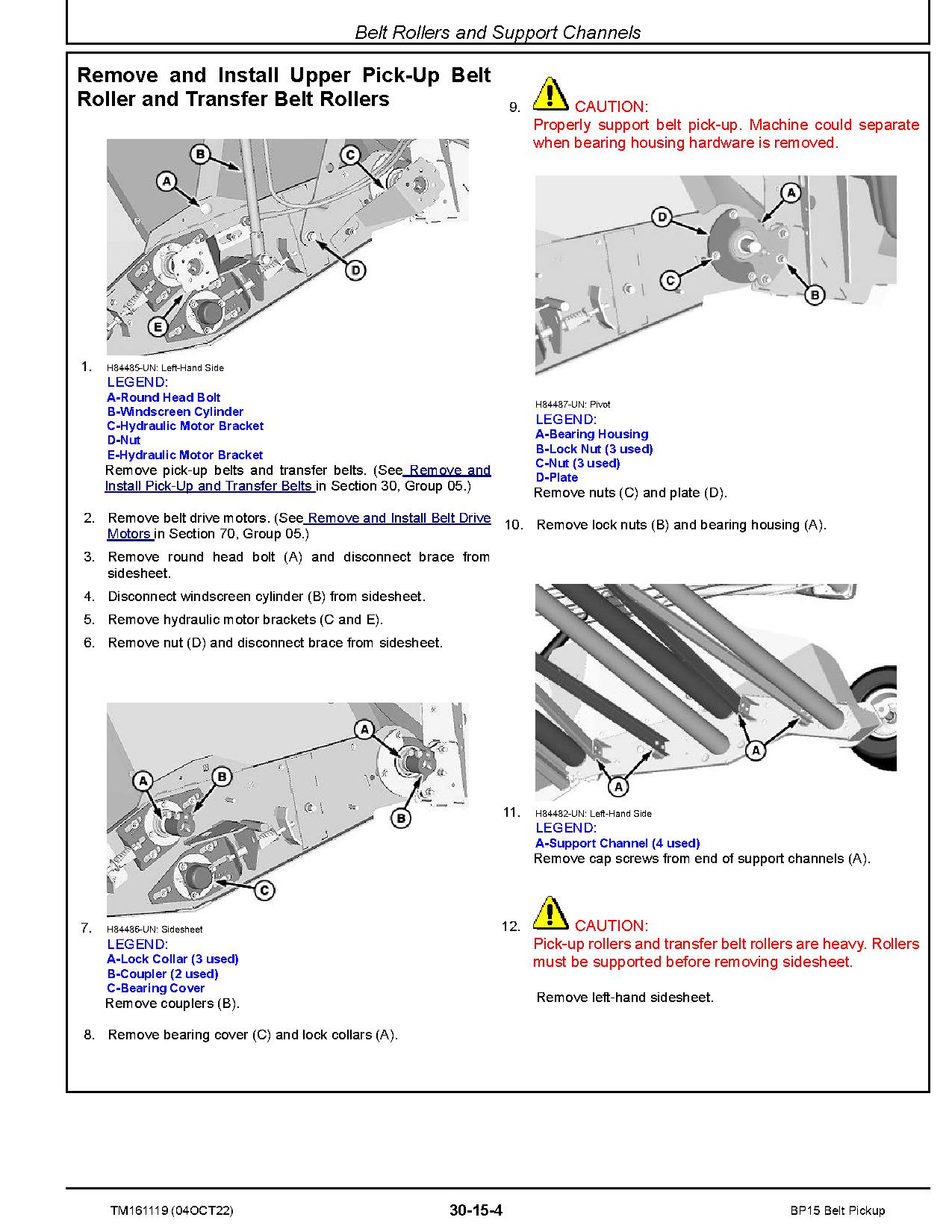

      Belt Rollers and Support Channels

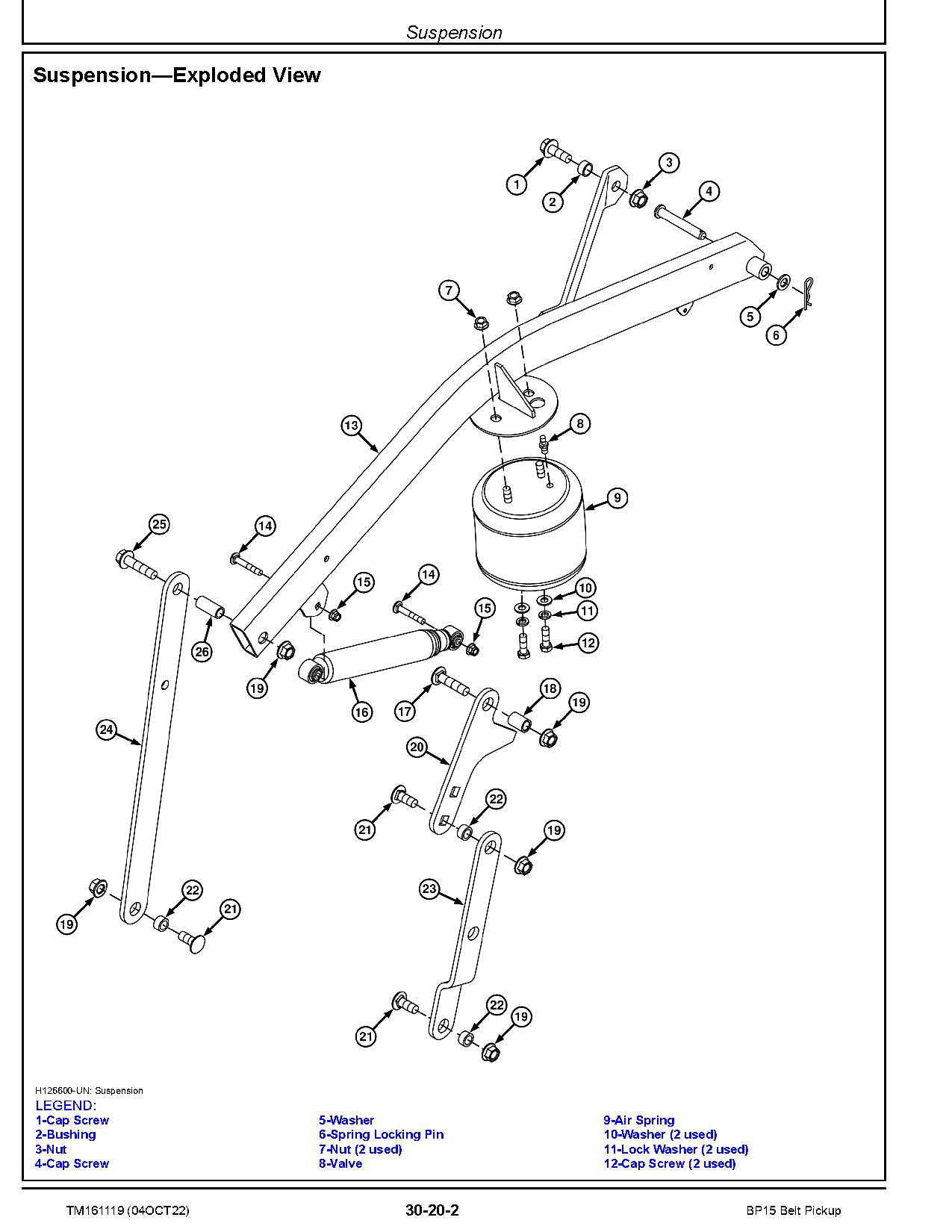

      Suspension
      Crop Deflector Shield
   Electrical
      Components
      Wire Harnesses
      Sensors
   Drives
      Belt Pick-Up Drives
      Belt Pick-Up Gauge Wheels
   Hydraulic System
      Hydraulic System
      Valves
      Windscreen Lift Cylinders
   Auger

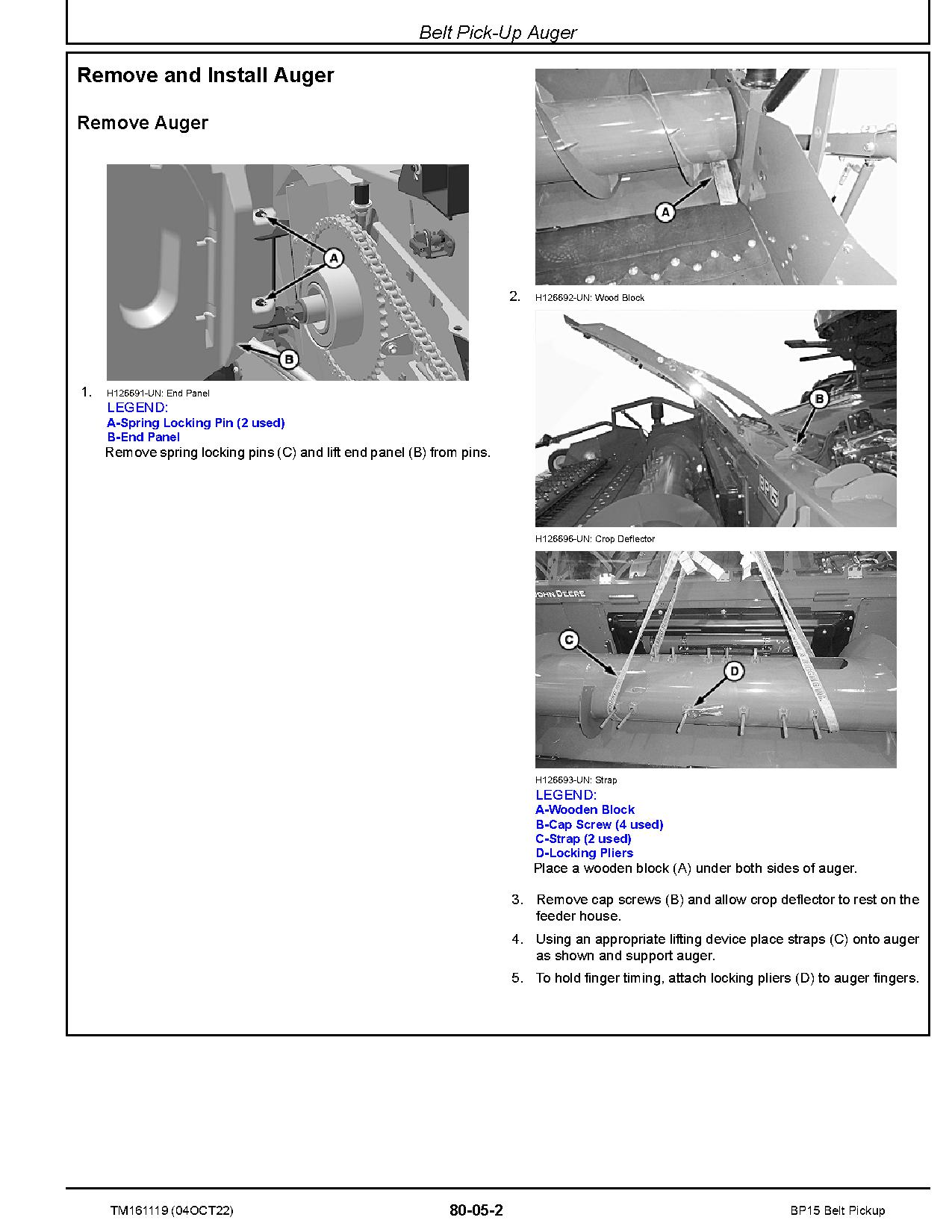

      Belt Pick-Up Auger
