John Deere HX10, HX14, MX10, MX5, MX6, MX7 and MX8 Rotary Cutters (North America) Technical Manual (TM1828)

Number: 23095
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Rotary Cutter
  • Region
    North America
  • Model
    HX10, HX14, MX5, MX6, MX7, MX8, MX10
Details
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      Specifications
      General Information
      Lubricants
   Driveline Repair

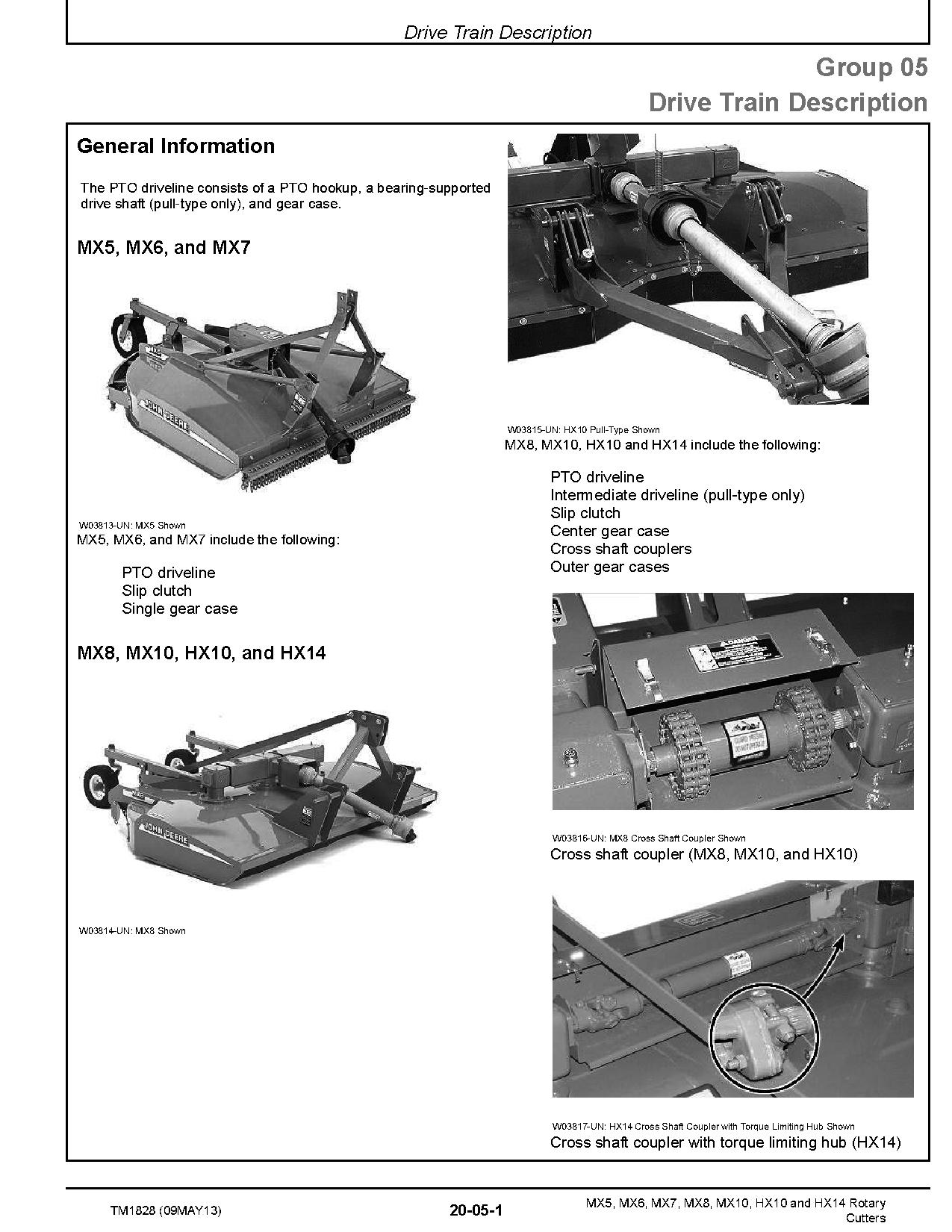

      Drive Train Description
      Diagnosing Malfunctions
      PTO Driveline Remove and Install
      PTO Driveline Repair, Bondioli &Pavesi
      PTO Driveline Repair, Walterscheid
      Pedestal Support Repair (Pull Type)
      Cross Shaft Repair (If Equipped)
   Slip Clutch and Torque Limiting Hub
      General Information
      Diagnosing Malfunctions
      Slip Clutch Repair, Bondioli & Pavesi

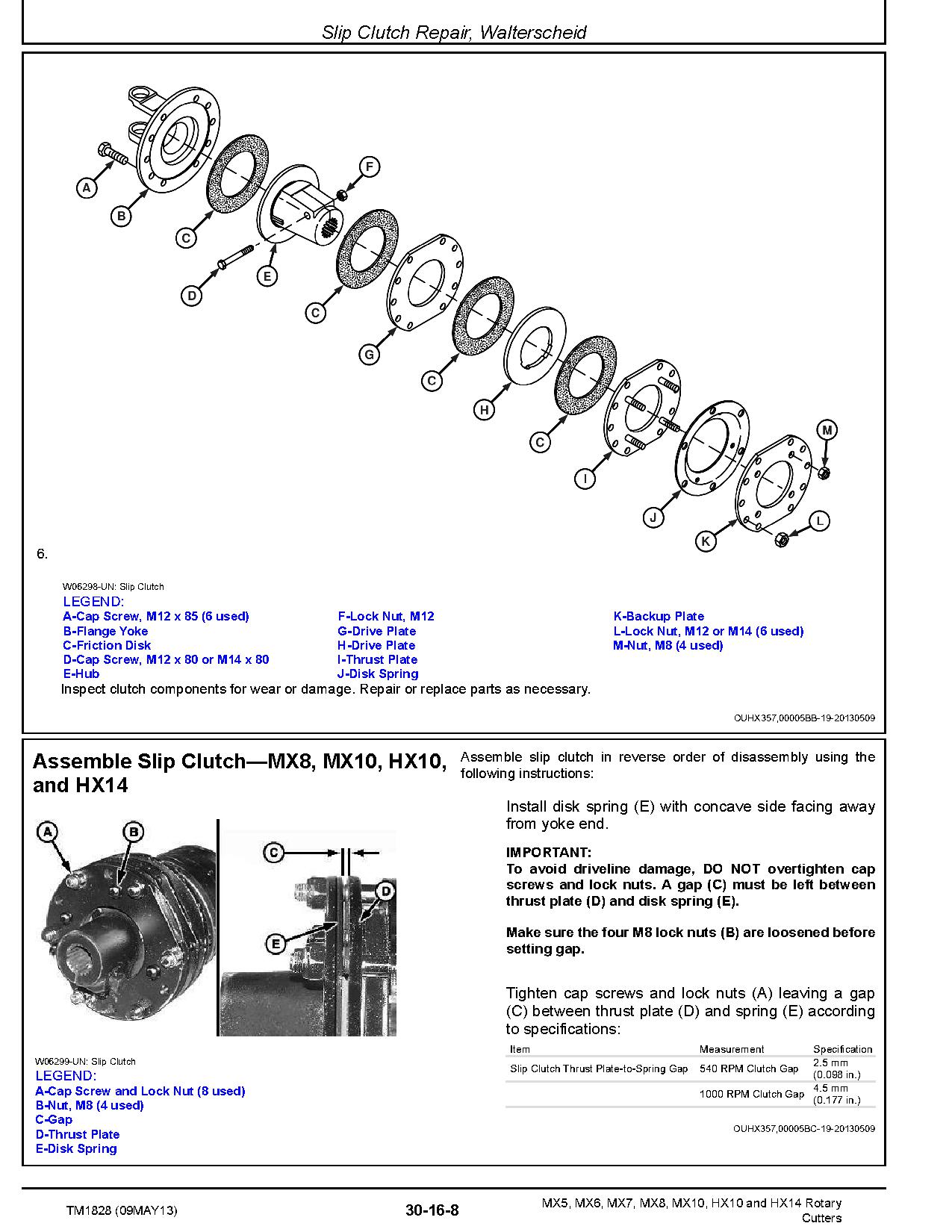

      Slip Clutch Repair, Walterscheid
      Torque Limiting Hub Repair (HX14)
   Gear Case
      General Information
      Diagnosing Malfunctions
      Gear Case-MX5, MX6, and MX7
      Center Gear Case-MX8, MX10, HX10, and HX14
      Outer Gear Case-MX8, MX10, HX10 and HX14
   Blade Assembly
      General Information
      Diagnosing Malfunctions
      Blade Repair

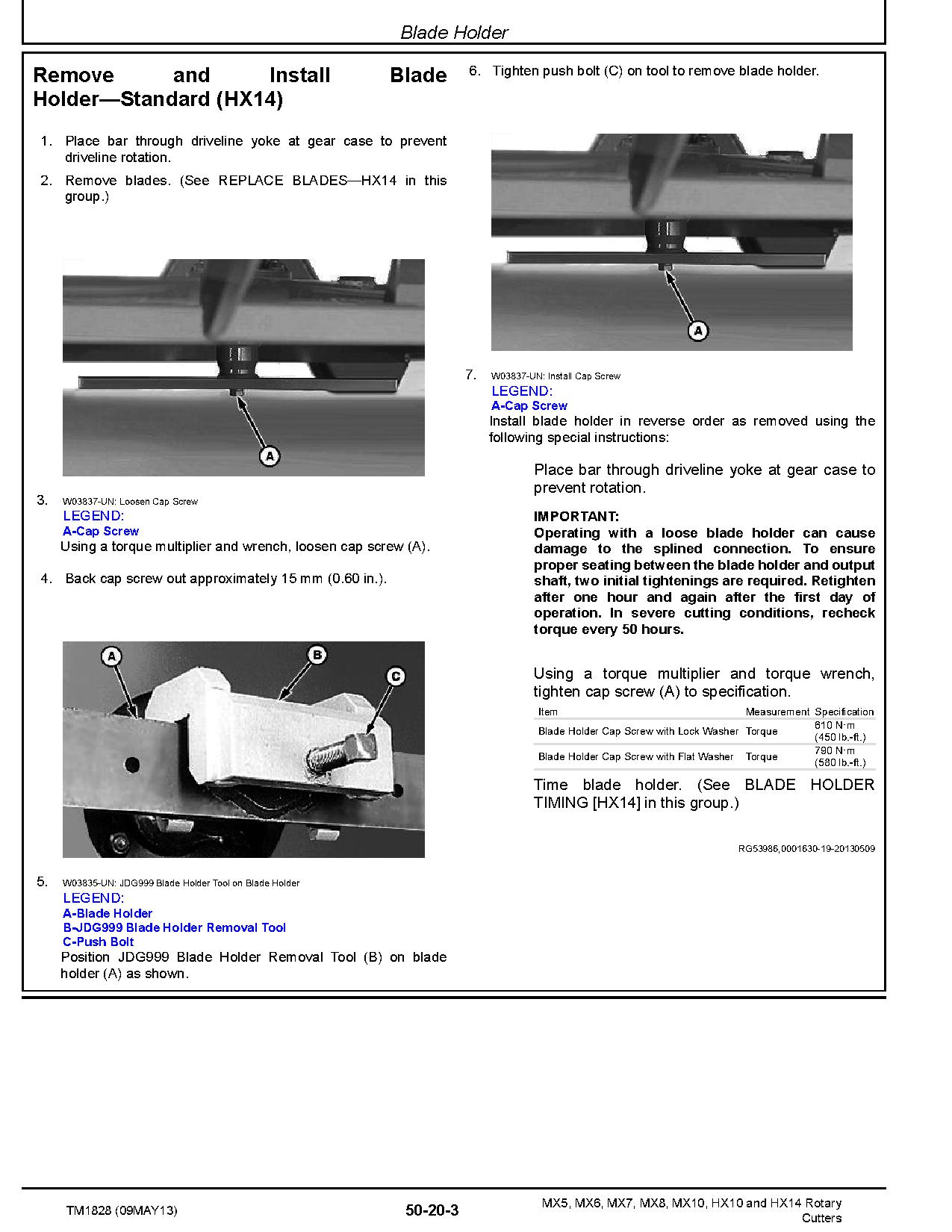

      Blade Holder
   Hydraulics
      General Information
      Diagnosing Malfunctions
      Lift Cylinder (Pull-Type and Semi-Mount, MX8, MX10, and HX10)
      Offset Cylinder (MX8, MX10, and HX10)
   Miscellaneous
      Tailwheel
      Electrical System (MX8, MX10, HX10, and HX14)
