John Deere 475plus (SN. up to 128911) Rotary Harvesting Units (European Edition) Technical Manual (TM408819)

Number: 21299
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Rotary Harvesting Unit
  • Region
    Europe
  • Model
    475plus
  • Serial Number
    before 128911
Details
Table of Contents:
   Introduction
      Foreword
   Safety
      Safety Measures
   General Information
      Identification View and Description
      Fuel, Lubricants, Hydraulic Oil and Coolant
      Torques
      Capacities
      Specifications
   Electrical System
      General Information
      Electric Components
   Power Train

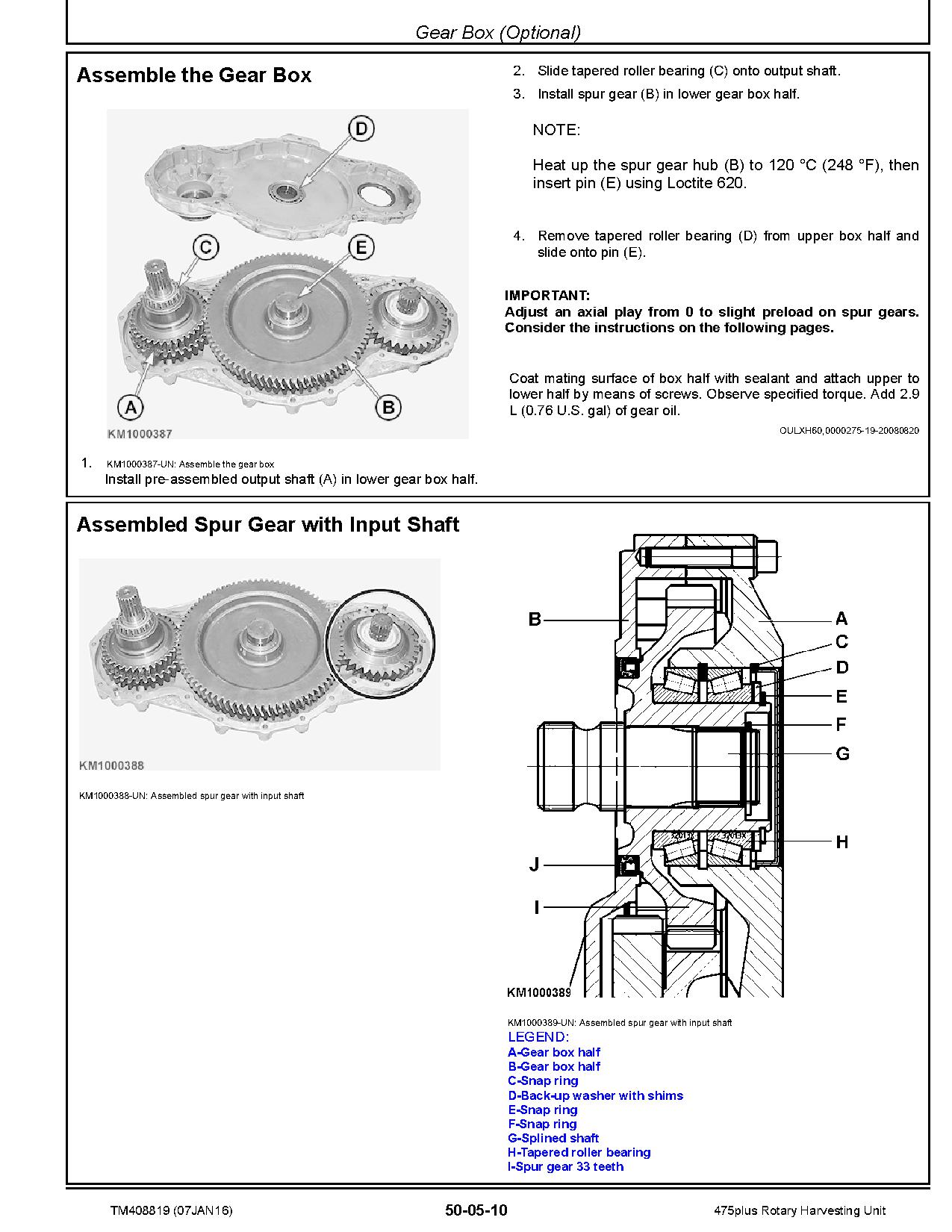

      Gear Box (Optional)
      Friction Clutches
      Transmission - Feed Drums

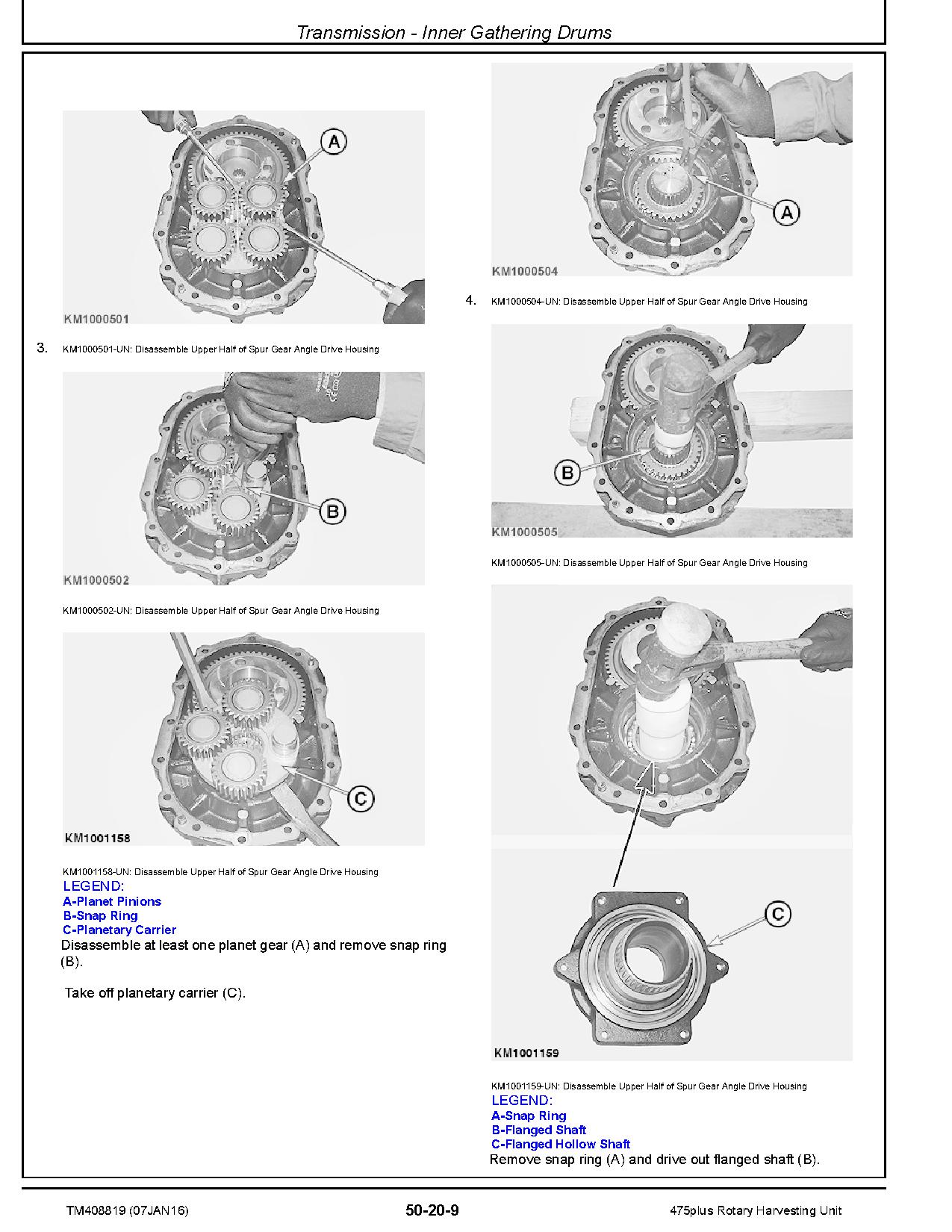

      Transmission - Inner Gathering Drums
      Transmission - Outer Gathering Drums

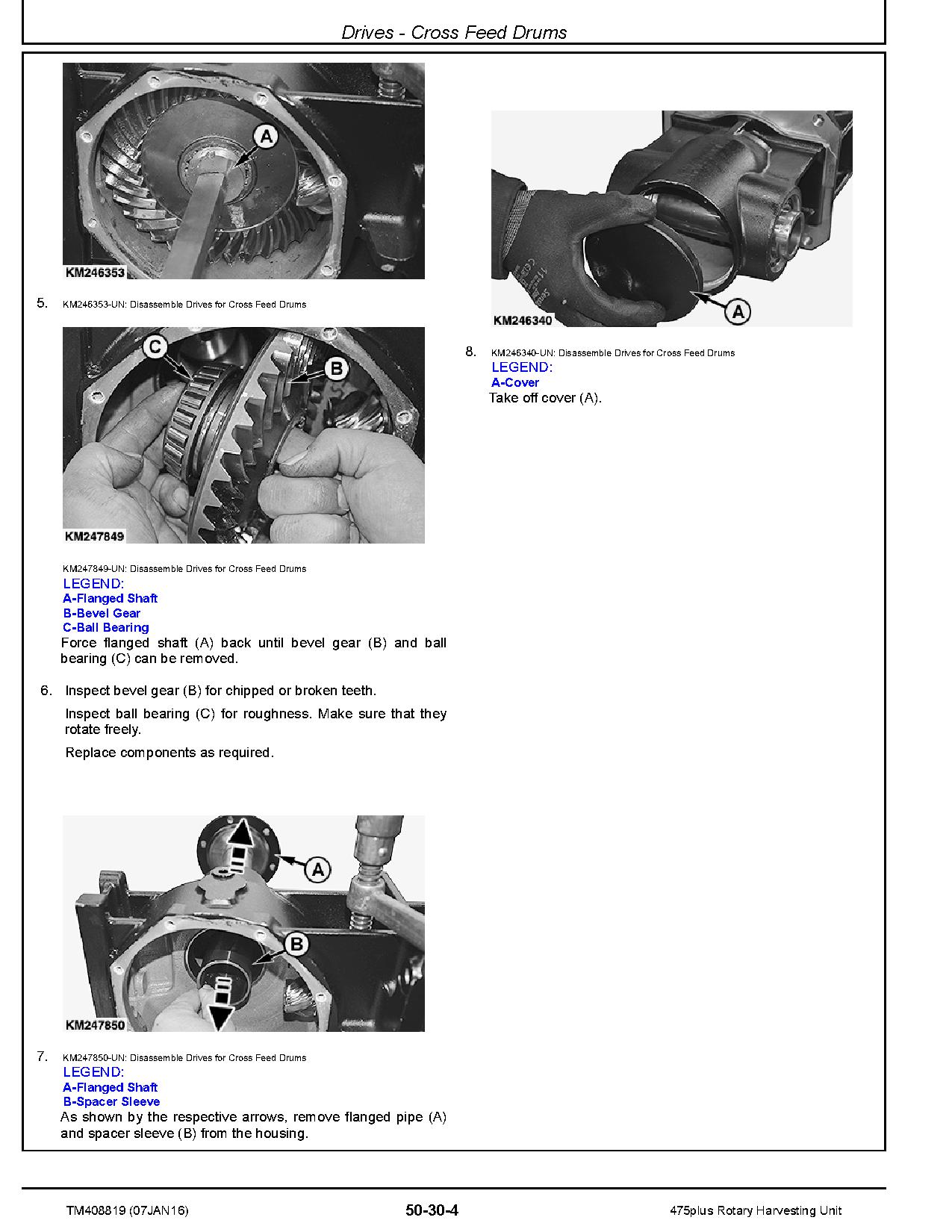

      Drives - Cross Feed Drums
   Hydraulic System
      Hydraulic System
   Miscellaneous
      Outer Folding Sections
      Oscillating Frame (Optional)
   Feed System
      Inner Gathering Drums
      Outer Gathering Drums
      Rotors
      Feed Drums
      Cross Feed Drums
   Fault Diagnosis
      Troubleshooting
   Special Tools
      Special Tools (Dealer-Fabricated)
      Special Tools (Available as Spare Parts)
