John Deere 778 (SN. from 127522) Rotary Harvesting Units (North American Edition) Technical Manual (TM405419)

Number: 21297
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Rotary Harvesting Unit
  • Region
    North America
  • Model
    778
  • Serial Number
    127522-
Details
Table of Contents:
   Introduction
      Foreword
   Safety
      Safety Measures
   General Information
      Identification View and Description
      Lubricants, Hydraulic Oil, and Coolant
      Torques
      Capacities
      Specifications
   Electrical System
      General Information
      Electrical Components
      Electric Brake
   Drivetrain

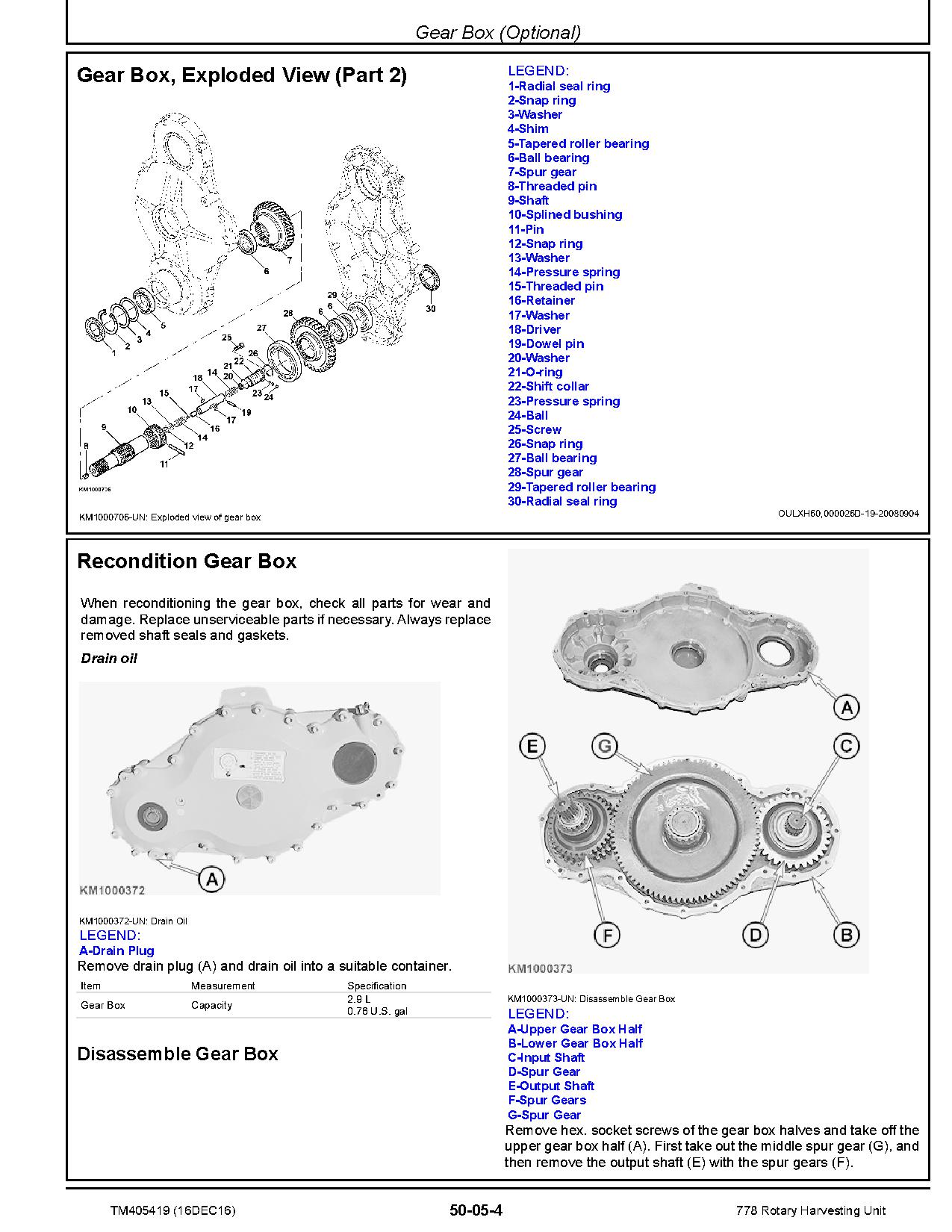

      Gear Box (Optional)
      Friction Clutches

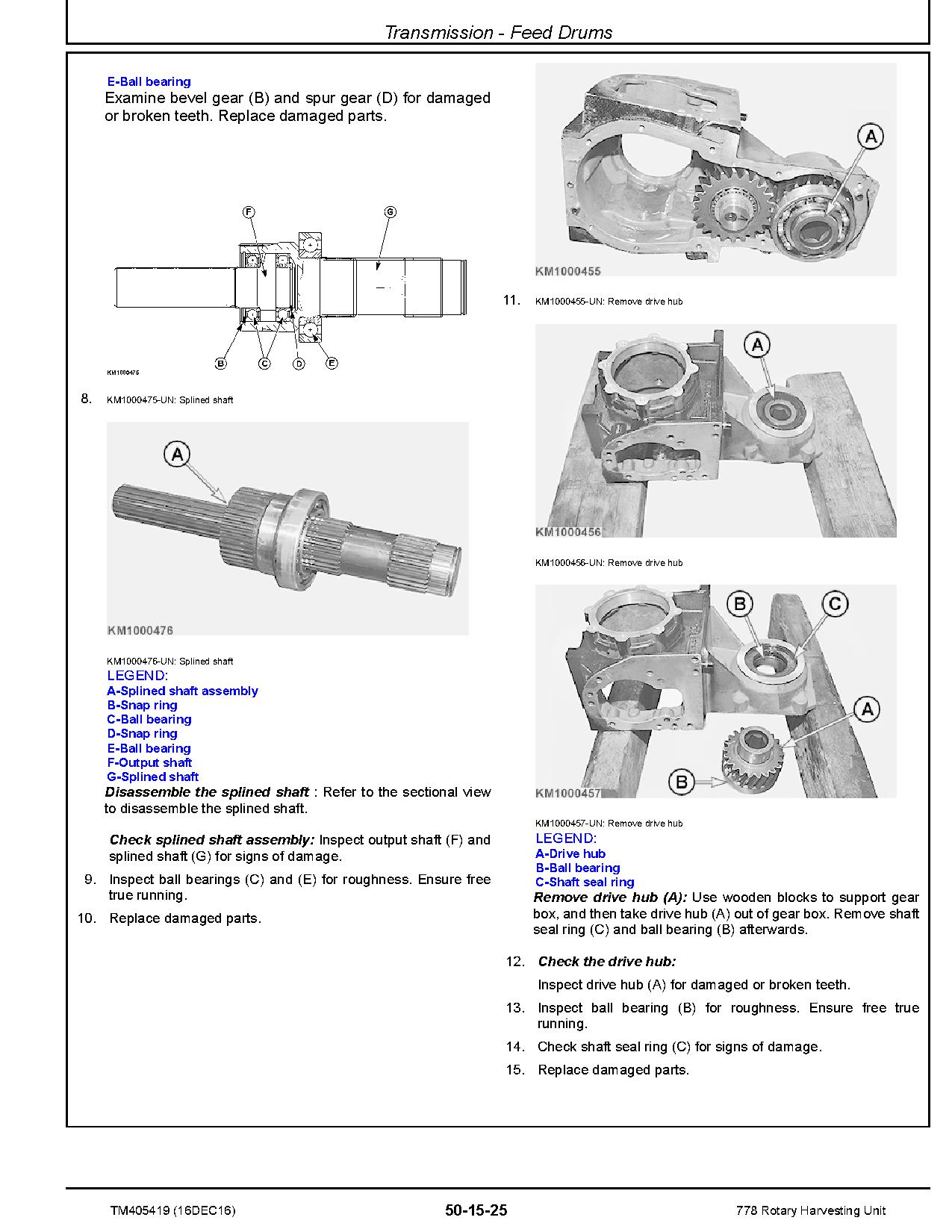

      Transmission - Feed Drums

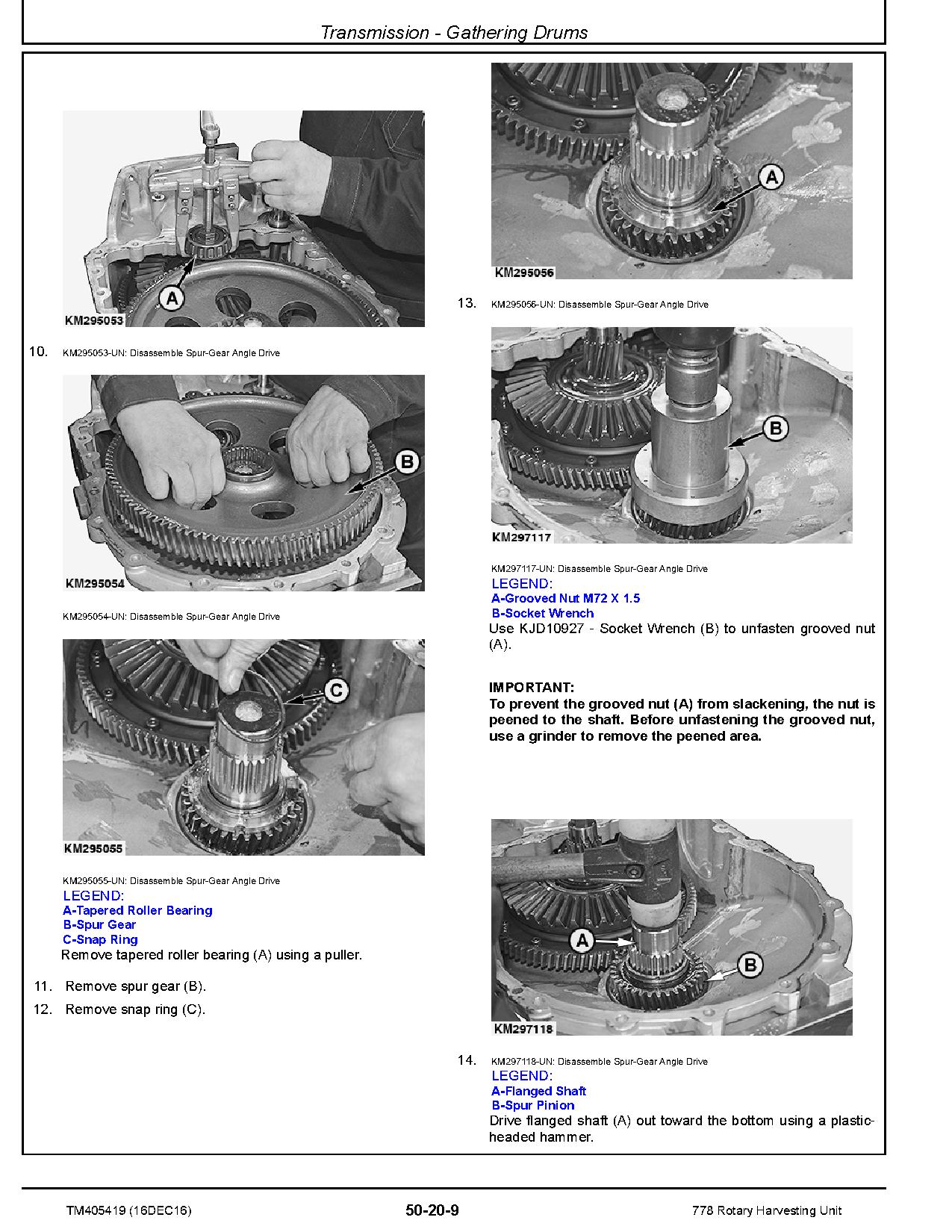

      Transmission - Gathering Drums
      Universal-Jointed Shaft
   Hydraulic system
      Hydraulic system
   Miscellaneous
      Outer Folding Sections
      Oscillating Frame (Optional)
   Feed System
      Gathering Drums
      Rotors
      Feed Drums
   Fault Diagnosis
      Troubleshooting
   Special Tools
      Special Tools (Dealer-Fabricated)
      Special Tools (Available as Spare Parts)
