John Deere 896 Auger Platforms Technical Manual (TM2265)

Number: 21251
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Auger Platform
  • Model
    896
Details
Table of Contents:
   Introduction
      Foreword
      Service Technician Response
   General
      Safety
      Specifications
      General Information
      Lubrication
   Platform Drives
      General Information
      Components
      Knife Drive Sheave and Belt
      Reel Drive
      Auger Drives

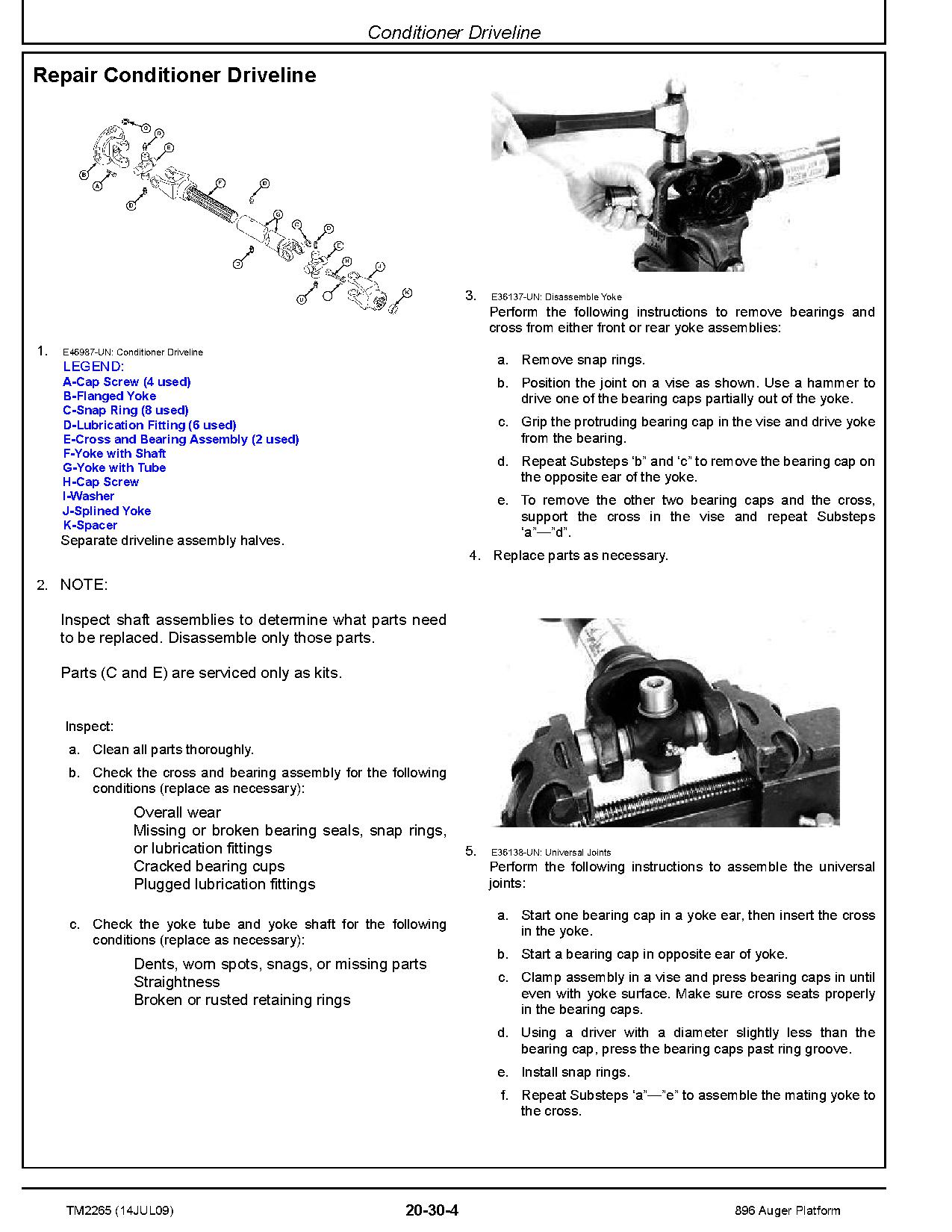

      Conditioner Driveline
      Main Gear Case

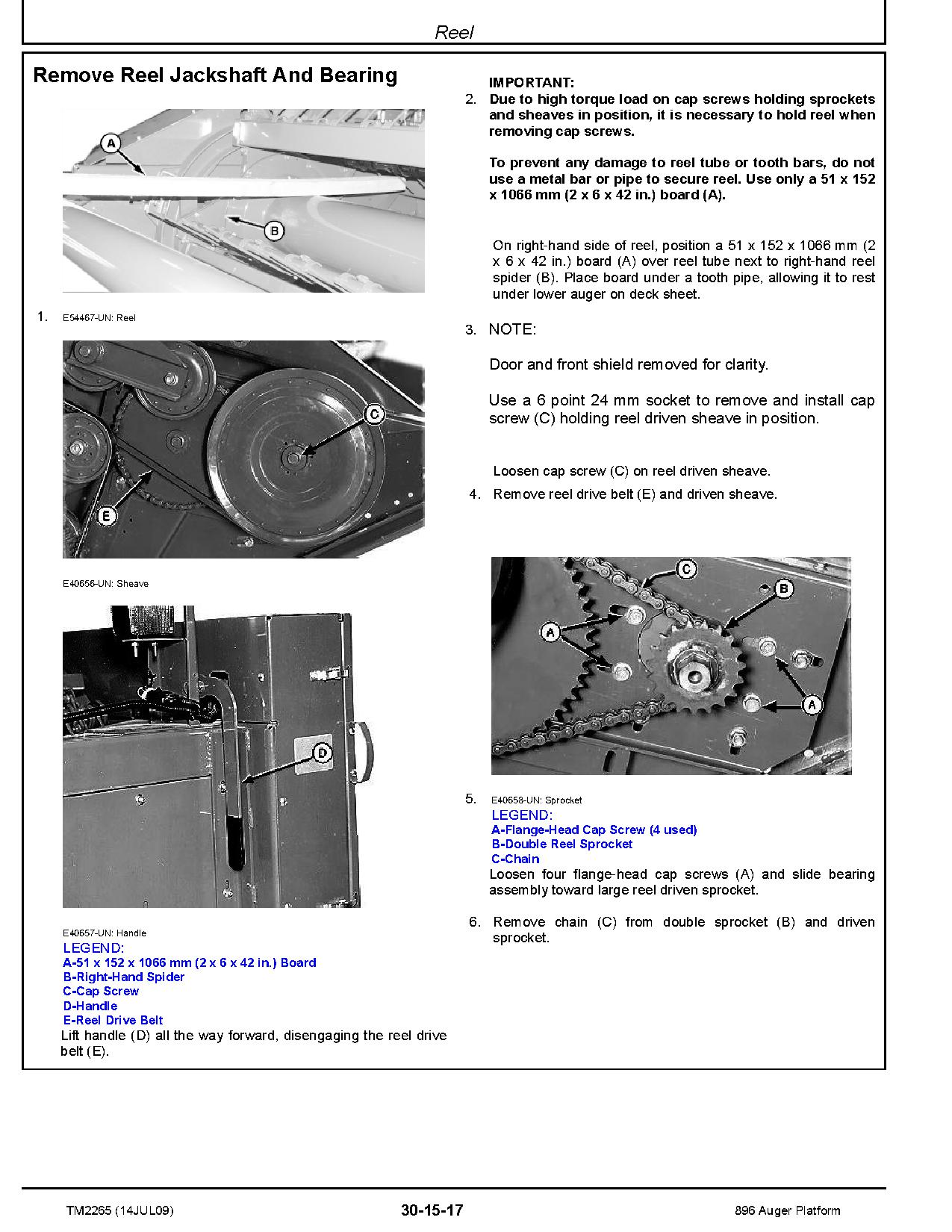

   Reel
      Reel
      Reel Cam and Reel Cam Followers
      Reel Teeth, Reel Bar, and Reel Bar Bearings

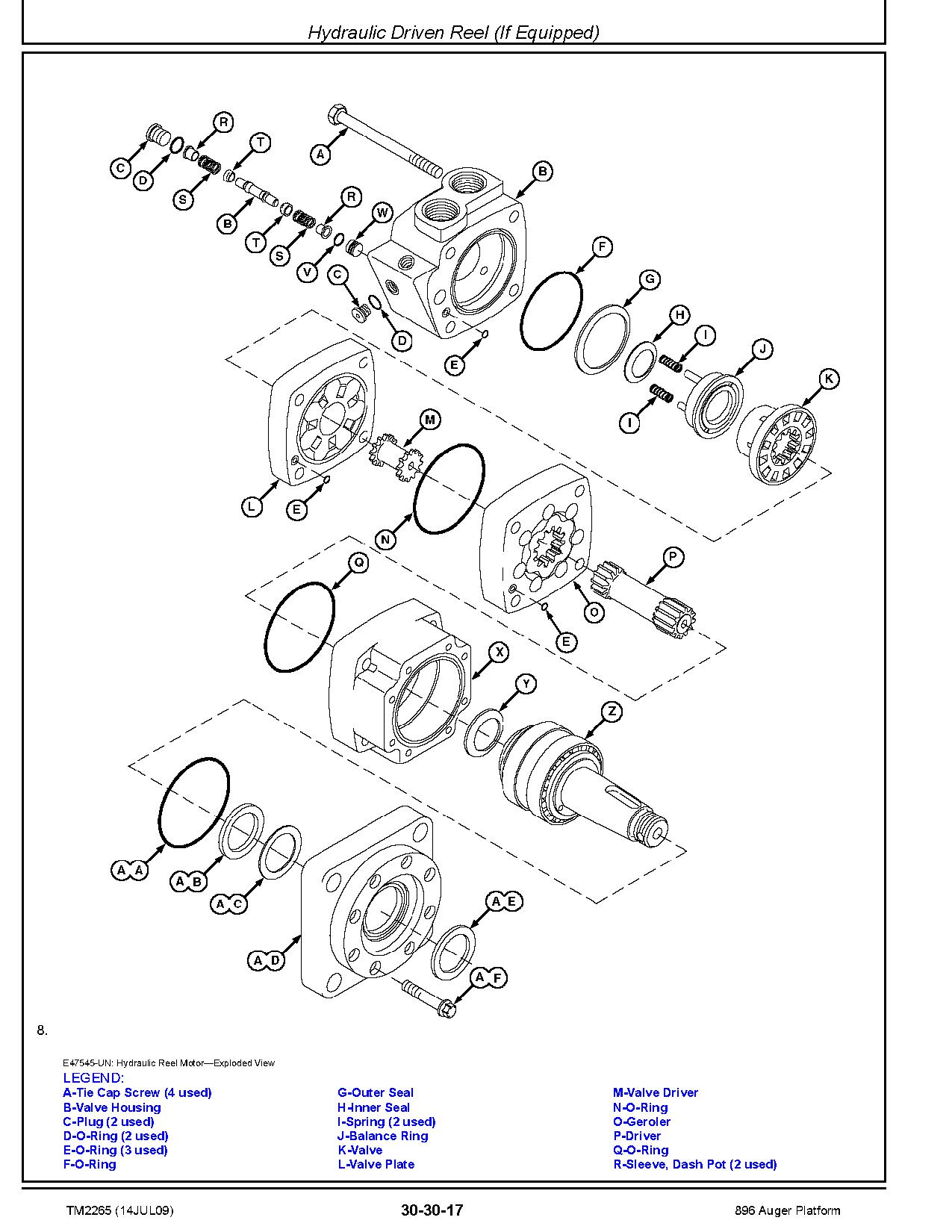

      Hydraulic Driven Reel (If Equipped)
   Augers
      General Information
      Components
      Adjust Strippers to Augers
      Auger Bearings and End Shafts
      Upper and Lower Augers
   Cutterbar and Cutting Components
      General Information
      Knife Sections
      Knives
      Knife Drive
      Cutterbar
   Electrical System
      General Information
      Turn/Warning Lights
      Connector Repair
   Conditioner
      General Information
      Conditioner Roll Adjustments
      Conditioner Roll Bearings Repair
      Conditioner Rolls Repair
