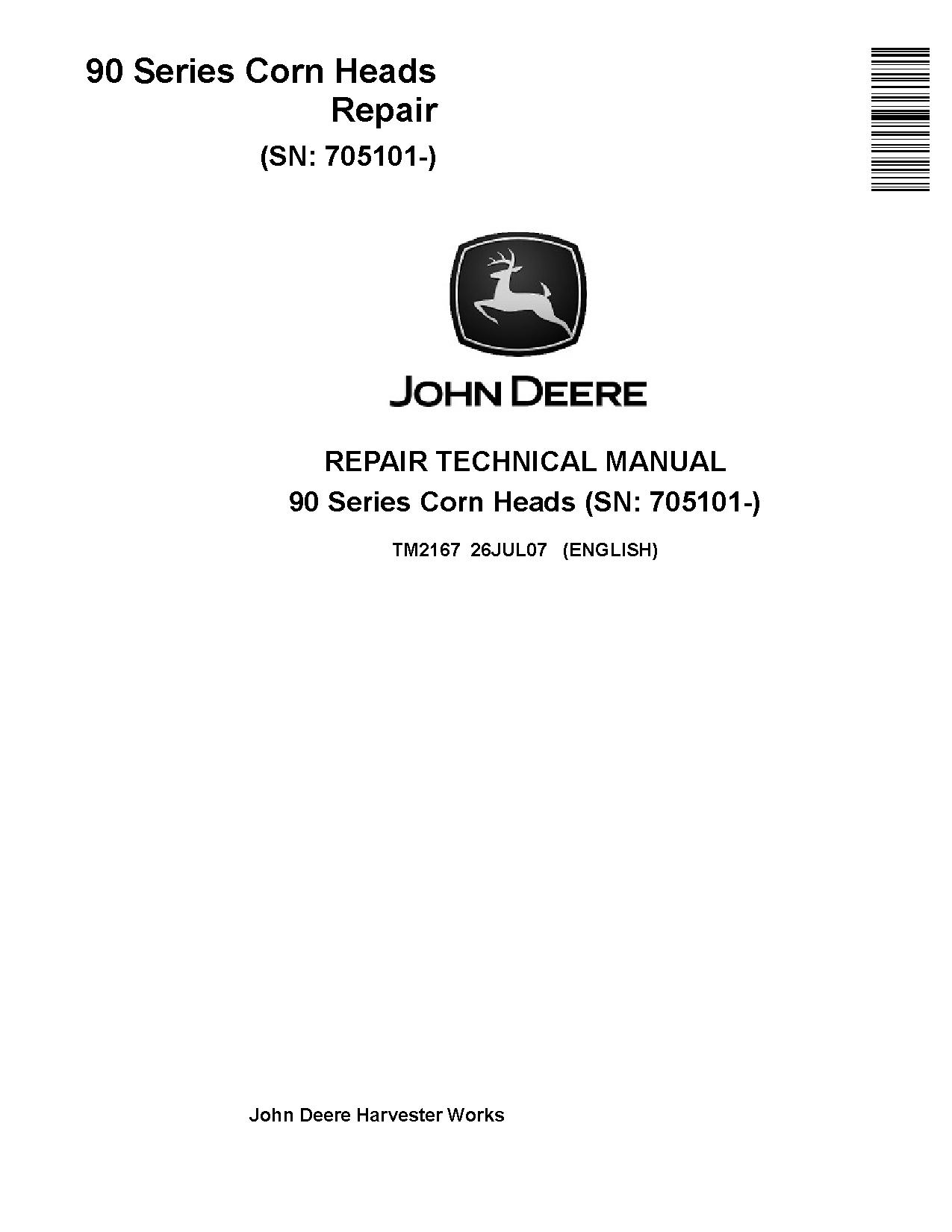

John Deere 1290, 1291, 1293, 494, 592, 692, 693, 694, 892, 893 and 894 Corn Heads Repair Manual (TM2167)

Number: 21282
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Corn Head
  • Model
    494, 592, 692, 693, 694, 892, 893, 894, 1290, 1291, 1293
  • Serial Number
    705101-, 705201-, 705251-, 705351-, 705401-, 705501-, 705601-, 705651-, 705701-, 705751-, 705801-
  • Serial Number
    705101-, 705201-, 705251-, 705351-, 705401-, 705501-, 705601-, 705651-, 705701-, 705751-, 705801-
Details
Table of Contents:
   Introduction
      Foreword
      John Deere Dealers
   General
      Safety
      Identification
      Specifications
   Electrical
      Bulbs

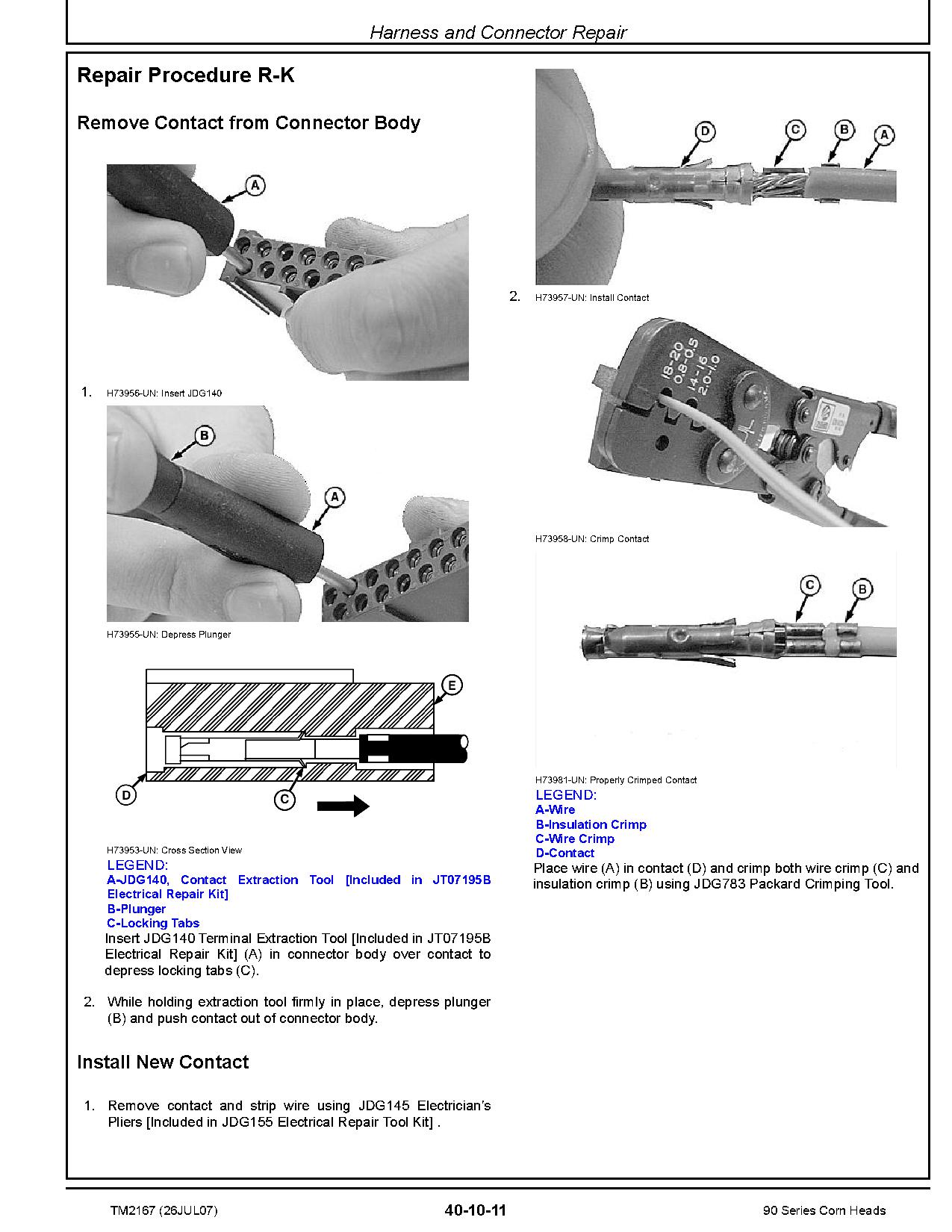

      Harness and Connector Repair
      Harness Routing
      Sensors
   Drives
      Row Unit Gear Case Repair
      Slip Clutch Repair

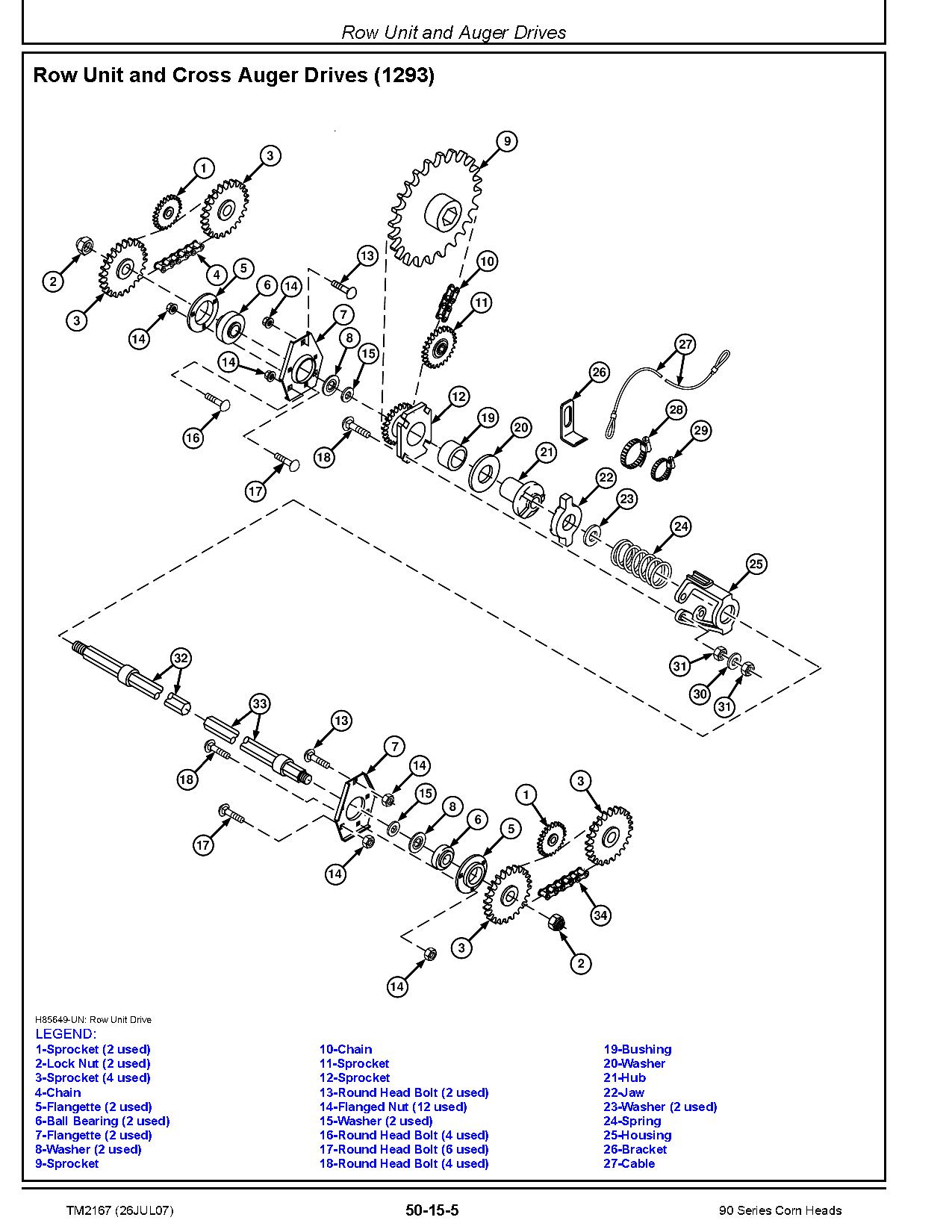

      Row Unit and Auger Drives
      STALKMASTER Chopping Head (Optional)

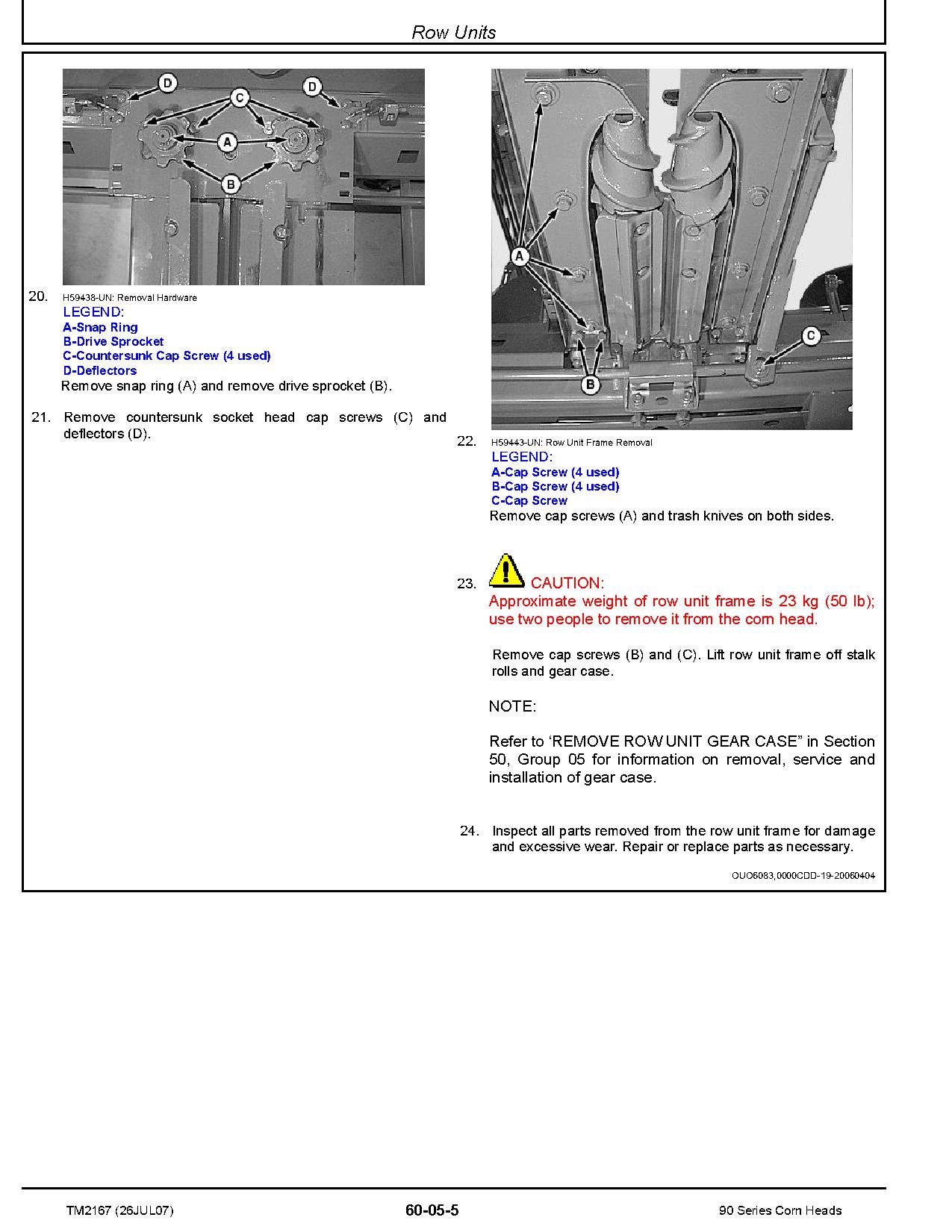

   Row Units
      Row Units
   Hydraulic System
      Hydraulic System
      Multi-Coupler
   Augers
      Augers
