John Deere 109R and 112R Cutting Platforms Technical Manual (TM125519)

Number: 21223
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Cutting Platform
  • Model
    109R, 112R
Details
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      Serial Numbers
      Specifications
      Dimensions
   109R and 112R Cutting Platform

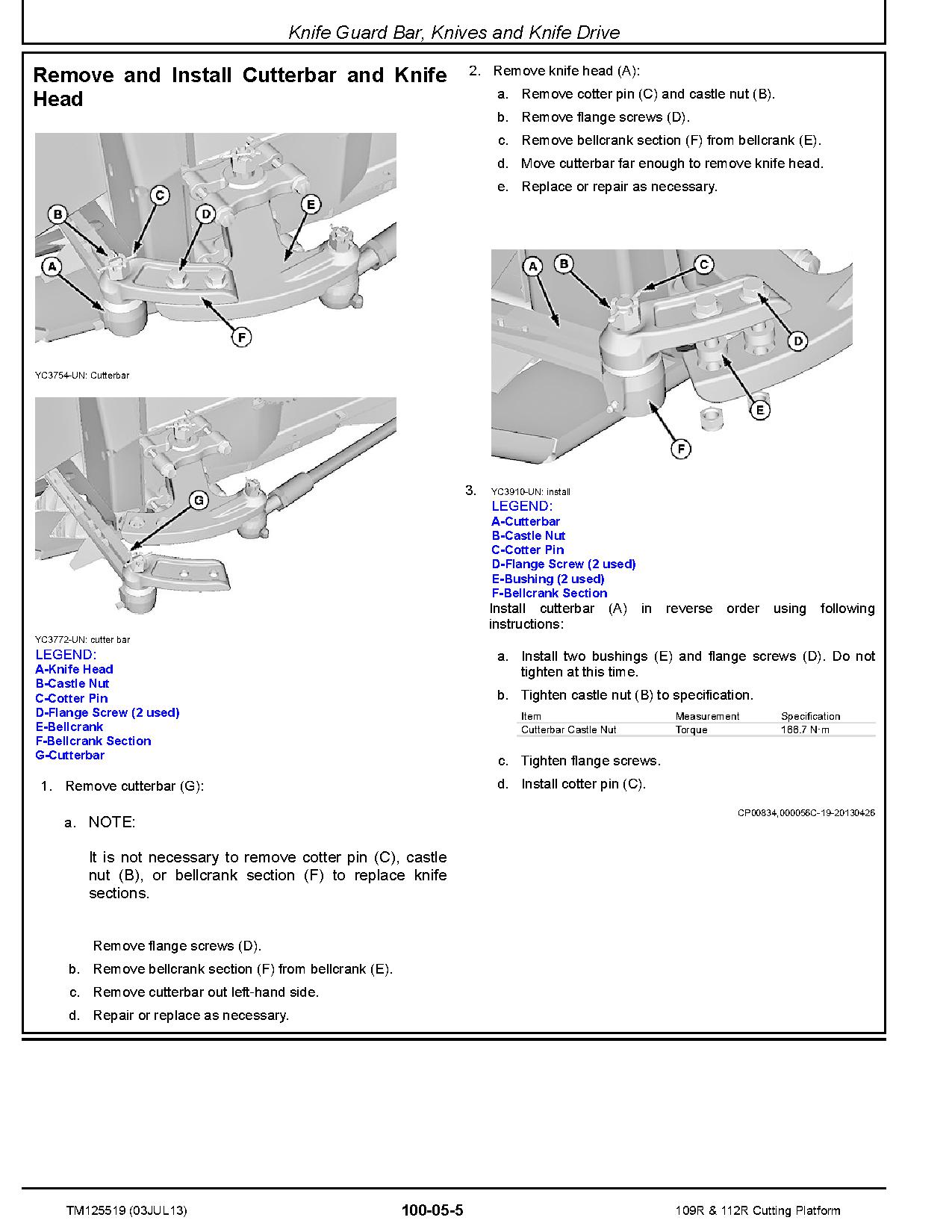

      Knife Guard Bar, Knives and Knife Drive
      Cutting Platform Auger

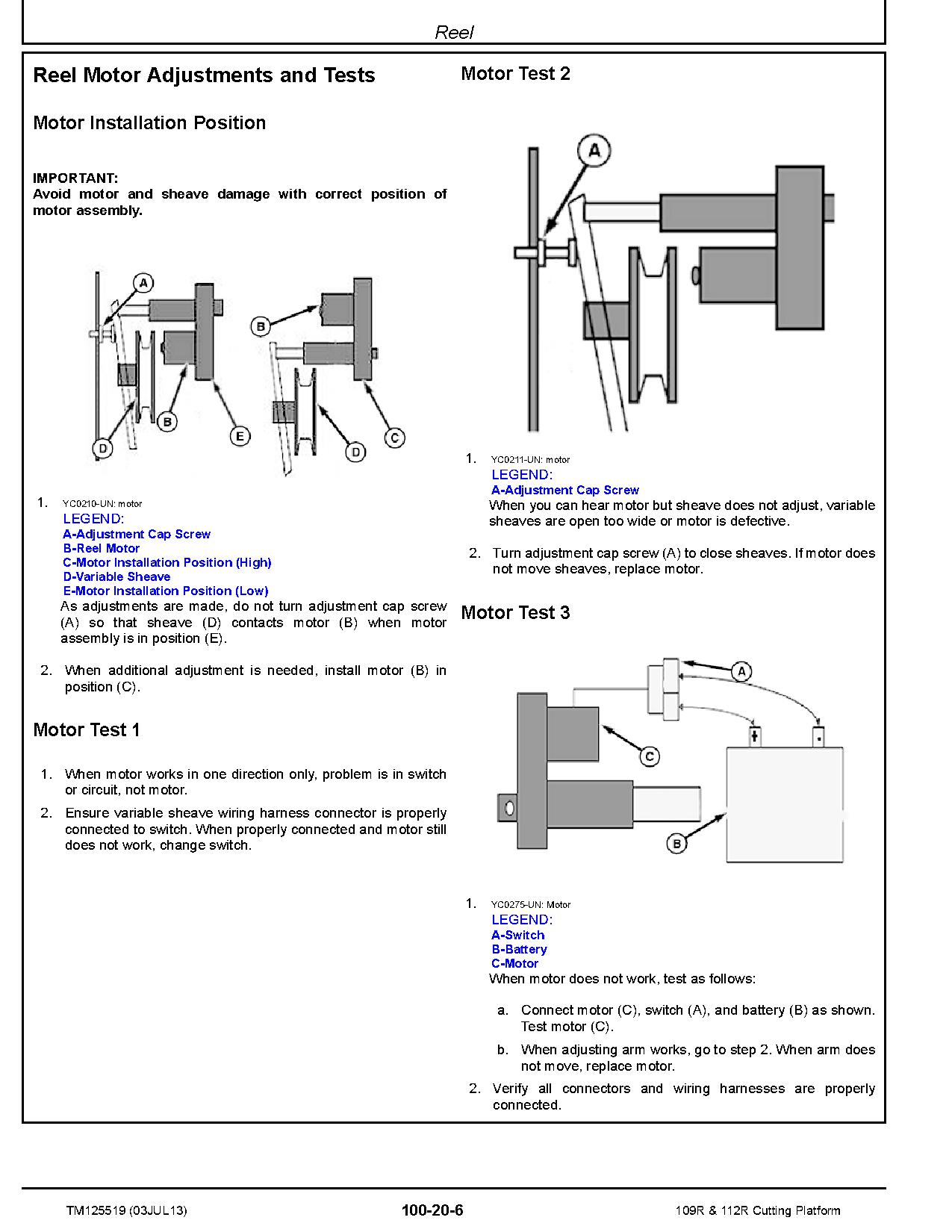

      Reel Drive
      Reel
      Lift Cylinders and Hydraulic Lines
