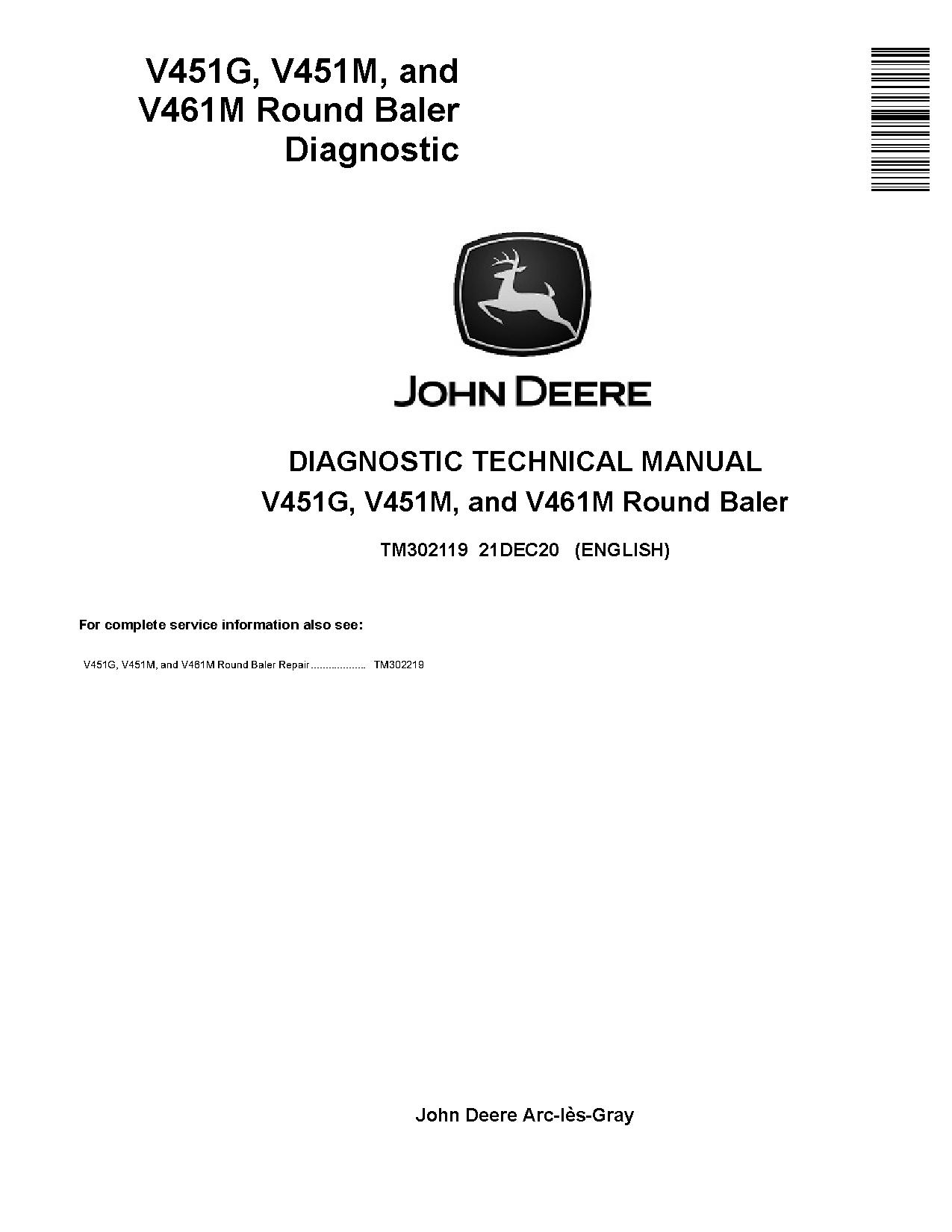

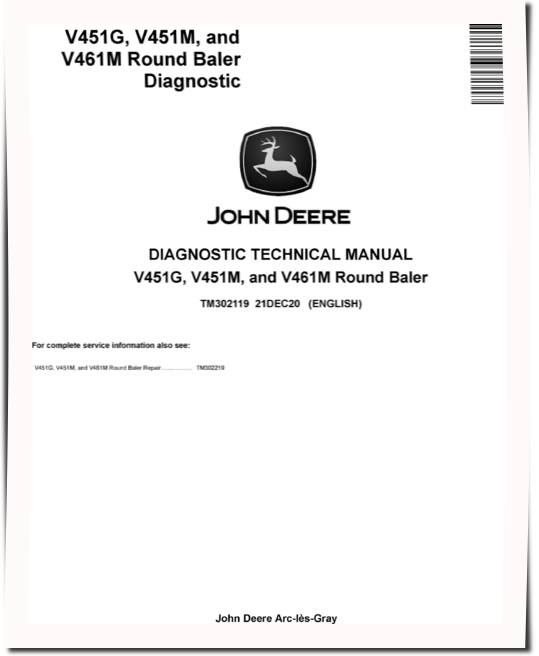

John Deere V451G, V451M and V461M Round Balers Diagnostic Manual (TM302119)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

John Deere V451G, V451M and V461M Round Balers Diagnostic Manual (TM302119)

Number: 20572
Available
Add to Wishlist
Specifications
  • Type Of Document
    Diagnostic Manual
  • Type of equipment
    Round Baler
  • Model
    V451G, V451M, V461M
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety Information
      General References
   Diagnostic Trouble Codes
      Description
   Diagnostic Trouble Codes for BaleTrak Control
      Description
      Battery Voltage
      Bale Size Potentiometer RB311
      Right Bale Shape Potentiometer RB322
      Left Bale Shape Potentiometer RB321
      Twine Actuator MB421
      E21XA - Net Actuator MB411
      E21XB - B-Wrap Binding
      Soft Core Solenoid Valve YB354
      Pickup Lift Solenoid Valve YB511
      Precutter Knife Set 1 Solenoid Valve YB551
      Drop Floor Solenoid Valve YB531 and YB532
      Baler Rotation Speed Sensor SB365
      Twine Pulley Sensors SB421 and SB422
      Net Cut Sensor SB414
      Gate Latch Sensor SB3310 and SB3311
      Oversize Bale Switch SB311
      Positive Analog Reference
      EPROM
   Diagnostic Trouble Codes for Virtual Terminal Baler
      Description
      Diagnostic Trouble Codes List
   Troubleshooting
      Bale Density and Gate Control - Troubleshooting
   Electrical System - BaleTrak Baler
      General Information for BaleTrak Baler
      Schematic - BaleTrak Baler
      Power Supply Diagnostic Schematic - BaleTrak Baler
      Net Binding Diagnostic Schematic - BaleTrak Baler
      Twine Binding Diagnostic Schematic - BaleTrak Baler
      B-Wrap Diagnostic Schematic - BaleTrak Baler
      Density Diagnostic Schematic - BaleTrak Baler
      Bale Management Diagnostic Schematic - BaleTrak Baler
      Gate Diagnostic Schematic - BaleTrak Baler
      Feeding Diagnostic Schematic - BaleTrak Baler
      Road Light Diagnostic Schematic - BaleTrak Baler
      Working Light Diagnostic Schematic - BaleTrak Baler
      Speed Management Diagnostic Schematic - BaleTrak Baler
      Diagnostic Tests - BaleTrak Baler

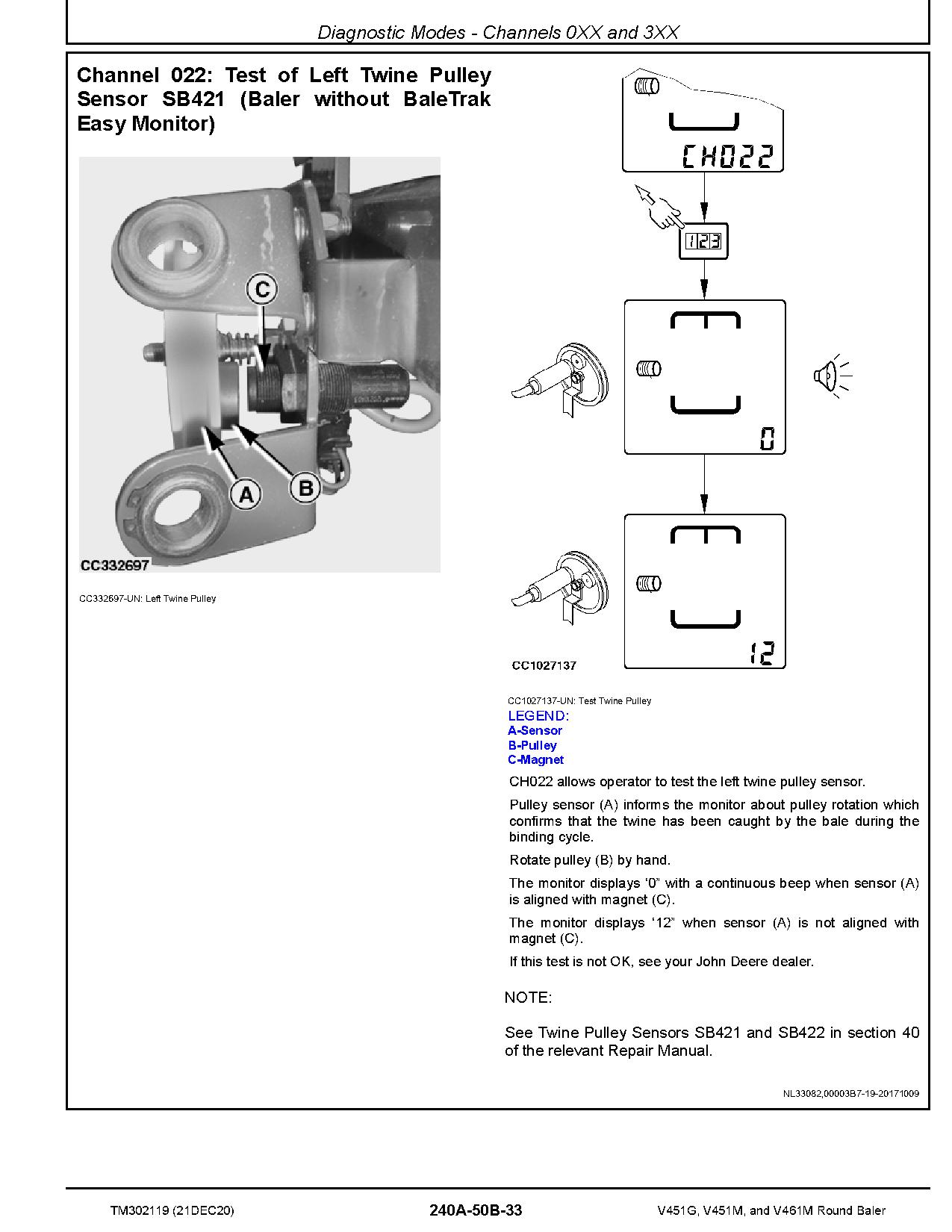

      Diagnostic Modes - Channels 0XX and 3XX
      Machine Setup - Channels 2XX
   Electrical System - Virtual Terminal Baler
      Schematic - Virtual Terminal Baler
      Power Supply Diagnostic Schematic - Virtual Terminal Baler
      Communication Diagnostic Schematic - Virtual Terminal Baler
      Net Binding Diagnostic Schematic - Virtual Terminal Baler
      Twine Binding Diagnostic Schematic - Virtual Terminal Baler

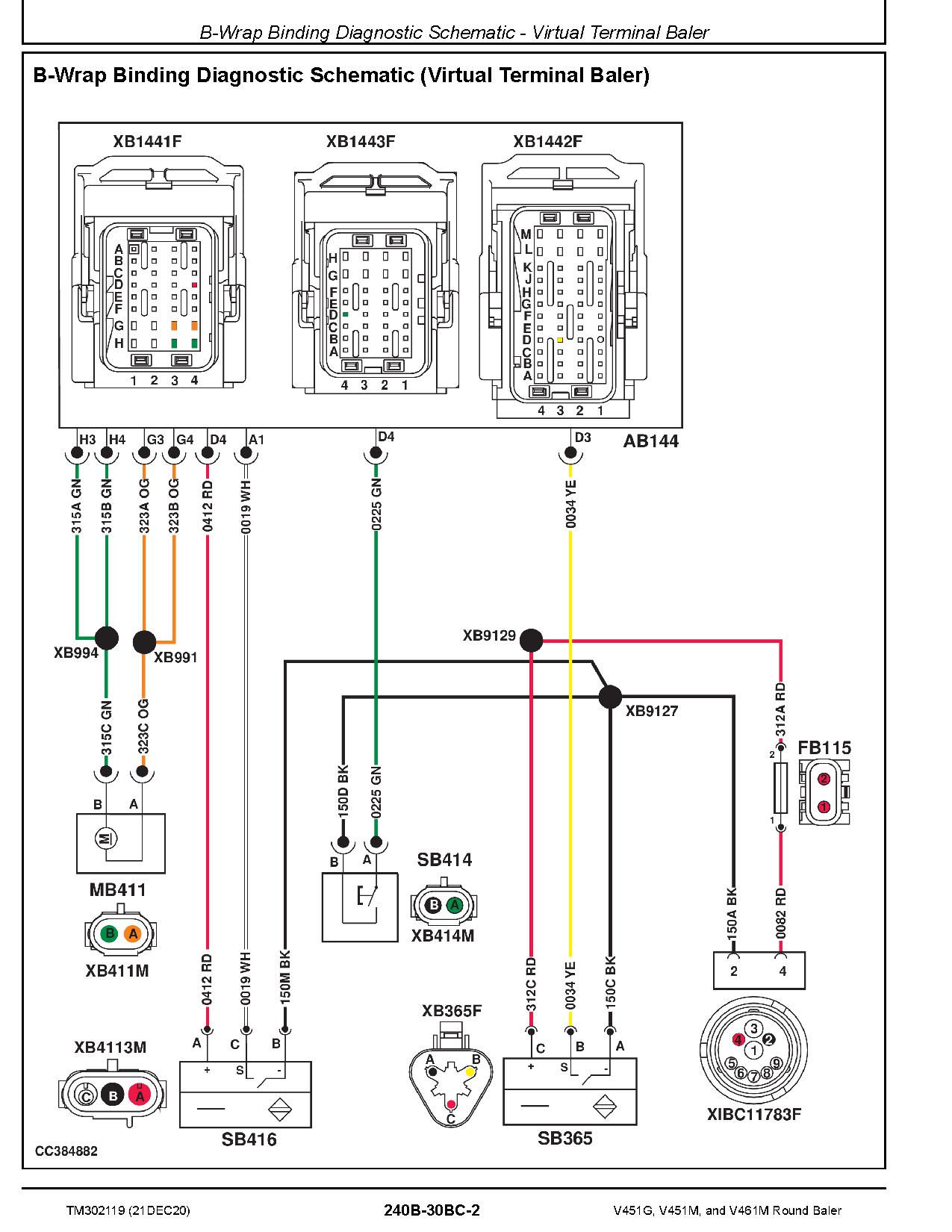

      B-Wrap Binding Diagnostic Schematic - Virtual Terminal Baler
      Density Diagnostic Schematic - Virtual Terminal Baler
      Bale Management Diagnostic Schematic - Virtual Terminal Baler
      Gate Diagnostic Schematic - Virtual Terminal Baler
      Feeding Diagnostic Schematic - Virtual Terminal Baler
      Road Light Diagnostic Schematic - Virtual Terminal Baler
      Working Light Diagnostic Schematic - Virtual Terminal Baler
      Speed Management Diagnostic Schematic - Virtual Terminal Baler
      Diagnostic Tests - Virtual Terminal Baler
      Diagnostic Modes - Virtual Terminal Baler
      Machine Setup - Virtual Terminal Baler
   Connector and Component Information
      Electrical Component Location
      Component Information - Assemblies
      Component Information - Lights
      Component Information - Fuses
      Component Information - Signalling Device
      Component Information - Relays
      Component Information - Actuators
      Component Information - Terminating Resistors
      Component Information - Potentiometers
      Component Information - Sensors and Switches
      Component Information - Semiconductors

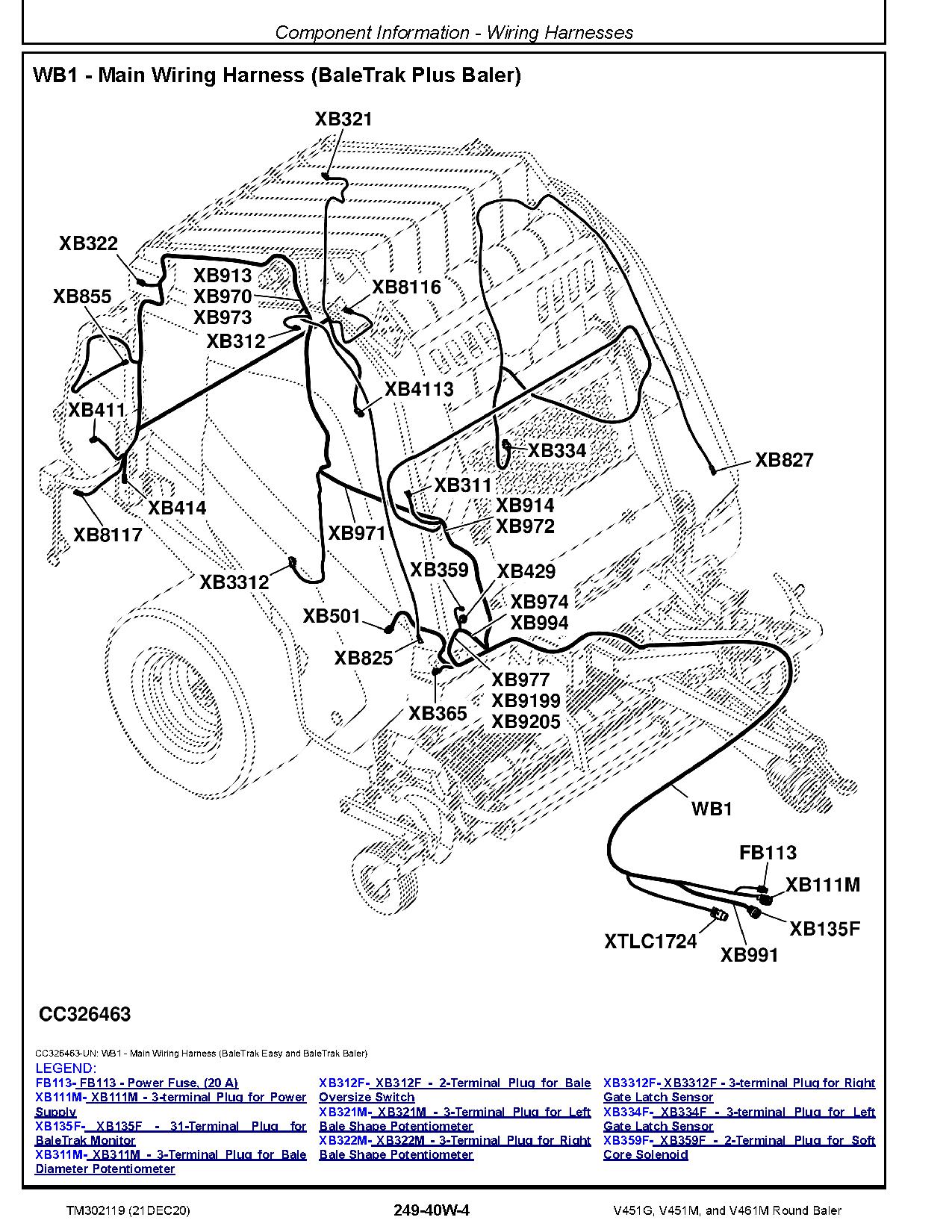

      Component Information - Wiring Harnesses
      Component Information - Connectors (XB101 to XB199)
      Component Information - Connectors (XB301 to XB399)
      Component Information - Connectors (XB401 to XB499)
      Component Information - Connectors (XB501 to XB599)
      Component Information - Connectors (XB801 to XB899)
      Component Information - Splices (XB901 to XB999)
      Component Information - Connectors (Others)
      Component Information - Solenoids
   Lubrication System - Operation and Tests
      Theory of Operation
      Component Location
   Pneumatic Brake System - Operation and Tests
      Safety
      Pneumatic Brake System - Description
      Pneumatic Brake System - Tests
   Hydraulic Brake System - Operation and Tests
      Hydraulic Brake System - Description
      Hydraulic Brake System - Tests
   Hydraulic System
      Hydraulic Systems - Safety and General Information
      Hydraulic Systems - Theory of Operation
      Hydraulic Schematic: Bale Density - Gate Control
      Hydraulic Schematic: Rotary Feeder
      Hydraulic Systems - Diagnostic Tests and Adjustments
   Hydraulic System - Component Information
      Hydraulic Connections
      Hydraulic Component Information
   Special Tools
      Special Tools - Dealer-Fabricated
      Special Tools (Available as Spare Parts)
      Section 211A
      Section 211B
      Section 240A
      Section 240B
      Section 260A
      Section 260B
