John Deere 42 Bale Ejectors Technical Manual (TM1584)

Number: 23111
Available
Add to Wishlist
Specifications
  • Type of equipment
    Bale Ejector
  • Model
    42
Details
Table of Contents:
    GENERAL

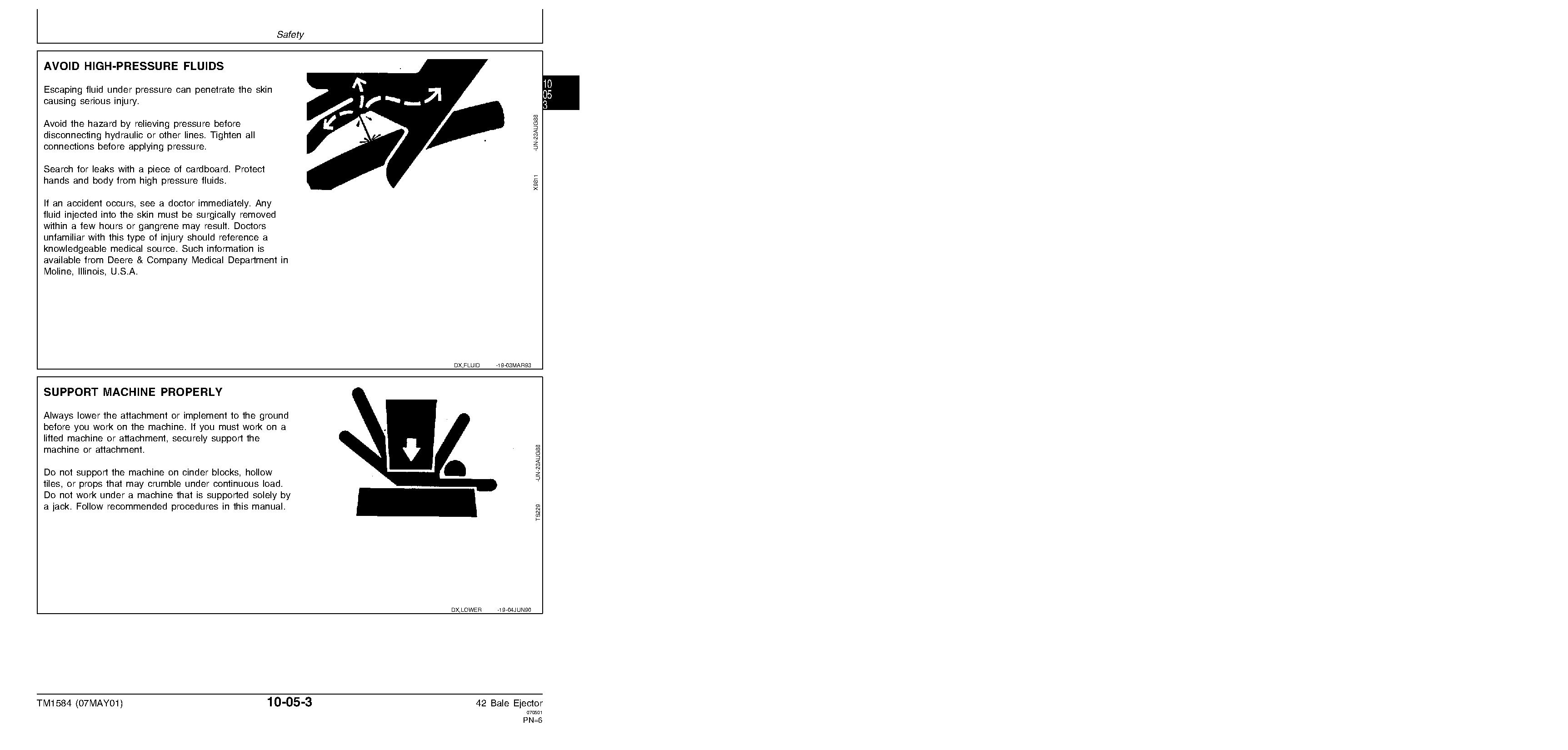

      Safety
      Machine Description
      Specifications and Torques
      Lubrication
   ELECTRICAL SYSTEM

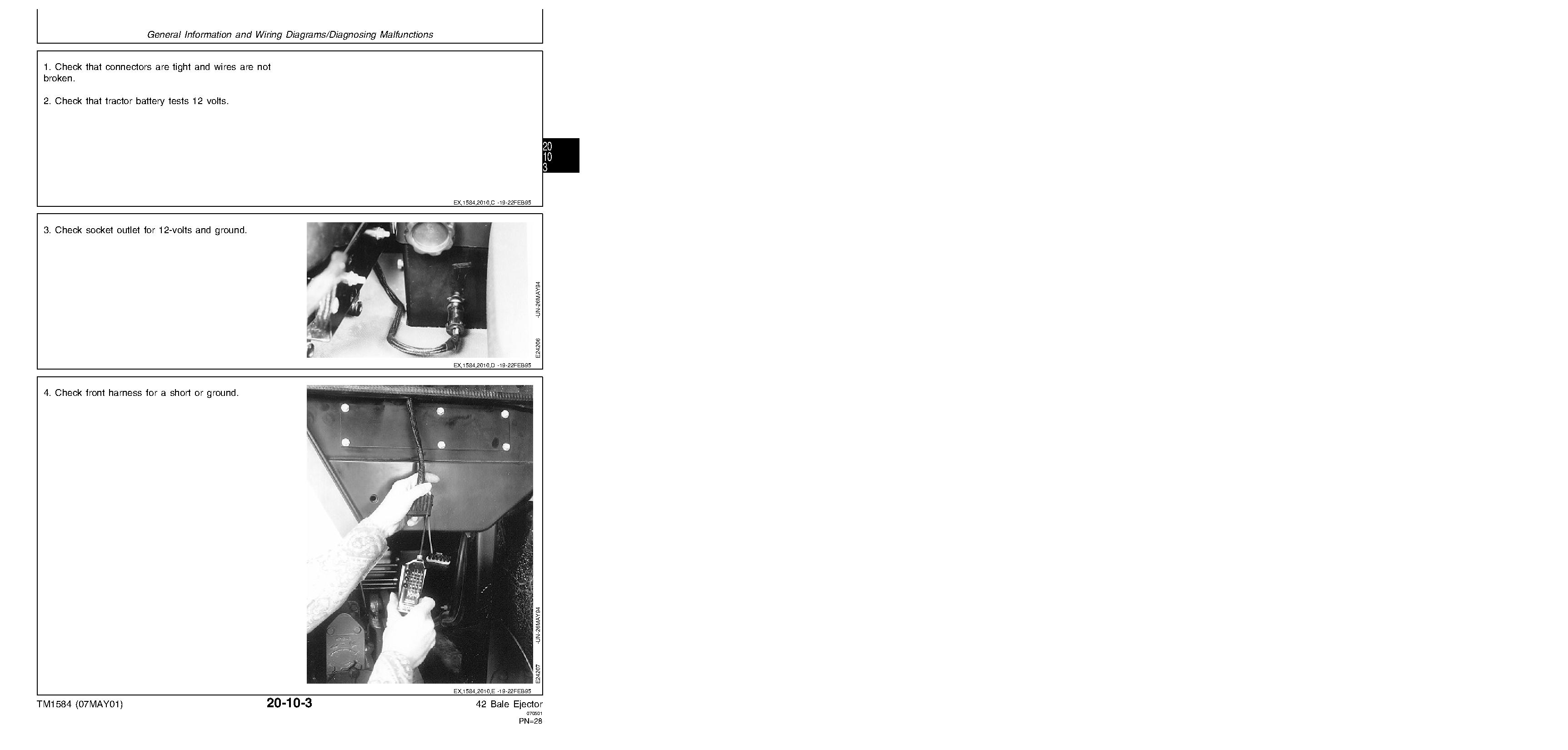

      Diagnosing Malfunctions
      General Information and Wiring Diagrams

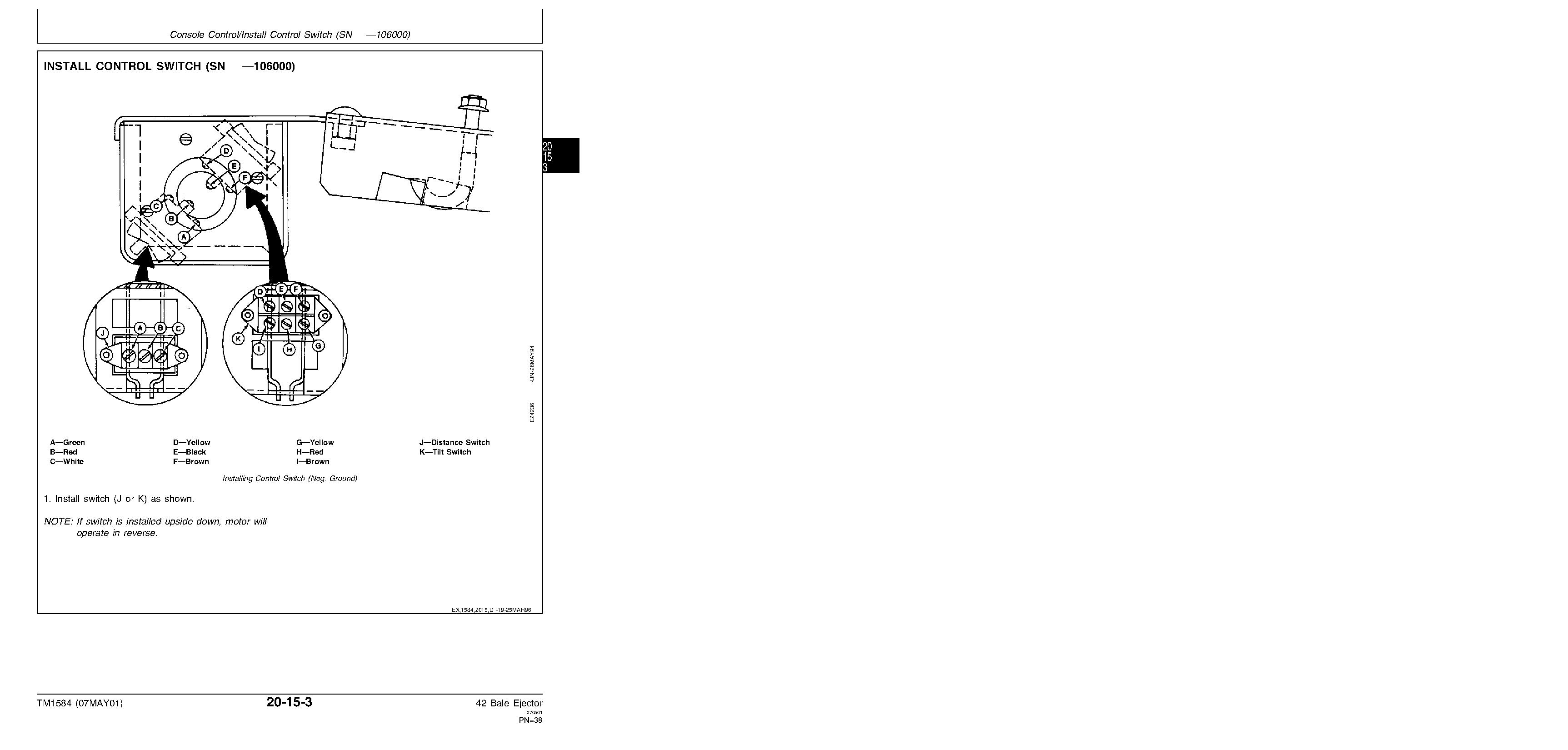

      Console Control
   HYDRAULIC SYSTEM
      General Information
      Diagnosing Malfunctions
      Hydraulic System Tests
      Hydraulic Pump
      Control Valve
      Throwing Cylinder
      Tilt Cylinder
      Latch Cylinder
   EJECTOR
      General Information
   Index
