John Deere 460R, 460R Precutter, 560R and 560R Precutter Round Balers (North American Edition) Technical Manual (TM148019)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

John Deere 460R, 460R Precutter, 560R and 560R Precutter Round Balers (North American Edition) Technical Manual (TM148019)

Number: 20545
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Round Baler
  • Model
    460R, 560R
Details
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      Specifications
      General Information
      Lubricants
   Drive Train

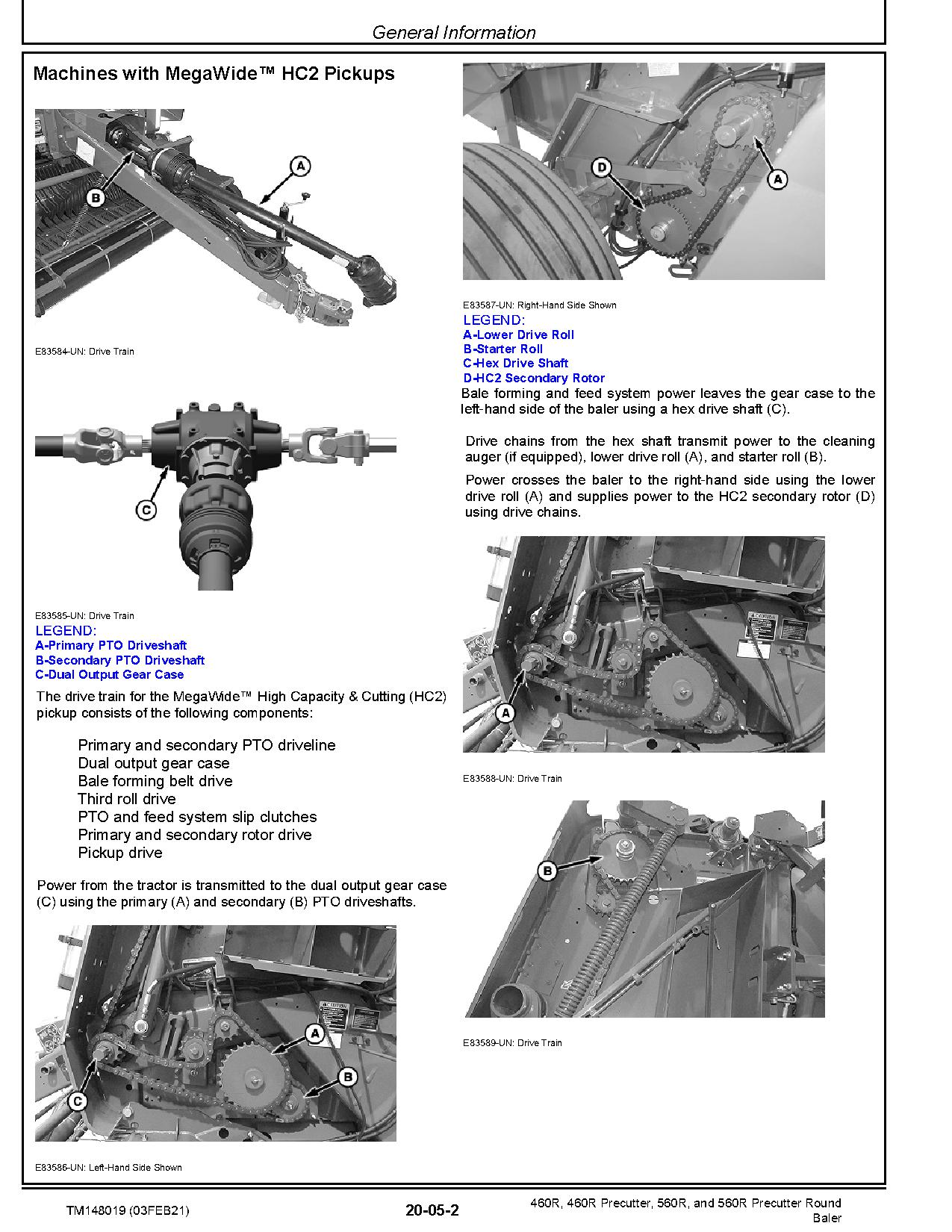

      General Information
      Diagnosing Malfunctions
      Drive Train Protection

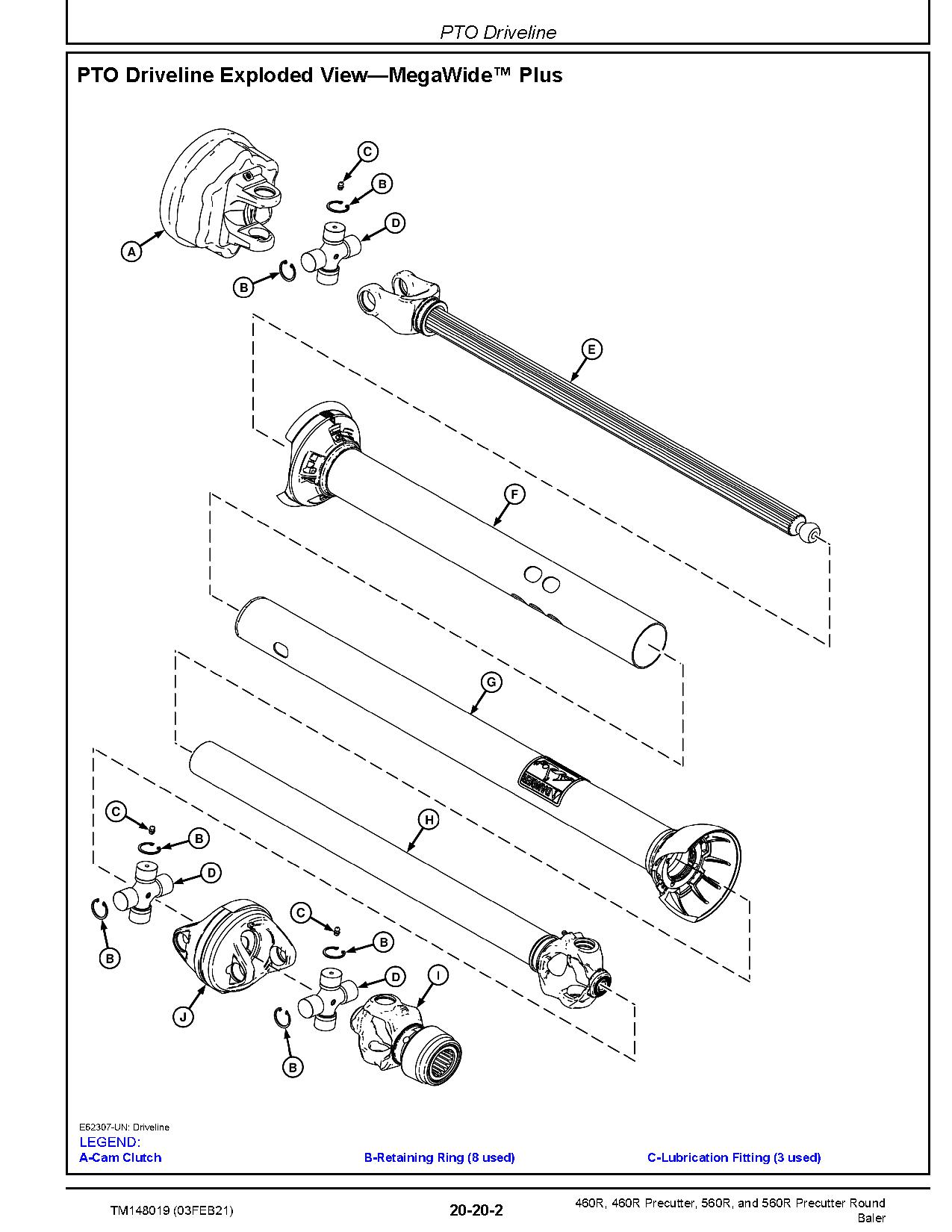

      PTO Driveline
      Gear Case Repair
      T-Gear Case Repair
      Roll Drives
      Third Roll Drive
      Rolls
      Miscellaneous
   Hydraulics
      General Information
      Diagnosing Malfunctions
      Operation and Tests
      Valve Repair
      Cylinder Repair
   Twine Application
      General Information
      Diagnosing Malfunctions
      Twine System Adjustments
      Twine System Repair
   CoverEdge
      General Information
      Diagnosing Malfunctions
      CoverEdge Repair
   Electrical System
      Common Electrical Tests and Checks
      Tests and Adjustments-ISOBUS Display
      ISOBUS Display Operations
      Repair-GreenStar Display

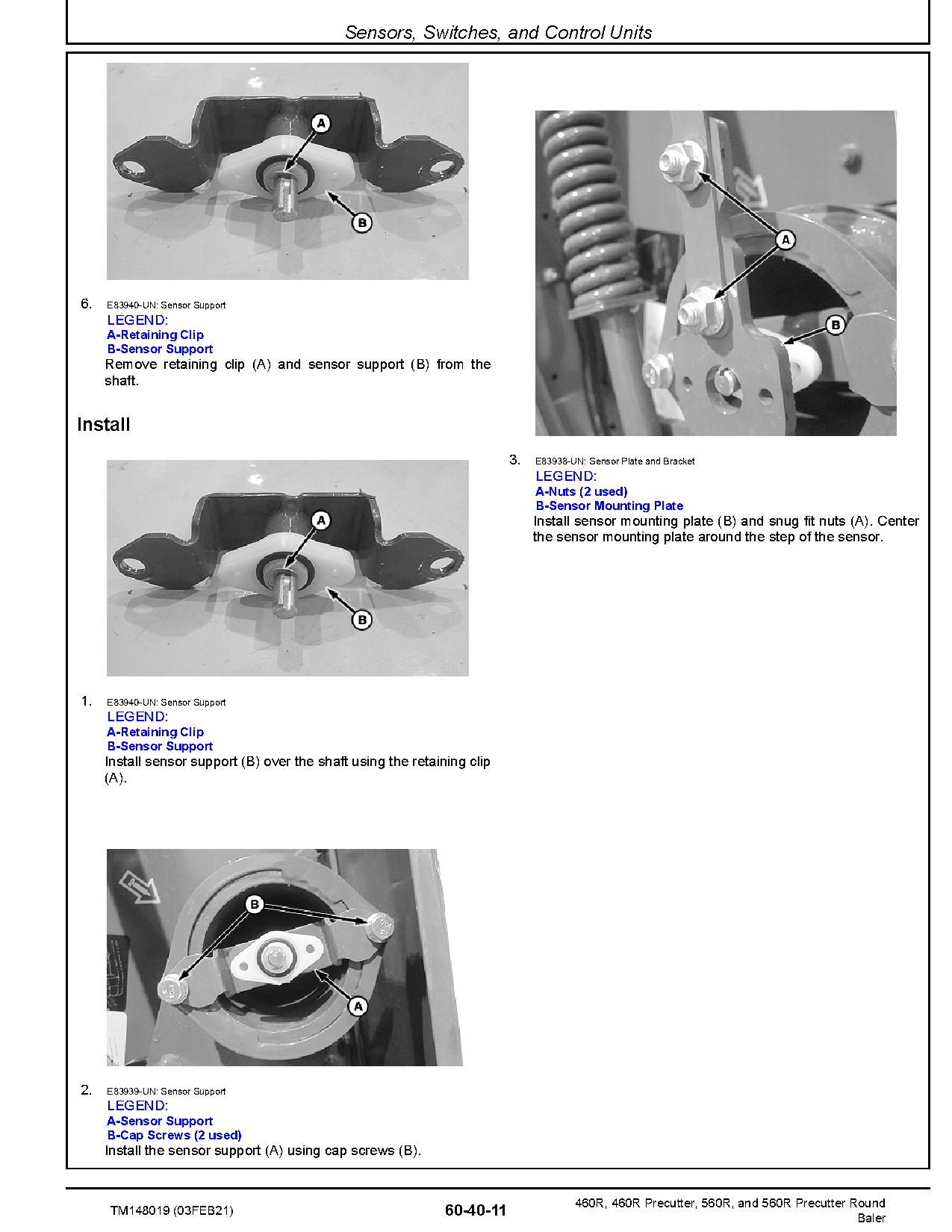

      Sensors, Switches, and Control Units
      Wire Harness
      Connector Repair
   Feed System
      General Information
      Diagnosing Malfunctions
      MegaWide Pickup Common Repair
      MegaWide Plus Pickup Repair (Non-Precutter)
      MegaWide Pickup Repair (Precutter)
      Precutter Repair (If Equipped)
      Rotor Repair-MegaWide HC2 Pickup
      Gauge Wheels
   Miscellaneous
      Wheel Repair
      Gate Repair
      Tension Arm Repair
      Tongue Repair
      Belt Repair
      Main Frame Repair
   Dealer Fabricated Tools
      Dealer Fabricated Tools
   Diagnostic Trouble Codes
      Diagnostic Trouble Codes
      Round Baler-DTC Codes
   Electrical
      Sensor and Switch Voltage
      Theory of Operation
      Schematics
   Electrical Component Information
      Electrical Assemblies
      Sensors
      Lights
      Switches
      Interconnects and Ground Points
      Electronically Actuated Mechanical Devices
   Hydraulics
      Theory of Operation
      Schematics
   Hydraulic Component Information
      Sensor or Gauge
      Cylinder, Actuator, or Piston
      Check Valve
      Valve Block, Assembly, or Gear Case
      Valve
      Diagnostic Receptacle or Coupler
      Solenoid Valve
