John Deere 430 and 530 Round Balers Technical Manual (TM1276)

Number: 20539
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Round Baler
  • Model
    430, 530
Details
Table of Contents:
   GENERAL
      Safety
      Specifications
      General Information
      Lubrication
   DRIVE TRAIN
      General Information
      PTO Hookup

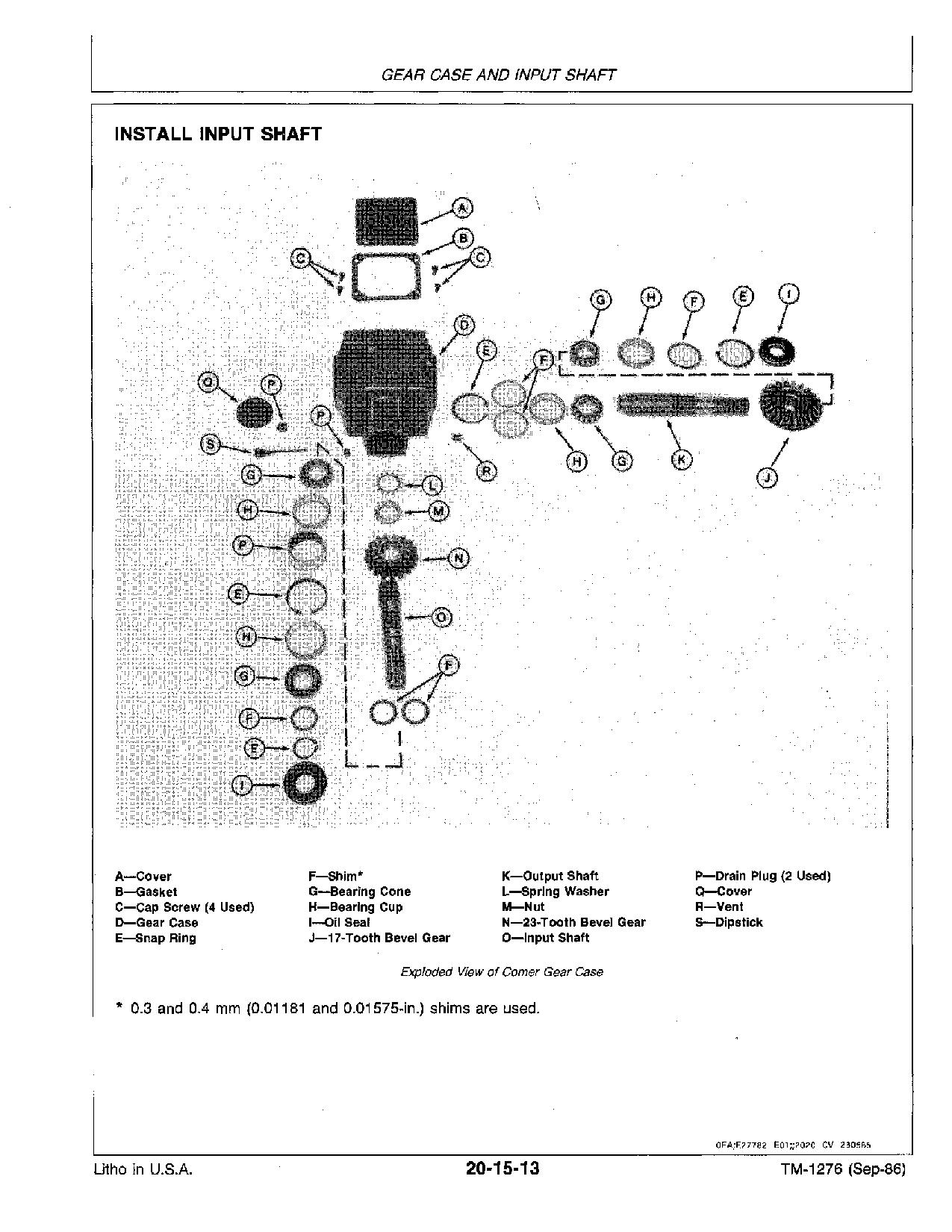

      Gear Case and Input Shaft
      Roil Drives
   HYDRAULICS
      Special Equipment
      General Information, Diagnosis, and Tests

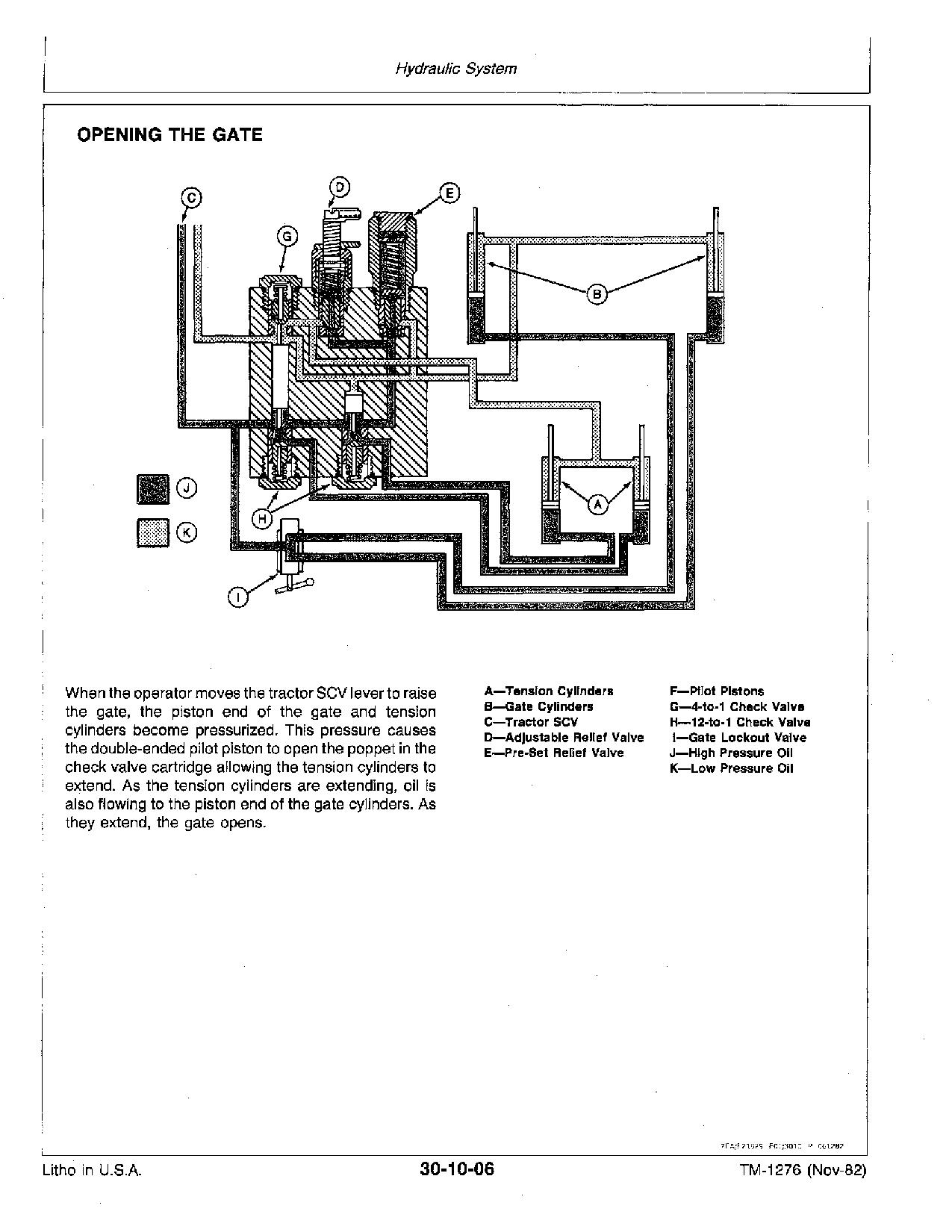

      Hydraulic System
      Cylinders
      Single Spool Valve
   TWINE MECHANISM
      Automatic Twine Wrap System
      Replace and Adjust Components
   ELECTRICAL
      Special Tools

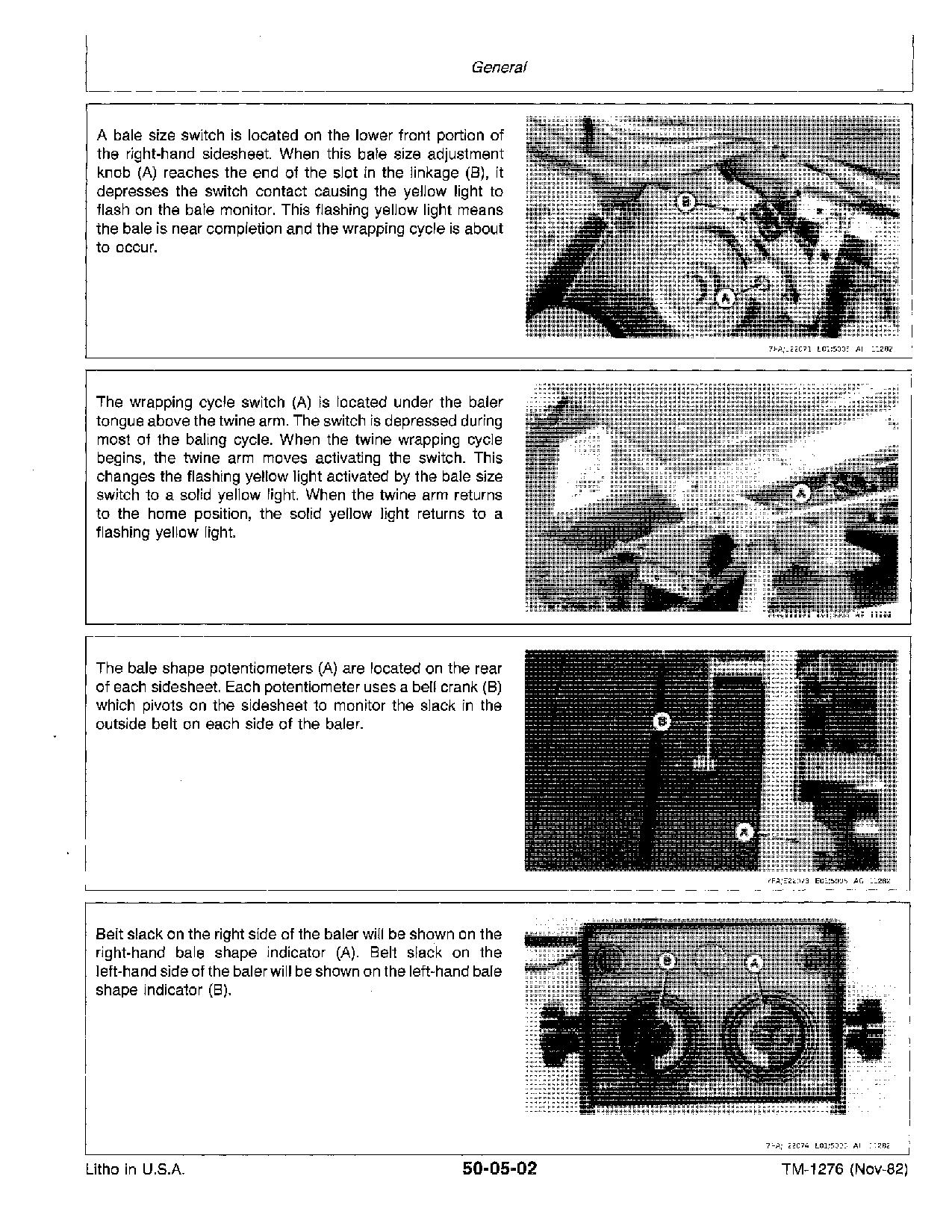

      General
      Diagnosing Electrical Malfunctions
      Electrical Adjustments
      Check Electrical Functions
   PICKUP
      Diagnosing Pickup Malfunctions
      Repair and Replace Components
      Remove Pickup
      Disassemble Pickup
      Pickup Adjustments
   MISCELLANEOUS
      Wheel Hub
      Converging Wheel
      Tension Arm
      Remove Gate
      Remove and Install Tongue
