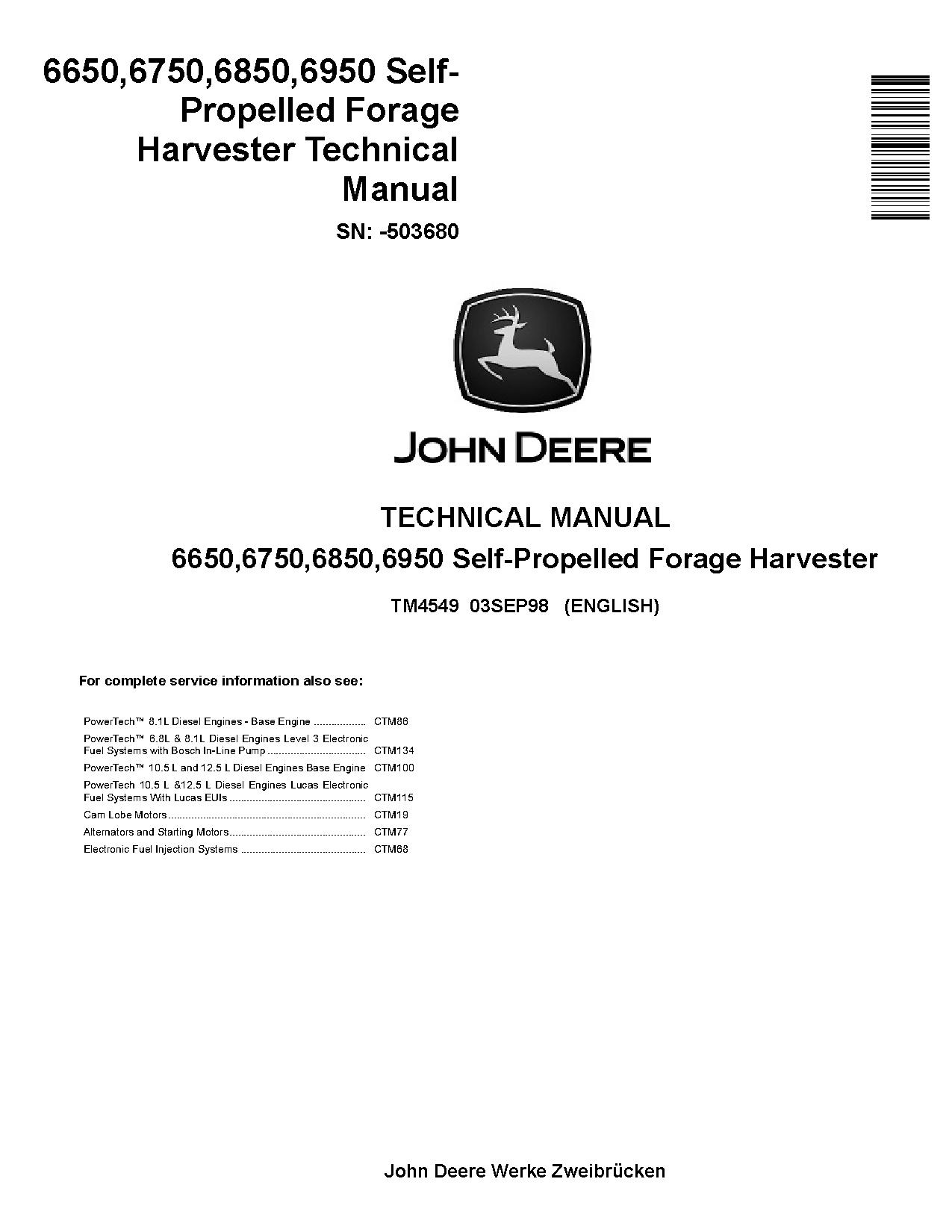

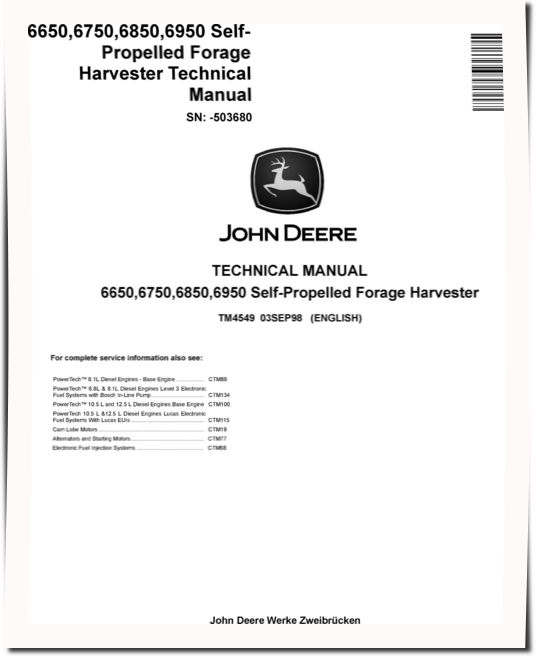

John Deere 6650, 6750, 6850 and 6950 Self-Propelled Forage Harvesters (SN. up to 503680) Technical Manual (TM4549)

Table of Contents:
   Introduction
      Foreword
   Safety
      Safety Information
   General Information
      Fuel, Lubricants and Coolant
      Torques for Hardware
      Serial Numbers
      Dimensions
   Engine
      Removing and Installing Engine
   Fuel, Air Intake and Cooling Systems
      Fuel Tank
      Air Intake System

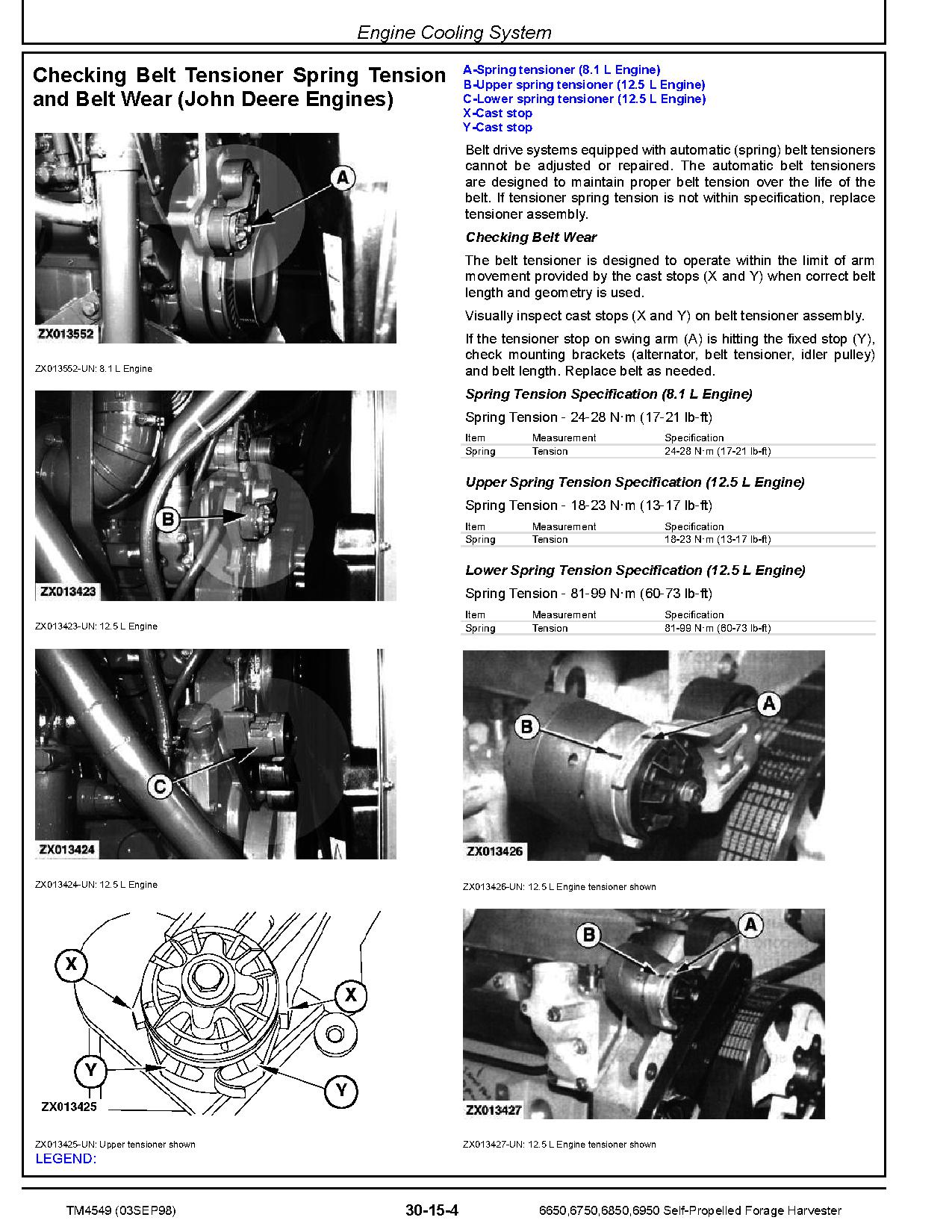

      Engine Cooling System
   Electrical System
      Connectors
      Electrical System Components
   Power Train
      Replacing Main Drive Belt
      Angled Drive
      Transmission and Differential
      Final Drives
      Hydrostatic Drive, Variable Pump
      Hydrostatic Drive, Fixed-Displacement Motor
      Hydrostatic Drive, Oil Change
      Cam Lobe Motor
   Brakes, Steering, Rear Axle
      Brake Operating Assembly
      Brakes
      Hydrostatic Steering
      ROW-TRAK System
      Rear Axle
   Hydraulic System
      Accumulators
      Triple Hydraulic Pump
      Electromagnetic Control Valve
      Reverser Motor
      Hydraulic Motor - Discharge Spout
   Miscellaneous
      Fuel Tank Hood
   Operator`s Cab, Air Conditioning System
      Control Levers
      Cab Ventilation
      Replacing Cab Windows
      R134a Air Conditioning System

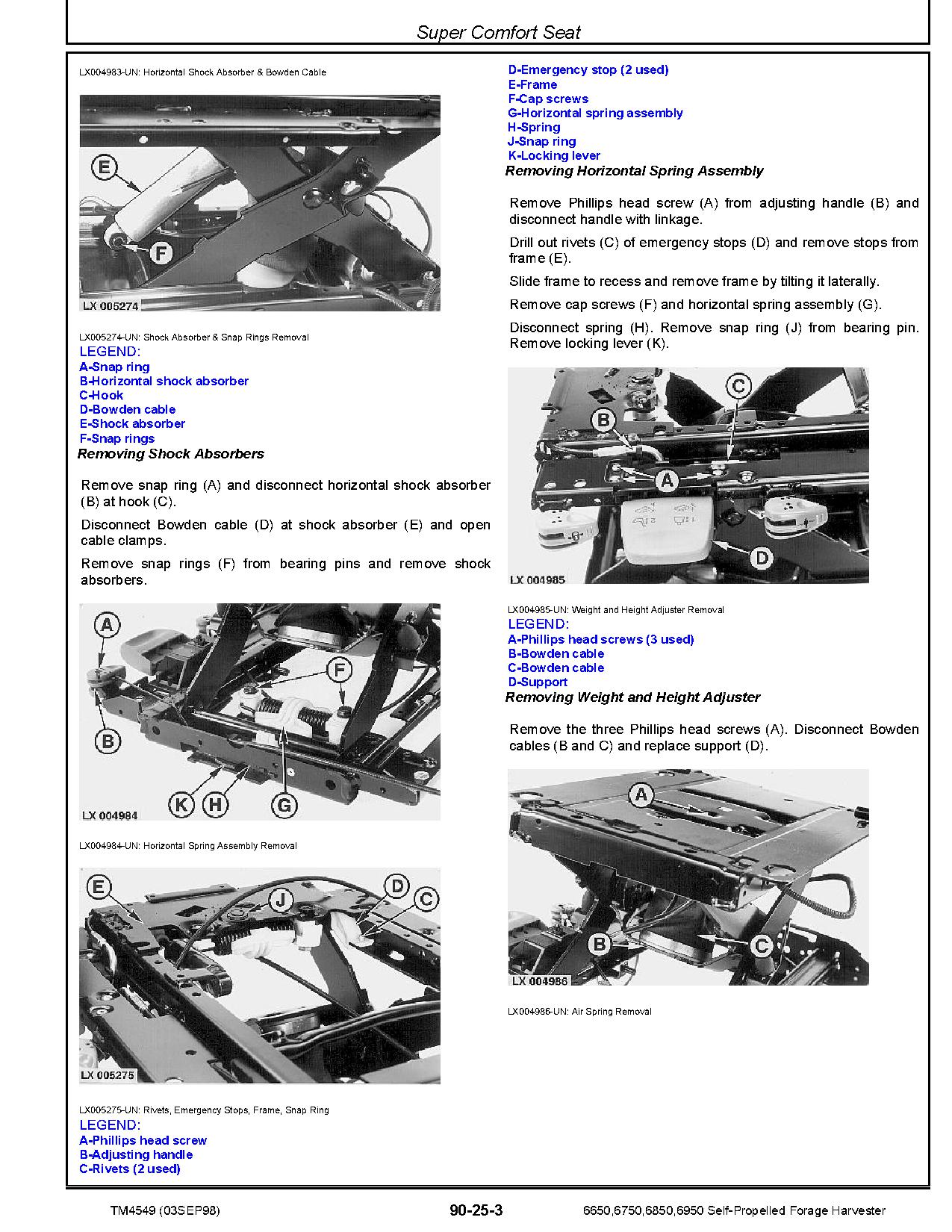

      Super Comfort Seat
   Harvesting Units
      Harvesting Unit Cross Drive
      Harvesting Units
   Feeding System
      Length-of-Cut Transmission
      Reverser Clutch
      Electric Clutch
      Feed Roll Channel
      Feed Roll Assembly
      Locking Pawl
   Cutterhead Assembly
      Knife Sharpening Device
      Cutterhead
      Bottom and Outlet Bands
      Removing and Installing Stationary Knife
      Kernel Processor
      Power Chute
   Discharge Components
      Discharge Fan
      Blower Rotor and Rotor Bearings
      Discharge Spout
   General Information
      Specifications
      Drive Diagrams
      Ballast Charts
      Tread Widths
   Engine
      Engine Specifications
      Engine Tests
   Fuel, Air Intake and Cooling Systems
      Fuel, Air Intake and Cooling Systems
   Electrical System
      General Information
      Test Equipment
      Electrical System Diagrams
      Batteries, Starting Motor, Alternator
      Safety Switches, Basic Relays
      Engine Shut-Off Device
      Instruments
      Electronic INFO-TRAK Monitor
      Turning Discharge Spout
      Raising/Lowering Discharge Spout
      Reel Fore-and-Aft Adjustment
      Raising Reel
      Reel Speed Adjustment
      676 Rotary Harvesting Unit (North America)
      Attaching Trailer
      Raising/Lowering Harvesting Unit
      Pressure Valves, Trailer Dump
      Main Clutch, Reverser

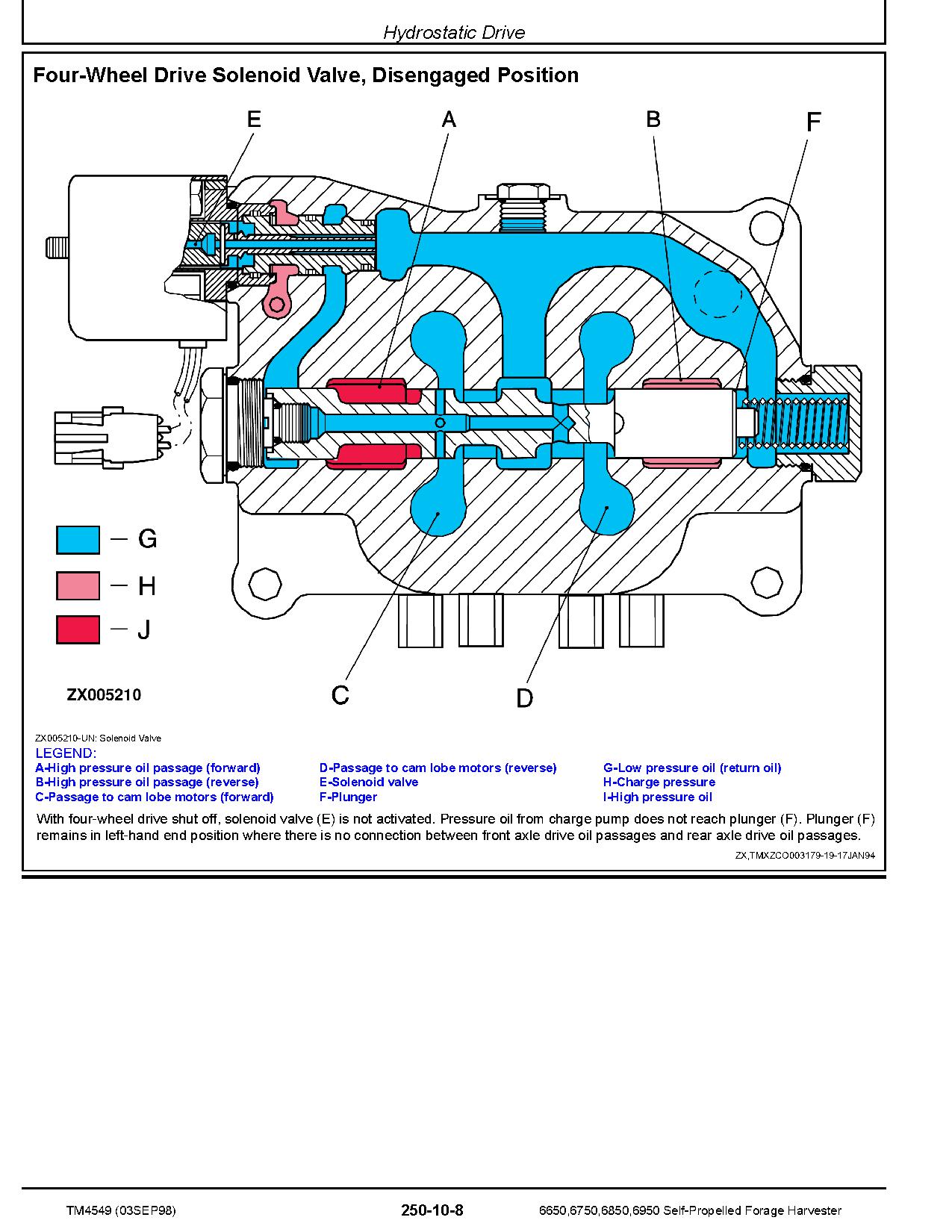

      Four-Wheel Drive
      Lighting System
      Work Lights
      Stop Lights, Horn
      Beacon Lights
      Fan, Air Conditioning System
      Windshield Wiper/Washer System
      Radio, Interior Lighting
      Rotary Radiator Screen, Reverse Travel Alarm
      Cigarette Lighter, Seat Compressor
      Spout Rinsing System
      Discharge Spout Flap Adjustment
      Main Electronic System
      Metal Detector
      Electronic Control Unit
      ROW-TRAK System
      POWR-SAVR
      676 Rotary Harvesting Unit (North America)
   Power Train
      Angled Drive
      Hydrostatic Drive
      Three-Speed Transmission
      Testing Hydrostatic System
   Brakes, Steering, Rear Axle
      Brake Operating System
      Drum Brakes
      ROW-TRAK System
      ROW-TRAK Steering Function
      ROW-TRAK Calibration
   Hydraulic System
      General Information
      Electromagnetic Control Valve
      Testing Hydraulic System
      Header Float System
   Operator`s Cab
      Operator`s Cab
      System Diagnosis - Air Conditioning System
      Operation - Air Conditioning System
      Operator`s Seat - System Diagnosis
