John Deere 200 and 300 Stack Wagons Technical Manual (TM1110)

Number: 23155
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Stack Wagon
  • Model
    200, 300
  • Model
    200, 300
Details
Table of Contents:
   Introduction
   Safety
   General
      Description
      General Specifications
      Lubrication
      Diagnosing Malfunctions
   Drive Train
      General Information
      Powershaft

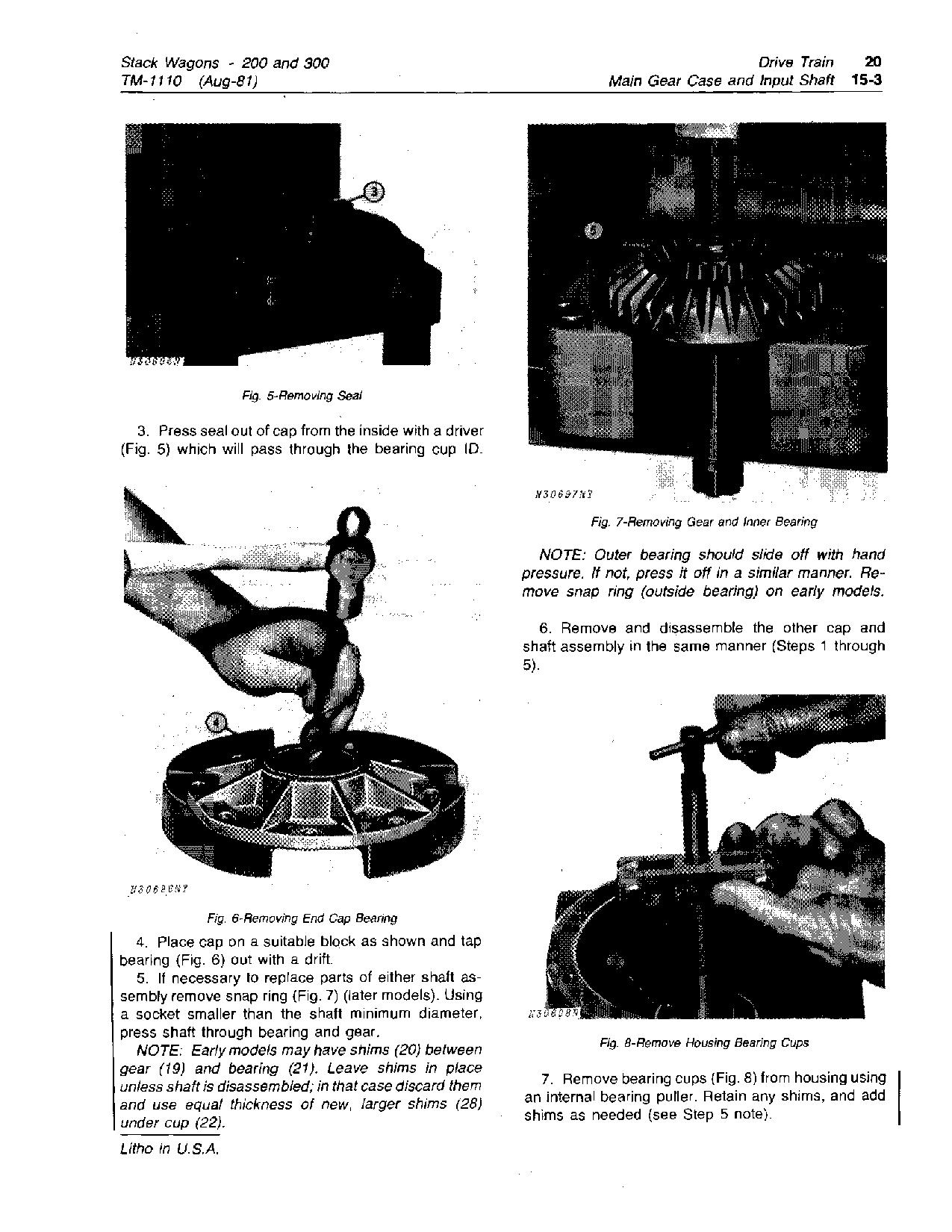

      Main Gear Case and Input Shaft
      Rotor Drive

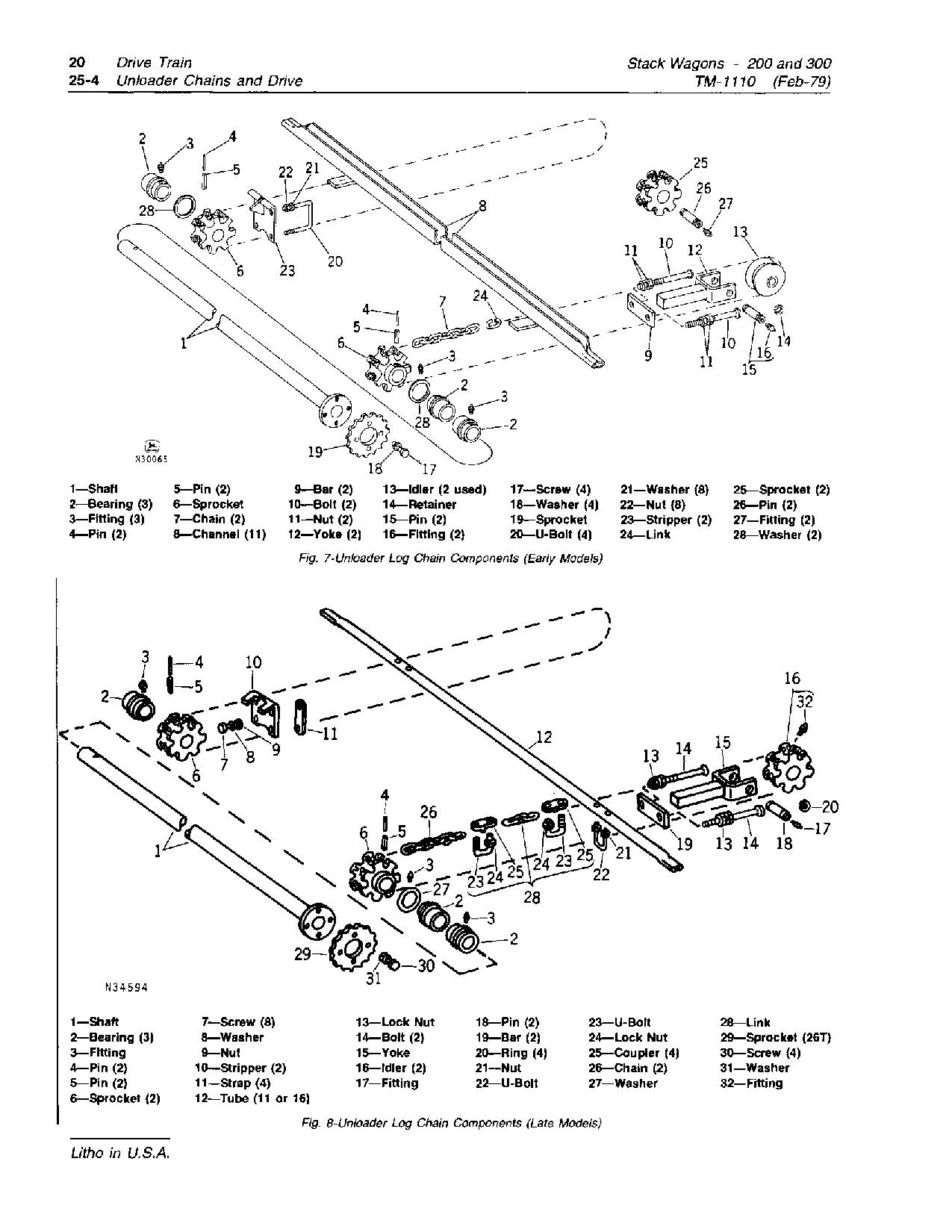

      Unloader Chains and Drive
      Lower Door Conveyor
      Specifications and Torque Values
   Hydraulic System
      General Information
      Hydraulic Cylinders
      Specifications and Torque Values
   Pickup Rotor and Air System
      General Information
      Pickup Rotor
      Specifications
   Miscellaneous
      Rear Doors

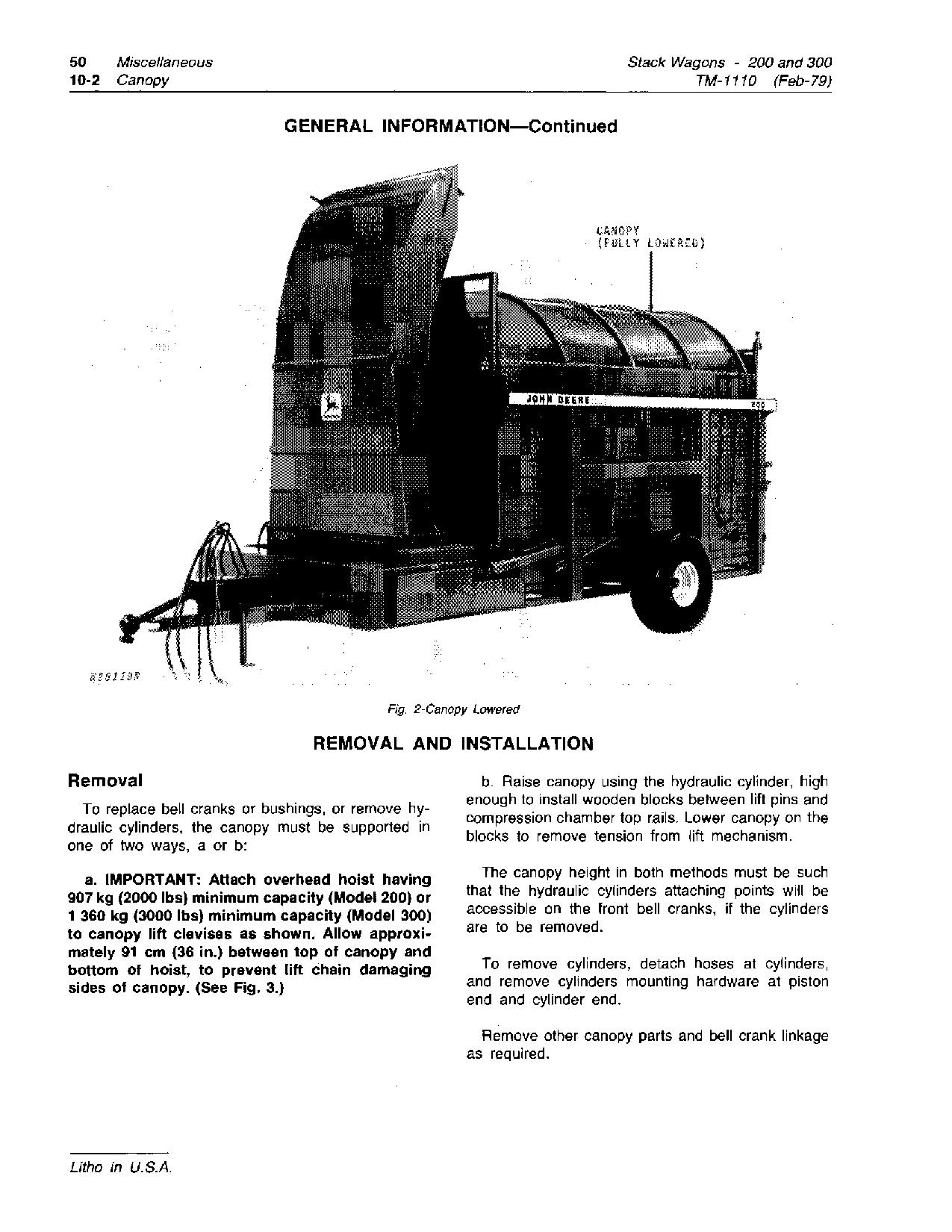

      Canopy
