John Deere S250, S300 and S350 Mower-Conditioners Repair Manual (TM161519)

Number: 20102
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Mower-Conditioner
  • Model
    S250, S300, S350
Details
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      General Information
      Lubricants
   Power Train
      General Information
      Driveline Malfunctions

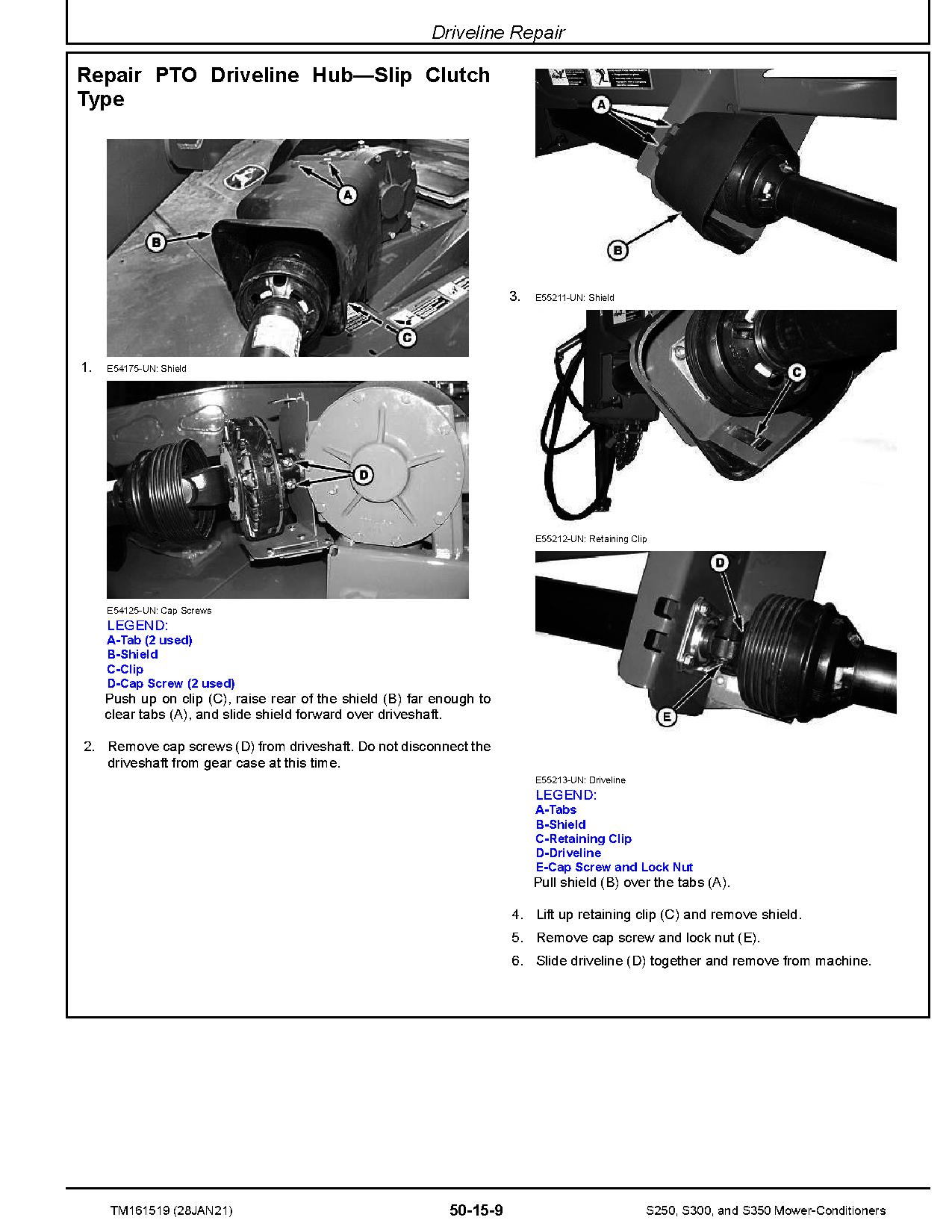

      Driveline Repair
      Tongue Drive Shaft
      Drive Belts
      Hitch, Tongue and Platform Gear Cases
      Cutterbar/Conditioner Gear Case Repair
      Roll Drive Gear Case (Roll Conditioner)
   Hydraulics
      General Information
      Diagnosing Malfunctions
      Lift Cylinders
      Swing Cylinder
      Tilt Cylinder (Optional)
   Miscellaneous
      Wheels and Wheel Support Assembly
   Carrier Frame and Tongue
      General Information
      Diagnosing Malfunctions
      Carrier Frame
      Lift Arm
      Limiting Chain
      Tongue
   Cutting Components
      General Information
      Cutterbar Repair

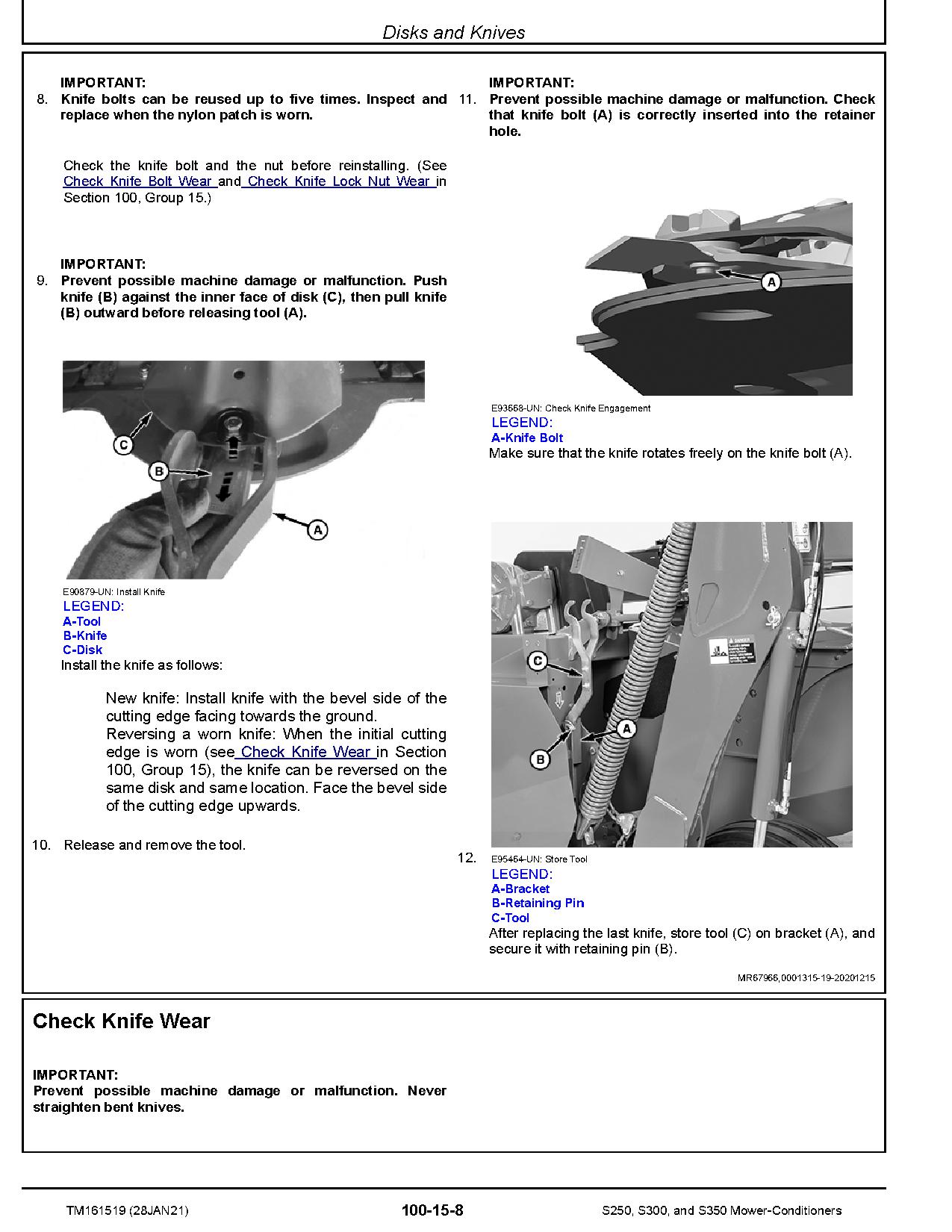

      Disks and Knives
      Cutterbar Assembly
   Conditioner
      General Information
      Diagnosing Malfunctions
      Roll Arms and Bearings

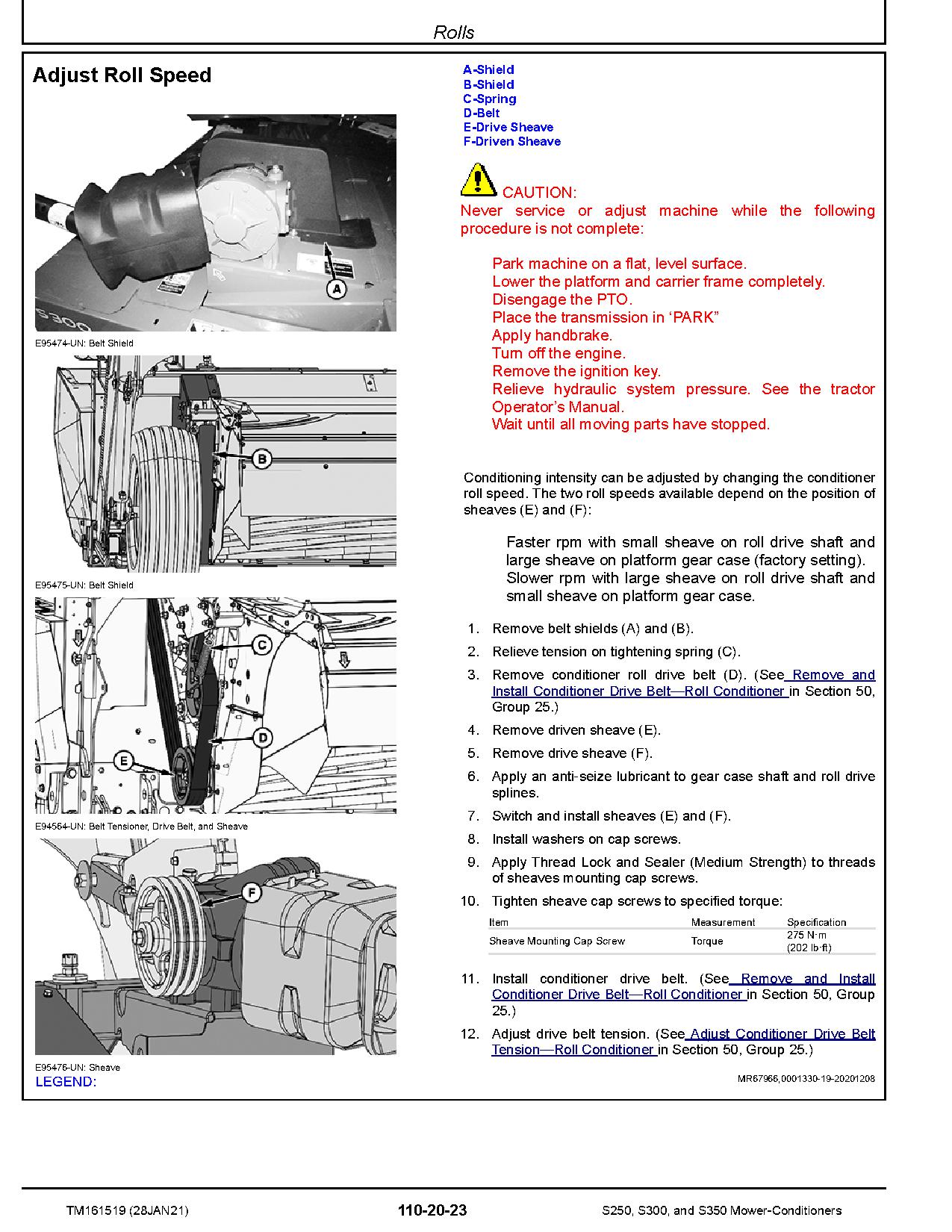

      Rolls
      Impeller
   Platform
      General Information
      Platform Repair
   Electrical System
      Electrical Repair
      Machine Harnesses
   Special Tools - Dealer-Fabricated
      Manufacturing the Tools
