John Deere 1600A Mower-Conditioners Technical Manual (TM1571)

Number: 20101
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Mower-Conditioner
  • Model
    1600A
Details
Table of Contents:
   GENERAL INFORMATION
      Safety
      General Information
      Specifications
      Lubrication
   CUTTING COMPONENTS
      General Information
      Diagnosing Malfunctions
      Cutterbar
      Knife Drive Case
   PLATFORM
      General Information
      Diagnosing Malfunctions
      Platform Frame

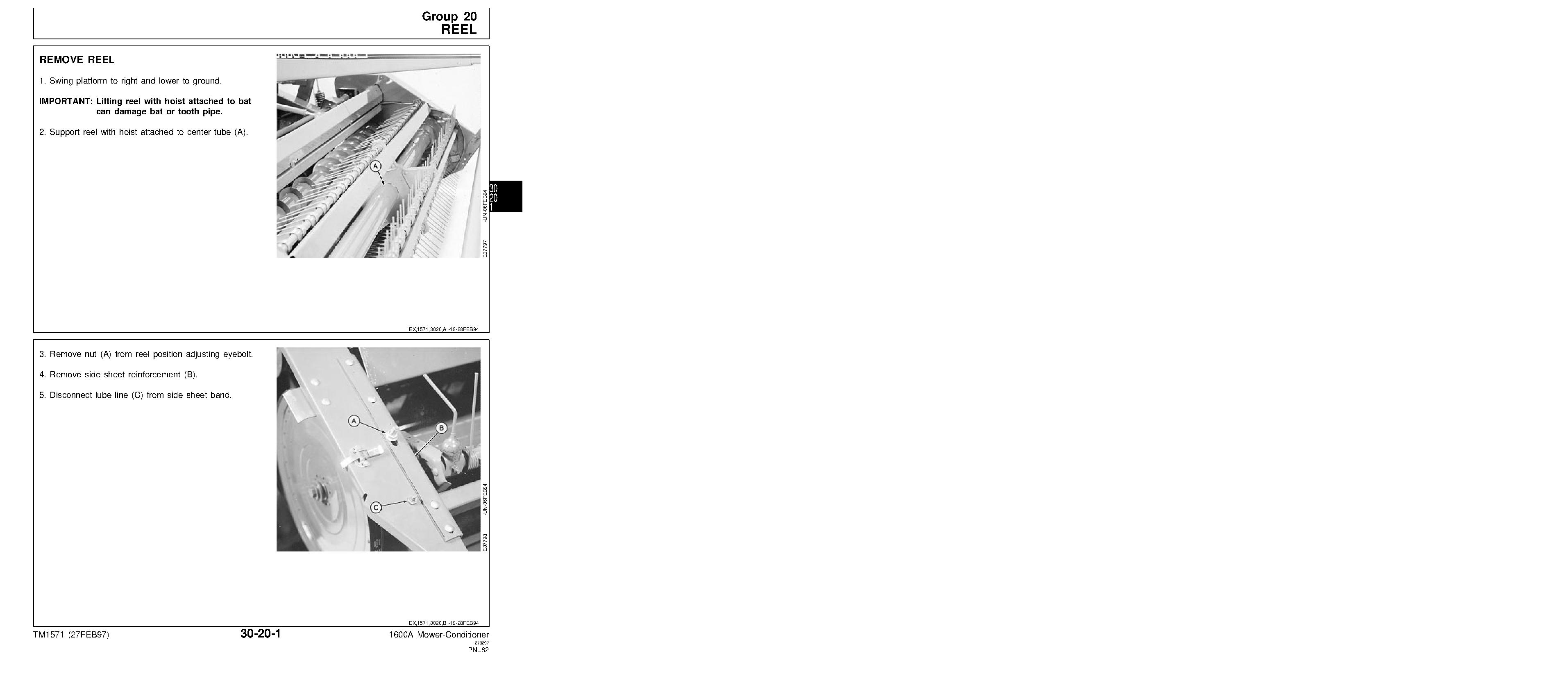

      REEL
      Augers

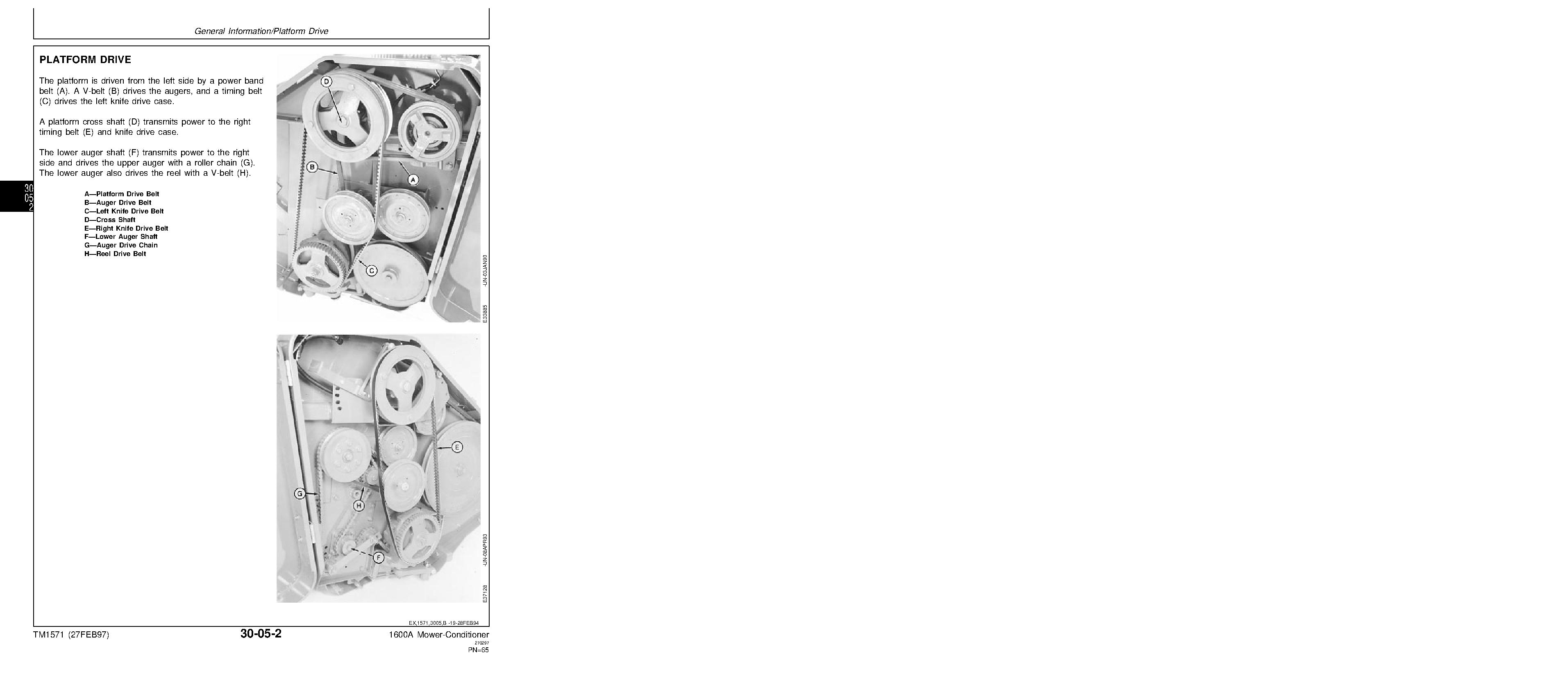

      Platform Drives
   CONDITIONER
      General Information
      Diagnosing Malfunctions
      Roll Drive Chain
      Upper Conditioner Roll Arms
      Conditioner Rolls
   CARRIER FRAME
      General Information
      Diagnosing Malfunctions

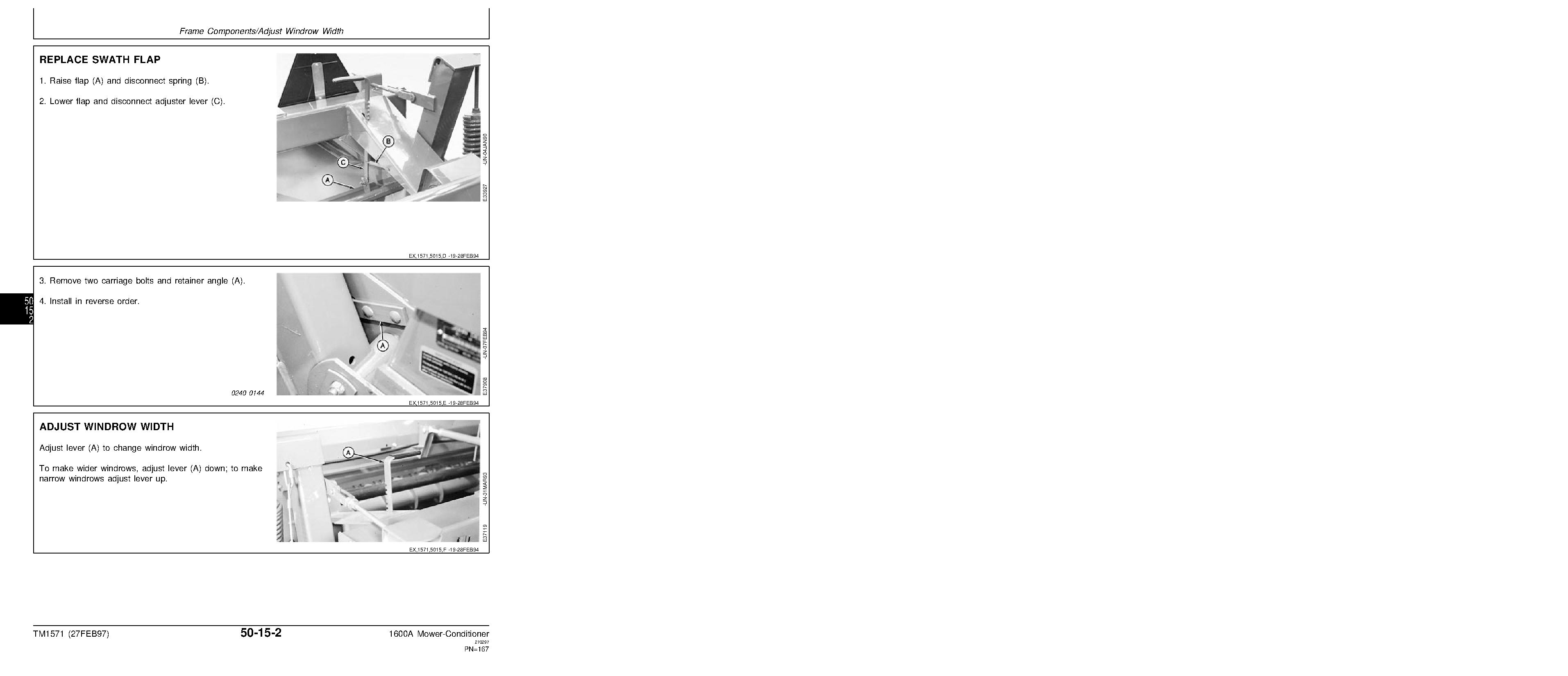

      Frame Components
      Tongue
      Wheel Hub and Support
      Electrical System
   HYDRAULICS
      General Information
      Diagnosing Malfunctions
      Hydraulic Tests
      Hydraulic Pump
      Planetary Gear Case
      Hydraulic Motor
      Relief Valve And Oil Filter
      Steering Cylinder
      Lift Cylinders
   Index
