John Deere 1207, 1209, 1217 and 1219 Mower-Conditioners (North America) Technical Manual (TM1284)

Number: 20097
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Mower-Conditioner
  • Model
    1207, 1209, 1217, 1219
Details
Table of Contents:
   GENERAL
      Safety
      Specifications and Torques
      General Information and Tractor Hookup
      Lubrication
   Power Train
      Diagnosing Malfunctions

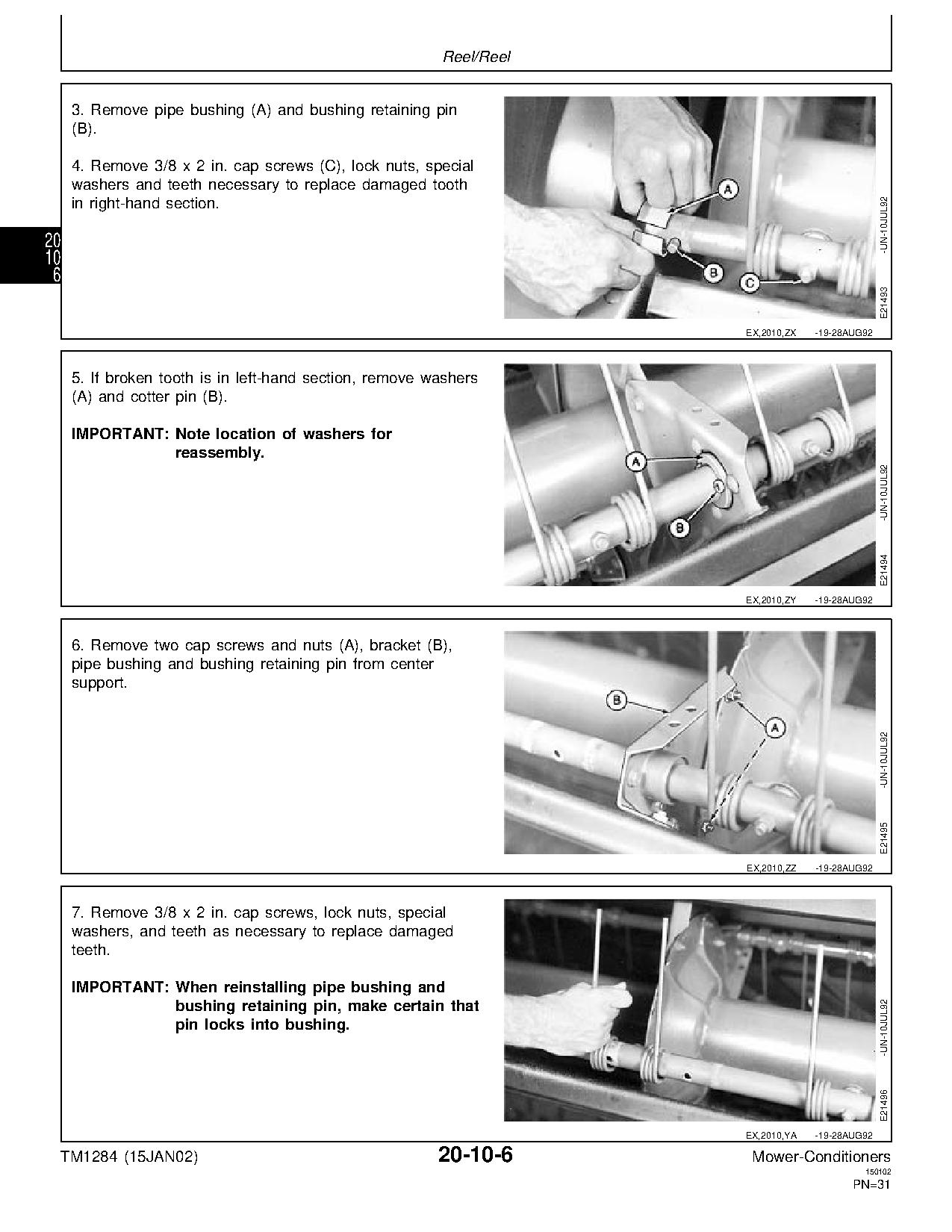

      Reel
      PTO Hookup
      Slip Clutch
      Main Drive and Roll Drive Gear Case
      Roll and Roll Drives
   HYDRAULIC SYSTEM
      Diagnosing Malfunctions

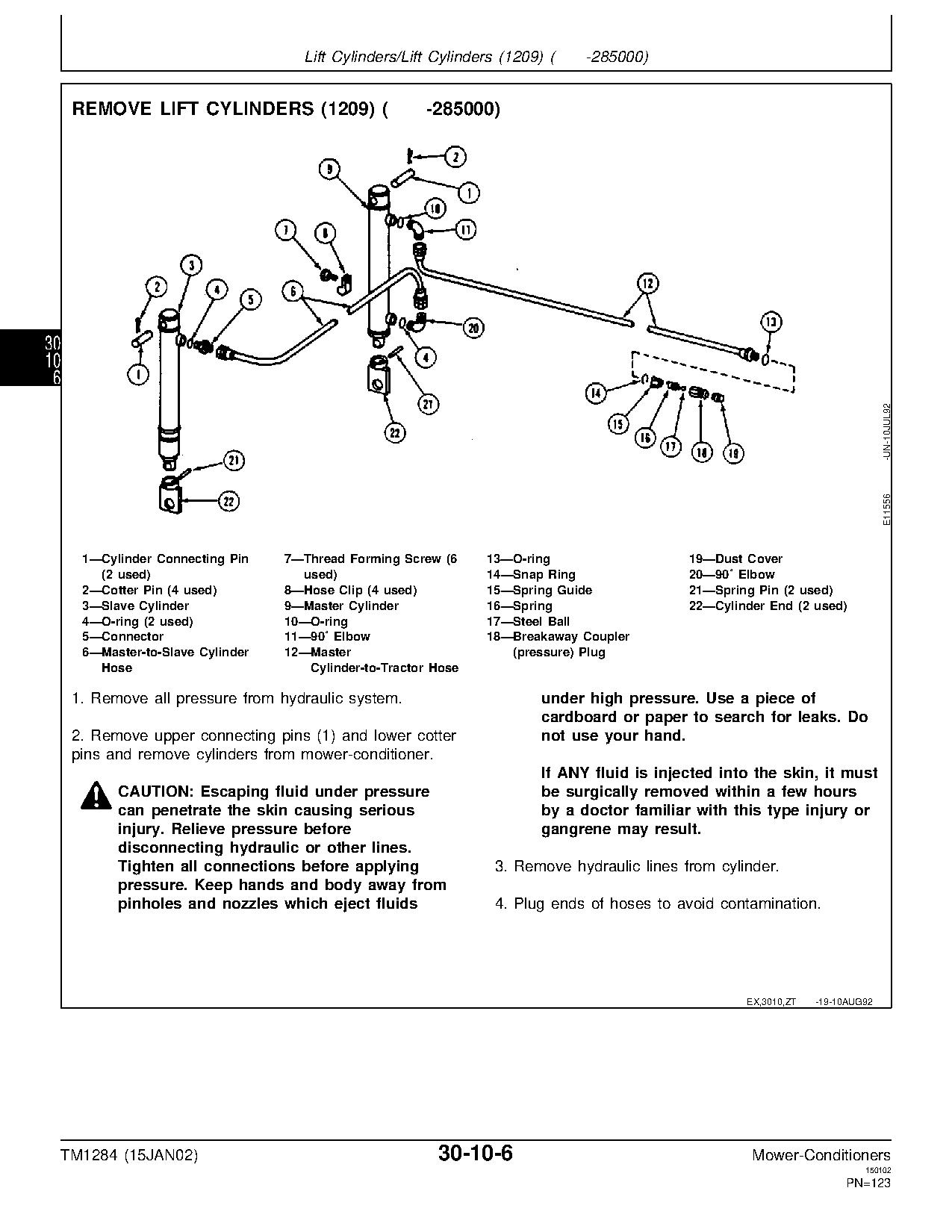

      Lift Cylinders
      Tongue Positioning Cylinder (1209—1219) (425001- )
   CUTTING COMPONENTS
      Diagnosing Malfunctions
      Knife Drive Case

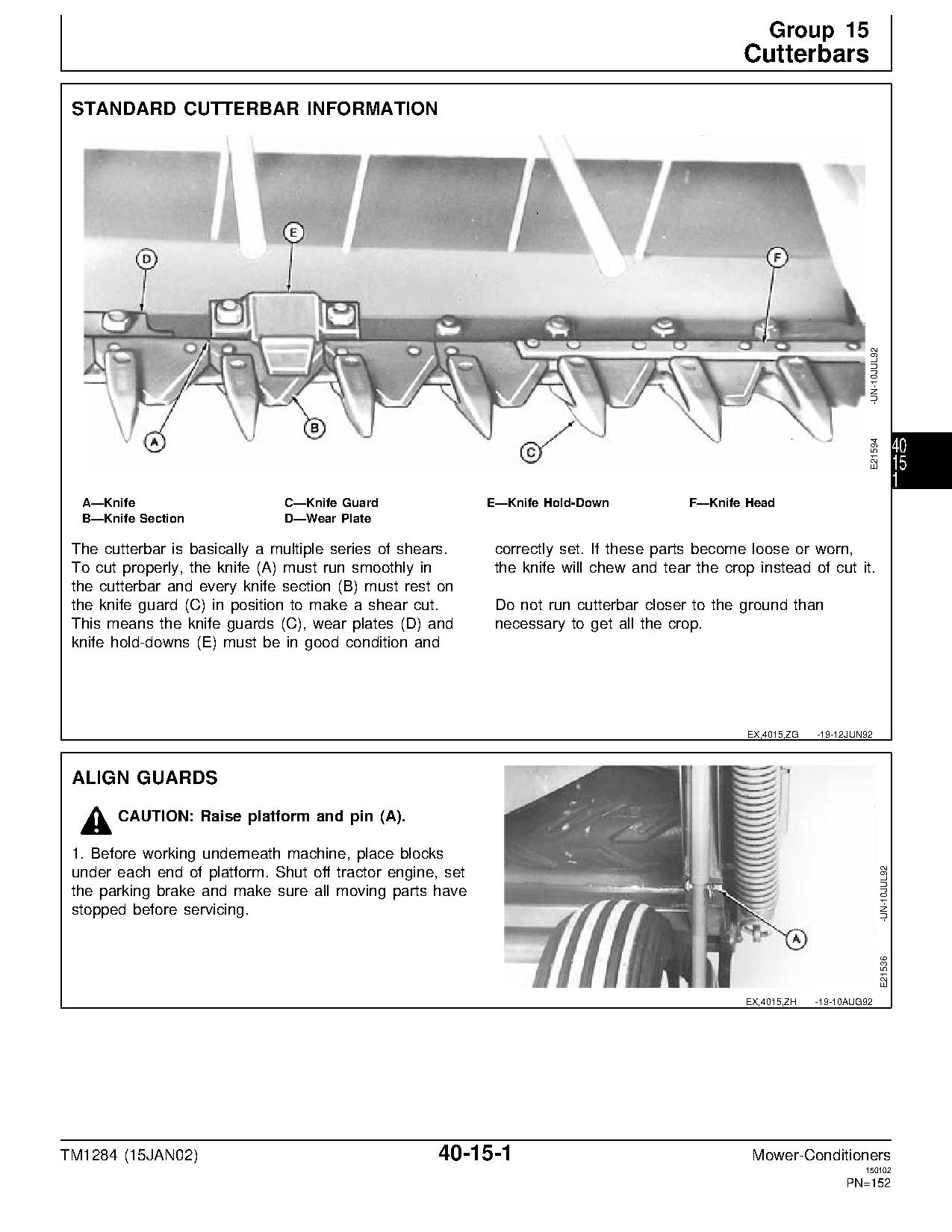

      Cutterbars
      Knives
   SPECIAL TOOLS
      Purchased Tools
      Fabricated Tools
   DOUBLE WINDROW ATTACHMENT
      Electrical System
      Hydraulic Motor
      Electrohydraulic Valves
      Table Shift Cylinder
      Rolls
      Troubleshooting
   Index
