John Deere 1424 Mower-Conditioners Technical Manual (TM1264)

Number: 20093
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Mower-Conditioner
  • Model
    1424
Details
Table of Contents:
   INTRODUCTION
   GENERAL
      Safety
      Specifications and Torques
      Diagnosing Malfunctions
      Description
      Lubrication
      Special Tools
   PLATFORM
      General Information and Removal

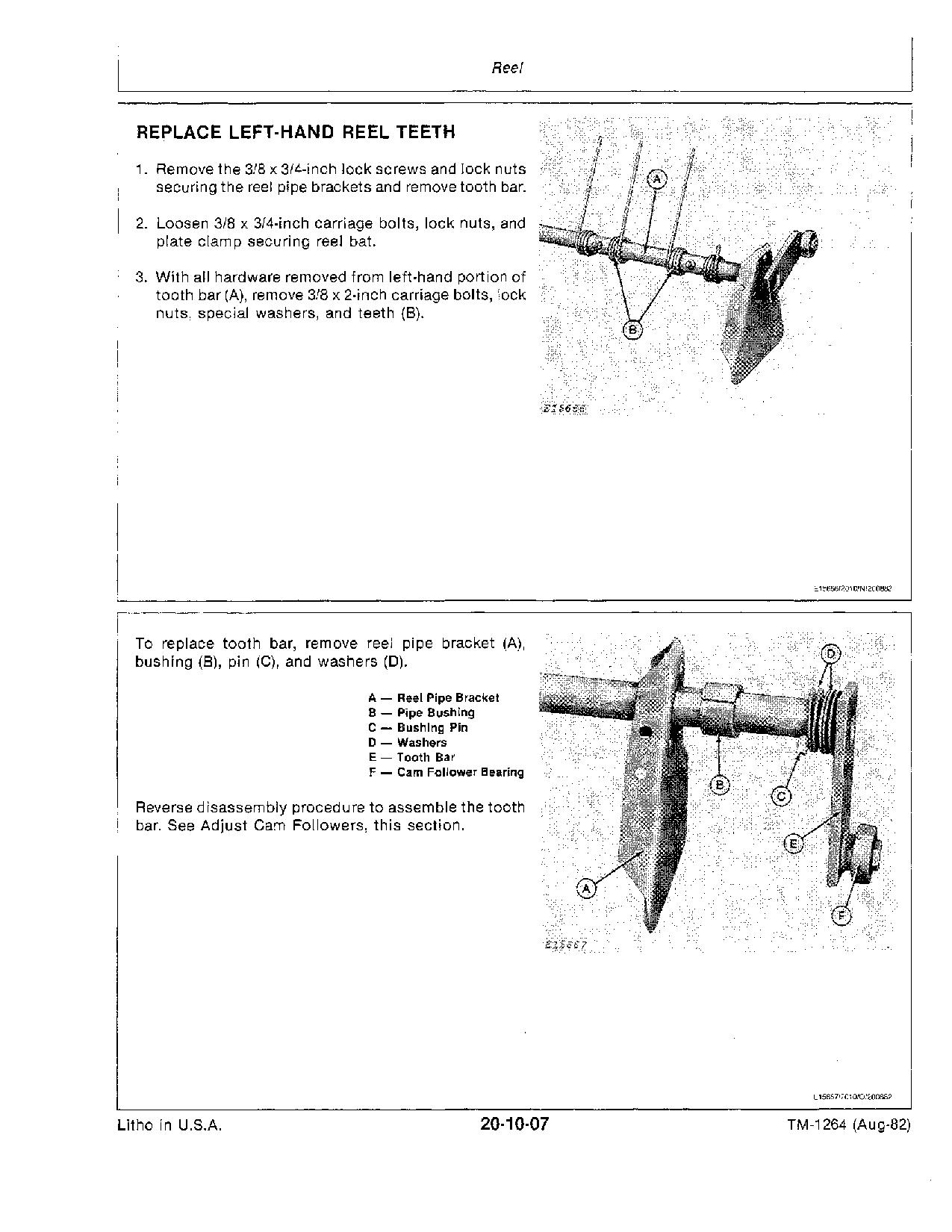

      Reel
      Auger
      Conditioner
      Right and Left-Hand Cross Shafts
   HYDRAULIC SYSTEM
      General Information, Diagnosis and Tests

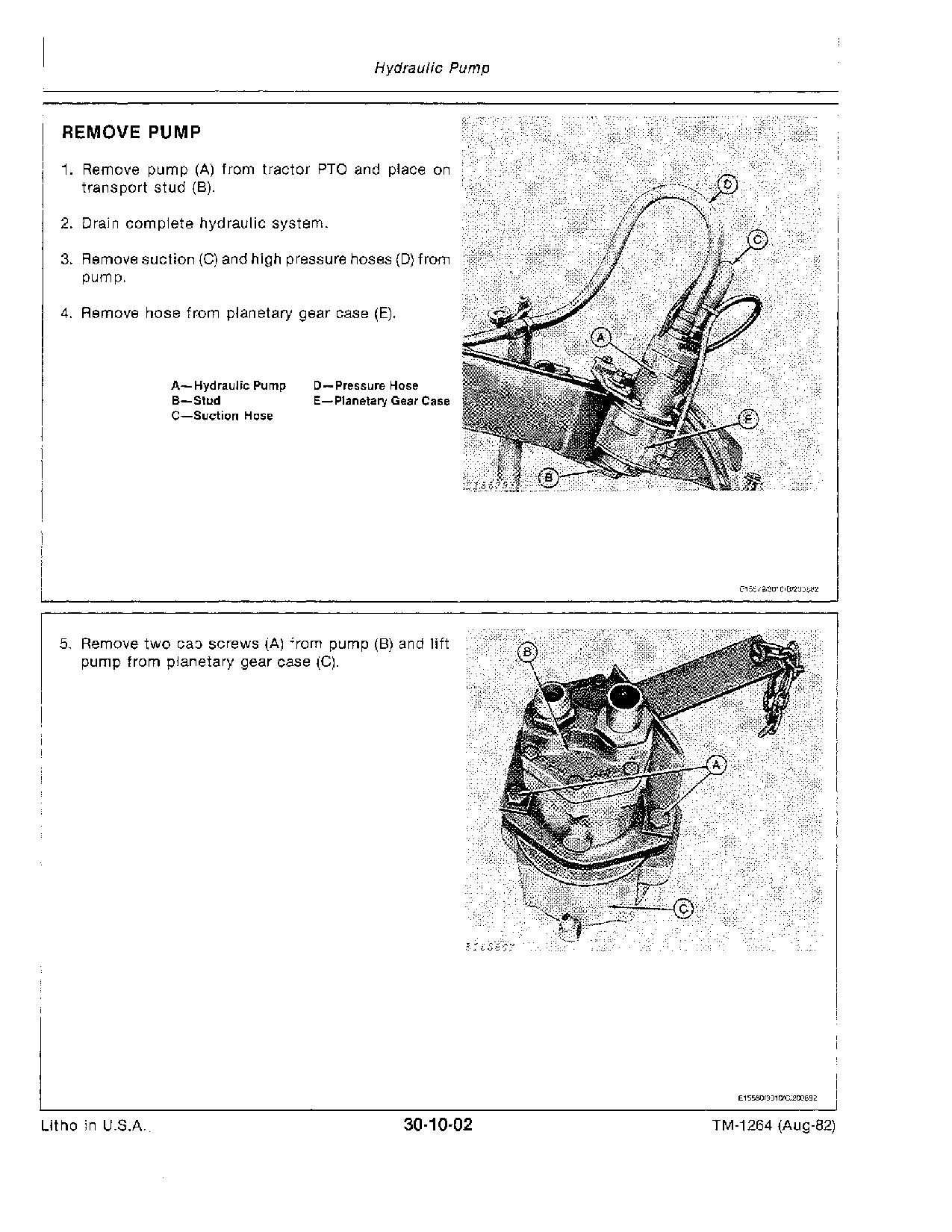

      Hydraulic Pump
      Planetary Gear Case
      Hydraulic Motor
      Relief Valve, Shutoff Valve and Filter
      Hydraulic Steering System
      Hydraulic Lift System
   CUTTING COMPONENTS
      Knife Drive Case
      Cutterbars
      Knives
   MISCELLANEOUS
      Wheel Hub
      Pivot Bushing
      Tongue
