John Deere 1380 Mower-Conditioners Technical Manual (TM1204)

Number: 20096
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Mower-Conditioner
  • Model
    1380
Details
Table of Contents:
   INTRODUCTION
   SAFETY
   GENERAL
      Specificalions
      Diagnosing Malfunctions
      Description
      Lubrication
   PLATFORM
      General Information and Removal

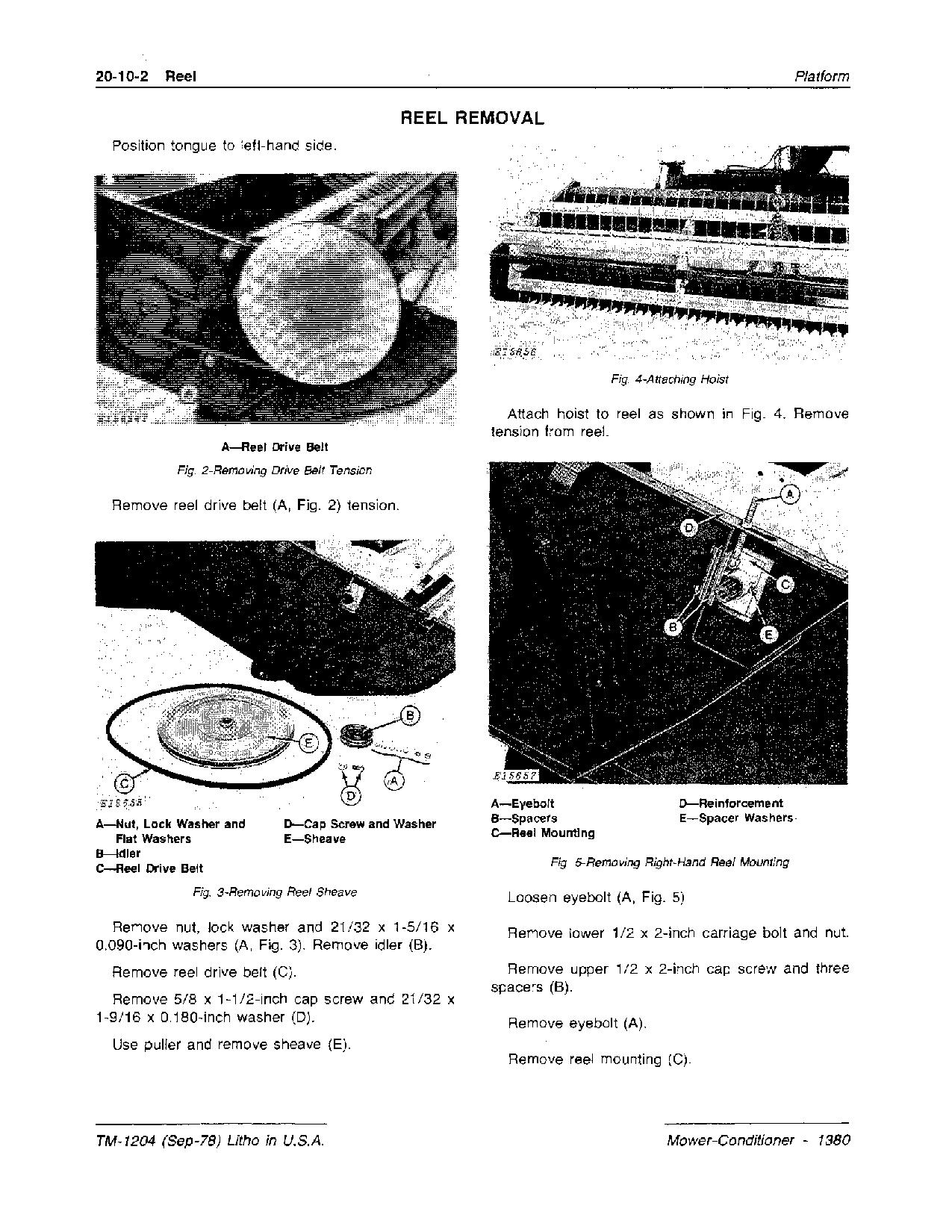

      Reel
      Auger
      Conditioner
      Right-Hand and Left-Hand Cross Shaft
   HYDRAULIC SYSTEM

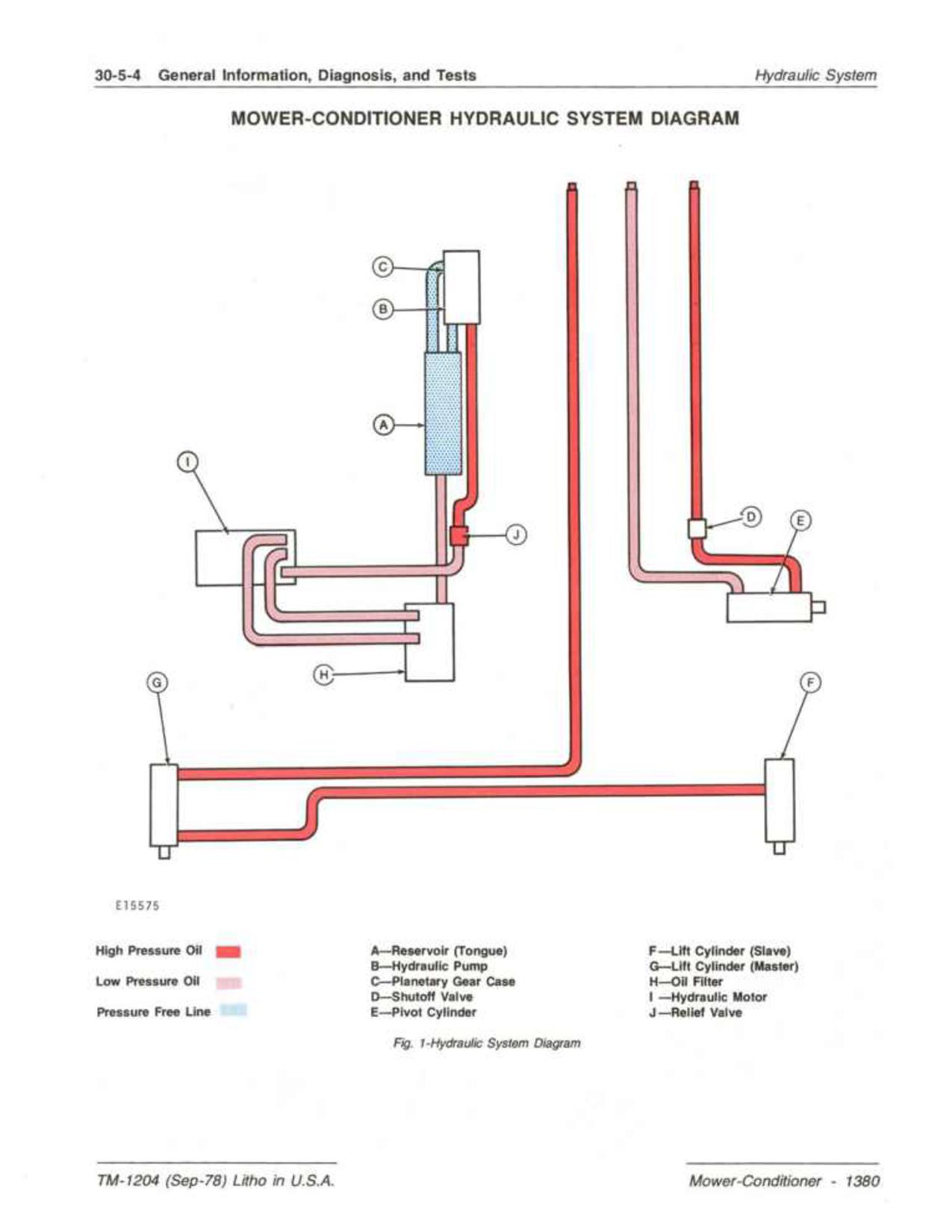

      General Information , Diagnosis and Tests
      Hydraulic Pump and Planetary Gear Case
      Hydraulic Motor
      Relief Valve, Shutoff Valve and Filler

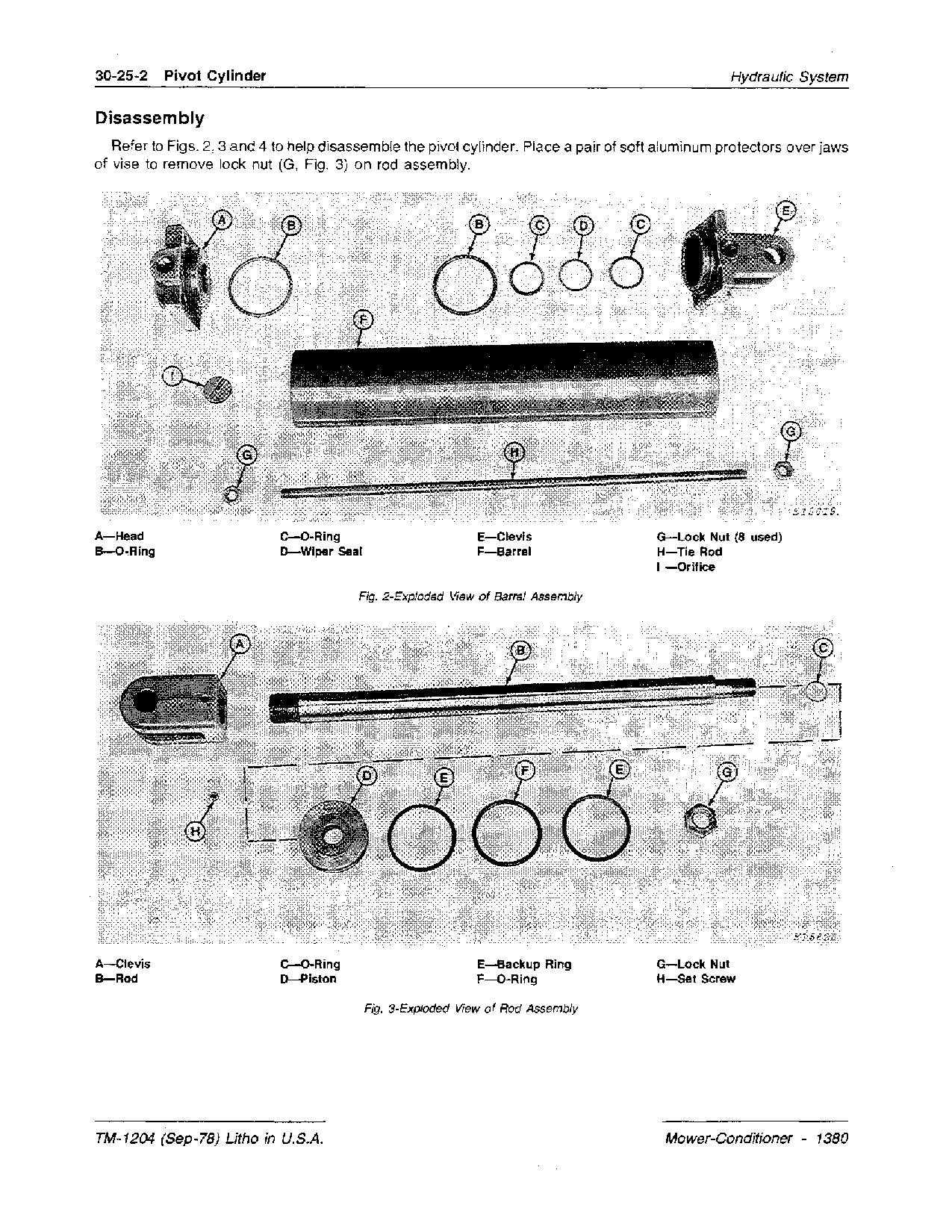

      Pivot Cylinder
      Hydraulic Lift System
   CUTTING COMPONENTS
      Knife Drive Case
      Cutterbars
      Knives
   MISCELLANEOUS
      Wheels
      Tongue
   ALPHABETICAL INDEX
