John Deere 100 Stack Wagons Technical Manual (TM1144)

Number: 23156
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Stack Wagon
  • Model
    100
  • Model
    100
Details
Table of Contents:
   100 Stack Wagon
   Introduction
   SAFETY AND YOU
   GENERAL INFORMATION
      Description
      Serial Number
      Lubrication
   DIAGNOSING MALFUNCTIONS
   POWERSHAFT
      General Information
      Removal and Installation
      Disassembly
      Inspection and Repair
      Assembly
   INPUT SHAFT

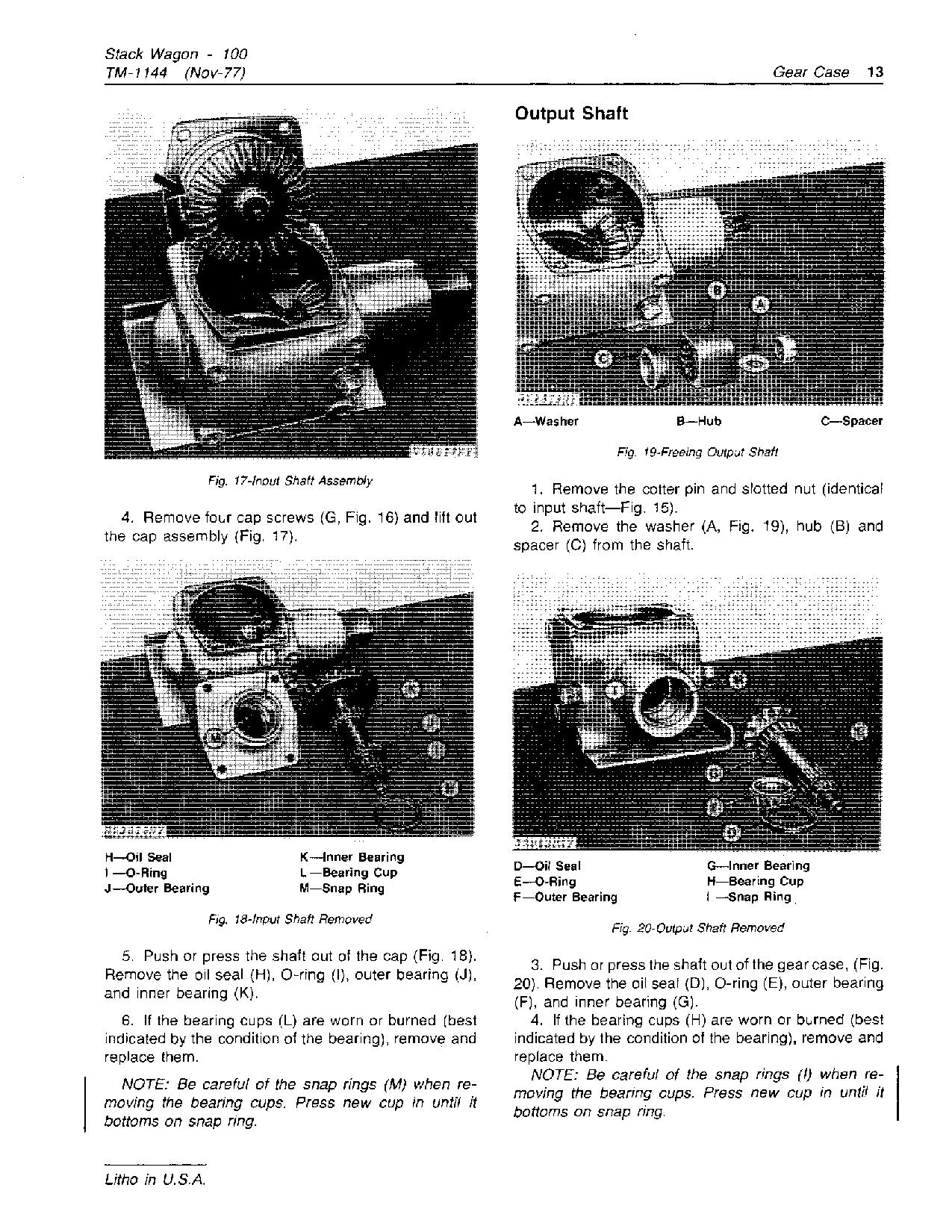

   GEAR CASE
      General Information
      Removal
      Installation
      Disassembly
      Inspection and Repair
      Assembly.
   CLUTCH
      General Information
      Removal
      Inspection
      Assembly
   ROTOR AND ROTOR DRIVE
      Rotor Belt Replacement
      Rotor Sheave Replacement
      Rotor Bearing Replacement
      Rotor Replacement
   UNLOADING DRIVE
      Unloading Drive Sheave Replacement
      Unloading Sheave-and-Sprocket Replacement
      Unloading Belt Replacement
      Double Sprocket Replacement
      Drive Tube, Bearing, and Sprocket Replacement

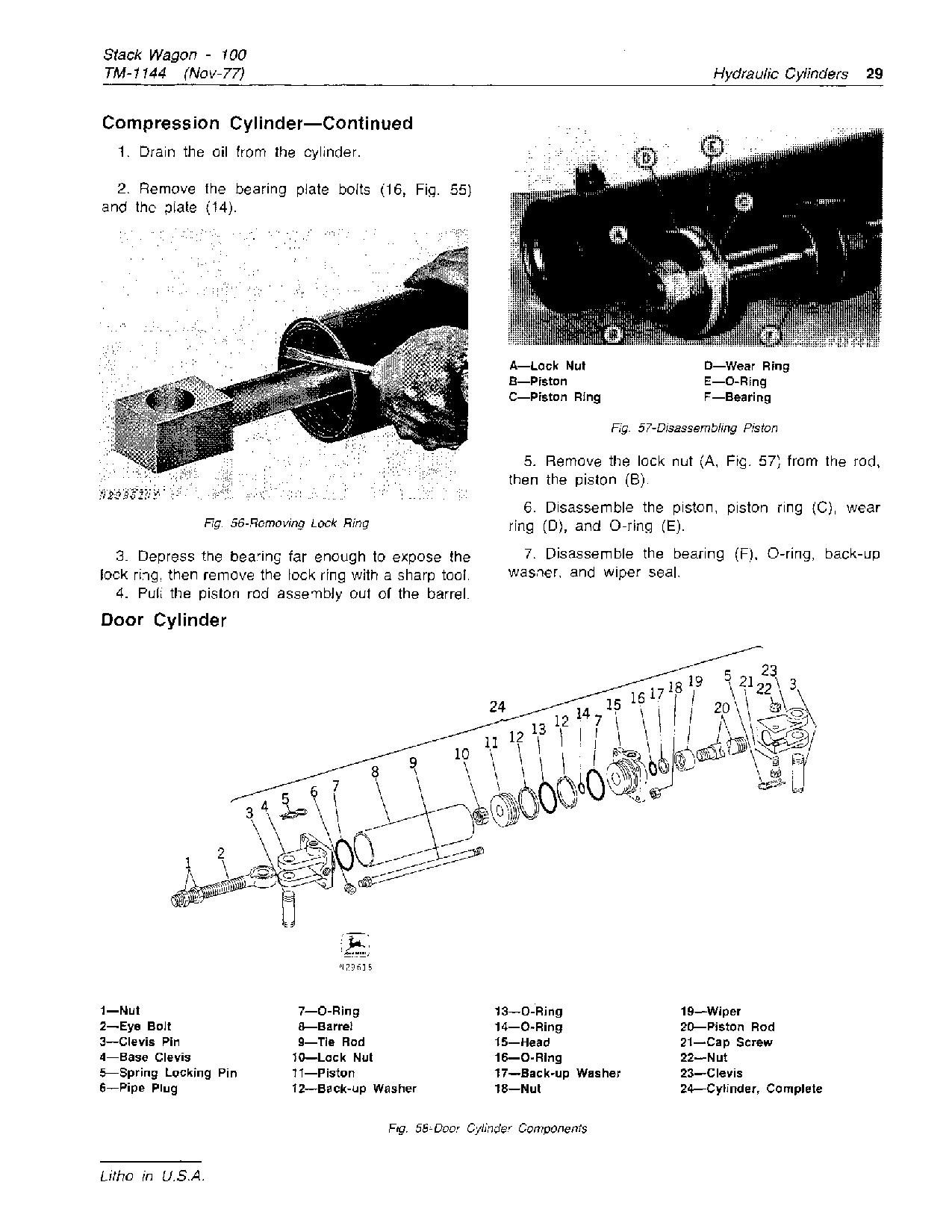

   HYDRAULIC CYLINDERS
      General Information
      Removal
      Disassembly.
      Inspection and Repair
      Assembly and Installation
   SPECIFICATIONS
