CONTENTS
10-GENERAL
05 - Specifications
10- Predelivery, delivery and after-sales inspections
15- Lubrication and service
20 - Tune-up

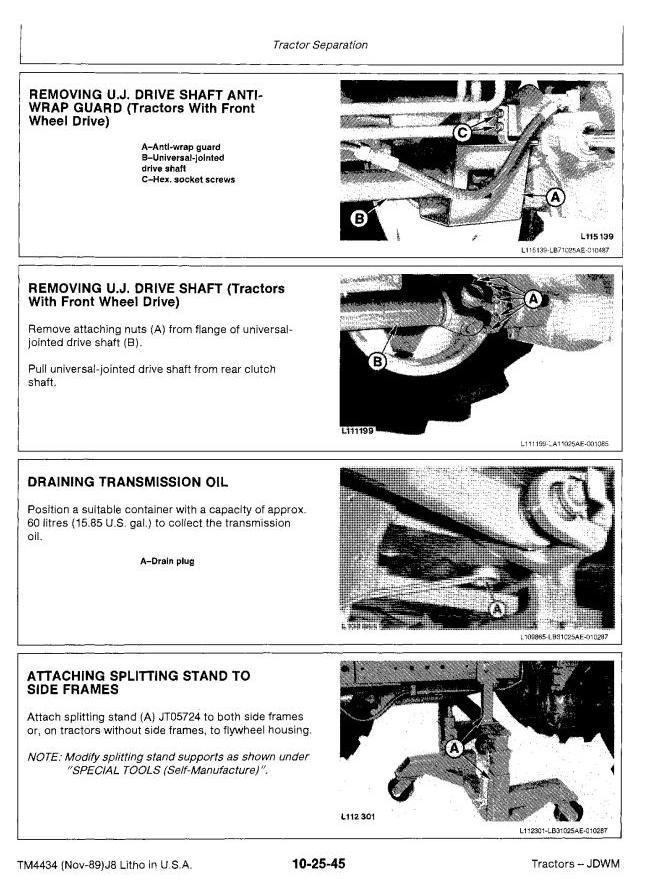

25 -Tractor separation
20 -ENGINE
05 - Radiator, viscous fan drive and fan
30- FUEL AND AIR INTAKE SYSTEM
05 - Fuel tank, auxiliary fuel tank and water trap
10- Cold weather starting aids
15 -Speed control linkage
20 - Air cleaner
40 - ELECTRICAL SYSTEM
05 - Wiring harnesses
10- Controls and instruments (without SOUND-GARD body)
15- Controls and instruments (with SOUND-GARD body)
20 - Lighting system
25 - Starting motor
30 - Alternator
50 -POWER TRAIN
05 - Clutch operating systems
10- Engine single-stage clutch (without Reverser)
15- Engine single-stage clutch (with Reverser)
20 - Engine dual-stage clutch
25 - Hi-Lo shift unit
30 - Reverser
35 - Creeper transmission
40 - Transmission - console shift
45 - Transmission - center shift
50 - Synchronized transmission and transmission oil pump
55 - Collar-shift transmission and transmission oil pumps
60 - Differential
65 - Final drives
70 - Independent PTO shafts
75- Continuous-running PTO's
80 - Front PTO
85 - Front wheel drive u.j. drive shaft and disk clutch
60- STEERING SYSTEM AND BRAKES
05 - Hydrostatic steering
10- Steering cylinder (without front wheel drive)
15- Power steering
20 - Hydraulic brakes
25 - Handbrake
70- HYDRAULIC SYSTEM
05 - Valves
10- Hydraulic pumps
15- Rockshaft
25 - Selective control valves (spool type)
30 - Selective control valves (poppet valve type)
35- ISO breakaway couplers
40 - ISO quick couplers
45 - Remote cylinder
80 -MISCELLANEOUS

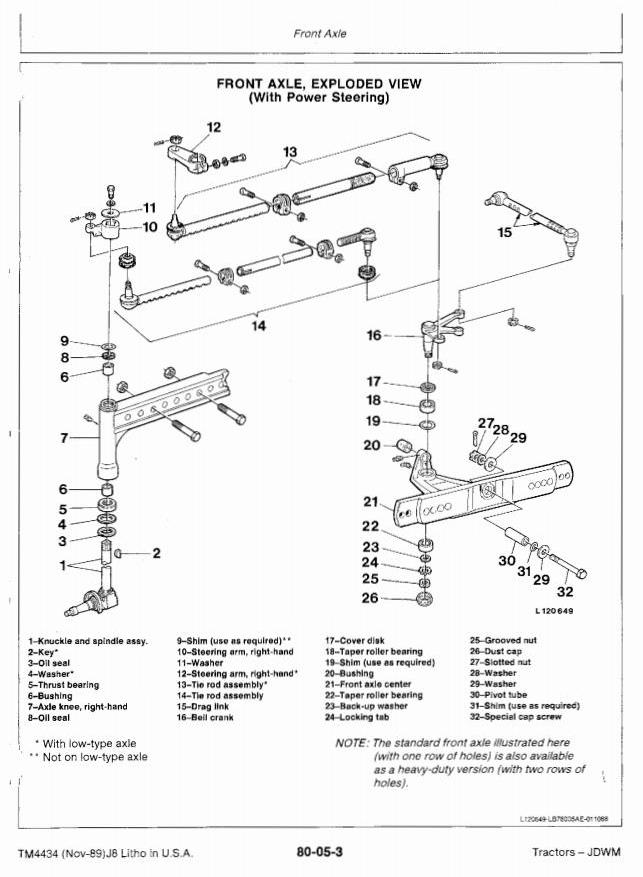

05 - Front axle
10 - Front and rear wheels
90 - OPERATOR'S STATION
05 - Sate handling ot refrigerants
06- Servicing air conditioning system
07 - Compressor (up to tractor Serial No. 663 473L)
08 - Compressor (from tractor Serial No. 663 474L)
09 - Components of air conditioning system
10- Cab ventilation and heating
15- Operator's seats
20 - SOUND-GARD Body
25 - 2-post roll guard
30- 2-post telescopic roll guard
