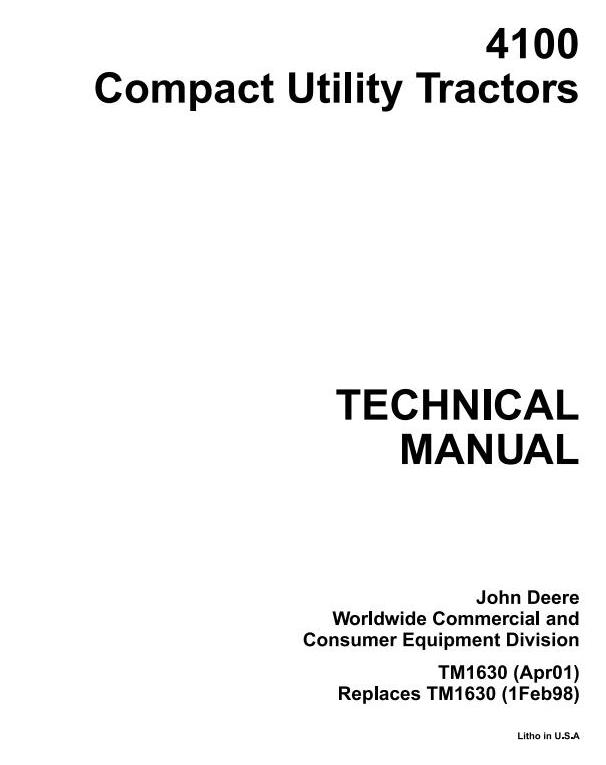

TM1630 - John Deere 4100 Compact Utility Tractors Technical Service Manual

Product Code: 00683

Add to compare list

Illustrated Factory Diagnostic and Repair Technical Service Manual for John Deere Compact Utility Tractors Models 4100

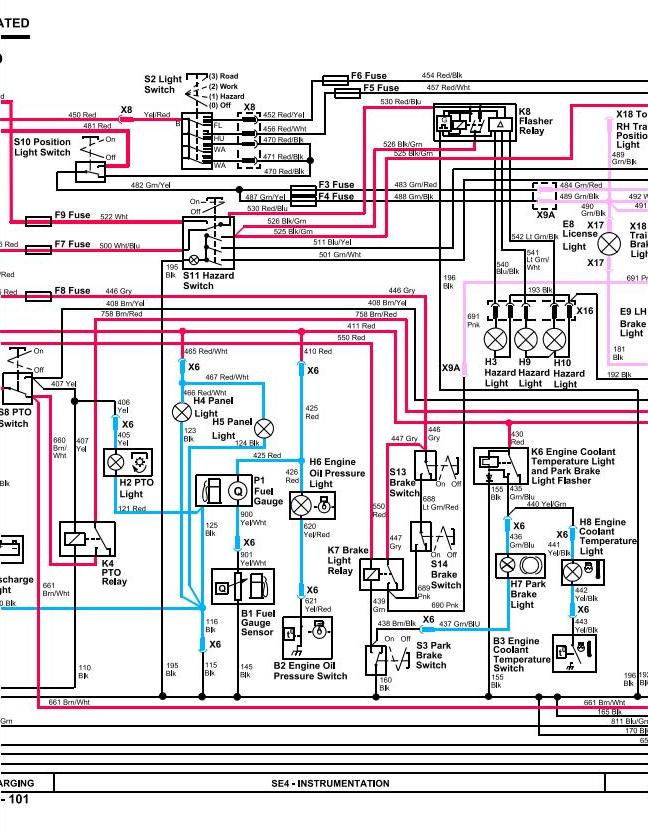

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, troubleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text.

Language: English
Format: PDF, 595 pages;

Covered models:
4100

CONTENTS

    GENERAL VEHICLE SPECIFICATIONS
        ENGINE
        ELECTRICAL
        FUEL SYSTEM
        DRIVE TRAIN
        PTO (PTO Shaft Speed Measured at 2650 Engine rpm)
        3-POINT HITCH
        CLUTCH
        HYDRAULIC SYSTEM
        GROUND SPEED
    INCH FASTENER TORQUE VALUES
    METRIC FASTENER TORQUE VALUES
    O-RING SEAL SERVICE RECOMMENDATIONS
        FACE SEAL FITTINGS WITH INCH STUD ENDS TORQUE
        FACE SEAL FITTINGS WITH METRIC STUD ENDS TORQUE
        O-RING FACE SEAL FITTINGS
        O-RING BOSS FITTINGS
    DIESEL FUEL SPECIFICATIONS
        DIESEL FUEL
        DIESEL FUEL LUBRICITY
        DIESEL FUEL STORAGE
    DIESEL ENGINE OIL
        BREAK-IN ENGINE OIL
    HYDROSTATIC TRANSMISSION AND HYDRAULIC OIL
        GEAR TRANSMISSION OIL
        CHASSIS GREASE
        ALTERNATIVE LUBRICANTS
        SYNTHETIC LUBRICANTS
        LUBRICANT STORAGE
        MIXING OF LUBRICANTS
        OIL FILTERS
    COOLANT
        COOLANT DRAIN INTERVAL
    PRODUCT IDENTIFICATION LOCATIONS

Specifications

Type of manual	All Inclusive Manual
Models	4100
