TM1880 - Timberjack 360D, 460D, 560D (SN.-586336) Single Arch Grapple Skidder Service Repair Manual

Product Code: 02895
Add to compare list

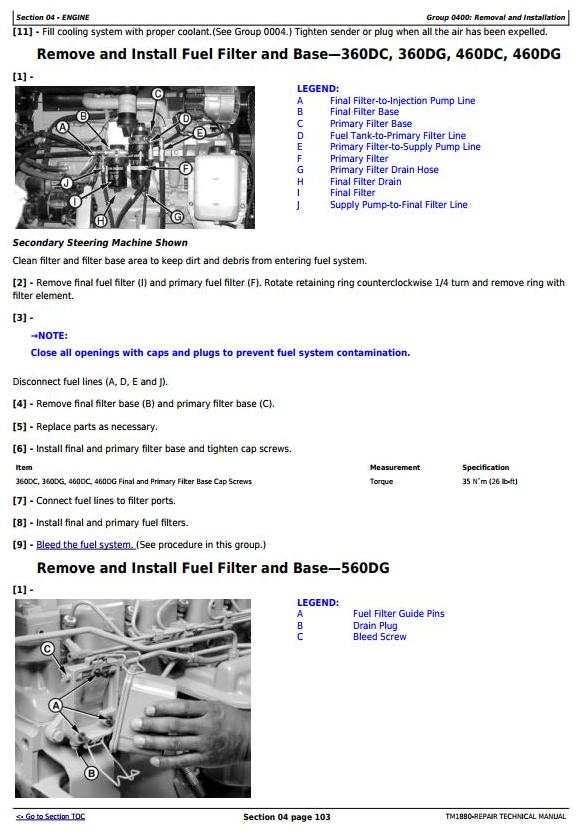

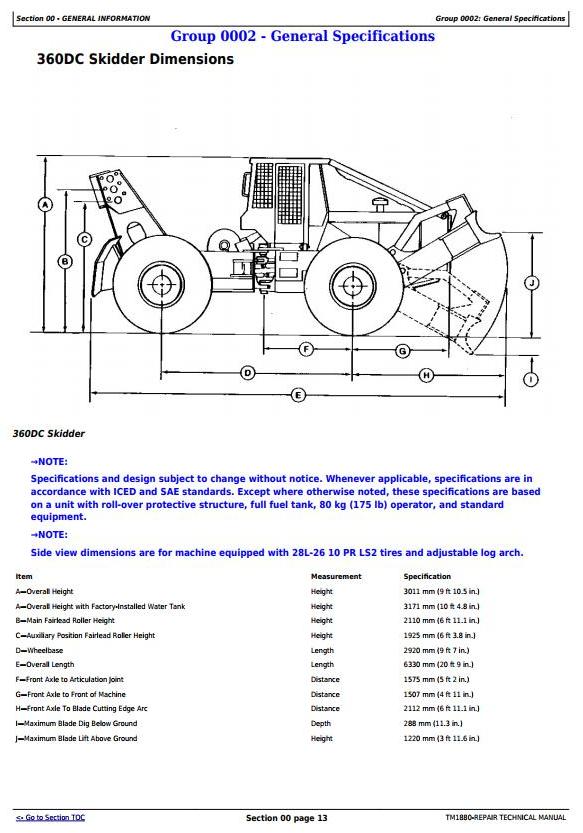

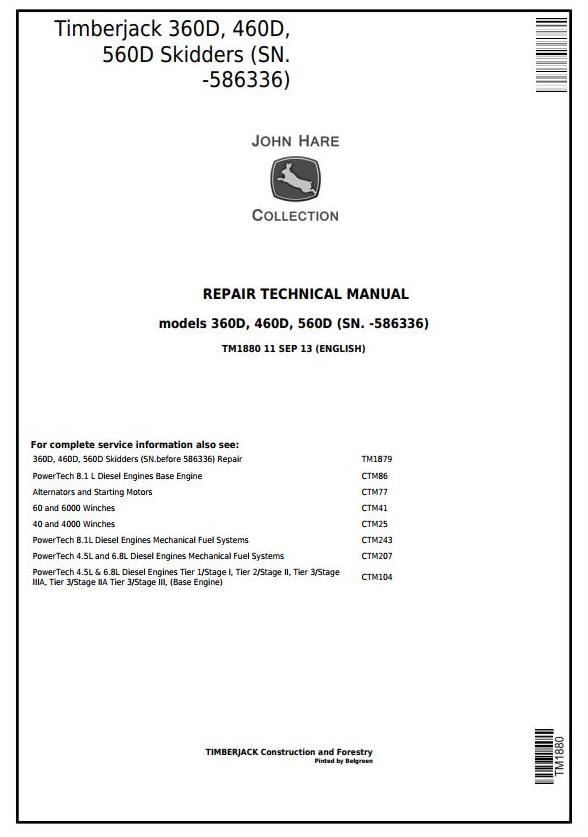

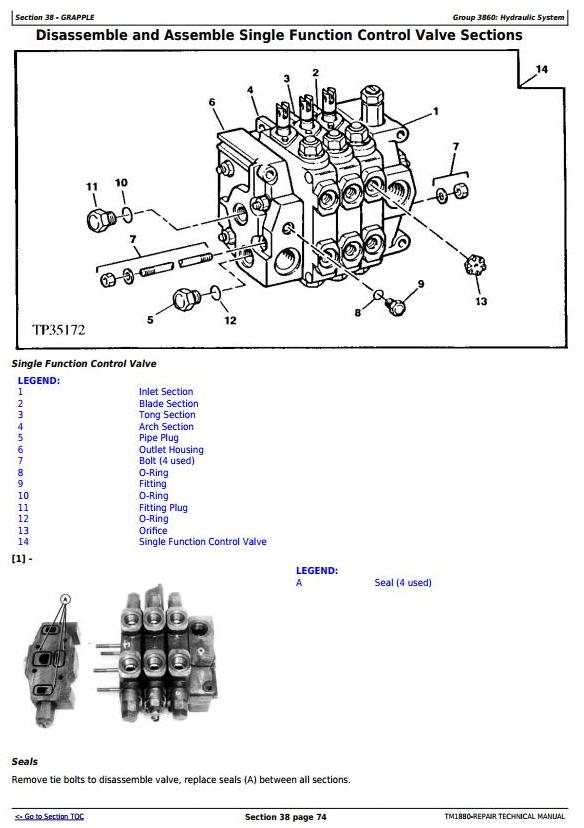

Illustrated Factory Service Repair Technical Manual for Timberjack Single Arch Grapple Skidders Models 360D, 460D, 560D

This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 1082 pages

Covered models (SN. -586336):
    360D
    460D
    560D


CONTENTS

Foreword
   Technical Information Feedback Form
   General Information
      Safety Information
      General Specifications
      Torque Values
      Fuels and Lubricants
   Wheels
      Powered Wheels and Fastenings
   Axles and Suspension System
      Removal and Installation
      Input Drive Shafts and U-Joints
      Hydraulic System
   Transmission
      Removal and Installation
      Controls
      Input Drive Shafts and U-Joints
      Gears, Shafts and Bearings
      Hydraulic System
   Engine
      Removal and Installation
   Engine Auxiliary Systems
      Cold Weather Starting Aids
      Cooling Systems
      Speed Controls
      Intake System
      External Exhaust System
      External Fuel Supply System
   Torque Converter
      Removal and Installation
      Housing and Cover
      Converter Turbine, Gears, and Shaft
   Damper Drive
      Elements
   Steering System
      Secondary Steering
      Hydraulic System
   Service Brakes
      Active Elements
      Controls Linkage
      Hydraulic System
   Park Brake
      Active Elements
      Hydraulic System
   Electrical System
      Batteries, Support and Cables
      Alternator, Regulator and Charging System Wiring
      Lighting System
      Wiring Harness and Switches
      Instruments and Indicators
      Motors and Actuators
   Frame, Chassis, or Supporting Structures
      Frame Installation
      Frame Bottom Guards
   Operator's Station
      Removal and Installation
      Operator Enclosure
      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling
      Hood or Engine Enclosure
      Grille and Grille Housing
   Safety, Convenience and Miscellaneous
      Fire Extinguisher
      Horn and Warning Devices
   Main Hydraulic System
      Hydraulic System
   Winch
      Removal and Installation
      Controls Linkage
      Input Drive Shafts and U-Joints
      Drive and Clutch
   Bulldozers (Stacking & Trailbuilding Blades)
      Blades
      Controls Linkage
      Hydraulic System
   Arch or Boom
      Frames
   Grapple
      Grapple Mechanism
      Grapple Control
      Frames
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools
Specifications
Type of manual Repair Manual
Models 360D, 460D, 560D
