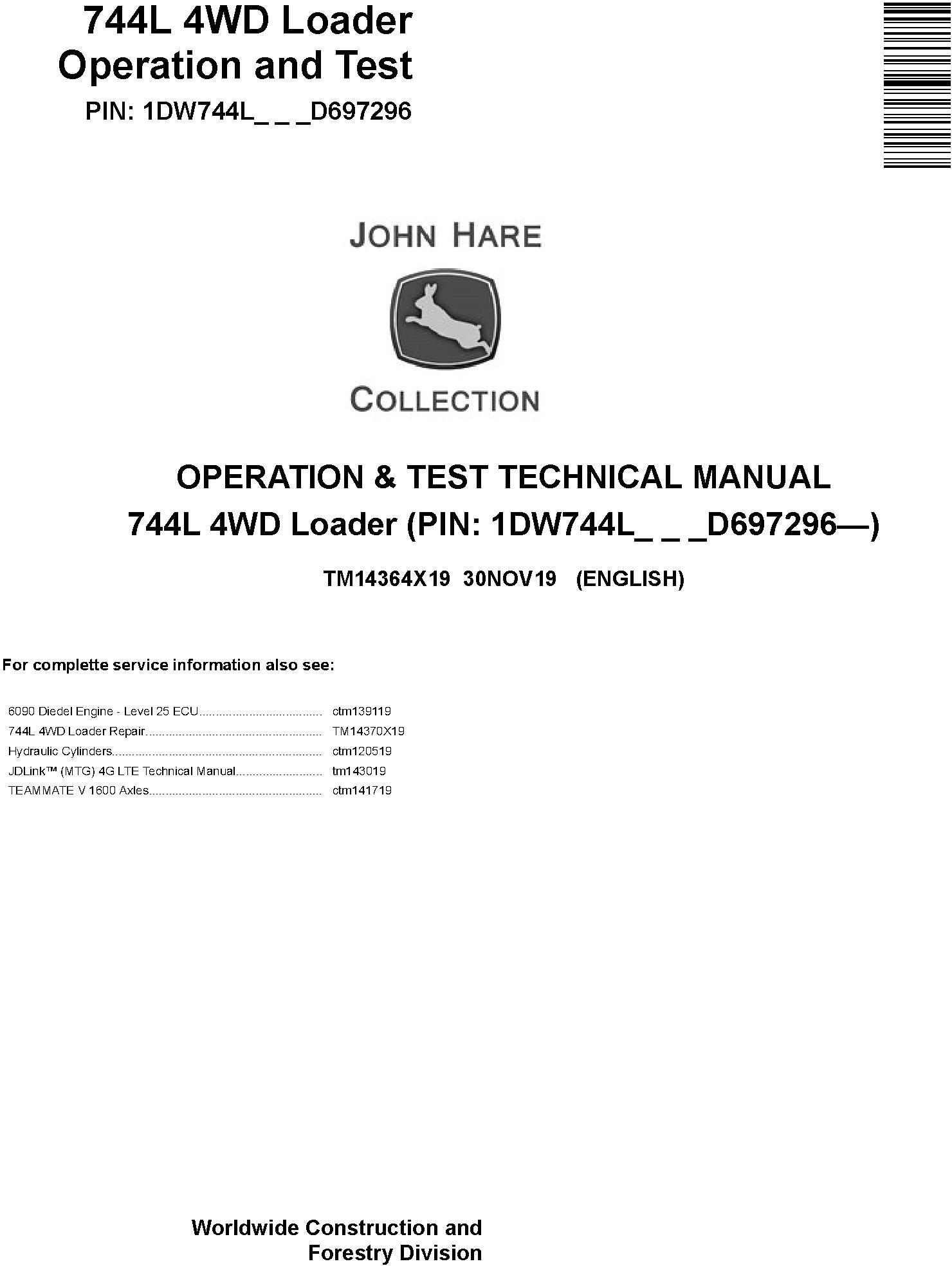

John Deere 744L 4WD Loader Operation & Test Technical Manual (TM14364X19)

Illustrated Operation and Test Technical Manual for John Deere 744L 4WD Loader

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 1433 pages

Covered models:
  744L (PIN: 1DW744L_ _ _D697296—)

Contents:    Foreword
   Manual Identification-READ THIS FIRST!
   Serial Number Listing Information
   General Information
      Safety
   Diagnostics Trouble Codes (DTCs)
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Transmission Control Unit (TCU) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Sealed Switch Module (SM1) Diagnostic Trouble Codes
      Primary Display Unit (PDU) Diagnostic Trouble Codes
      Radar Object Detection (ROD) Diagnostic Trouble Codes
      Ground Speed Radar (RDR) Diagnostic Trouble Codes
      Steering Backup Braking - Main CPU A (XMA) Diagnostic Trouble Codes
      Steering Backup Braking - Main CPU B (XMB) Diagnostic Trouble Codes
      Steering Backup Braking - Supervisor CPU A (XSA) Diagnostic Trouble Codes
      Steering Backup Braking - Supervisor CPU B (XSB) Diagnostic Trouble Codes
      Tire Pressure Monitoring (TPM) system Diagnostic Trouble Codes
      Automatic Lubrication System (ALS) System Diagnostic Trouble Codes
      Automatic Temperature Control (ATC) Diagnostic Trouble Codes
      Heated/Ventilated Seat (HVS) Diagnostic Trouble Codes
      Right Joystick 1 (RJ1) Diagnostic Trouble Codes
      Rotary Switch Module (RSM) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Monitor Operation
      Diagnostic Test Box
      Tests
   Power Train
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments

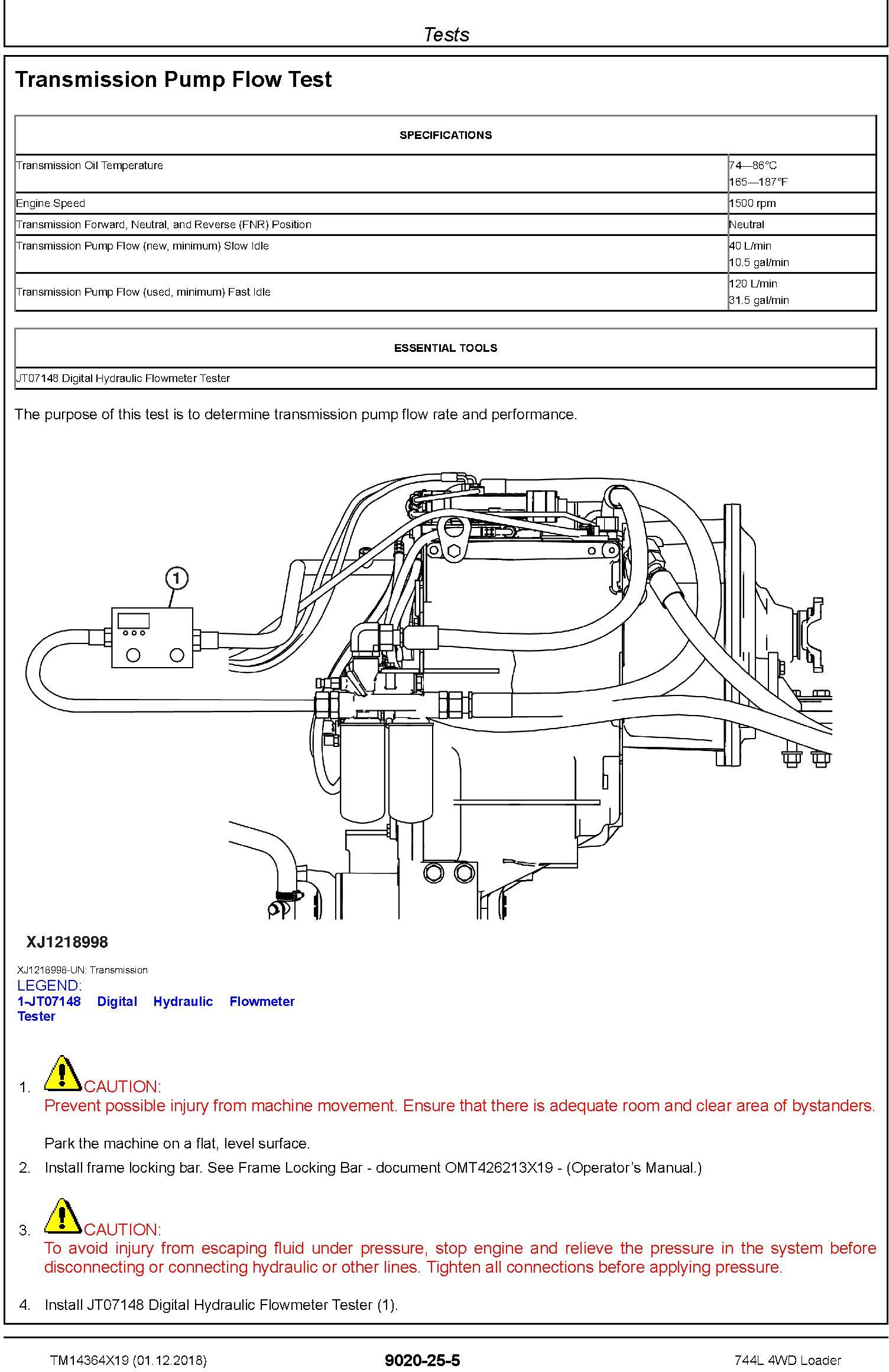

      Tests
   Hydraulic System

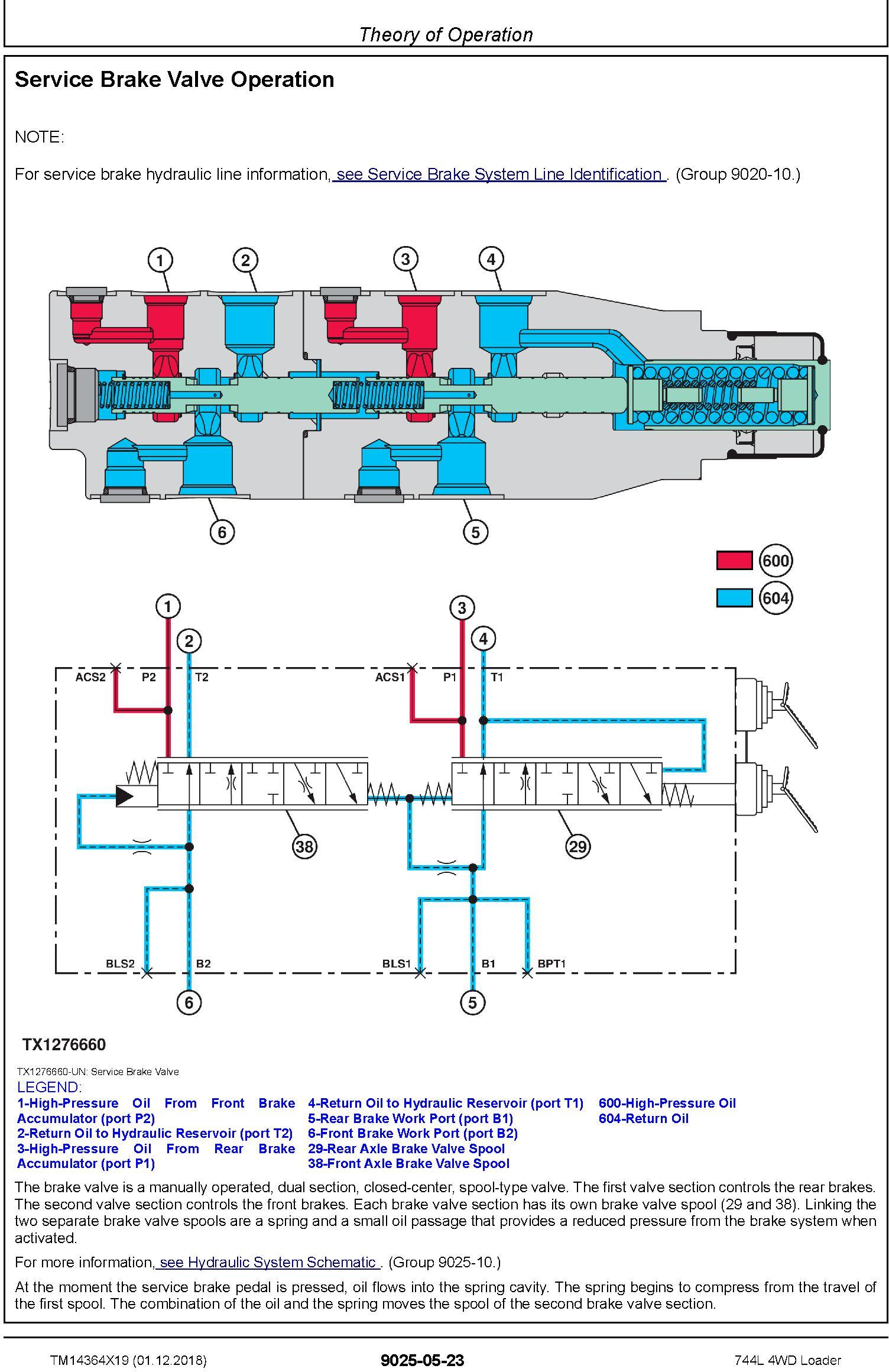

      Theory of Operation

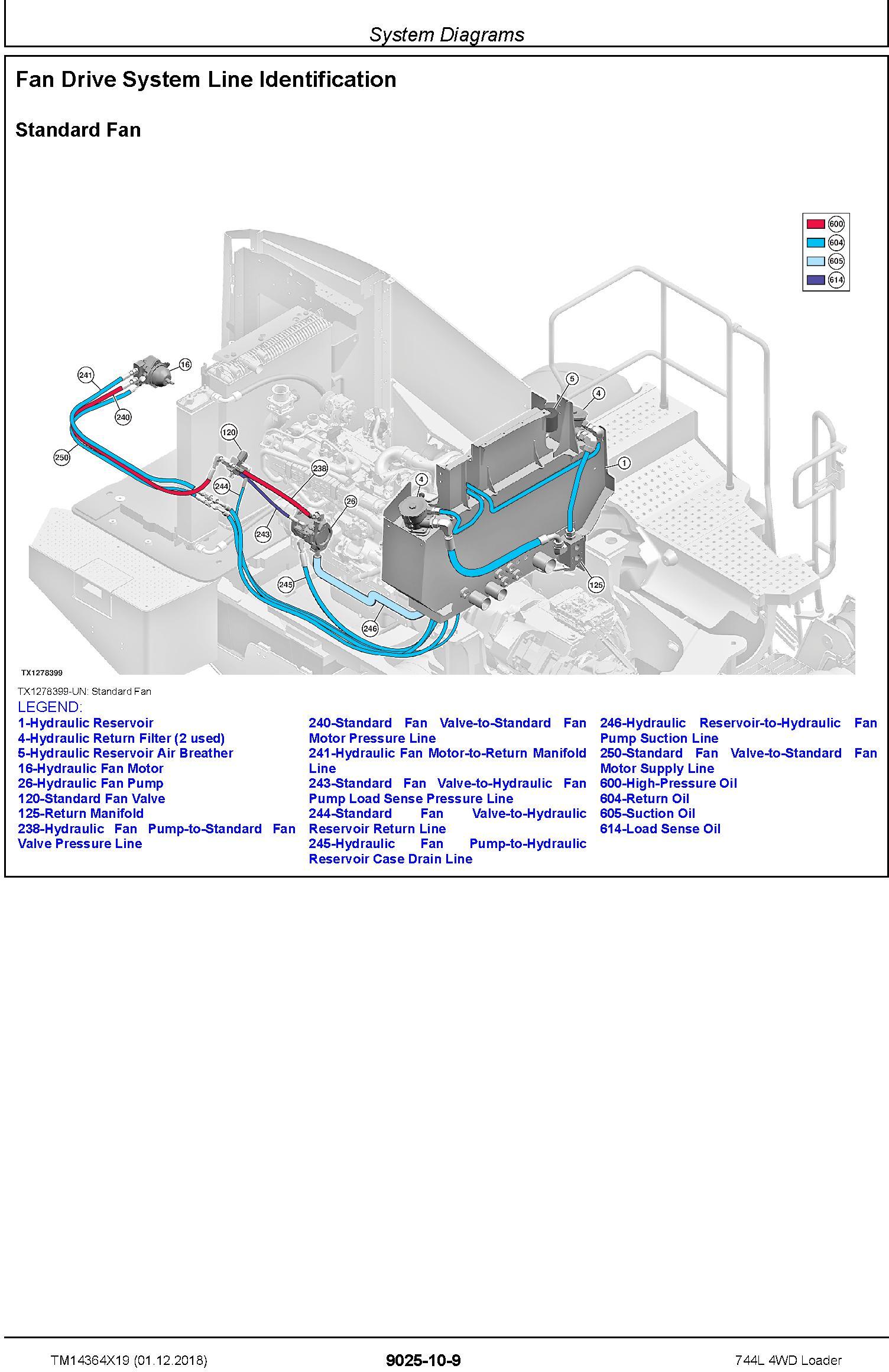

      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
