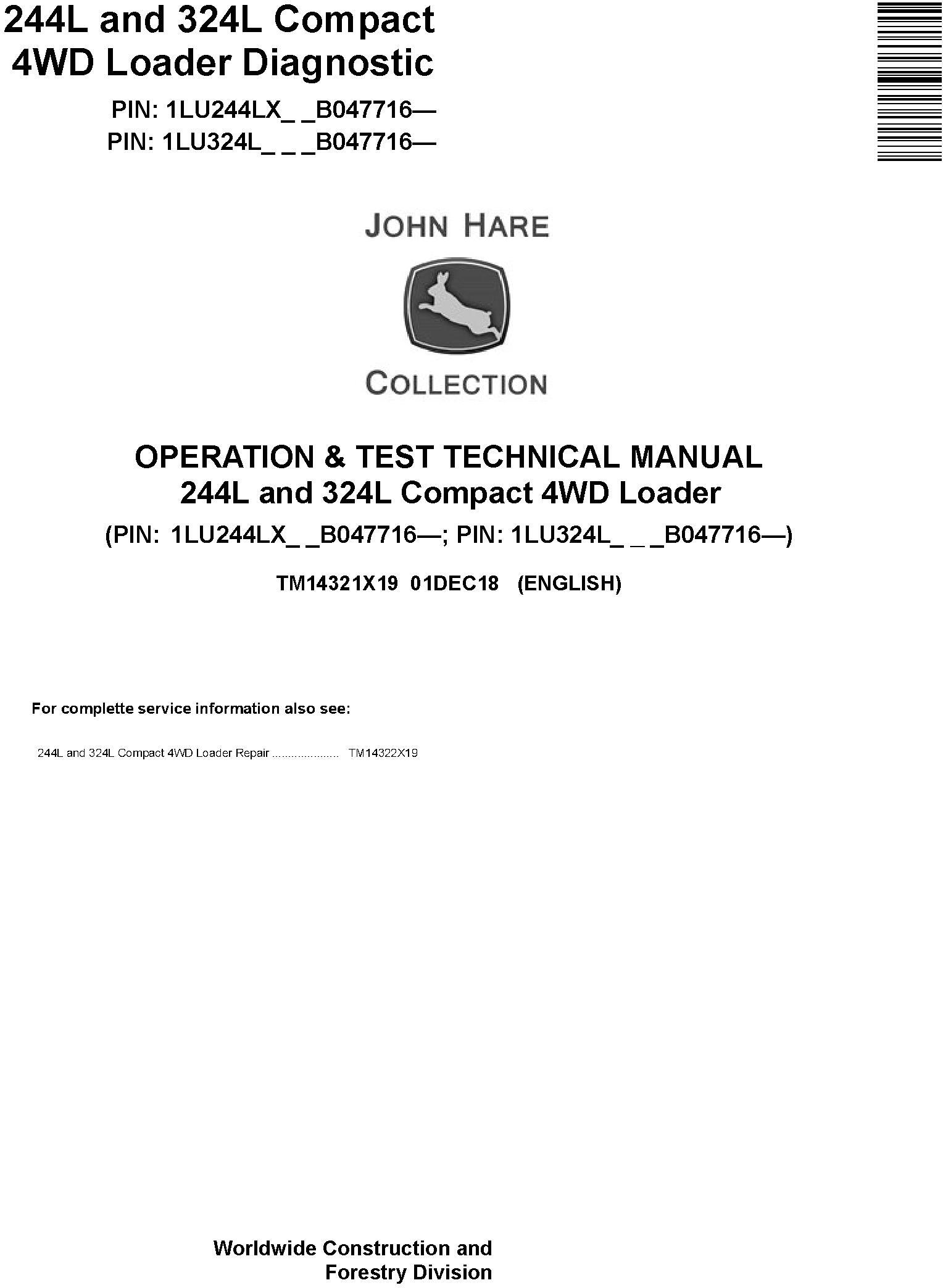

John Deere 244L and 324L Compact 4WD Loader Operation & Test Technical Manual (TM14321X19)

Illustrated Operation and Test Technical Manual for John Deere 244L and 324L Compact 4WD Loader

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 532 pages

Covered models:
  244L (PIN: 1LU244LX_ _B047716—)
  344L (PIN: 1LU324L_ _ _B047716—)

Contents:    Foreword
   Manual Identification-READ THIS FIRST!
   Serial Number Listing Information
   General Information
      Safety Information
   Diagnostic Trouble Codes (DTC)
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Central Control Unit (CCU) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation

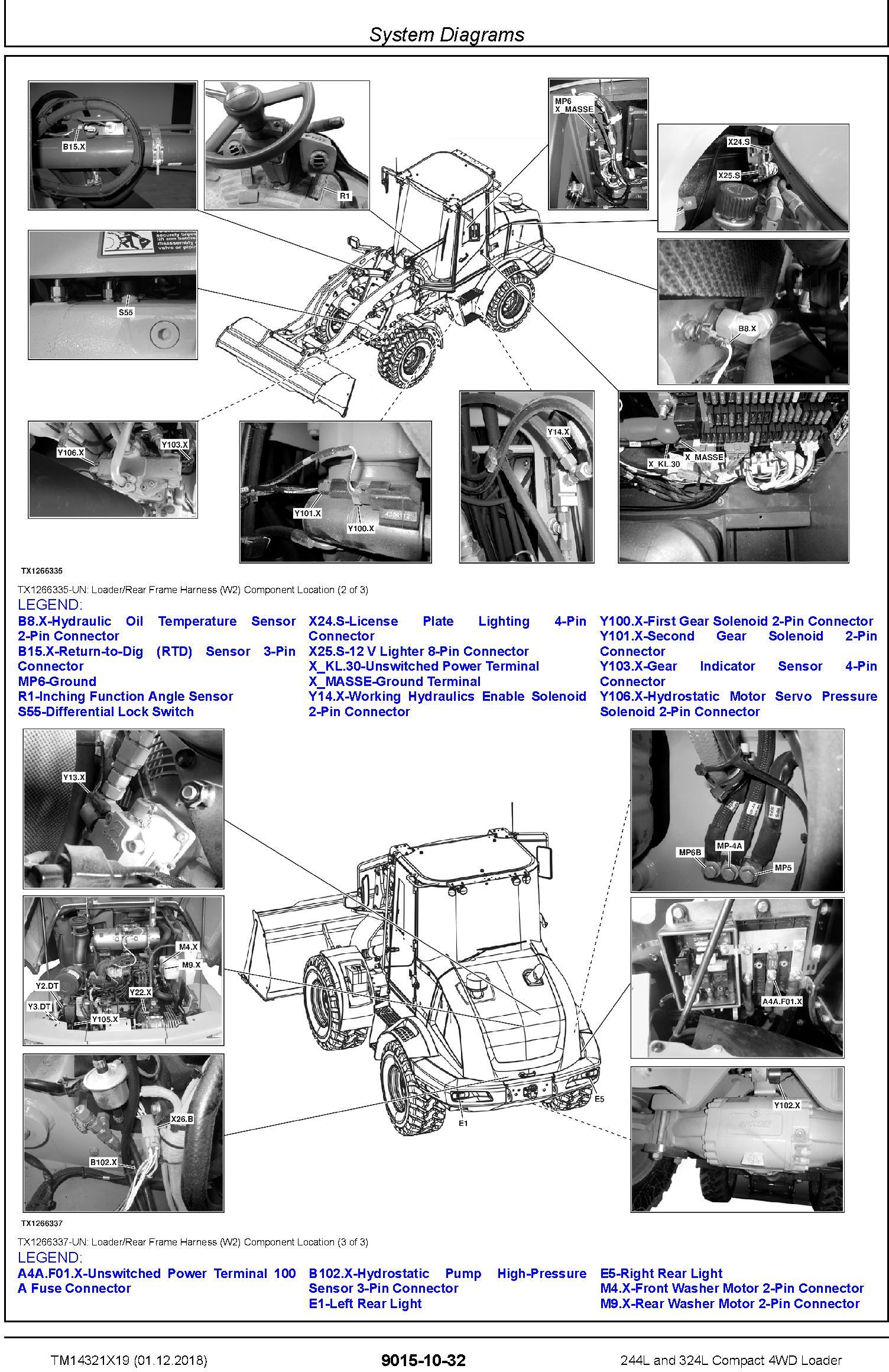

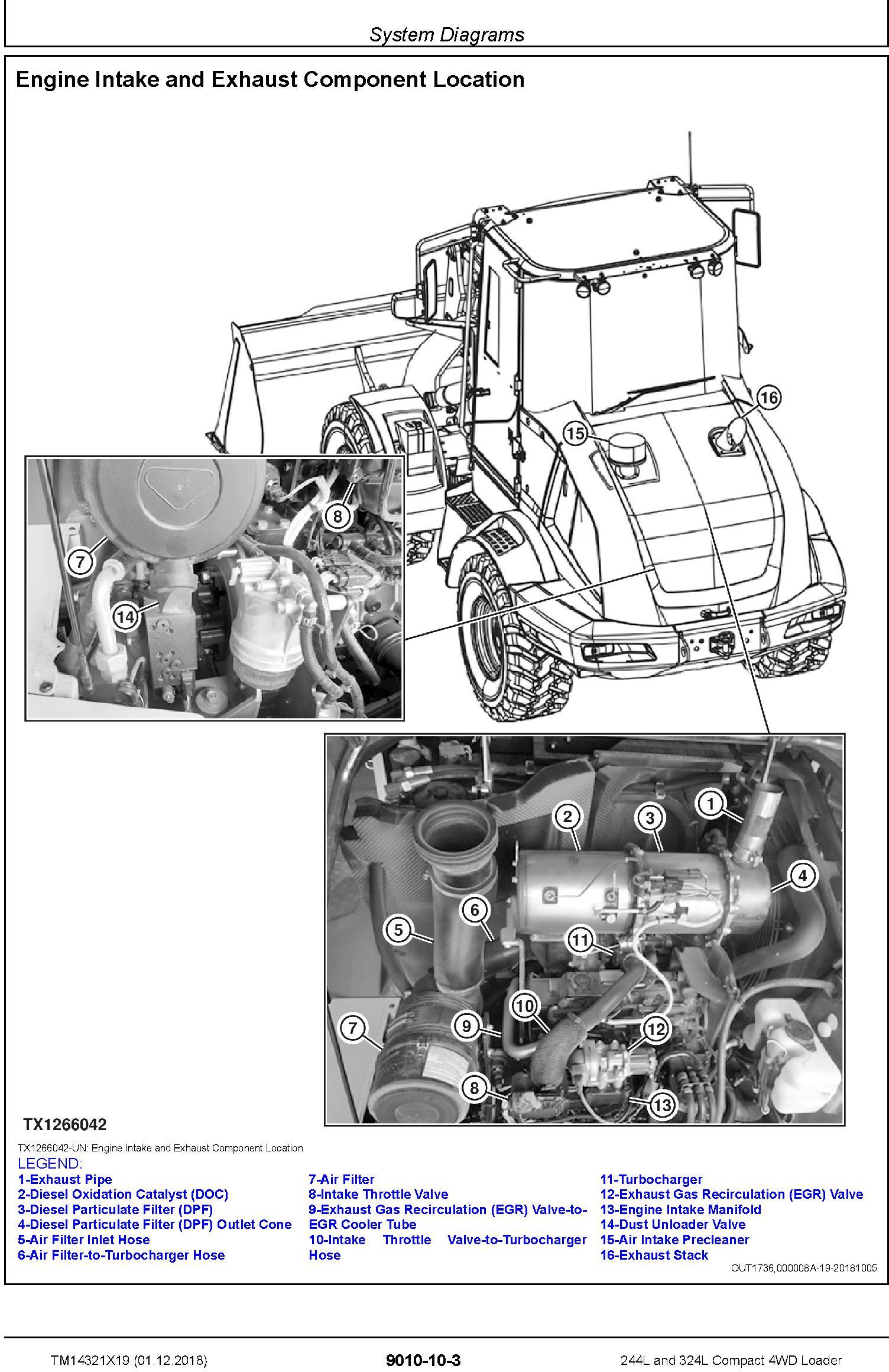

      System Diagrams
      Diagnostic Information
      Adjustments

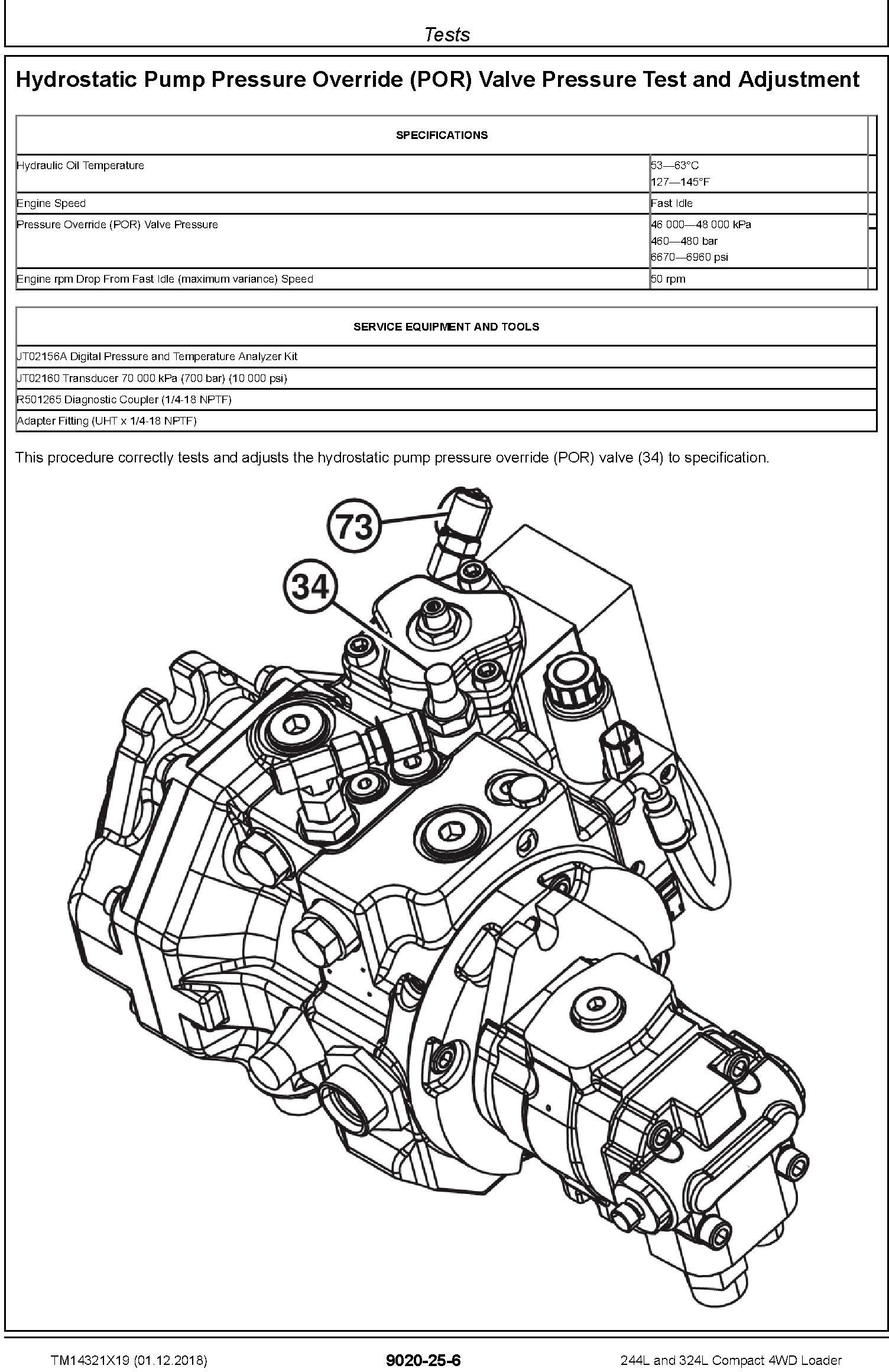

      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Power Train
      Theory Of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Hydraulic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Test
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
