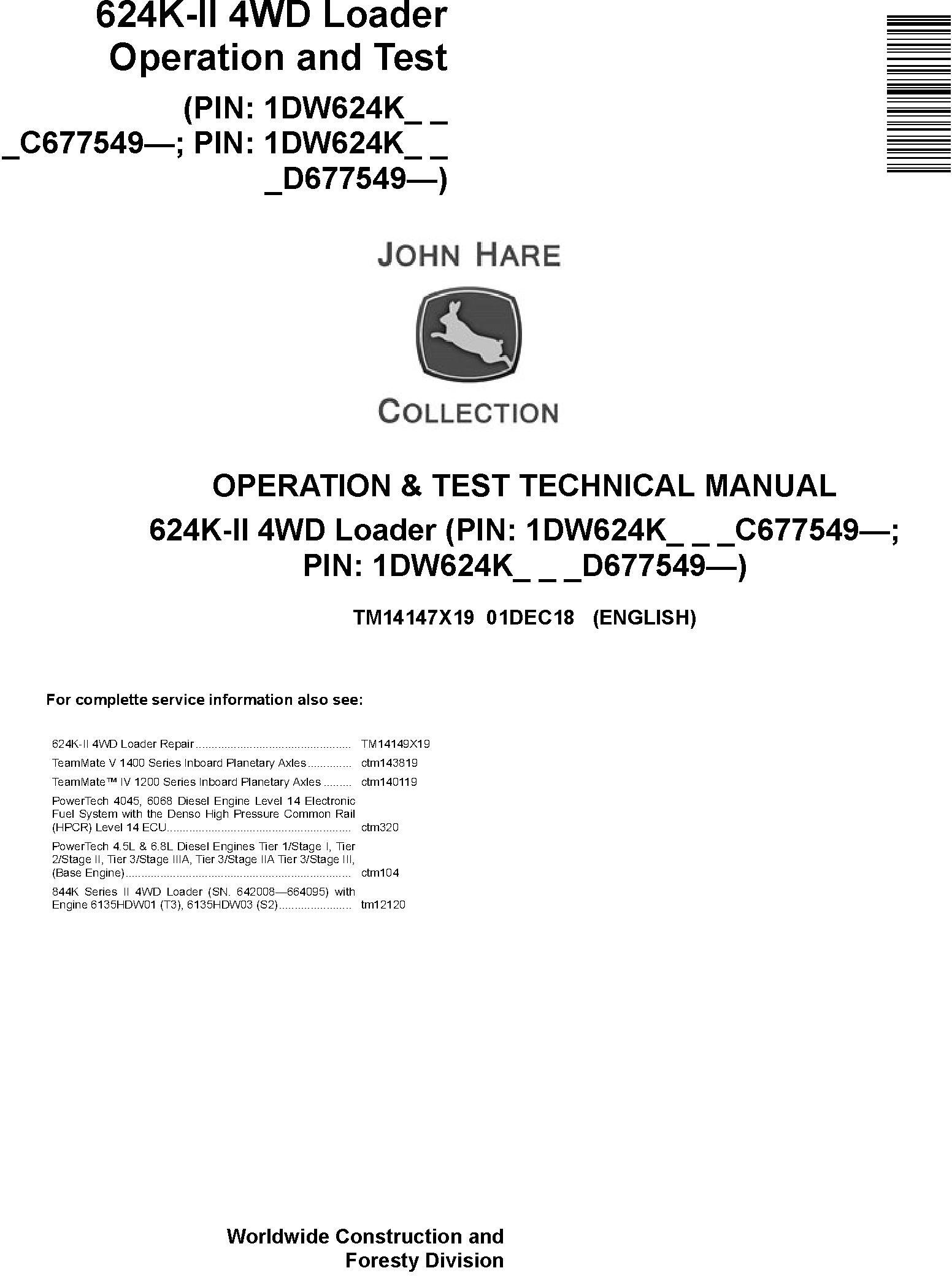

John Deere 624K-II (SN: C677549-, D677549-) 4WD Loader Operation & Test Service Manual (TM14147X19)

Product Code: 01030

Add to compare list

Illustrated Operation and Test Technical Service Manual for John Deere 4WD Loaders Models 624K-II

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 941 pages

Covered models:
624K-II (PIN: 1DW624K_ _ _C677549—; PIN: 1DW624K_ _ _D677549—)

CONTENTS

   Foreword
   Manual Identification - READ THIS FIRST!
   General Information
      Safety

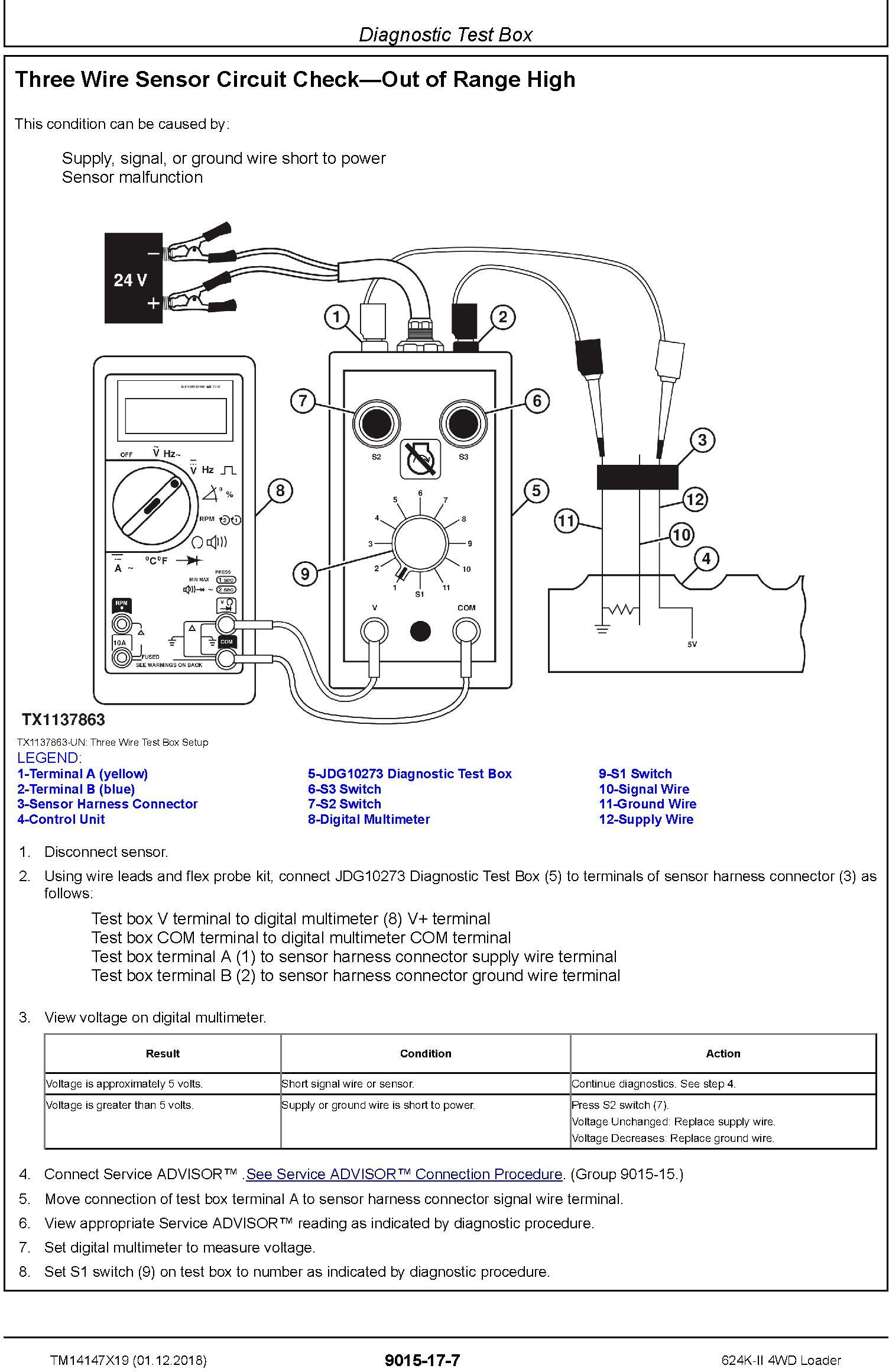

   Diagnostics
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Transmission Control Unit (TCU) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Sealed Switch Module (SSM) Diagnostic Trouble Codes
      Advanced Display Unit (ADU) Diagnostic Trouble Codes
      Radar Object Detection (ROD) Diagnostic Trouble Codes
      Ground Speed Radar (RDR) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine

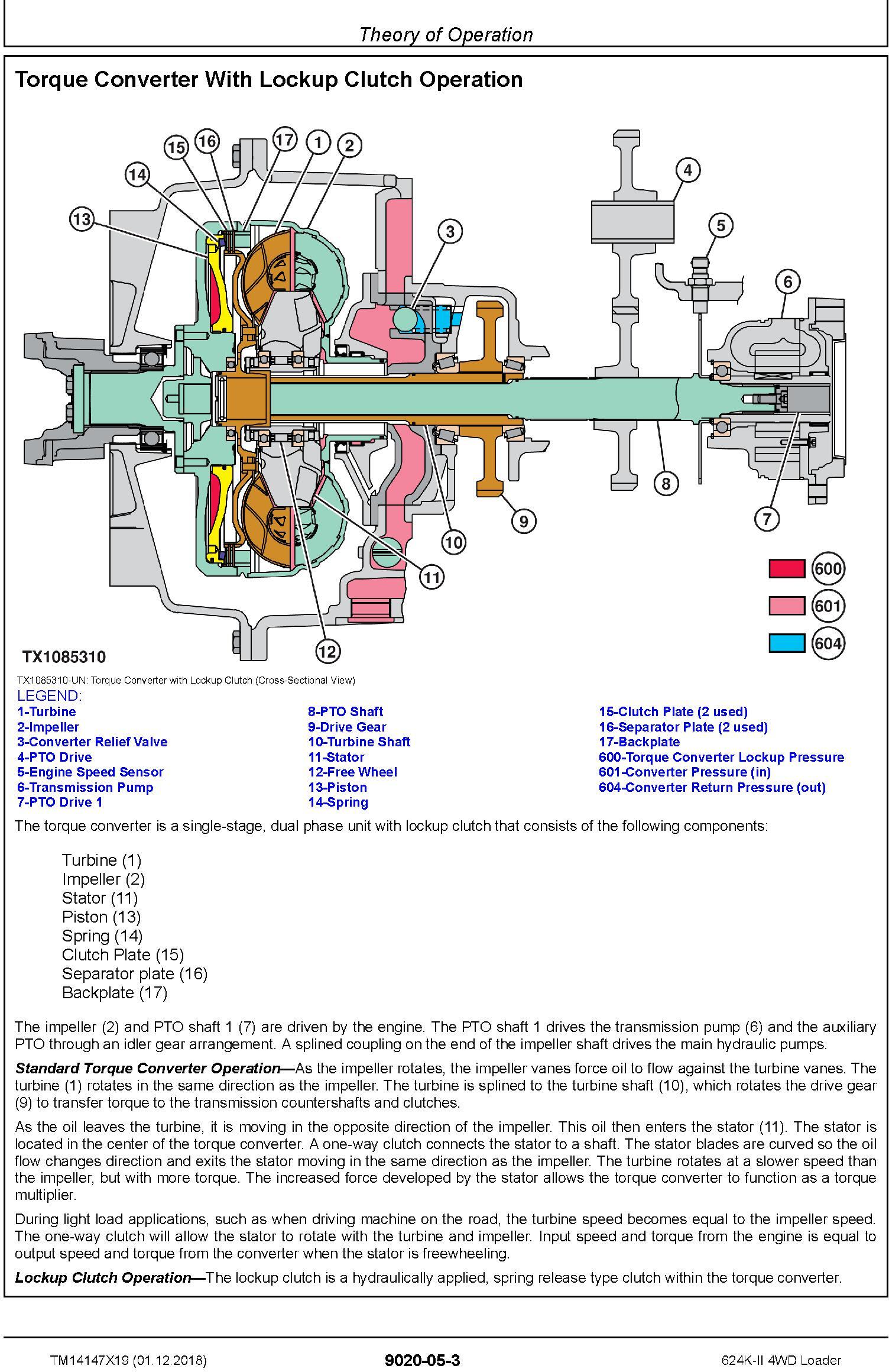

      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Monitor Operation
      Diagnostic Test Box

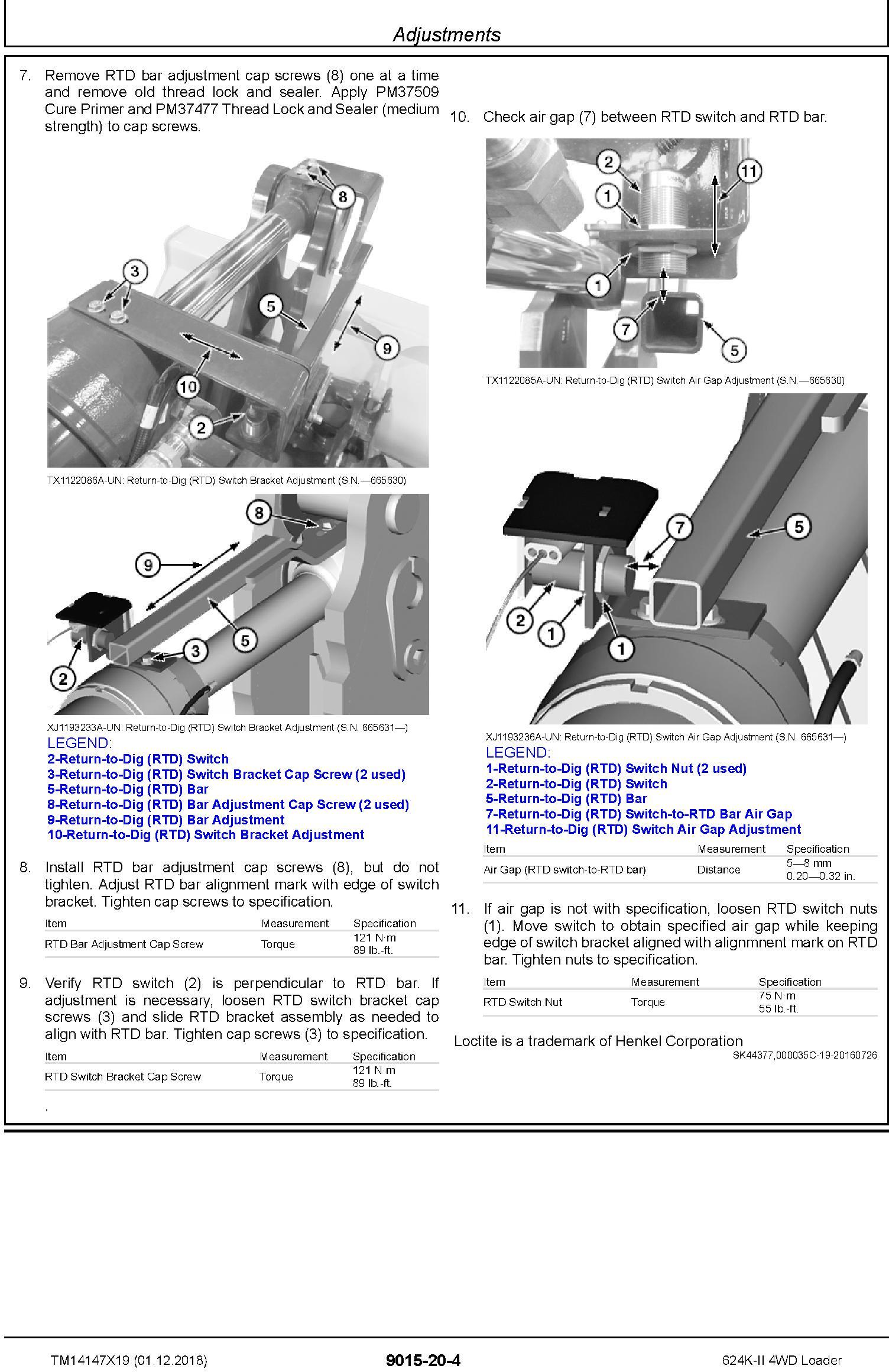

      Adjustments
      Tests
   Power Train
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Hydraulic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   APPENDIX
      System Functional Schematic

Specifications

Type of manual	Diagnostic Manual
Models	624K-II
