TM135619 - John Deere DB60T Twin Row Planters SeedStar, Frame, Hydraulics Diagnostic Service Manual

Product Code: 01365

Add to compare list

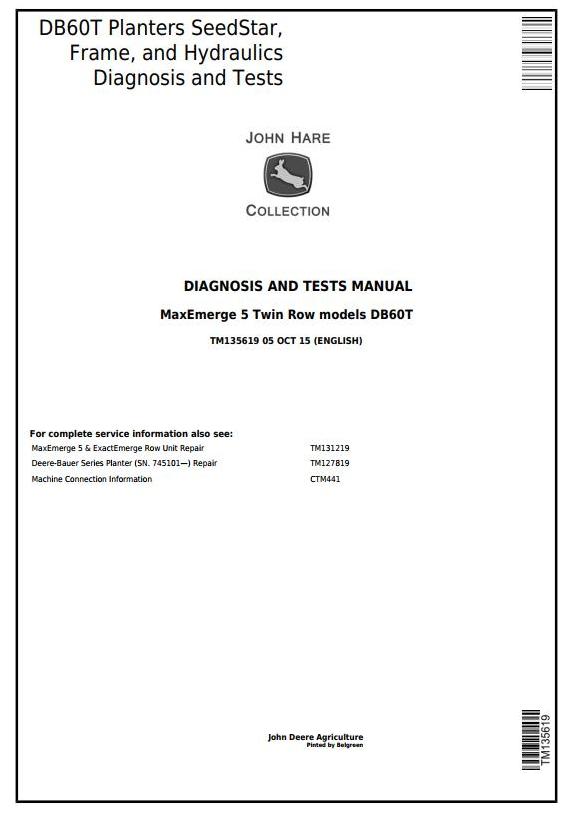

Illustrated Factory Diagnosis and Tests Service Manual for SeedStar, Frame, and Hydraulics on John Deere Twin Row Planters Models DB60T

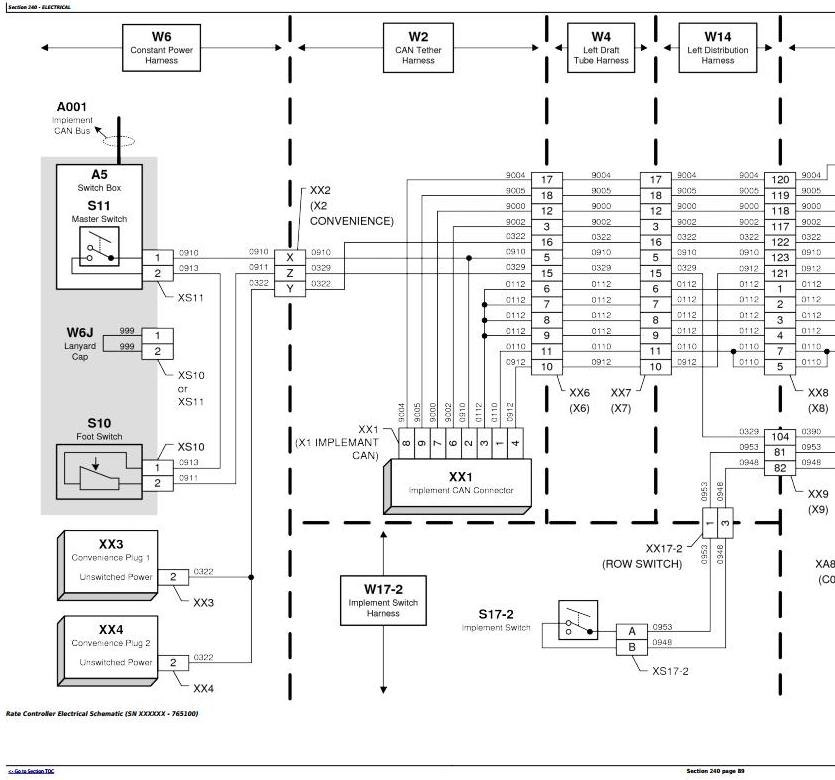

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 1018 pages

Covered models:
DB60T

CONTENTS

   Foreword
   General Information
      Acronym Table
      How to Use This Manual
      Safety
      Lubricants
      Recommended Tools for Diagnostics
      Basic Diagnostics
      Diagnostic Information for Electrical Components

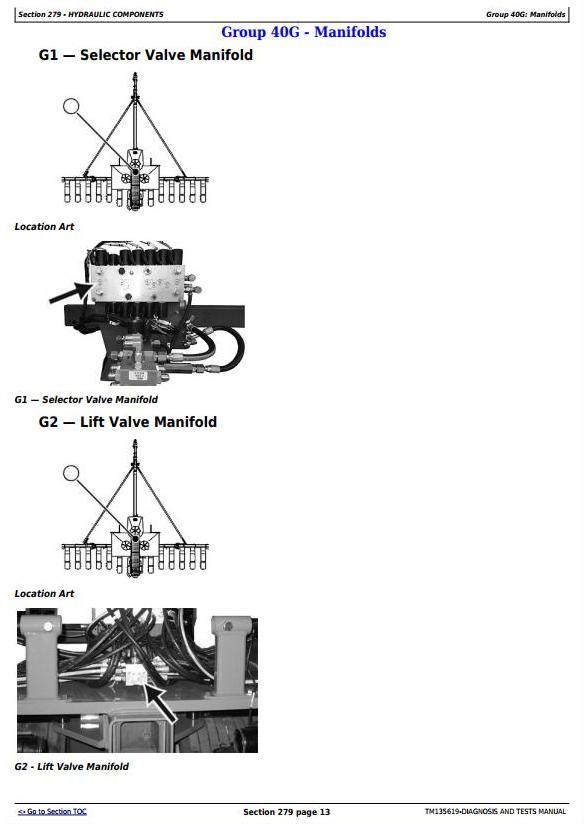

      Diagnostic Information for Hydraulic Components
      Maintaining Hydraulic Systems and Components
      Standard Torque Chart Procedures
   Diagnostic Trouble Codes
      Accessing Diagnostic Trouble Codes
      PA1 - Planter Auxiliary 1 Codes
      PA2 - Planter Auxiliary 2 Codes
      PM1 - Planter Main 1 Codes
      PM2 - Planter Main 2 Codes
   Observable Symptoms and System Diagnostics
      Observable Symptoms
   Electrical
      Theory of Operation
      Schematics
      Diagnostics
   Electrical Control Units
      Accessing Diagnostic Addresses
      Diagnostic Addresses by Control Unit
      Diagnostics

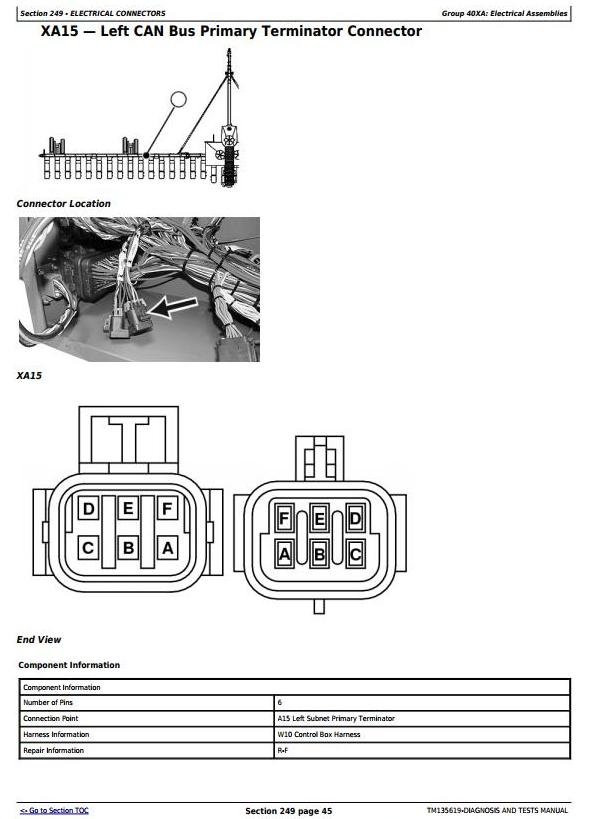

   Electrical Connectors
      Electrical Assemblies
      Sensors
      Lights
      Fuses
      Charging
      Relays
      Motors
      Switches
      Interconnects
      Solenoids
   Hydraulics
      Theory of Operation
      Schematics
      Diagnostics
   Hydraulic Components
      Accumulator
      Cylinders
      Check Valves
      Filters
      Manifolds
      Oil Coolers
      Motors
      Orifices
      Reservoirs
      Valves
      Coupler
      Solenoid Valves
   Pneumatics
      Theory of Operation
      Schematics
      Diagnostics
   Pneumatic Components
      Accumulators
      Sensors
      Check Valves
      Filters
      Assembly Groups
      Pumps
      Reservoirs
      Switches
      Valves
      Couplers or Diagnostic Receptacles
      Solenoid Valves

Specifications

Type of manual	Diagnostic Manual
Models	DB60T
