John Deere 3030 and 3130 Tractors set of Service Manuals (tm4277)

Table of Contents:
   Description, Operation and Specifications
   Control System
   Hydraulic System
   Planetary Reduction Drive, Knuckle and Knee Assembly
   Diagnosing Malfunctions
   Front Wheel Drive Testing

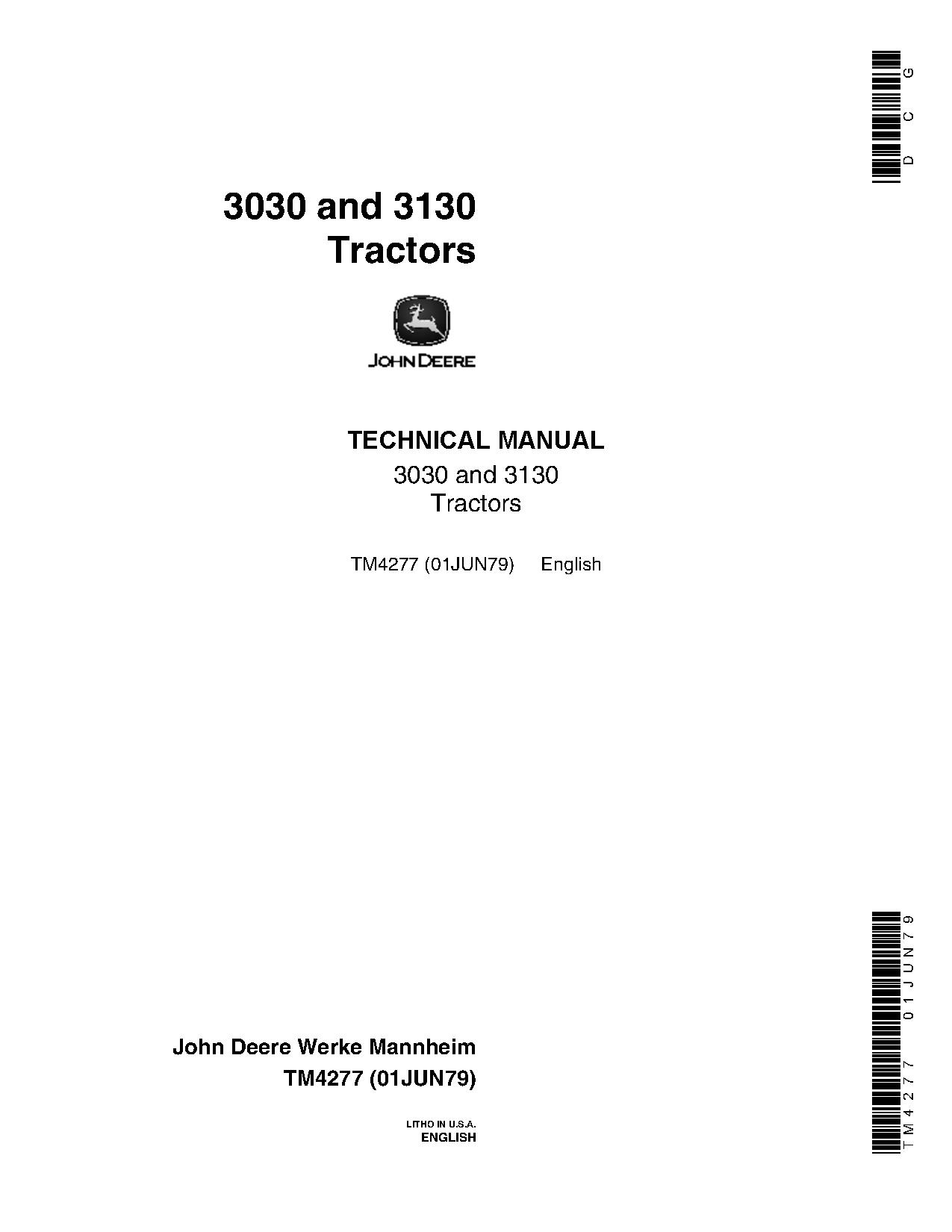

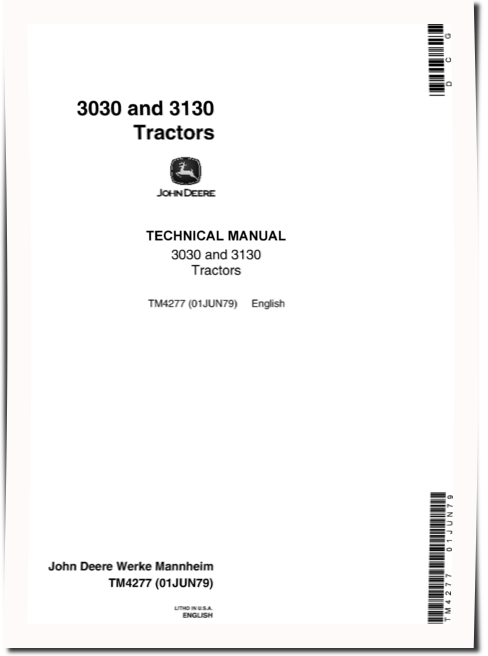

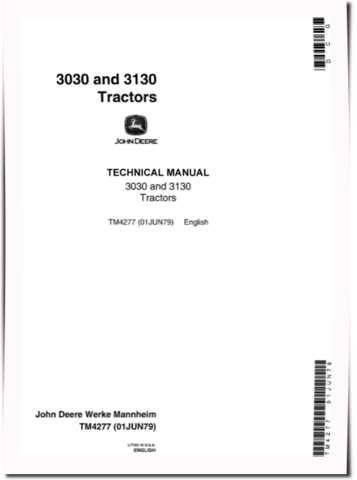

2. Technical Manual (tm4277)
Format: PDF, 458 pages
Language: English
Publication Date: 01 Jun 1979
Table of Contents:
   ATTENTION ! TM4277 is missing pages 50-10-1,2; 60-10-1,2; 60-15-11,12; 70-15-1,2; 70-30-3,4; 80-30-1,2

   GENERAL
      Specifications
      Pre-delivery, delivery and after-sales inspections
      Lubrication and peridoc service
      Engine and tractor tune-up

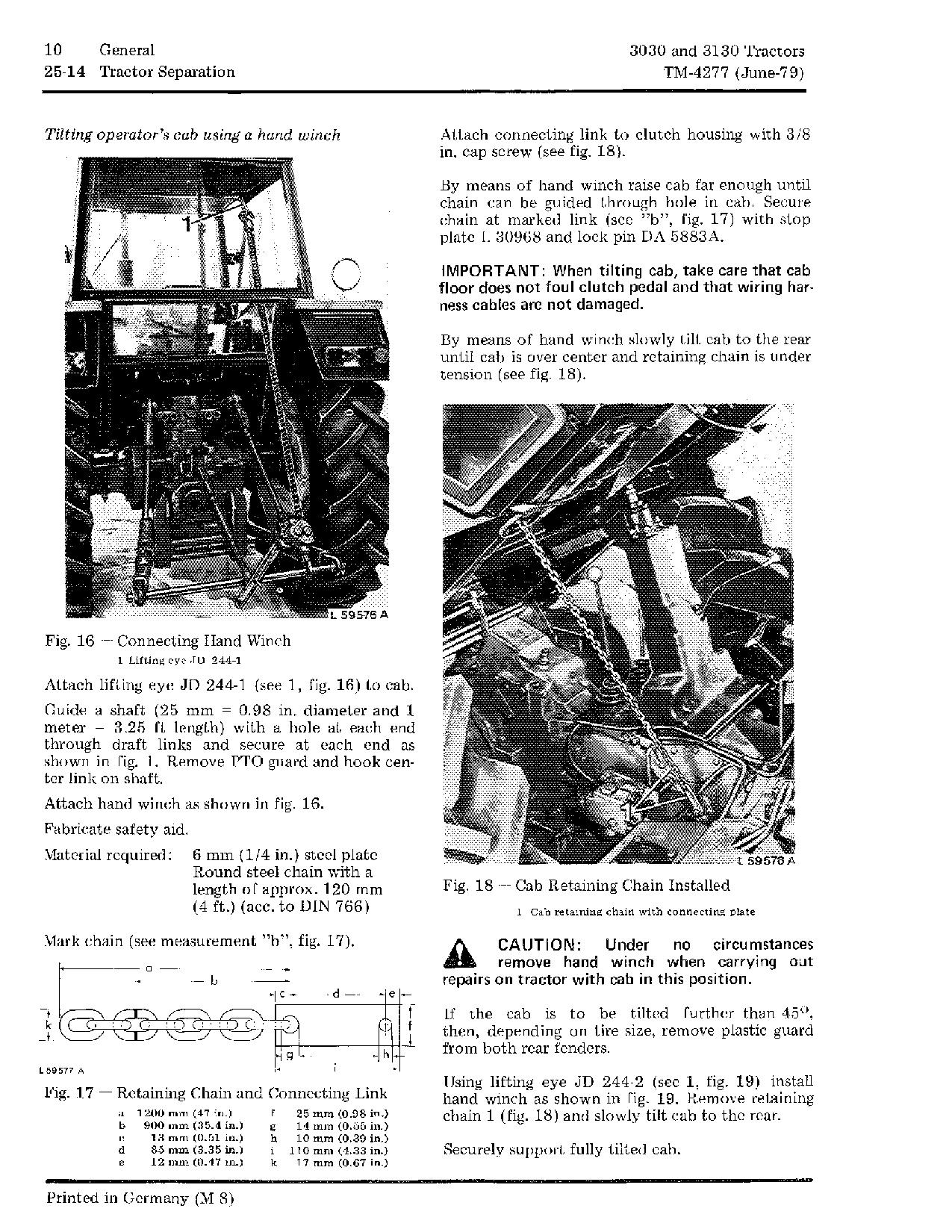

      Tractor separation
    ENGINE
      General information, diagnosing malfunctions
      Cylinder head and camshaft
      Cylinder block,liners, pistons and connecting rods
      Crankshaft, main bearings and flywheel
      Timing gear train
      Oil pump, oil pressure regulating valve and oil filter
      Engine cooling system
      Speed control linkage
    FUEL SYSTEM
      Diagnosingmalfunctions
      Fuel tank, water trap, transfer pump and fuel filter
      Roto Diesel fuel injection pump
      Fuelinjection nozzles
      Cold weather starting aids
      Air intake system
    ELECTRICAL SYSTEM
      Diagnosingmalfunctions
      'Bilux' lighting system (on earlier tractor models)
      'Bilux' lightingsystem (on later tractor models)
      'Bilux' lightingsystem (tractors with operator's cab)
      Sealed-beam lighting system (on earlier tractor models)
      Sealed-beam lighting system (on later tractor models)
      Starting motor
      Alternator and regulater
    POWER TRAIN

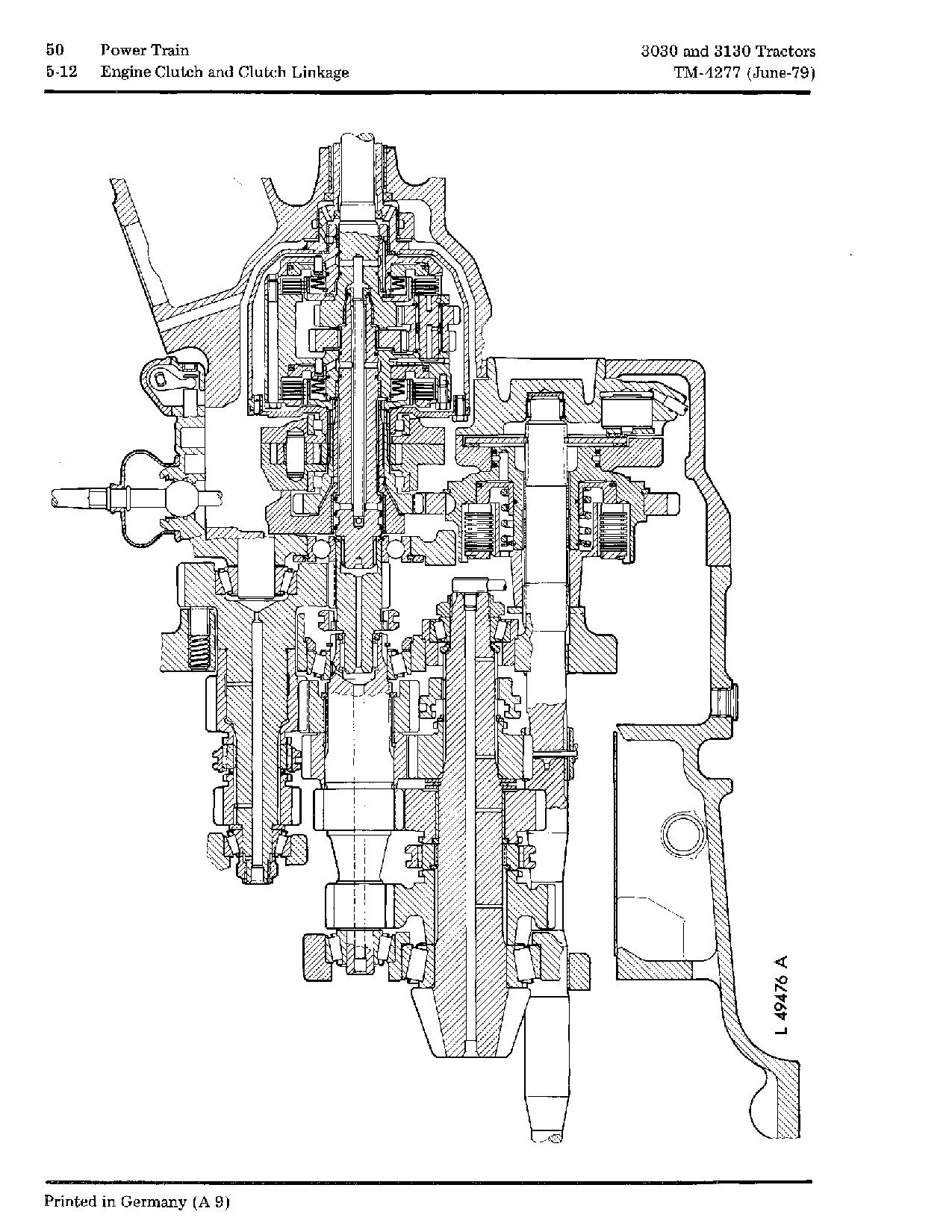

      Engine clutch and clutch linkage
      High-Low shift unit

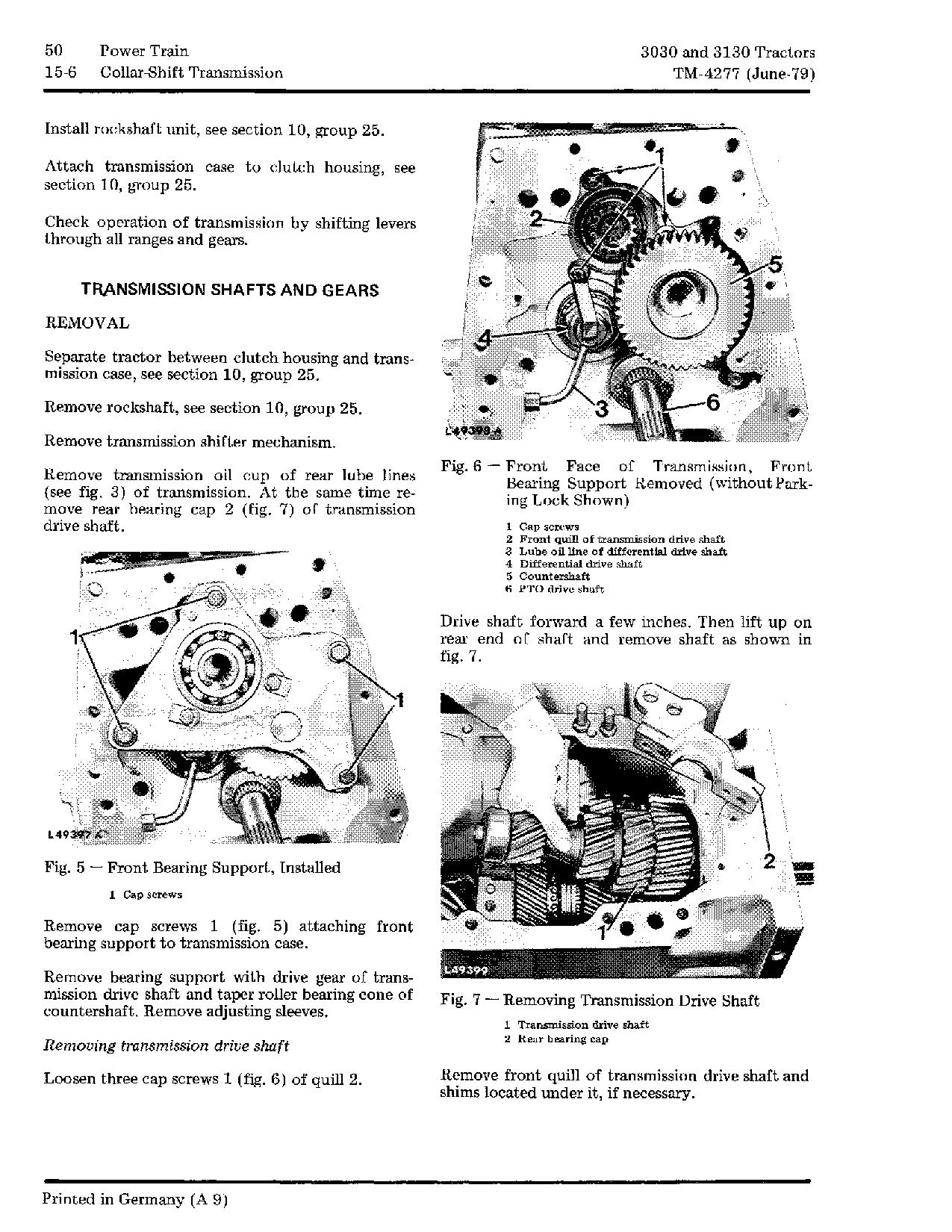

      Collar-shift transmission
      Differential
      Final drives
      PTO and PTO clutch
    FRONT AXLE, STEERING SYSTEM AND BRAKES
      Front axle
      Steering system
      Hydraulic brakes
    HYDRAULIC SYSTEM
      General information, diagnosing malfunctions and pressure tests
      Oil reservoir,filter, valves and oil cooler
      Hydraulic pump and transmission oil pump
      Rockshaft
      Selective control valve (spool type)
      Selective control valve (poppet valve type) and breakaway coupler
      Remote cylinder
    MISCELLANEOUS
      Belt pulley
      De Luxe seat
      Front and rear wheels
      Roll guard
      Operator's cab ventilation and heating
      Operator's cab
