TM2184 - John Deere 1770NT, 1770NT CCS 12-Row Planter (SN.–740100) Diagnostic and Tests Service Manual

Product Code: 7qzevi
Add to compare list
Illustrated Factory Diagnosis and Tests Service Manual for John Deere 12-Row Planters Models 1770NT and 1770NT CCS

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 519 pages

Covered models (SN.–740100):
  1770NT 12ROW
  1770NT CCS 12ROW

CONTENTS
   Foreword
   General Information
      Safety and Specifications
   Observable Symptoms
      Electrical
      Hydraulics
   Electrical Diagnostics
      How To Use This Diagnostic Information
      Solenoid Sequence Table

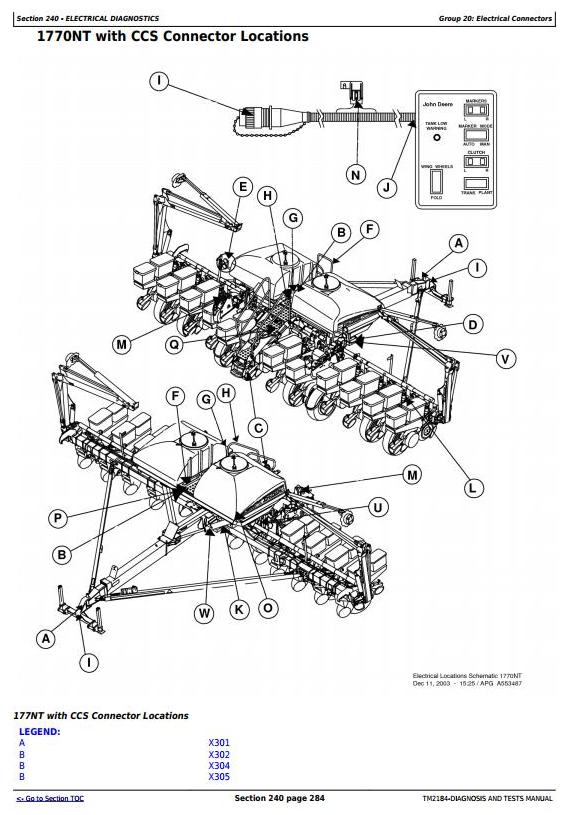

      CCS Auxiliary Hydraulics Coupler Seed Delivery Fan Switch Diagnostics Type ID
      CCS Auxiliary Hydraulics Coupler Seed Delivery Fan Switch Diagnostics - Type A
      CCS Auxiliary Hydraulics Coupler Seed Delivery Fan Switch Diagnostics - Type B
      CCS Auxiliary Power Diagnostics
      CCS Low Tank Warning Diagnostics
      CCS Seed Delivery Agitator Diagnostics Type ID
      CCS Seed Delivery Agitator Diagnostics - Type A
      CCS Seed Delivery Agitator Diagnostics - Type B
      CCS Seed Delivery Fan Diagnostics Type ID
      CCS Seed Delivery Fan Diagnostics - Type A
      CCS Seed Delivery Fan Diagnostics - Type B
      CCS Tank Fill Lights Diagnostics
      Convenience Outlet Power Extension Diagnostics
      Field Raise/Lower Diagnostics Type ID
      Field Raise/Lower Diagnostics - Type A
      Field Raise/Lower Diagnostics - Type B
      Field Raise/Lower with CCS Diagnostics Type ID
      Field Raise/Lower with CCS Diagnostics - Type A
      Field Raise/Lower with CCS Diagnostics - Type B
      Half Width Disconnect Diagnostics Type Identification
      Half Width Disconnect Diagnostics - Type A
      Half Width Disconnect Diagnostics - Type B
      Half Width Disconnect Diagnostics - Type C
      Lighting Overall Diagnostics
      Machine Fold/Unfold Diagnostics
      Marker Raise/Lower - Auto Mode Diagnostics
      Marker Raise/Lower - Manual Mode Diagnostics
      Pneumatic Down Force Diagnostics
      Transport and Wing Wheels Raise/Lower Diagnostics Type ID
      Transport and Wing Wheels Raise/Lower Diagnostics - Type A
      Transport and Wing Wheels Raise/Lower Diagnostics - Type B
      Transport and Wing Wheels Raise/Lower with CCS Diagnostics Type ID
      Transport and Wing Wheels Raise/Lower with CCS Diagnostics - Type A
      Transport and Wing Wheels Raise/Lower with CCS Diagnostics - Type B

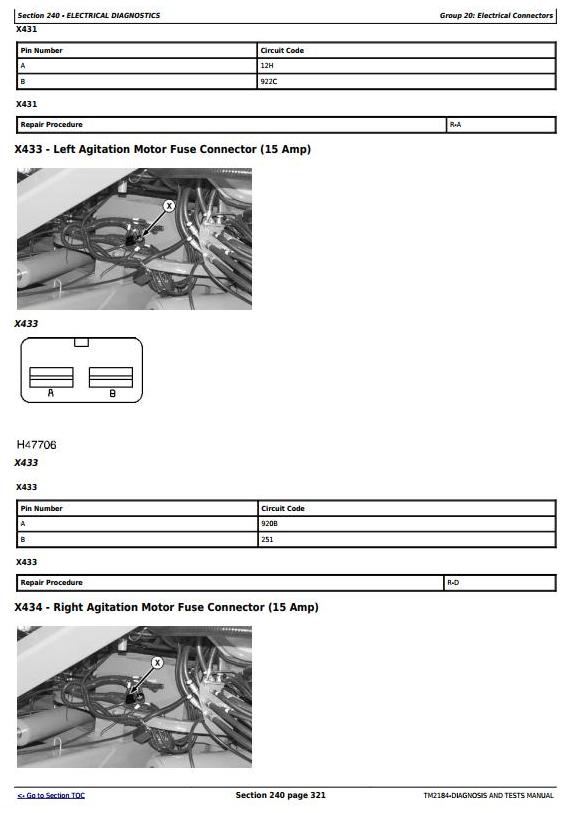

      Electrical Connectors
   Hydraulic System Diagnostics
      General Information
      CCS Auxiliary Coupler (Optional) Diagnostics
      CCS Seed Delivery Blower Motor Diagnostics
      Field Raise/Lower Center Frame Diagnostics
      Field Raise/Lower - Left Wing Wheel Diagnostics
      Field Raise/Lower - Right Wing Wheel Diagnostics
      Hydraulic Power Diagnostics
      Machine Fold/Unfold Diagnostics
      Marker Raise/Lower Integrated with Frame Raise/Lower Diagnostics
      Marker Raise/Lower - Independent SCV Diagnostics
      Transport Raise/Lower - Center Frame Wheels Diagnostics
      Transport Raise/Lower - Left Wing Wheel Diagnostics
      Transport Raise/Lower - Right Wing Wheel Diagnostics

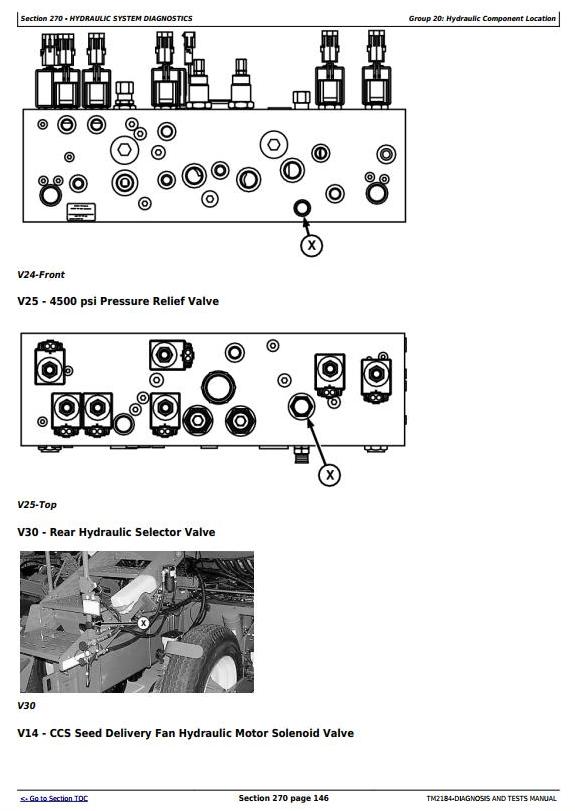

      Hydraulic Component Location
Specifications
Type of manual Diagnostic Manual
Models 1770NT, 1770NT
