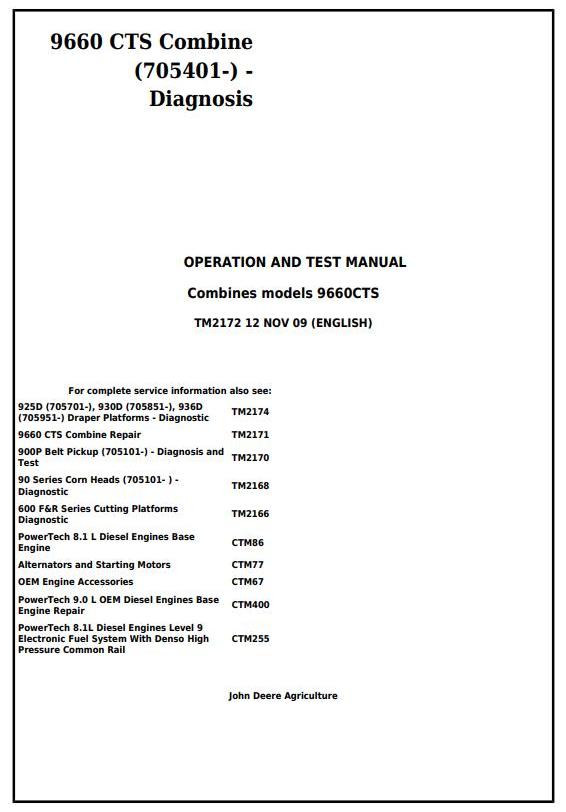

TM2172 - John Deere 9660 CTS Combine (SN.from 705401) Diagnostic, Operation and Test Service Manual

Product Code: 2ldzsf
Add to compare list
Illustrated Factory Diagnostic, Operation and Test Service Manual for John Deere Combine model 9660 CTS

This manual contains high quality images, diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 3420 pages

Covered models:
  9660CTS (SN. from 705401)

CONTENTS
  Foreword
  General
    Safety
    Combine and Component Identification
    General Specifications
    Diagnostic and Testing Procedures
  Diagnostic Trouble Codes
    Accessing Diagnostic Trouble Codes and Addresses
    A00 - Engine Control Unit Diagnostic Trouble Codes
    C00 - Armrest Control Unit Diagnostic Trouble Codes
    C03 - Cornerpost Control Unit Diagnostic Trouble Codes
    Calibration Error Codes
    E00 - Tailings Master Sensor Diagnostic Trouble Codes
    E01 - Header Control Unit Diagnostic Trouble Codes
    E02 - Right Control Unit Diagnostic Trouble Codes
    E03 - Left Control Unit Diagnostic Trouble Codes
    E15 - Control Unit E15 Diagnostic Trouble Codes
    ECU - Engine Control Unit Diagnostic Trouble Codes
    GREENSTAR Display Warning Messages and Fault Codes
    GREENSTAR Data Card Warning Messages
    GREENSTAR Mobile Processor Warning Messages
    GREENSTAR Moisture Sensor Diagnostic Trouble Codes
    HARVEST DOC Warning Messages
    Control Unit SSU Last Exit Codes
    Control Unit SSU Diagnostic Trouble Codes
    STARFIRE iTC Diagnostic Trouble Codes
    STARFIRE Receiver Warning Messages
    Terrain Compensation Module Fault Codes
    UIM - External Display Codes
    VTi - GREENSTAR Display 2100/2600
  Observable Symptoms
    Engine System
    Air Intake and Cooling Systems
    Electrical
    Power Train System
    Four Wheel Drive System
    Brake System
    Hydraulic System
    Main Gearcase System
    Steering System
    CLIMATRAK System
    Separator System
  Engine System
    General Information
    Test Procedures and Adjustments
    Engine Diagnostics
    Component Identification and Location
  Air Intake and Cooling Systems
    General Information
    Test Procedures and Adjustments
    Air Intake System Diagnostics
    Engine Cooling Package Diagnostics
    Component Identification and Location
  Electrical System
    How To Use This Diagnostic Information
    Accessing Diagnostic Trouble Codes and Addresses
    Calibration Procedures
    Diagnostic Trouble Codes, Warning Messages and Fault Codes
    Diagnostic Addresses By Controller
    Machine Setting Addresses
    Active Header Height Control Diagnostics - Type Identification
    Active Header Height Control Diagnostics - Type A
    Active Header Height Control Diagnostics - Type B
    Active Header Height Control Diagnostics - Type C
    Active Header Height Control Diagnostics - Type D
    Alternator and Battery Type Identification
    Alternator and Battery Diagnostics - Type A
    Alternator and Battery Diagnostics - Type B
    Armrest Control Unit - Overall Diagnostics
    Auxiliary Power Strip Outlet Diagnostics
    Backup Alarm Diagnostics
    CAN Bus Type Identification
    CAN Bus 1 Diagnostics - Type A
    CAN Bus 1 Diagnostics - Type B
    CAN Bus 2 Diagnostics
    Cleaning Fan Speed Adjust Diagnostics
    CLIMATRAK iagnostics
    COMFORT COMMAND eat Diagnostics
    CONTOUR MASTER Automatic Tilt Diagnostics
    CONTOUR MASTER Manual Tilt Diagnostics
    Control Unit E15 - Overall Diagnostics
    Control Unit SSU - Overall Diagnostics
    Cornerpost Control Unit - Overall Diagnostics
    Cornerpost - Cleaning Fan Speed Diagnostics
    Cornerpost -CONTOUR MASTER ilt Position Diagnostics
    Cornerpost - Deck Plate Spacing Diagnostics
    Cornerpost - Engine Hourmeter Diagnostics
    Cornerpost - Engine Speed Diagnostics
    Cornerpost - Engine Temperature Diagnostics
    Cornerpost - Feeder House Speed Diagnostics
    Cornerpost - Fuel Gauge Diagnostics
    Cornerpost - Ground Speed Diagnostics
    Cornerpost - HYDRAFLEX ressure Diagnostics
    Cornerpost - Separator Hours Diagnostics
    Cornerpost - Threshing Clearance Diagnostics
    Cornerpost - Threshing Speed Diagnostics
    Deck Plate Adjustment Diagnostics
    Delayed Power Diagnostics
    DIAL-A-SPEED iagnostics
    Draper Speed Adjustment Diagnostics
    Engine Compartment Relay Panel Diagnostics
    Engine Control Unit - Overall Diagnostics
    Engine and Fuel Control Diagnostics
    Feeder House Reverse Diagnostics
    Four Wheel Drive Diagnostics
    GREENSTAR ata Card Type Identification
    GREENSTAR ata Card Diagnostics - Type A
    GREENSTAR ata Card Diagnostics - Type B
    GREENSTAR isplay Type Identification
    GREENSTAR isplay Diagnostics - Type A
    GREENSTAR Display Diagnostics - Type B
    GREENSTAR ocumentation Type Identification
    GREENSTAR ocumentation Diagnostics - Type A
    GREENSTAR ocumentation Diagnostics - Type B
    GREENSTAR ocumentation Diagnostics - Type C
    GREENSTAR xternal Display Control Diagnostics
    GREENSTAR ass Flow Sensor Diagnostics
    GREENSTAR obile Processor Diagnostics
    GREENSTAR Moisture Sensor - Type Identification
    GREENSTAR Moisture Sensor Diagnostics - Type A
    GREENSTAR Moisture Sensor Diagnostics - Type B
    GreenStar RTK Type Identification
    GreenStar RTK Diagnostics - Type A
    GreenStar RTK Diagnostics - Type B
    GreenStar RTK Diagnostics - Type C
    GreenStar StarFire Type Identification
    GreenStar StarFire Diagnostics - Type A
    GreenStar StarFire Diagnostics - Type B
    GreenStar StarFire Diagnostics - Type C
    GreenStar StarFire Diagnostics - Type D
    GREENSTAR teering - Auto Type Identification
    GREENSTAR teering - Auto Diagnostics - Type A
    GREENSTAR teering - Auto Diagnostics - Type B
    GREENSTAR teering - Auto Diagnostics - Type C
    GREENSTAR teering - Auto Diagnostics - Type D
    GreenStar Steering - Auto Diagnostics - Type E
    GreenStar Steering - Auto Diagnostics - Type F
    GREENSTAR teering - Manual Diagnostics
    Header Control Unit - Overall Diagnostics
    Header Engage Diagnostics
    Header Raise/Lower Diagnostics
    Horn Diagnostics
    HYDRAFLEX ressure Adjustment Diagnostics
    Left Control Unit - Overall Diagnostics
    Left Control Unit - Control Relay Board Link Diagnostics
    Lighting System - Overall Diagnostics
    Lighting System - Daytime Running Lights Diagnostics
    Lighting System - Dome Light Diagnostics
    Lighting System - Exit Lighting Diagnostics
    Lighting System - Field Lights Type Identification
    Lighting System - Field Lights Diagnostics - Type A
    Lighting System - Field Lights Diagnostics - Type B
    Lighting System - Hazard/Turn Lights Diagnostics
    Lighting System - Marker Lights Diagnostics
    Lighting System - Panel Lights Diagnostics
    Lighting System - Rear Discharge Lights Diagnostics
    Lighting System - Road Lights Diagnostics
    Lighting System - Engine Area Service Lights Diagnostics
    Lighting System - Gullwing Door Service Lights Diagnostics
    Lighting System - Shoe Service Lights Diagnostics
    Lighting System - Side Finder Lights Diagnostics
    Lighting System - Stubble Lights Diagnostics
    Lighting System - Unloading Auger Light Diagnostics
    Mirrors - Heating Diagnostics
    Mirrors - Adjustment Diagnostics
    Multifunction Control Handle Diagnostics
    Quick-Stop Diagnostics
    Radio System Diagnostics
    Reel Fore/Aft Adjustment Diagnostics
    Reel Fore/Aft Resume Diagnostics
    Reel Raise/Lower Type Identification
    Reel Raise/Lower Diagnostics - Type A
    Reel Raise/Lower Diagnostics - Type B
    Reel Raise/Lower Resume Diagnostics
    Reel/Belt Speed Adjust Diagnostics
    Right Control Unit - Overall Diagnostics
    Road/Field System Diagnostics
    Separator Engage Diagnostics
    Start Aid Diagnostics
    Starting Motor System Diagnostics
    Tailings Monitor System Diagnostics
    Threshing Clearance Adjust Diagnostics
    Threshing Speed Adjustment Diagnostics
    Unloading Auger Engage Diagnostics
    Unloading Auger Swing Diagnostics
    Variable Speed Feeder House Diagnostics
    VISIONTRAK iagnostics
    Warning Display Panel - Overall Diagnostics
    Warning - Beater Speed Diagnostics
    Warning - Clean Grain Elevator Speed Diagnostics
    Warning - Conveyor Auger Speed Diagnostics
    Warning - Cylinder Speed Diagnostics
    Warning - Engine Air Filter Plugged Diagnostics
    Warning - Engine Oil Pressure Diagnostics
    Warning - Engine Speed Diagnostics
    Warning - Engine Temperature Diagnostics
    Warning - Grain Separator Speed Diagnostics
    Warning - Grain Tank Full - Type Identification
    Warning - Grain Tank Full Diagnostics - Type A
    Warning - Grain Tank Full Diagnostics - Type B
    Warning - Hydraulic Oil Temperature Diagnostics
    Warning - Hydrostatic Charge Pressure Diagnostics
    Warning - Low Fuel Diagnostics
    Warning - Main Gearcase Filter Restricted Diagnostics
    Warning - Main Gearcase Pressure Diagnostics
    Warning - Main Gearcase Temperature Diagnostics
    Warning - Parking Brake Diagnostics
    Warning - Straw Chopper Speed Diagnostics
    Warning - Tailings Elevator Speed Diagnostics
    Warning - Unloading Auger Engaged Diagnostics
    Warning - Voltage Diagnostics
    Wiper System Diagnostics
    Circuit Code Listing
    Connector Information
    Connector Repair Procedures
  Power Train System
    General Information
    Test Procedures and Adjustments
    Final Drive Diagnostics
    Transmission Diagnostics
    Hydrostatic Drive Diagnostics
    Component Identification and Location
  Four Wheel Drive System
    General Information
    Test Procedures and Adjustments
    Two Speed Four Wheel Drive Diagnostics
    Component Identification and Location
  Brake System
    General Information
    Test Procedures and Adjustments
    Park Brake Diagnostics
    Service Brakes Diagnostics
    Component Identification and Location
  Hydraulic System
    General Information
    Test Procedures And Adjustments
    Basic Hydraulic System Diagnostics
    Belt Pickup Drive Type Identification
    Belt Pickup Drive Diagnostics - Type A
    Belt Pickup Drive Diagnostics - Type B
    Belt Pickup Drive Diagnostics - Type C
    CONTOUR MASTER™ Header Tilt Diagnostics
    Deck Plate Adjust Diagnostics
    Draper Belt Drive Diagnostics
    Feeder House Gearcase Cooler Diagnostics
    Feeder House Reverser Shift Diagnostics
    Header Raise/Lower Diagnostics
    HYDRAFLEX™ Pressure Adjust Diagnostics
    Hydraulic System Overheating Diagnostics
    Multi-coupler Diagnostics
    Reel Drive Diagnostics
    Reel Fore/Aft Diagnostics
    Reel Raise/Lower Type Identification
    Reel Raise/Lower Diagnostics - Type A
    Reel Raise/Lower Diagnostics - Type B
    Spreader Drive Diagnostics
    Threshing Speed Adjust Diagnostics
    Unloading Auger Swing Diagnostics
    Variable Speed Feeder House Diagnostics
    Windscreen Raise/Lower Diagnostics
    Component Identification and Location
  Main Gearcase System
    General Information
    Test Procedures and Adjustments
    Main Gearcase Overall Diagnostics
    Main Gearcase Filter Restricted Diagnostics
    Main Gearcase Pressure Low Diagnostics Type Identification
    Main Gearcase Pressure Low Diagnostics - Type A
    Main Gearcase Pressure Low Diagnostics - Type B
    Main Gearcase Temperature High Diagnostics Type Identification
    Main Gearcase Temperature High Diagnostics - Type A
    Main Gearcase Temperature High Diagnostics - Type B
    Separator Engage Diagnostics
    Unloading Auger Engage Diagnostics
    Component Identification and Location
  Steering System
    General Information
    Test Procedures and Adjustments
    Steering System Type Identification
    Steering Diagnostics - Type A
    Steering Diagnostics - Type B
    Component Identification and Location
  CLIMATRAK™ System
    General Information
    Test Procedures and Adjustments
    CLIMATRAK iagnostics
    Component Identification and Location
  Separator System
    General Information
    Separator Vibration Diagnostics
    Component Identification and Location
Specifications
Type of manual Diagnostic Manual
Models 9660
REVIEWS There are no reviews to this product
Написать отзыв
Ваша оценка
Ваш комментарий будет опубликован после модерации администратором

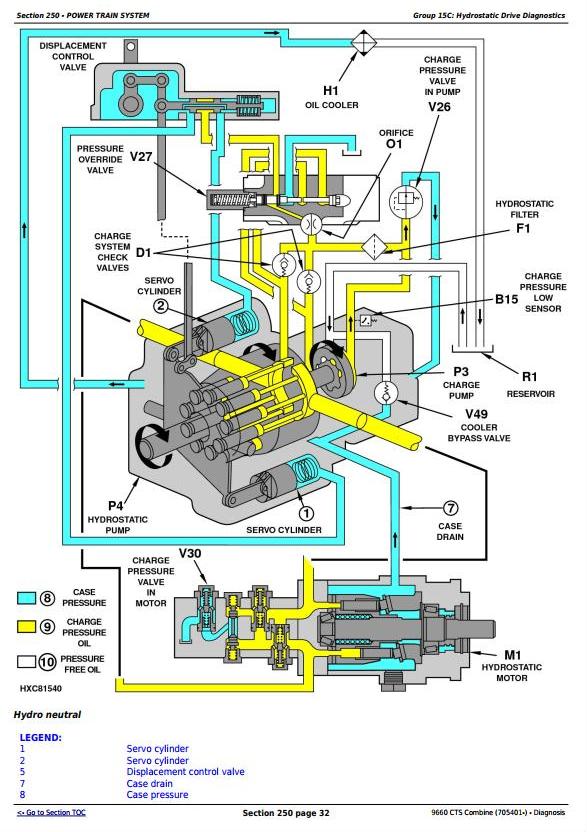

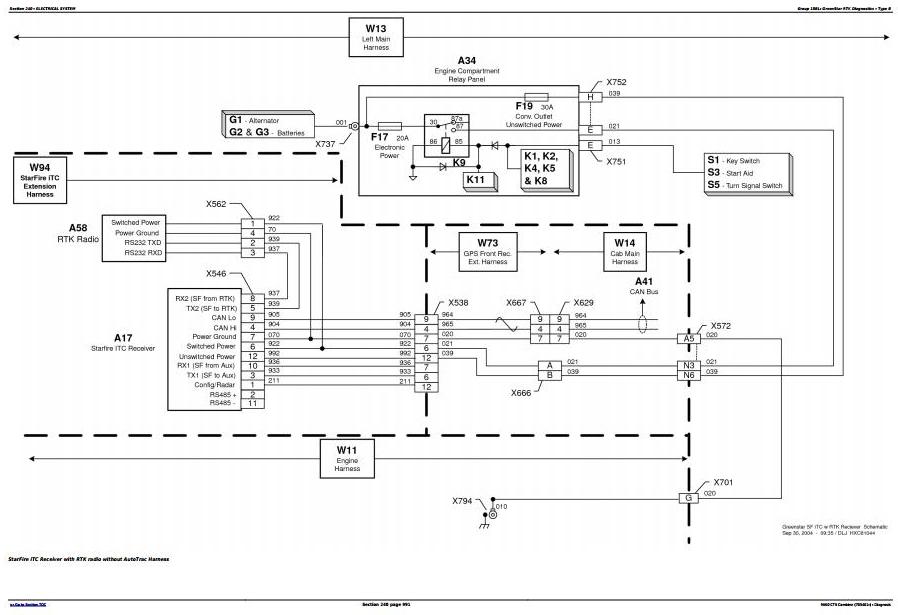

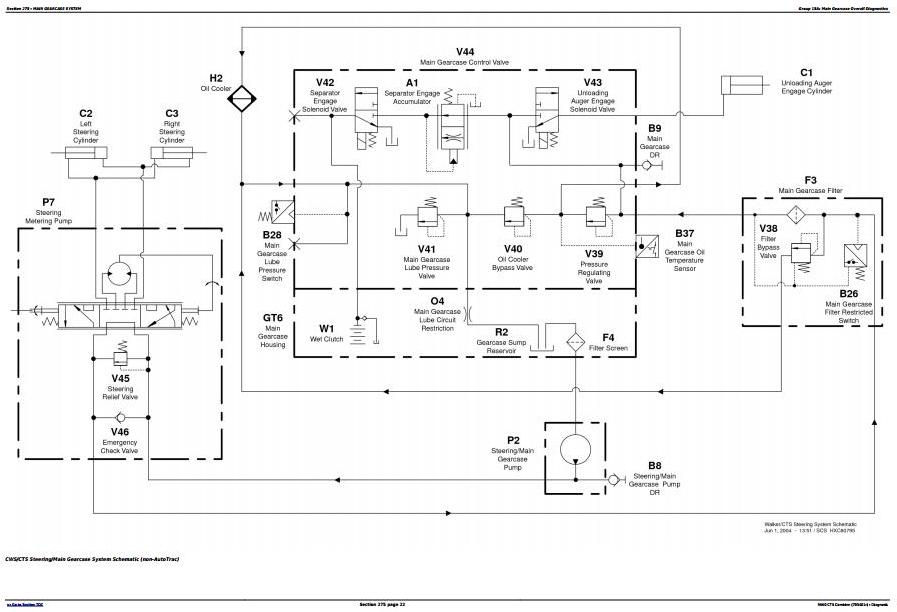

TM2172 - John Deere 9660 CTS Combine (SN.from 705401) Diagnostic, Operation and Test Service Manual TM2172 - John Deere 9660 CTS Combine (SN.from 705401) Diagnostic, Operation and Test Service Manual - 1 TM2172 - John Deere 9660 CTS Combine (SN.from 705401) Diagnostic, Operation and Test Service Manual - 2 TM2172 - John Deere 9660 CTS Combine (SN.from 705401) Diagnostic, Operation and Test Service Manual - 3
Фильтр
Найдено 5
Подтвердите
Для того, что бы добавить товар в список желаний, Вам нужно
