TM1834 - John Deere 6700 Self-Propelled Sprayers Diagnostic and Tests Service Manual

Product Code: vepf49
Add to compare list

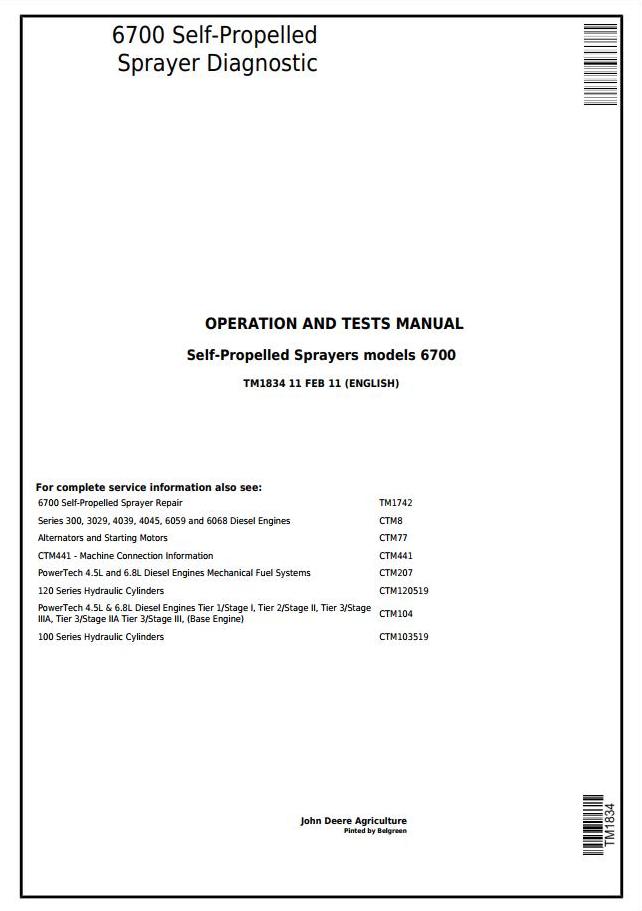

Illustrated Factory Diagnosis and Tests Service Manual for John Deere Self-Propelled Sprayers Models 6700

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electical wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 509 pages

Covered models:
  6700

CONTENTS
   Foreword
   General
      Safety
   Engine Operation and Tests
      General Information
   Fuel, Air Intake, and Engine Cooling Systems
      General Information
   Electrical
      System Information

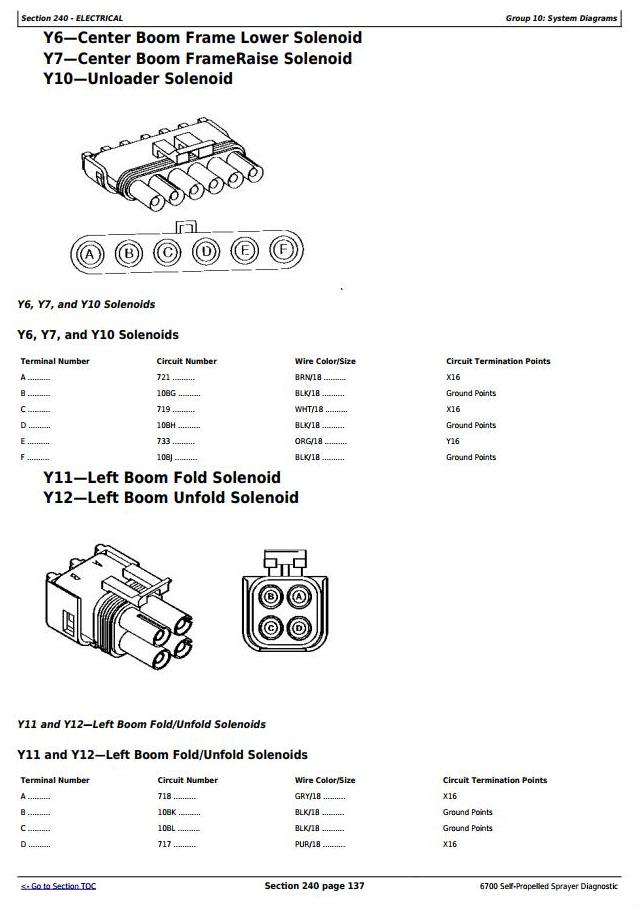

      System Diagrams
      Starting Circuit
      Power Circuit
      Charging Circuit
      Wiper Circuit
      Seat Circuit
      Cigarette Lighter Circuit
      Horn Circuit
      Dome Lamp Circuit
      Radio and Clock Circuits
      Lighting Circuits
      Chassis Computer Unit/Spray Rate Control (CCU/SRC) Circuit
      Hydraulic Oil Temperature Sensor Circuit
      Engine Coolant Temperature Sensor Circuit
      Engine Oil Pressure Sensor Circuit
      Fuel Level Sensor Circuit
      Engine Air Filter Restriction Sensor Circuit
      Wheel Speed Sensor Circuit
      Engine Speed Sensor Circuit
      Solution Pressure Sensor Circuit
      System Circuit
      Agitation/Rinse Circuit
      Air Quality Circuit
      Foamer Circuit
      Tread Adjust Circuit
      Ladder Circuit
      Flowmeter Circuit
      Solution Control Valve Circuit
   Power Train Operation and Tests
      System Operational Checks
      Diagnostic Information
      System Tests
      System Adjustments

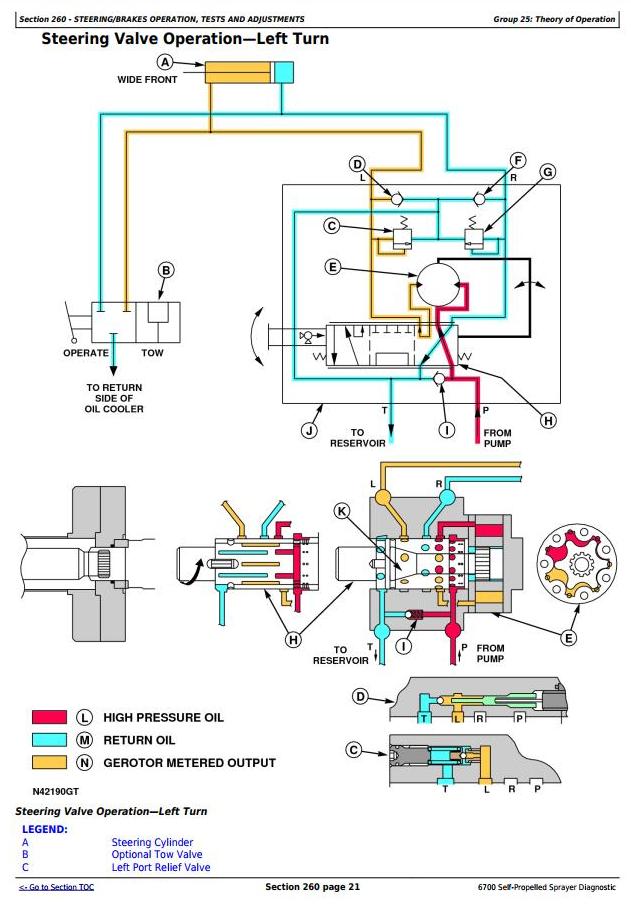

   Steering/Brakes Operation, Tests and Adjustments
      System Operational Checks
      Diagnostic Information
      System Tests
      Adjustments
   Hydraulic System Operation, Tests and Adjustments
      System Operational Checks
      Diagnostic Information
      System Tests
      System Adjustments
      Theory of Operation

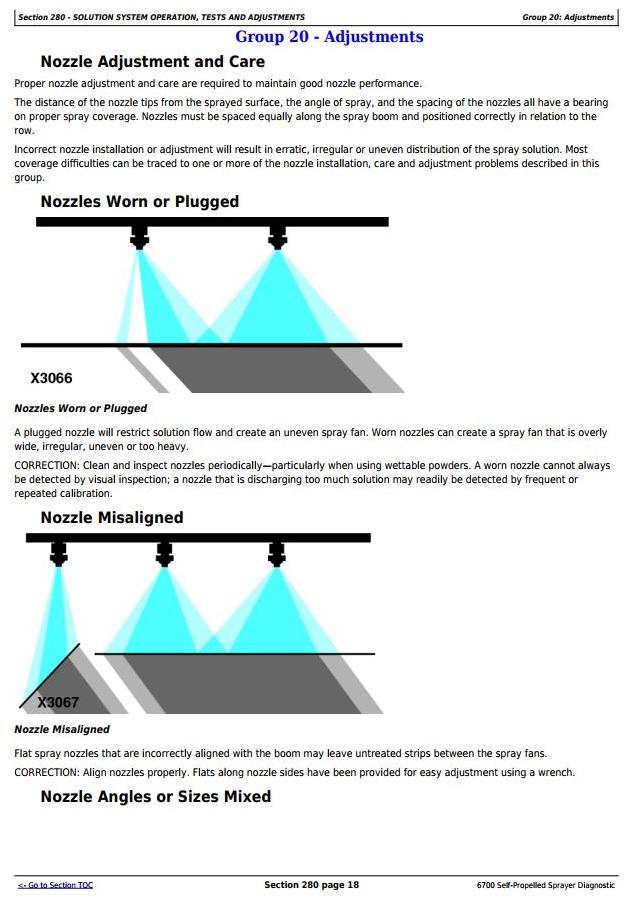

   Solution System Operation, Tests and Adjustments
      System Operational Checks
      Diagnostic Information
      Tests
      Adjustments
   Foam Marker System Operation, Tests and Adjustments
      System Operational Checks
      Diagnostic Information
      Theory of Operation
   132 L (35 Gal) Foam Marker System Operation, Tests and Adjustments
      System Operational Checks
      Diagnostic Information
      Tests
   Operator`s Station Operation, Tests and Adjustments
      Operator`s Station Operational Checks
      Operator`s Station Diagnostic Information
      Operator`s Station Tests
      Operator Station Theory of Operation
      Heater Theory of Operation
   Dealer Fabricated Tools
      Dealer Fabricated Tools
Specifications
Type of manual Diagnostic Manual
Models 6700
