John Deere 5090R, 5100R, 5115R, 5115RH, 5125R Tractors Repair Technical Service Manual (TM143519)

Product Code: d5adlp
Add to compare list

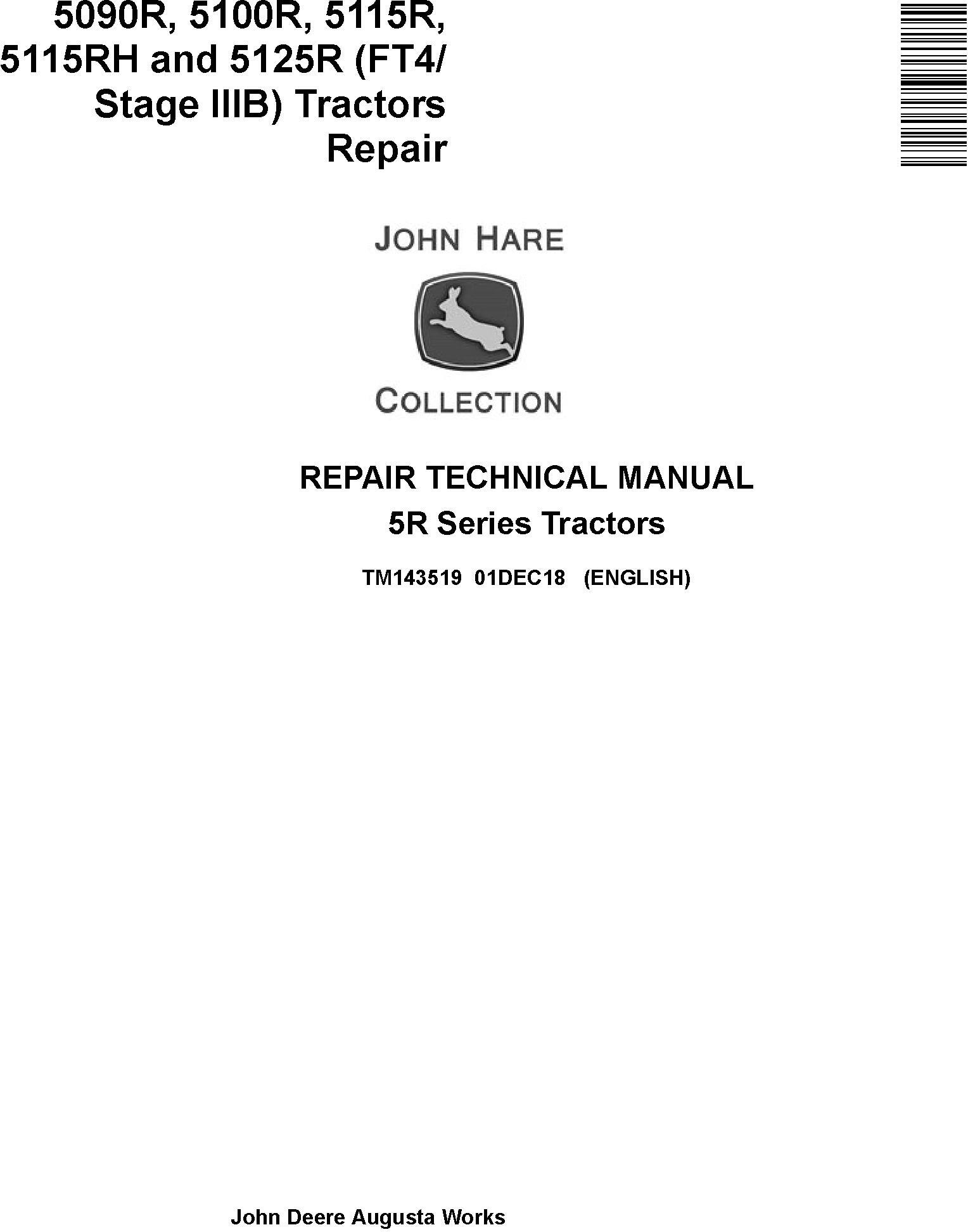

Illustrated Repair Technical Service Manual for John Deere 5R Series Tractors Models 5090R, 5100R, 5115R, 5115RH and 5125R (FT4/Stage IIIB)

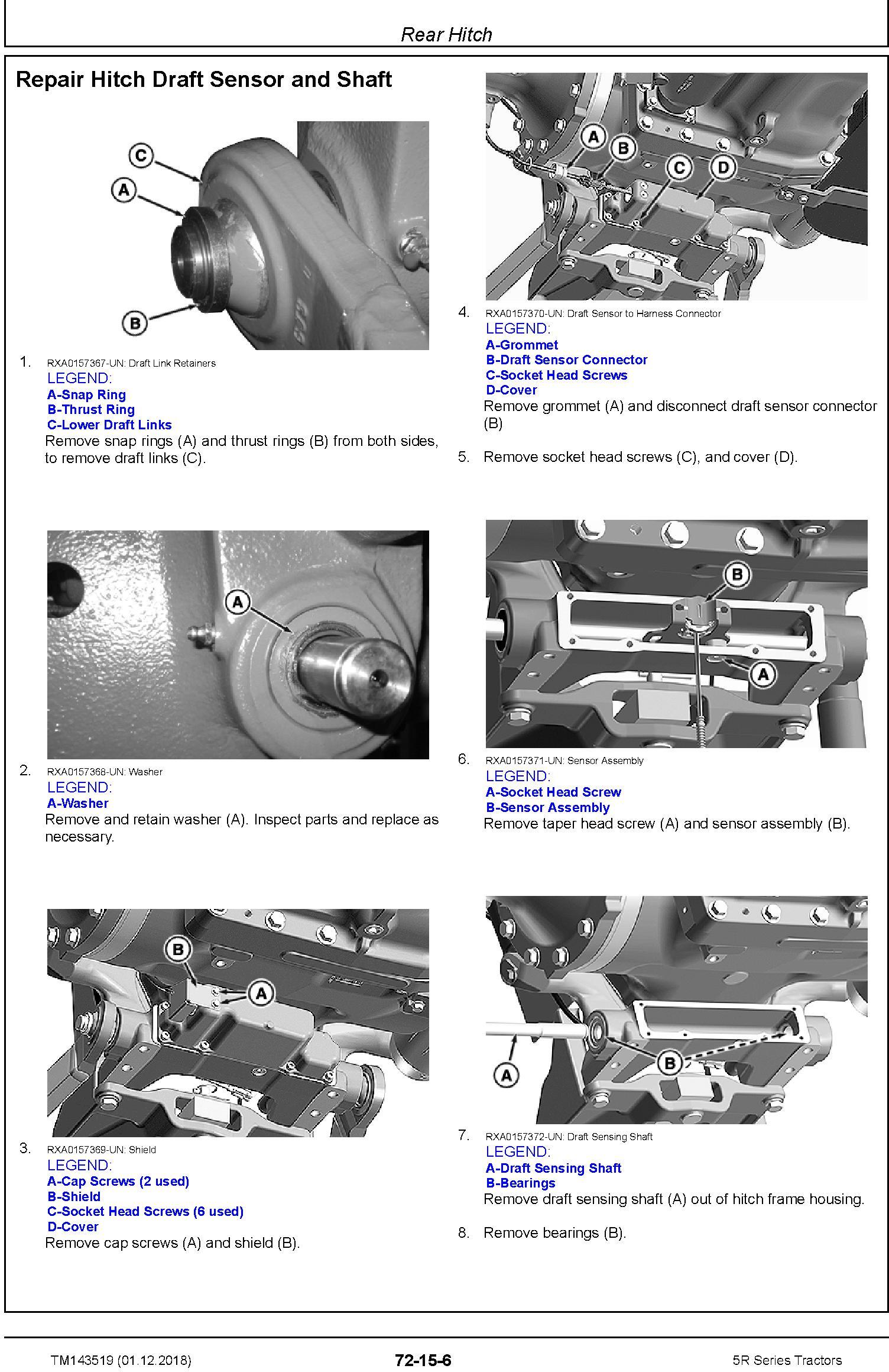

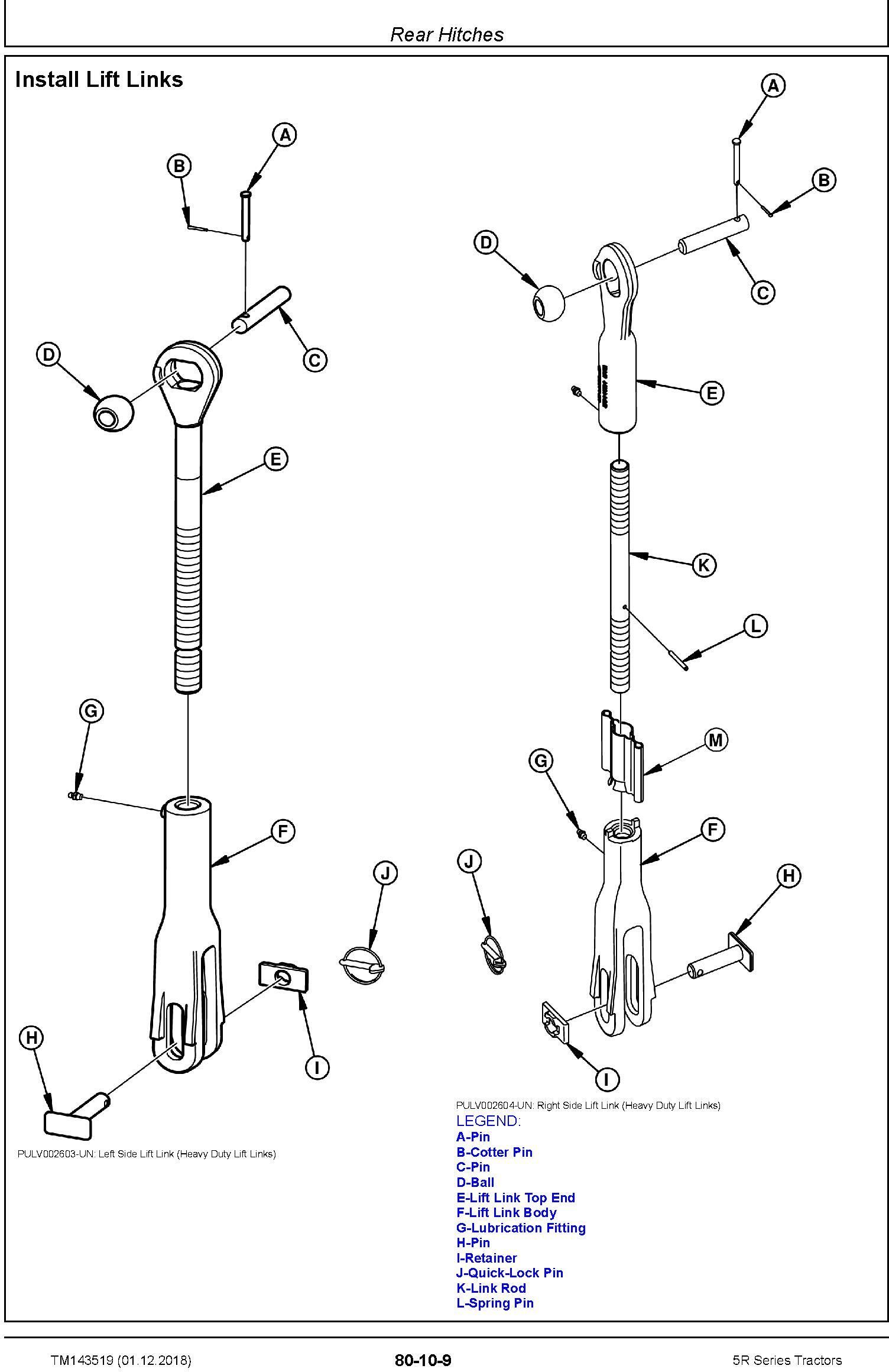

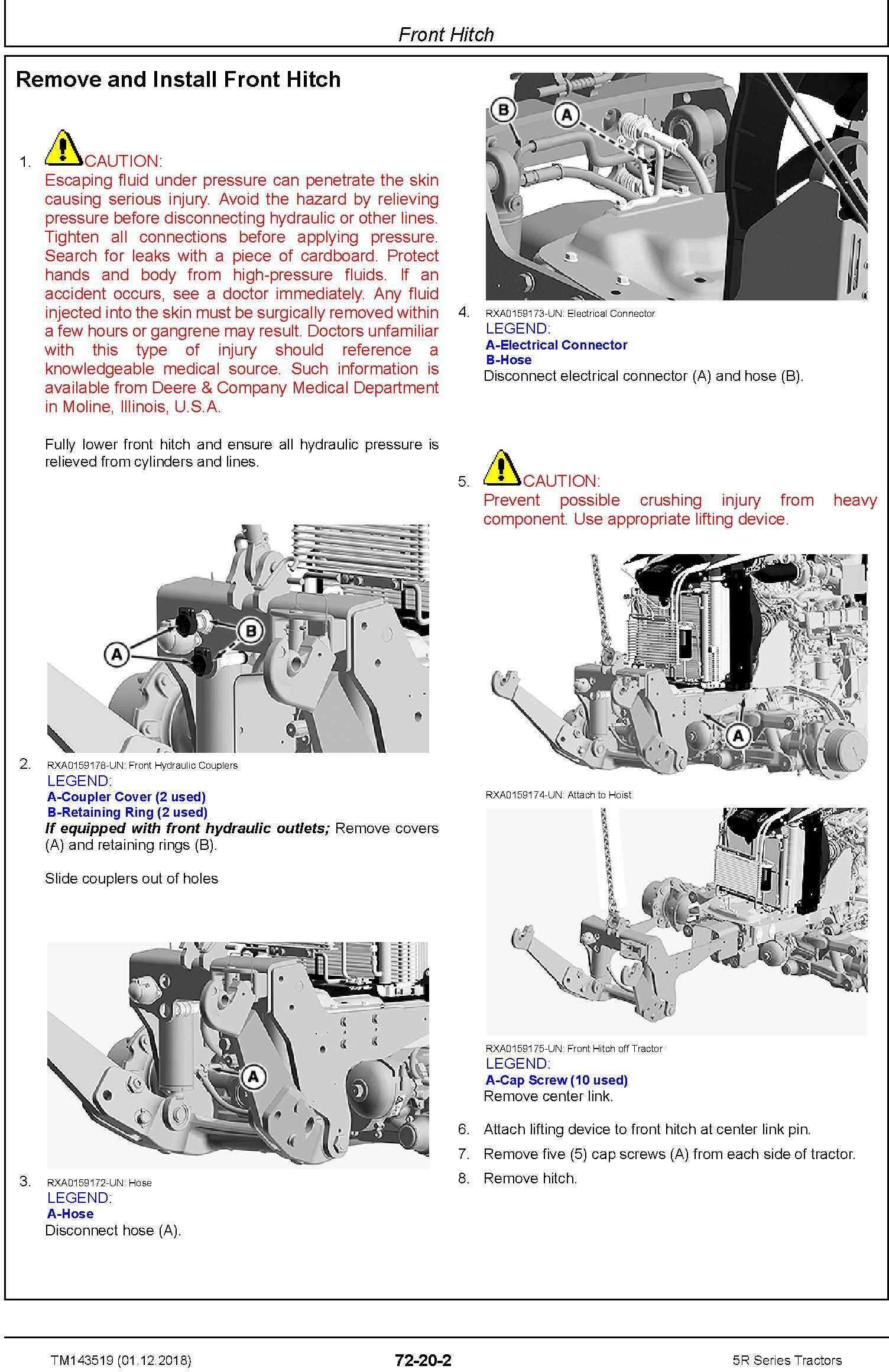

This manual contains high quality images, instructions to help you to disaseemble, troubleshoot, repair and assemble your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 553 pages

Covered models:
   5090R
   5100R
   5115R
   5115RH
   5125R

CONTENTS
   Foreword
   General Information
      Safety
      General Specifications
      Fuels and Lubricants
      Serial Number Locations
   Engine
      Engine
   Fuel, Air Intake, Exhaust, and Cooling
      Fuel System
      Air Intake System
      Exhaust System
      Cooling System
   Electrical
      Fuses and Relays
      Ground Points
      Connectors
      Wiring Harnesses
      Electrical Components
   Drive Systems and Transmissions
      Separation
      PPST Transmission
      Clutch Assembly
      Differential
      Control Valves
      Final Drive
      Rear PTO
      Front PTO
      Mechanical Front-Wheel Drive
      Suspended Front Axle
      Creeper Assembly
      Transmission Lube Pump
   Steering and Brakes
      Steering
      Brakes
   Hydraulics - Open Center
      Pumps and Filters
      Hitch Valve
      Rear Selective Control Valves
      Mid-Mount Selective Control Valves
   Hydraulics - Closed Center
      Pumps and Filters
      Rear SCVs
      Mid-Mount SCV Valves
   Hydraulics - Common
      Hydraulic Controls
      Rear Hitch
      Front Hitch
   Miscellaneous
      Rear Hitches
      Fenders
      Hood
      Step Assemblies
      Wheels
   Cab and Open Operator`s Station
      Seat and Support
      Control Console
      CommandARM™
      Cab Components
      Air Conditioning System
      Heating System
   Special Tools
      Dealer Fabricated Tools
      Service Tools
Specifications
Type of manual Repair Manual
Models 5090R, 5100R, 5115R, 5115RH, 5125R
