John Deere 803MH,853MH (SN. F293917-,L343918-) Harvesters (Closed-Loop) Diagnostic Manual TM14093X19

Product Code: tad1at
Add to compare list

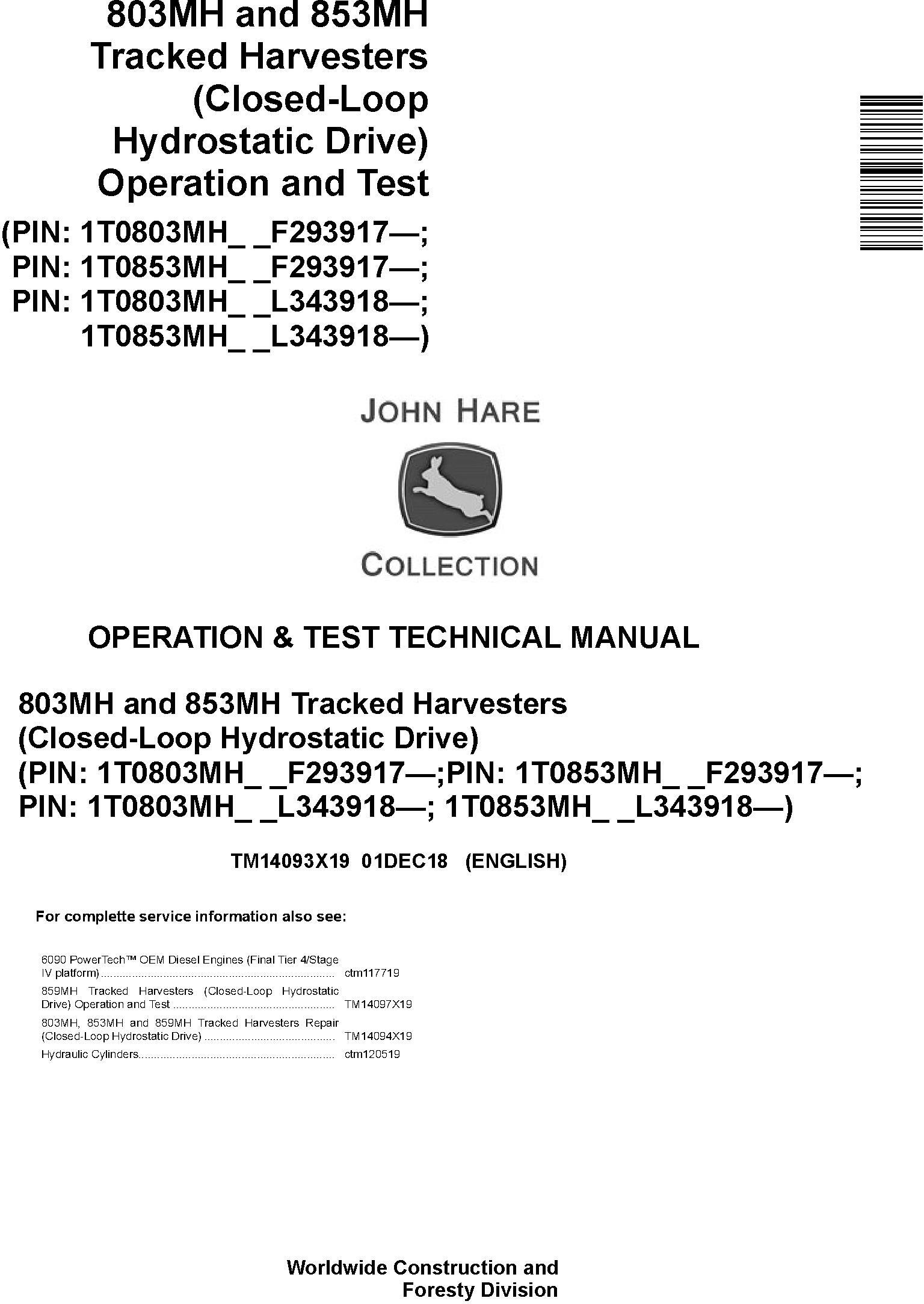

Illustrated Operation and Test Technical Manual for John Deere Tracked Harvesters (Closed-Loop Hydrostatic Drive) Models 803MH and 853MH

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 983 pages

Covered models:
   803MH (PIN: 1T0803MH_ _F293917—; PIN: 1T0803MH_ _L343918—)
   853MH (PIN: 1T0853MH_ _F293917—; PIN: 1T0853MH_ _L343918—)

CONTENTS
   Foreword
   Manual Identification - READ THIS FIRST!
   General Information
      Safety
   Diagnostic Trouble Codes (DTCs)
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Hydraulic Motor Controller (HMC) Diagnostic Trouble Codes
      Hydraulic Pump Controller (HPC) Diagnostic Trouble Codes
      Left Armrest Controller (ACL) Diagnostic Trouble Codes
      Right Armrest Controller (ACR) Diagnostic Trouble Codes
      Sealed Switch Module (SSM) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Primary Display Unit (PDU) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Monitor Operation
      Diagnostic Test Box
      Tests
   Power Train
      Theory of Operation
      Diagnostic Information

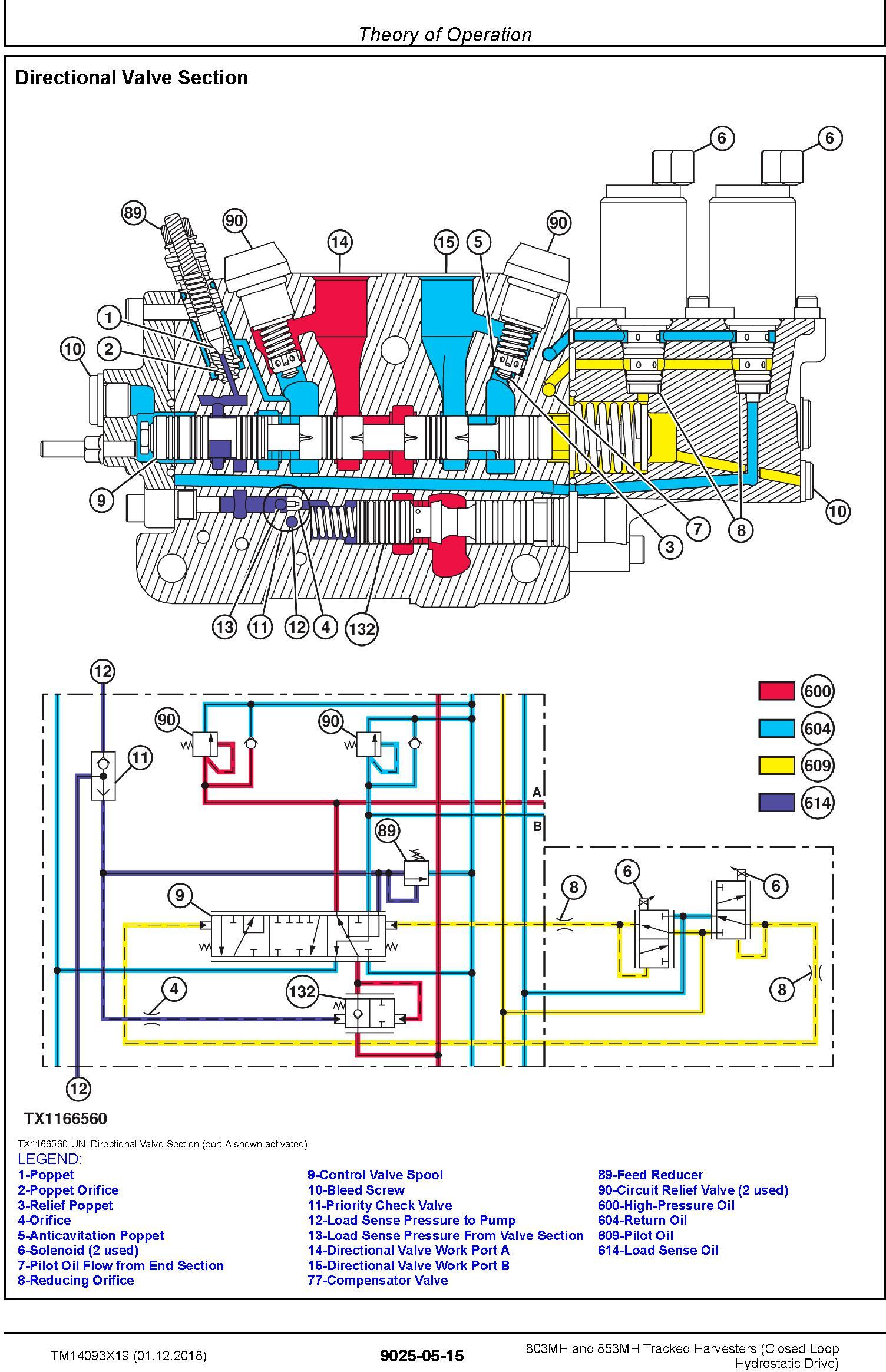

   Hydraulic System
      Theory of Operation
      System Diagram
      Diagnostic Information

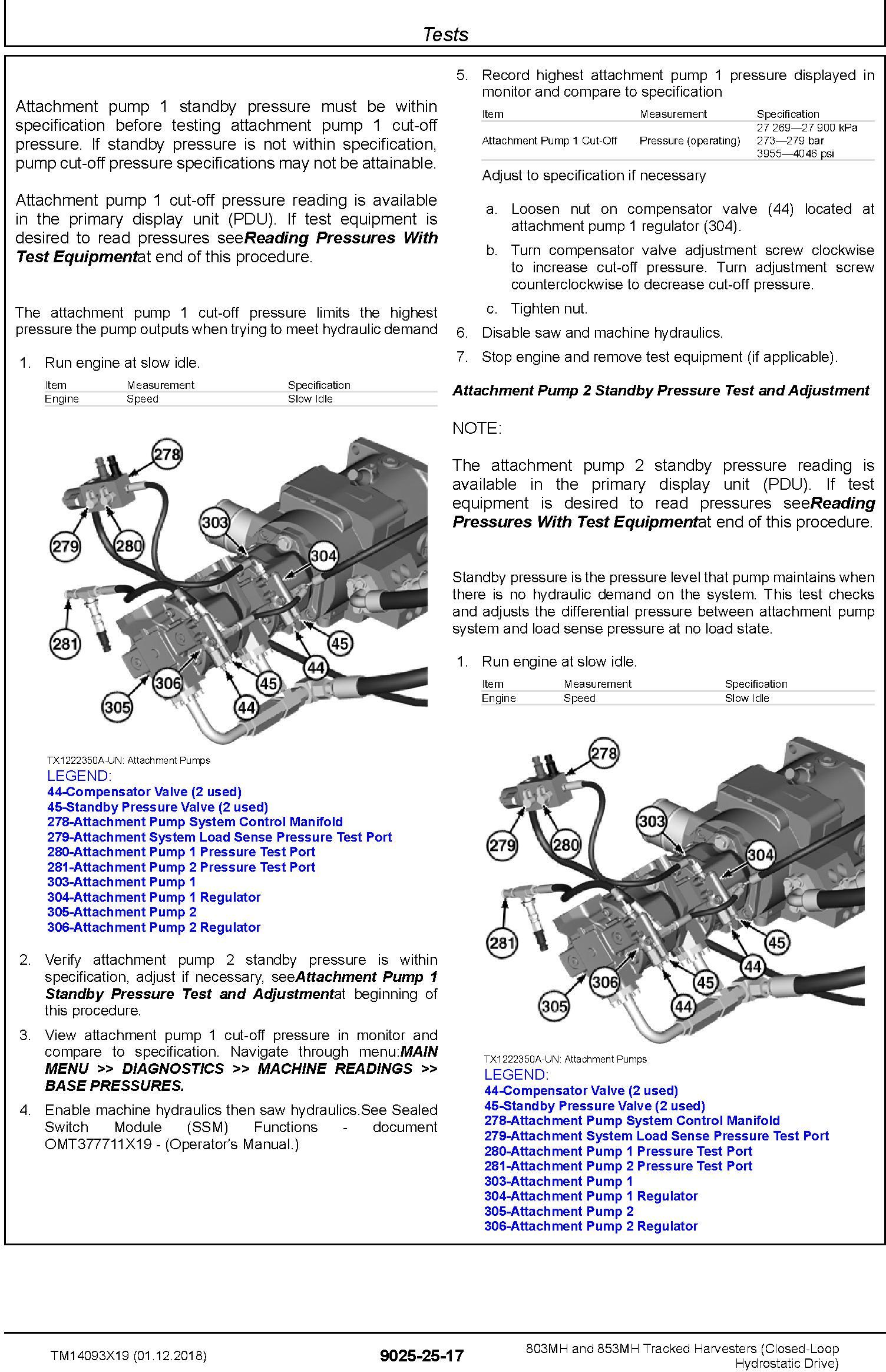

      Tests
   Hydrostatic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests

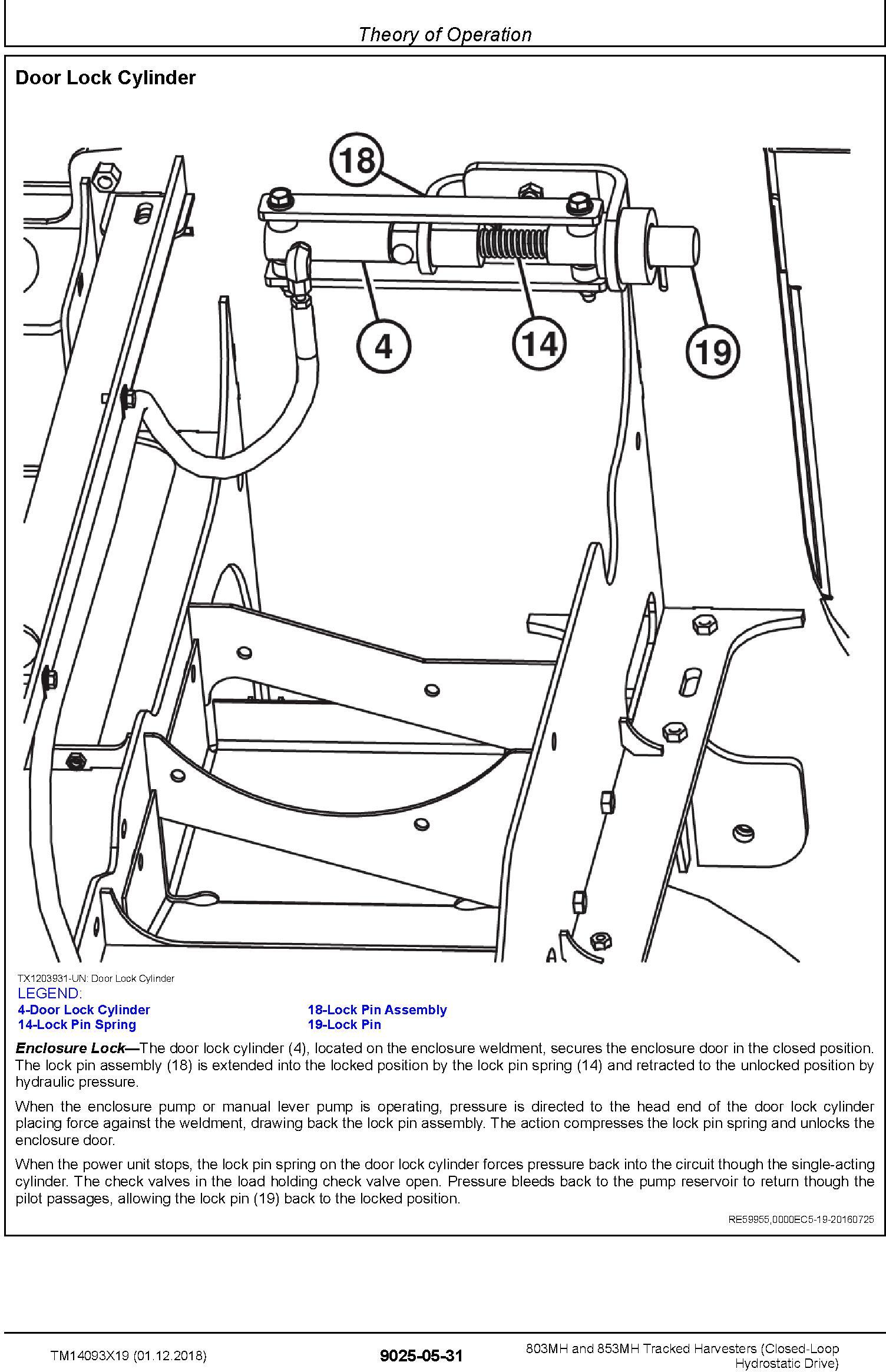

   Miscellaneous
      Theory of Operation
      System Diagrams
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   APPENDIX
      System Functional Schematic
      Hydraulic System Schematic
Specifications
Type of manual Diagnostic Manual
Models 803MH, 853MH
