TM135919 - John Deere Integral Frame for 1700, 1710, 1720, 1730, 1750, 1780 Planters Diagnostic Manual

Product Code: 8bydwd
Add to compare list

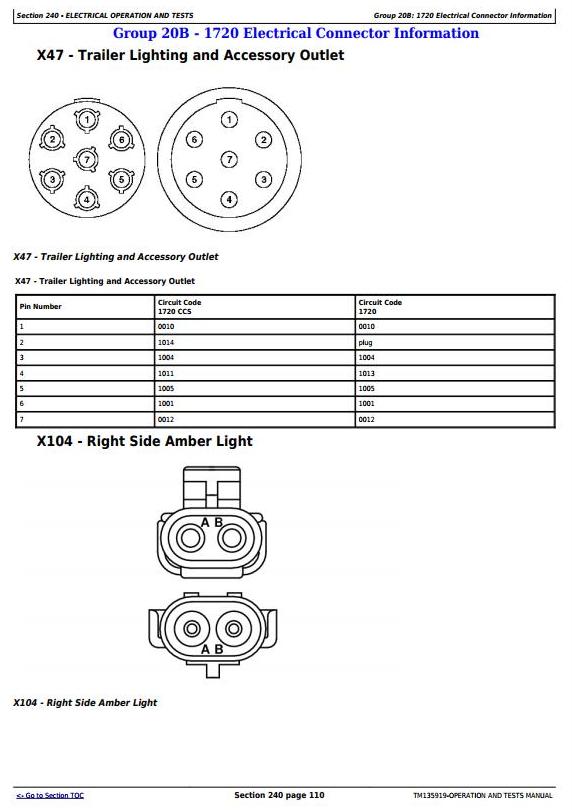

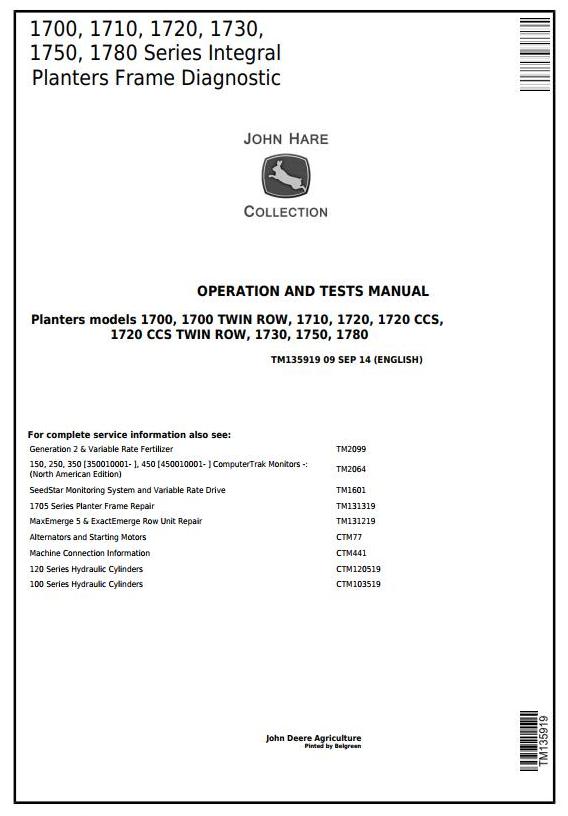

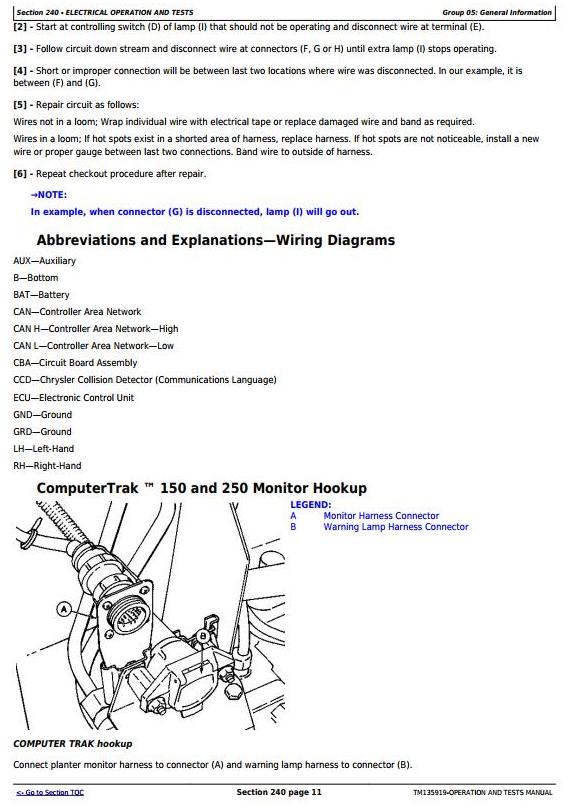

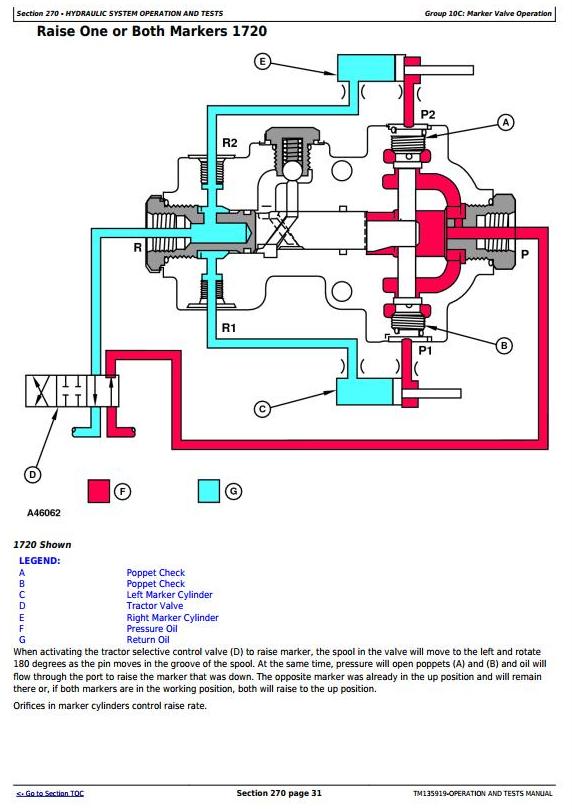

Illustrated Factory Diagnosis and Tests Service Manual for John Deere Planters Models 1700, 1710, 1720, 1730, 1750, 1780 (Integral Planters Frame Diagnostic)

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 293 pages

Covered models:
  1700
  1710
  1720
  1730
  1750
  1780

CONTENTS
   Foreword
   General
      Safety
      Lubricants
      General Information
   Observable Symptoms
      Electrical
      Hydraulic
   Electrical Operation and Tests
      General Information
      System Schematics
      System Diagnosis and Tests
      1720 Agitator Diagnostics
      1720 Auxiliary Hydraulic Switch Diagnostics
      1720 Blower Type Identification
      1720 Blower Diagnostics - Type A
      1720 Blower Diagnostics - Type B
      1720 Tank Fill Lights Diagnostics
      Lighting Overall Type Identification (730101-)
      Lighting Overall Diagnostics - Type A
      Lighting Overall Diagnostics - Type B
      1720 Pneumatic Down Force Diagnostics
      1720 Electrical Connector Information
   Hydraulic System Operation and Tests
      General Information
      Hydraulic Troubleshooting
      Wheel Cylinder Operation
      Marker Valve Operation
      Marker System Operation
      1720 CCS Auxiliary Hydraulics
      1720 CCS Blower Diagnostics
      1720 CCS Lift Assist Wheels Type Identification
      1720 CCS Lift Assist Wheels Diagnostics - Type A
      1720 CCS Lift Assist Wheels Diagnostics - Type B
      1720 Non CCS Lift Assist and Wing Lift Schematic
      Fold-Unfold Diagnostics
      Vacuum Diagnostics
      1720 CCS Hydraulic Components
   Dealer Fabricated Tools
      Master Cylinder Assembly
Specifications
Type of manual Diagnostic Manual
Models 1700, 1710, 1720, 1730, 1750, 1780
