TM118219 - John Deere 1720, 1725 SeedStar 16 Row Planter (SN.745101-) Diagnostic Service Manual

Product Code: j6ybci
Add to compare list

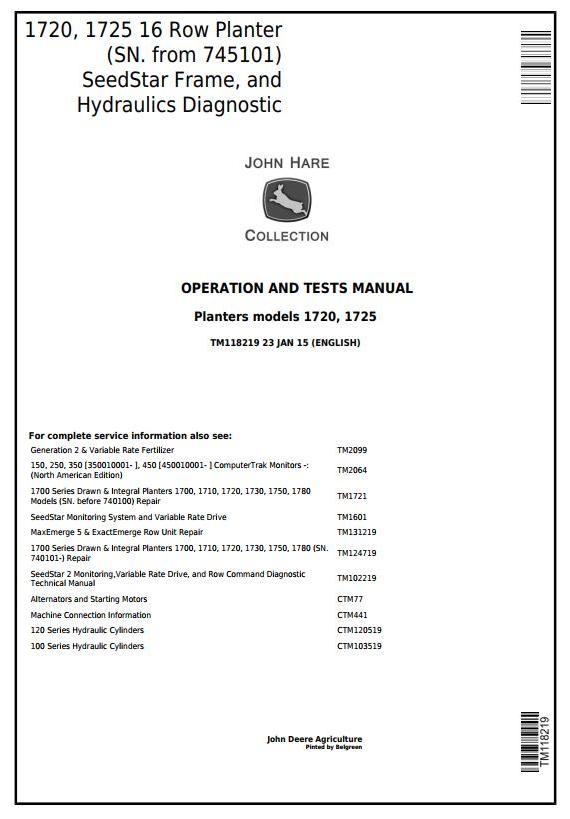

Illustrated Factory Diagnosis and Tests Service Manual for John Deere SeedStar 16 Row Planters Models 1720, 1725 Planter (Frame, and Hydraulics)

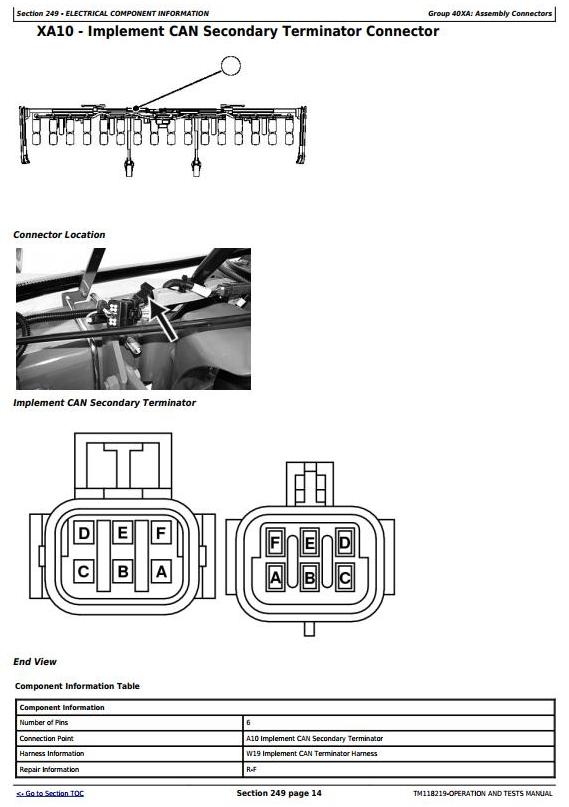

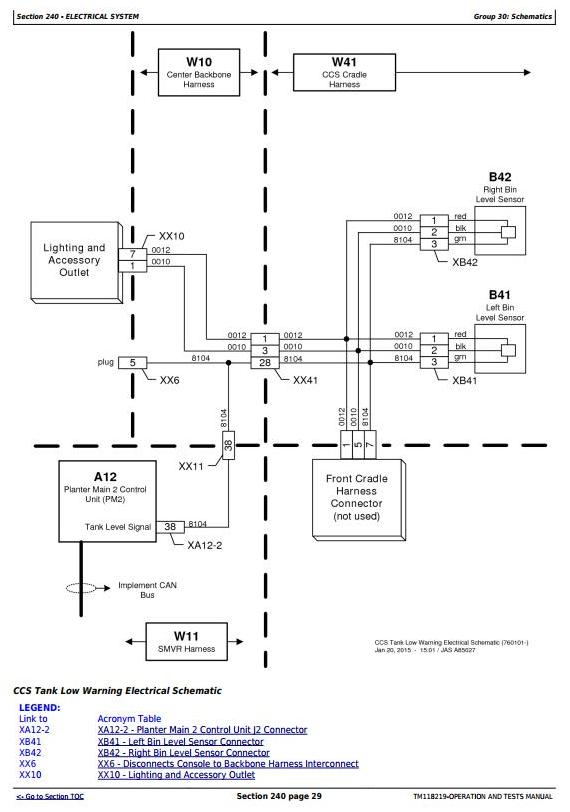

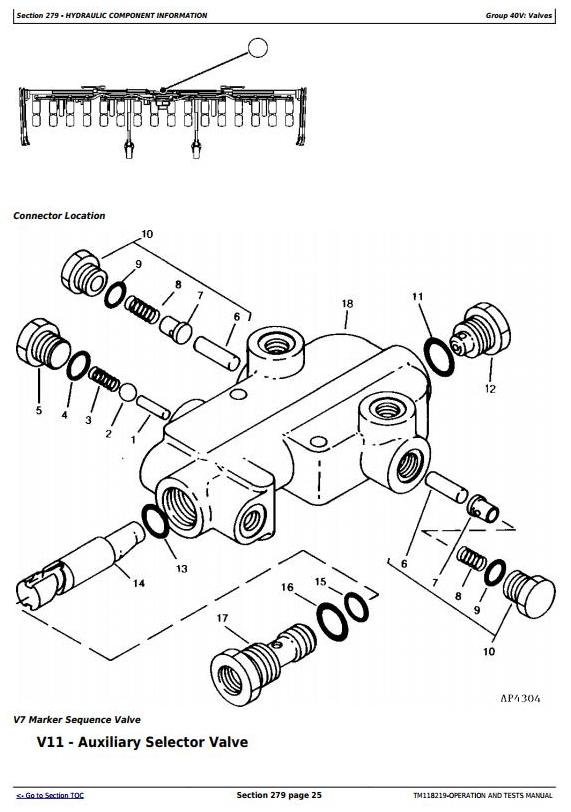

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 602 pages

Covered models (SN. from 745101):
  1720
  1725

CONTENTS
   Foreword
   General Information
      Acronym Table
      How to Use This Manual
      Safety
      Lubricants
      Accessing Diagnostic Addresses and Codes
      Recommended Tools for Diagnostics
      Diagnostic Information for Electrical Components
      Diagnostic Information for Hydraulic Components
      Maintaining Hydraulic Systems and Components
      Basic Diagnostics
      Standard Torque Chart Procedures
   Diagnostic Trouble Codes
      Accessing Diagnostic Trouble Codes
      PM1 - Planter Main 1 Codes
      PM2 - Planter Main 2 Codes
   Observable Symptoms and System Diagnostics
      Observable Symptoms
   Electrical System
      Theory of Operation
      Schematics
      Diagnostics
   Electrical Control Units
      Accessing Diagnostic Addresses
      Diagnostic Addresses by Control Unit
      Diagnostics
   Electrical Component Information
      Assembly Connectors
      Sensor Connectors
      Light Connectors
      Fuse Connectors
      Battery Connectors
      Relay Connectors
      Motor Connectors
      Resistor Connectors
      Switch Connectors
      Harness Interconnects
      Solenoid Connectors
   Hydraulic System
      Theory of Operation
      Schematics
      Diagnostics
   Hydraulic Component Information
      Cylinders
      Filters
      Assemblies
      Oil Coolers
      Motors
      Orifices
      Reservoirs
      Valves
      Couplers
      Solenoid Valves
   Pneumatic System
      Theory of Operation
      Schematics
      Diagnostics
   Pneumatic Component Information
      Accumulators
      Sensors
      Check Valves
      Filters
      Assemblies
      Motors
      Pumps
      Reservoirs
      Switches
      Valves
      Couplers
      Solenoid Valves
Specifications
Type of manual Diagnostic Manual
Models 1720, 1725
