TM116719 - John Deere 4LZ-2.5 (R40 STC) Whole-Feed Combine Diagnostic and Repair Technical Manual

Product Code: neuy0a
Add to compare list

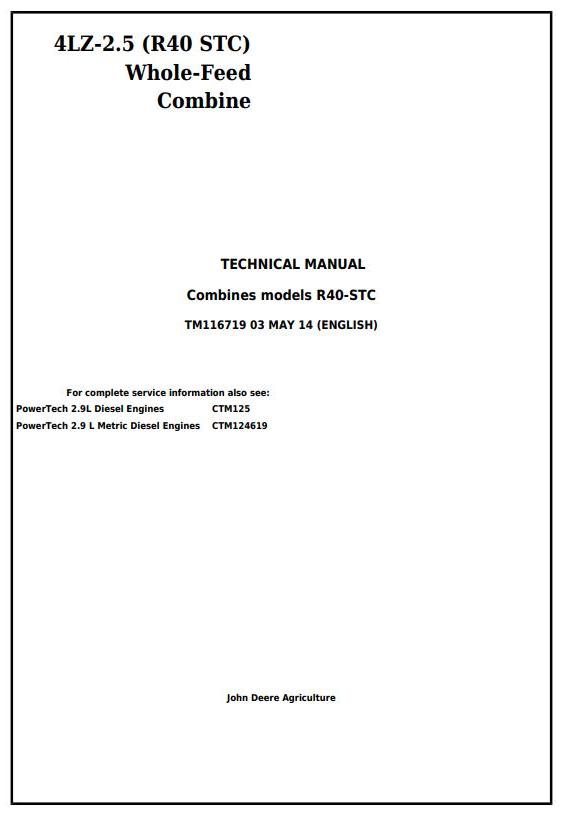

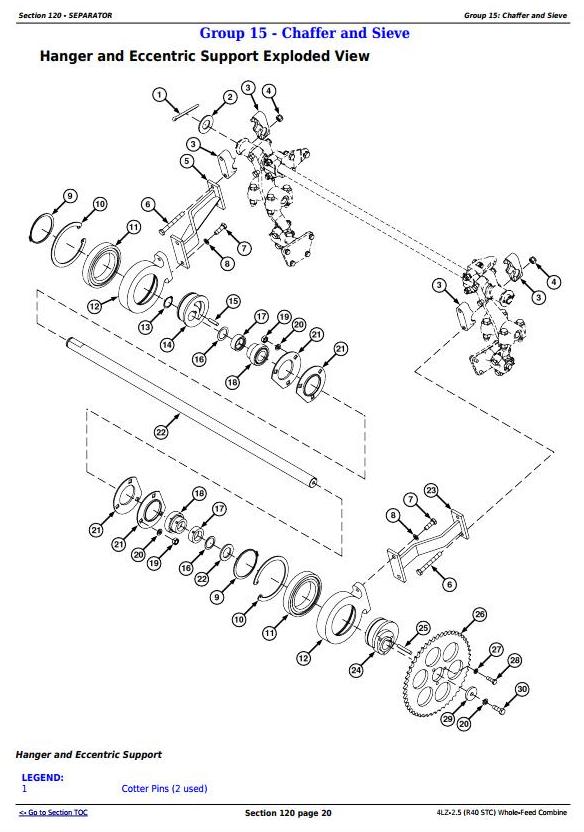

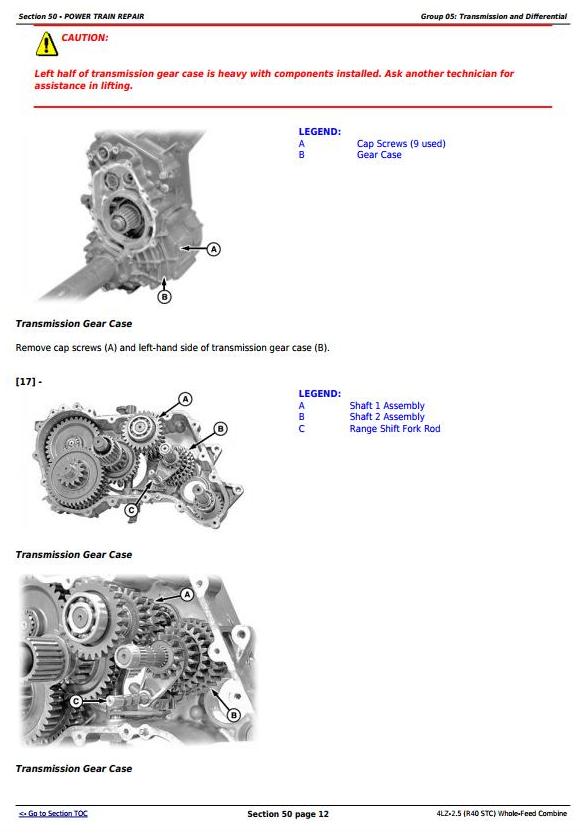

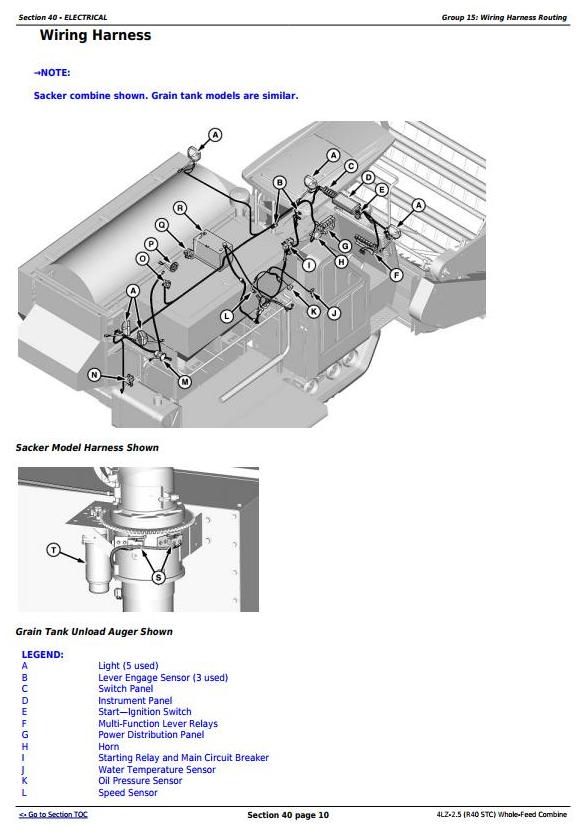

Illustrated Factory Diagnostic and Repair Technical Manual for John Deere Whole-Feed Combines Model 4LZ-2.5 (R40 STC)

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, trounleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 391 pages

Covered models:
  R40-STC

CONTENTS
   Foreword
   General
      Safety
      Specifications
      Tune Up and Adjustment
      Fuels and Lubricants
      Belts, Chains, and Adjustments
   Engine
      Remove and Install Engine
      Cooling System
   Fuel and Air
      Air Intake System
      Diesel Fuel System
   Electrical
      Batteries
      Harness and Connector Repair
      Wiring Harness Routing
      Fuses, Circuit Breakers and Relays
      Lighting
      Operator Station
      Sensors and Switches
      Alternator
      Starting Motor
      Electrical Schematic
   Power Train Repair
      Transmission and Differential
      Rubber Tracks
   Hydraulics
      Hydraulic Reservoir
      Hydraulic Pumps
      Hydraulic Valves
      Hydraulic Cylinders
      Hydraulic Oil Cooler
      Hydraulic Schematic
   Feeder House Repair
      Conveyor
   Operator Station
      Controls and Instruments
   Platform and Reel
      Reel
      Platform
   Separator
      Separator Repair
      Rotor Drive Gear Case
      Chaffer and Sieve
      Cleaning Fan
      Tailings Auger and Elevator
      Clean Grain Auger and Elevator
   Grain Tank and Unloading System
      Grain Tank General
      Unloading Auger System and Drives
   Electrical Diagnostic
      General References
      Theory of Operation
      Schematics
      Diagnostics
   Electrical Components/Connectors
      Electrical Connectors
Specifications
Type of manual All inclusive Manual
Models R40, 4LZ-2.5
