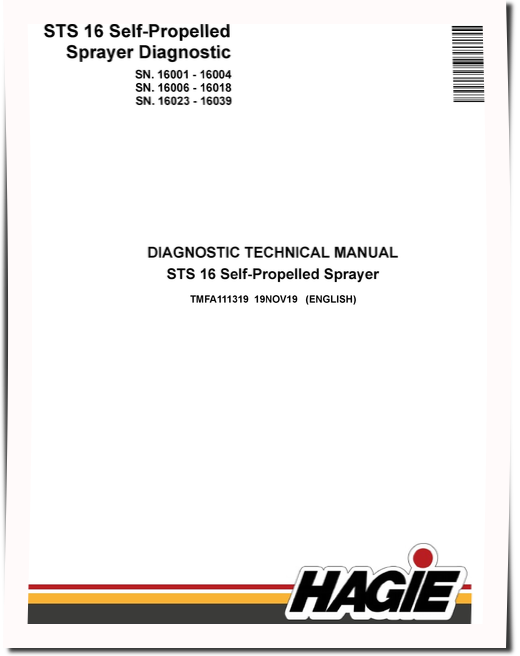

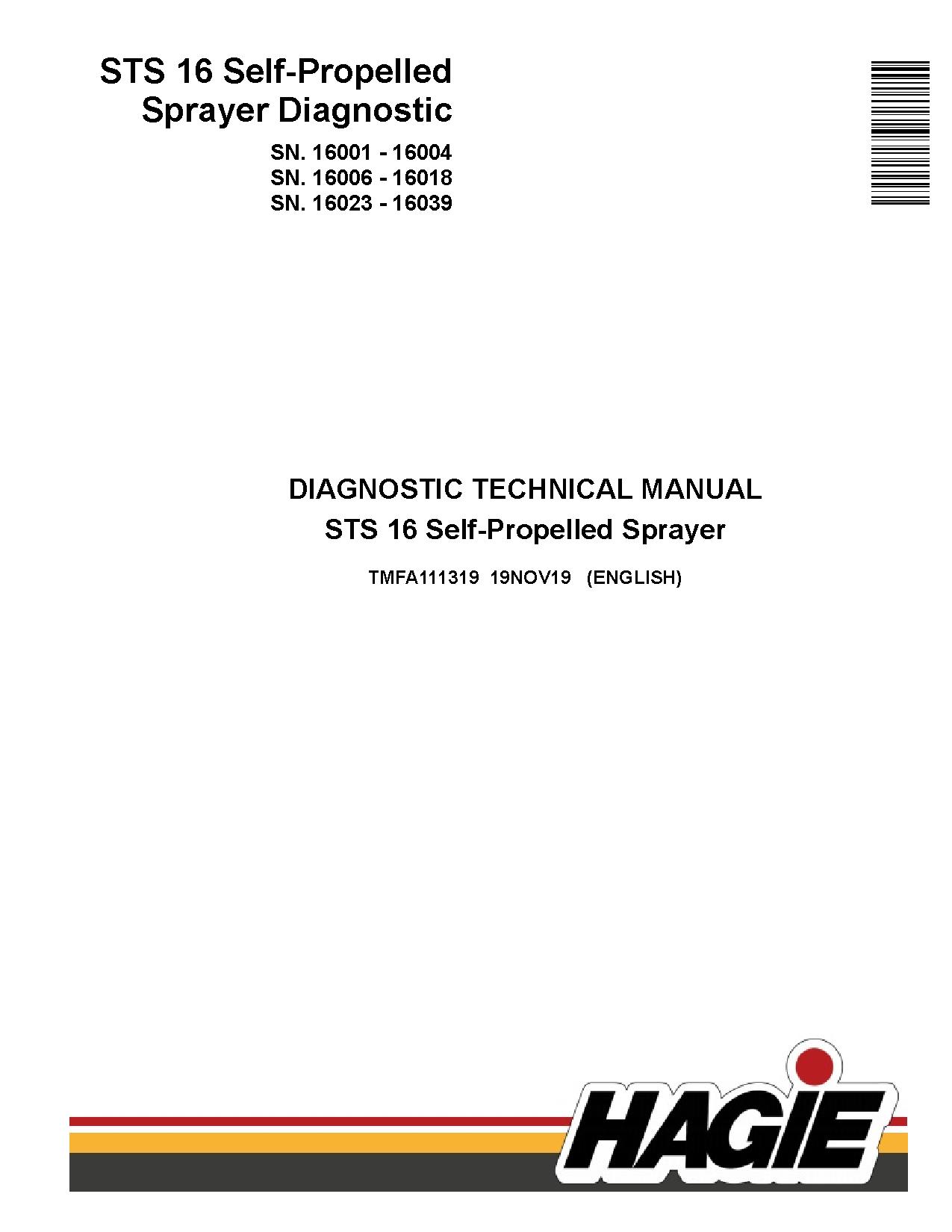

Hagie STS 16 Self-Propelled Sprayers (SN: 016001-016004; 016006-016018; 016023-016039) Diagnostic Manual (TMFA111319)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

Hagie STS 16 Self-Propelled Sprayers (SN: 016001-016004; 016006-016018; 016023-016039) Diagnostic Manual (TMFA111319)

Number: 23468
Available
Add to Wishlist
Specifications
  • Model Year
    2016
  • Type Of Document
    Diagnostic Manual
  • Type of equipment
    Self-Propelled Sprayer
  • Model
    STS16
  • Hagie Serial Number
    016001-016004, 016006-016018, 016023-016039
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      References for Technical Information
   Diagnostic Trouble Codes
      Display Diagnostic Trouble Codes

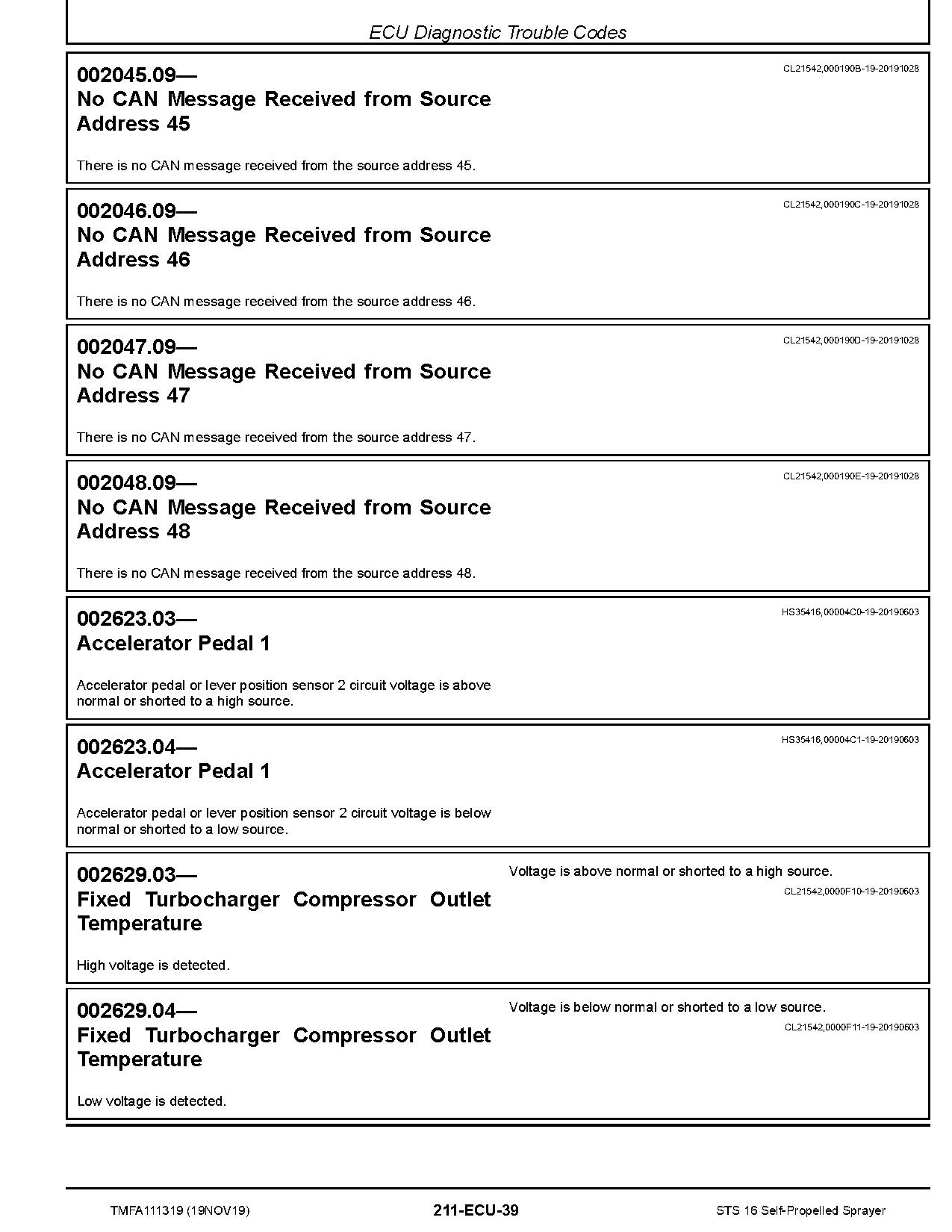

      ECU Diagnostic Trouble Codes
      Primary Machine Module Diagnostic Trouble Codes
      Secondary Machine Module Diagnostic Trouble Codes
   Electrical

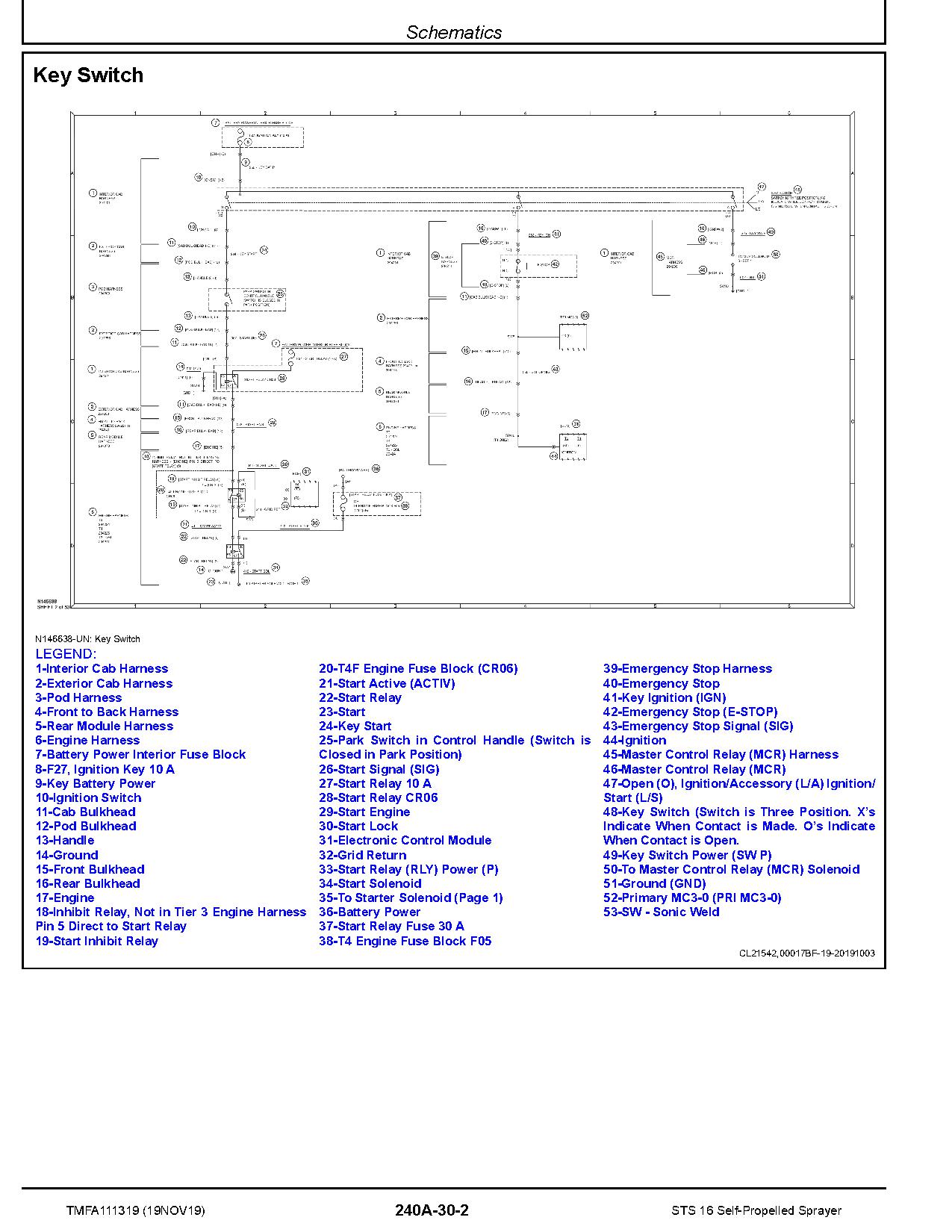

      Schematics
   Precision Product Electrical
      Schematics

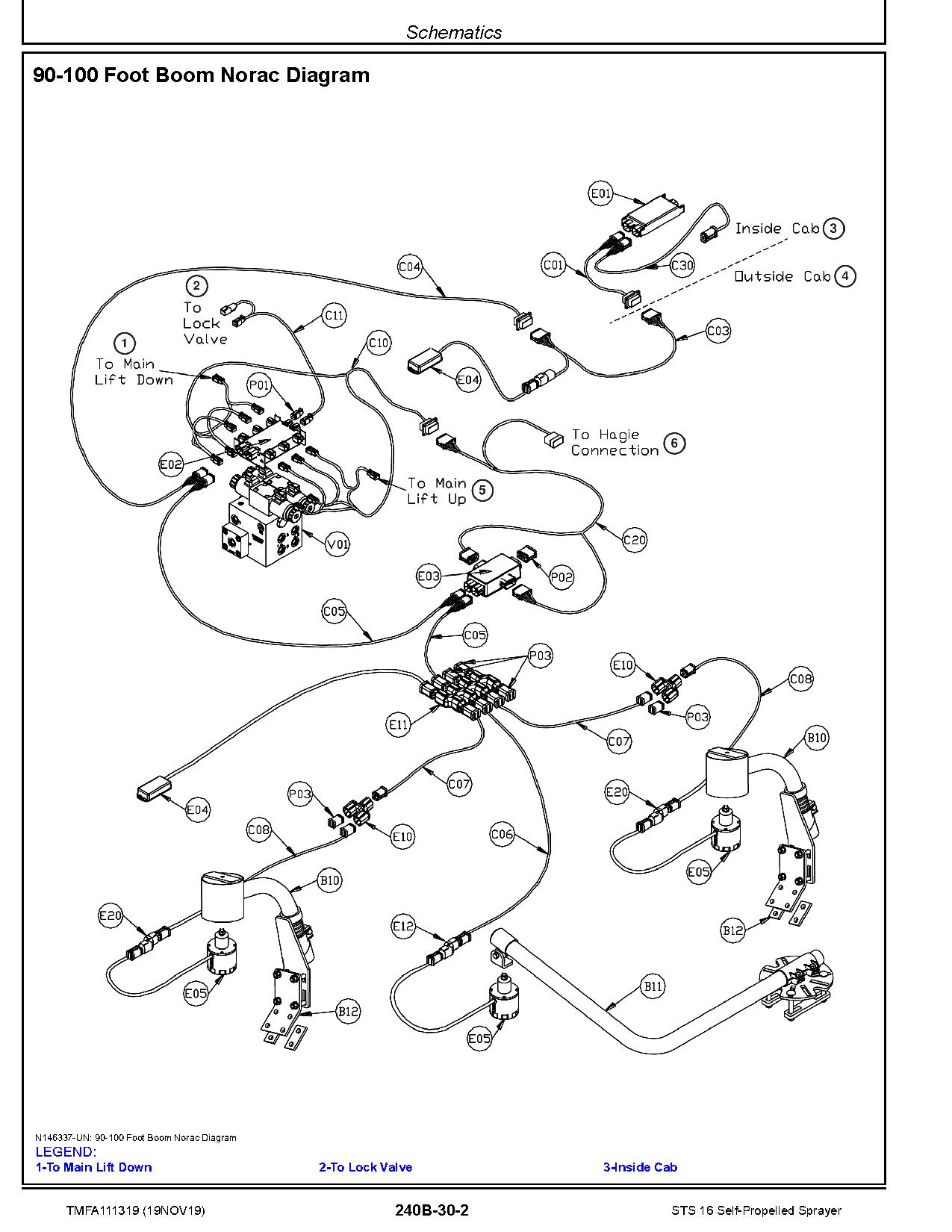

   90 - 100 Foot Boom Electrical
      Schematics
   120 - 132 Foot Boom Electrical
      Schematics
   Hydraulics
      Schematics
   90 - 100 Foot Boom Hydraulics
      Schematics
   120 - 132 Foot Aluminum Boom Hydraulics
      Schematics
   Pneumatics
      Schematics
   Application System
      Schematics
      Section 240A
      Section 240B
      Section 240C
      Section 240D
      Section 270A
      Section 270B
      Section 270D
      Section 270E
