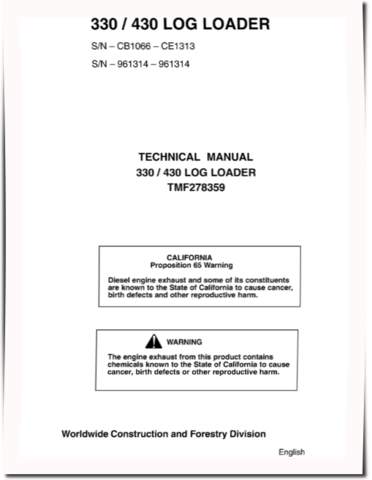

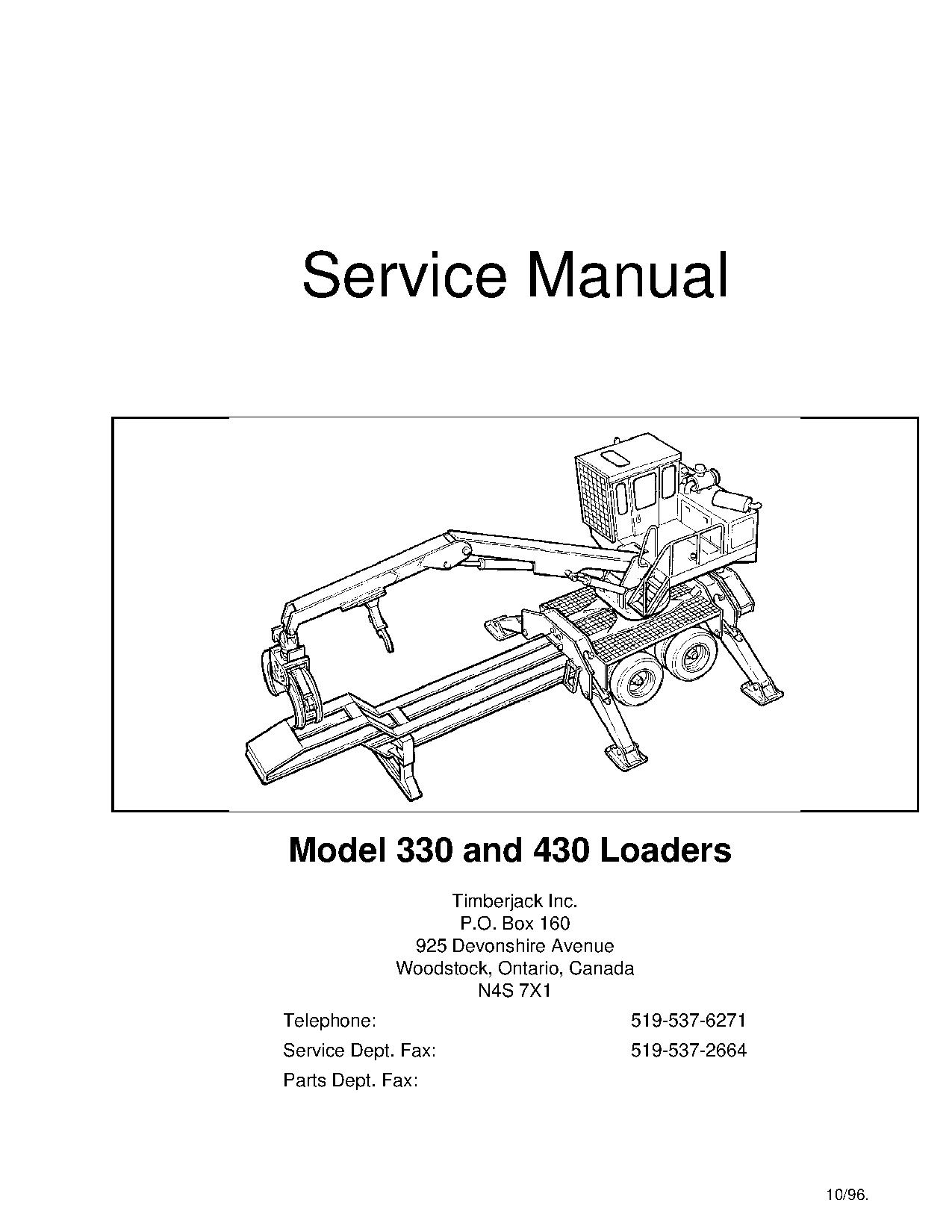

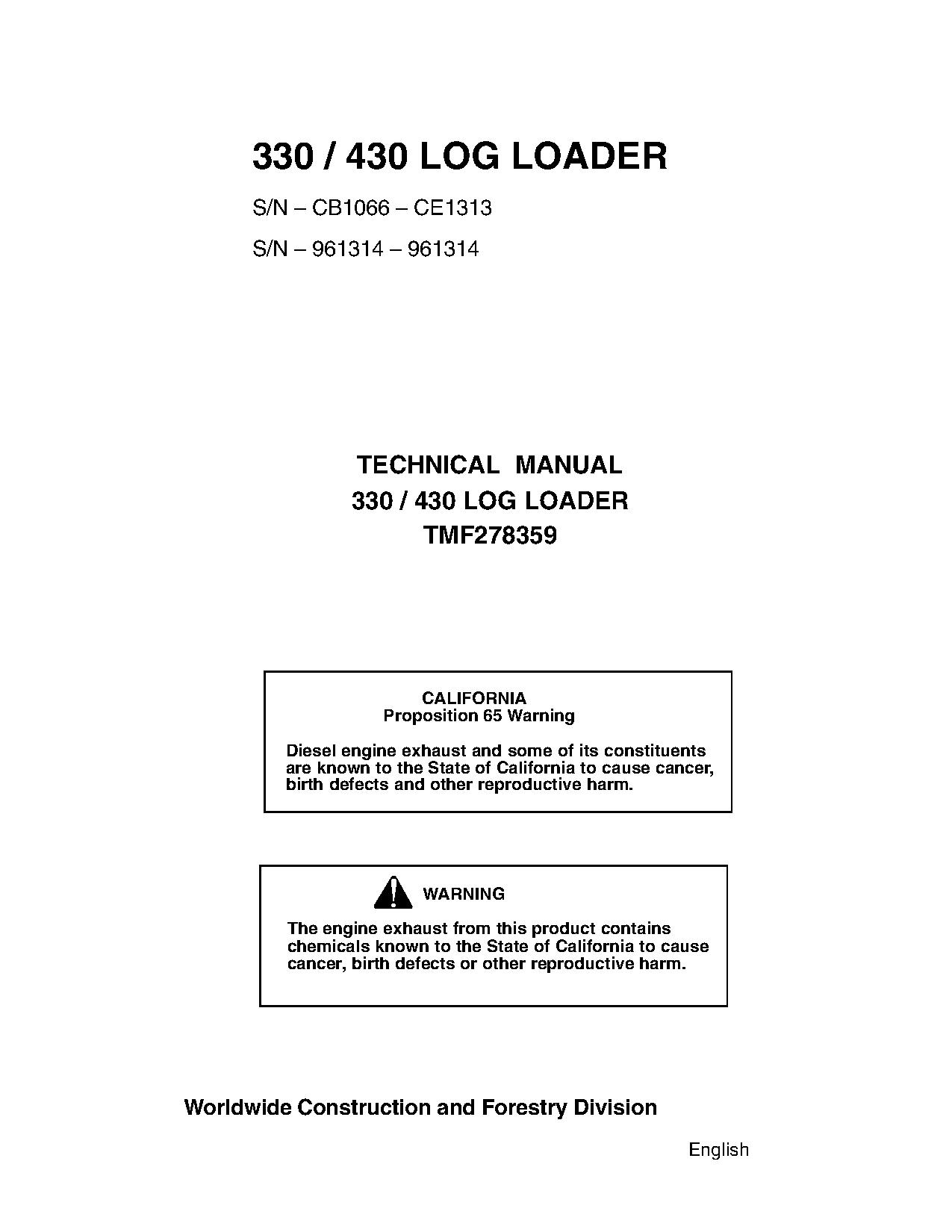

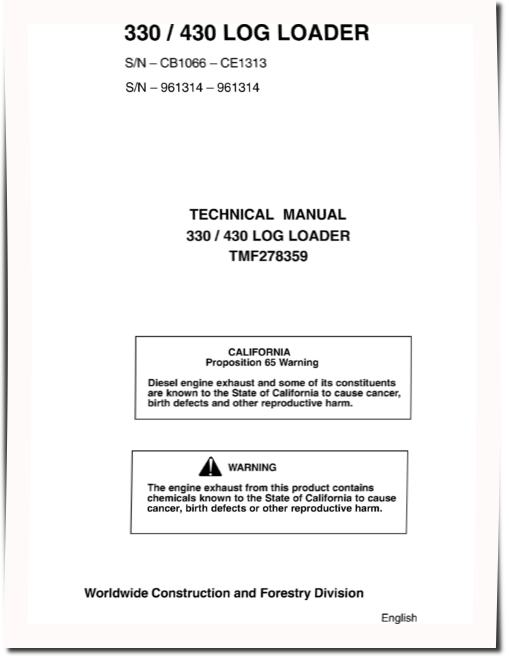

John Deere / TimberJack 330 and 430 Log Loaders Technical Manual (TMF278359)

Table of Contents:
   Introduction
      Foreword
      Non-approved Field Product Changes
      Warranty Certificate
      Items Not Covered by Warranty
   Safety Rules
      General
      Safety Symbol
      Understanding Signal Words
      General Safety Precautions
      Operating Safety Precautions
      Servicing Safety Precautions
      Transporting on Public Roads
      Fire Prevention
      What to Do if the Machine Catches Fire
   Theory of Operation
   Specifications
      Machine Dimensions - 330 Log Loader
      Machine Dimensions - 430 Log Loader
      Equipment Specifications .
      Fluid and Lubricants .
      Torque Values
   Test Procedures and Adjustments
      General Information
      Hydraulic Systems
      Electrical System
   Hydraulic Systems
      Hydraulic System Schematic - SPI
      Hydraulic System Schematic - Swivel
   Electrical Systems
      Electrical Schematic - SPI
      Electrical Schematic - Swivel, Joysticks
      Electrical Schematic - Swivel, Lever Controls
   Troubleshooting
      General
      Engine
      Electrical System
      Hydraulic System
   Maintenance and Repair

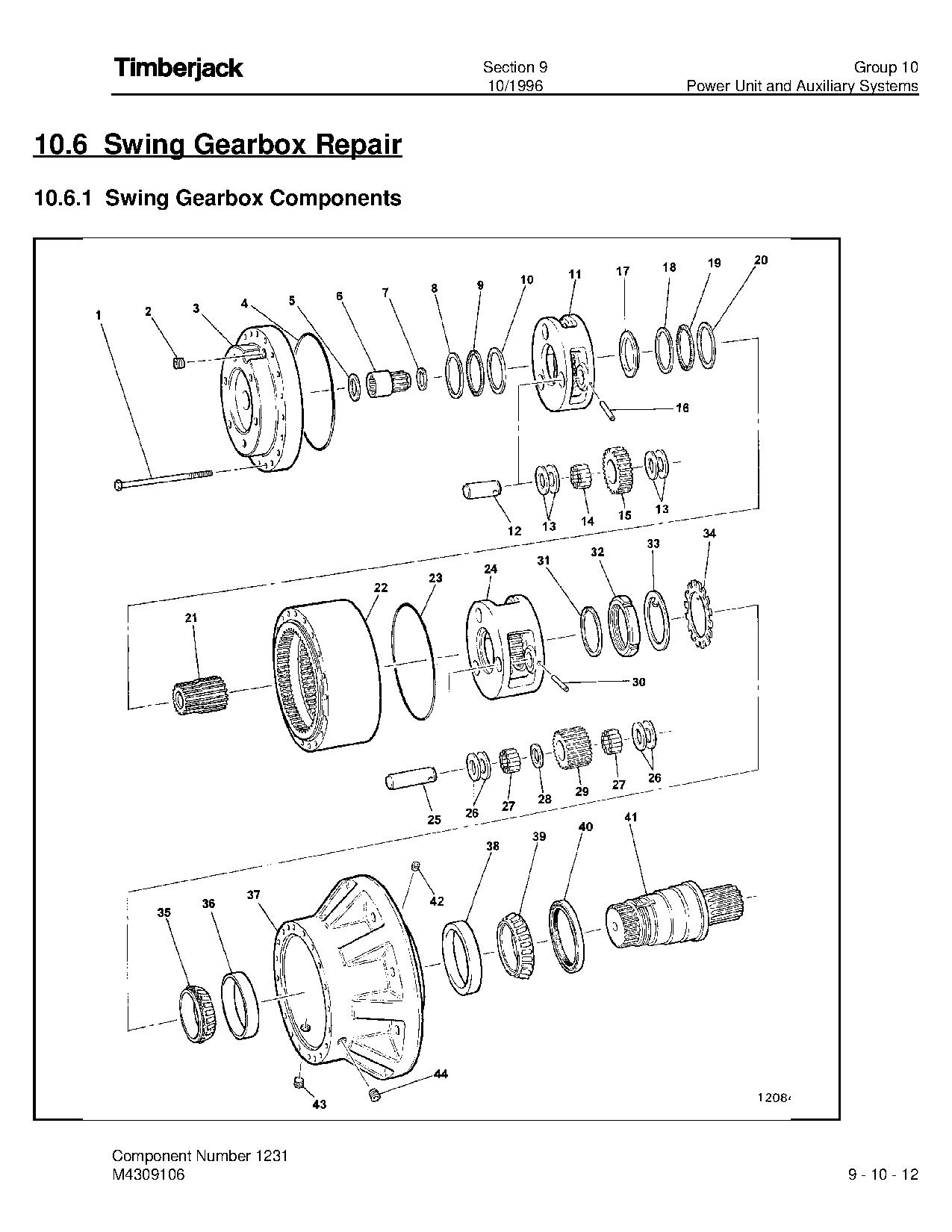

      Power Unit and Auxiliary Systems

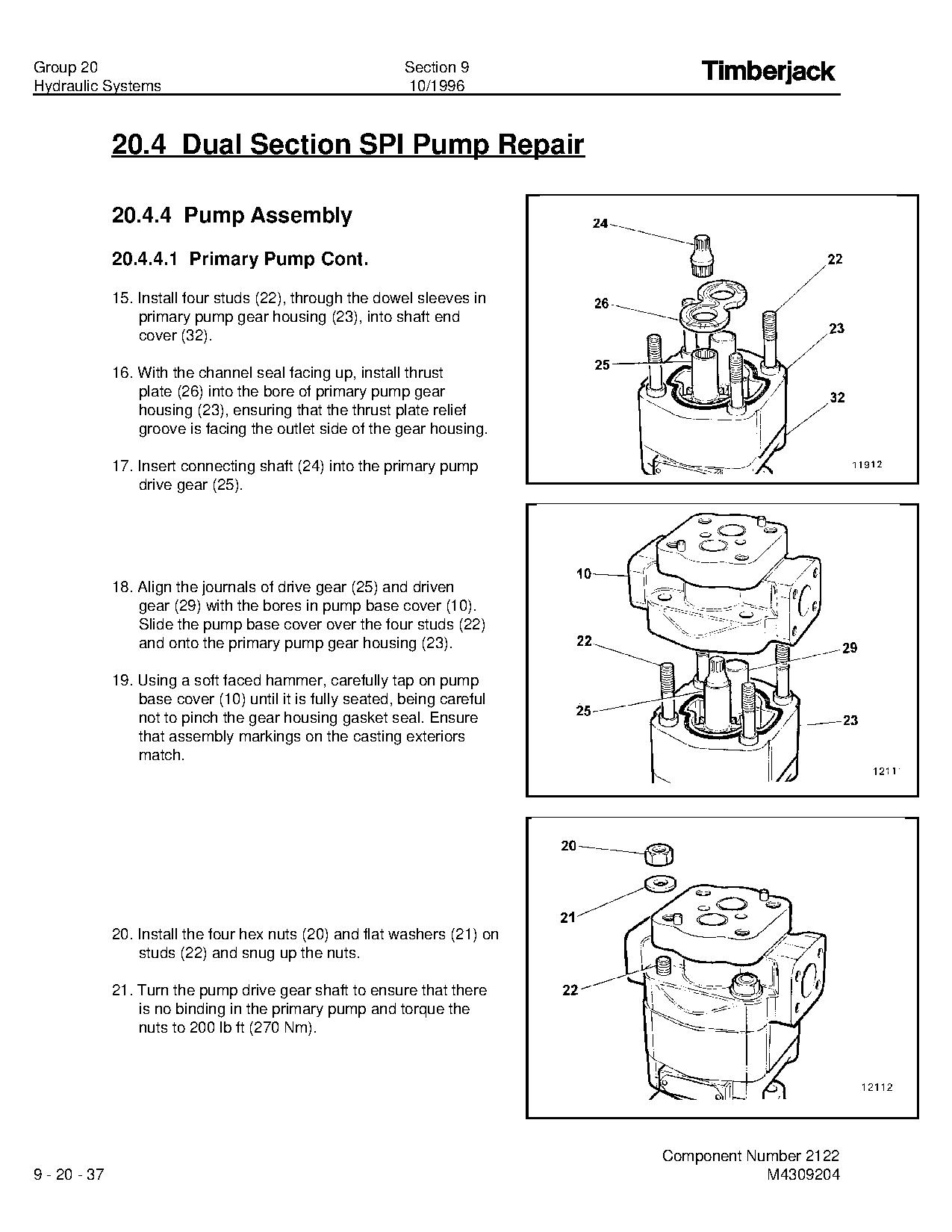

      Hydraulic Systems
