John Deere DB40, DB50, DB74 and DB90 Planters (South America, SN. from 140100) Repair Manual (TM809219)

Number: 20527
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Planter
  • Model
    DB40, DB50, DB74, DB90
  • Serial Number
    140100-
Details
Table of Contents:
   Introduction
      Foreword
      Trademarks
   Safety
      Safety
   General Information
      References to Technical Information
   Electrical System
      Connectors
      Sensors and Switches-MaxEmerge 5
      Sensors and Switches-MaxEmerge 5e and ExactEmerge
      Motors-MaxEmerge 5e and ExactEmerge

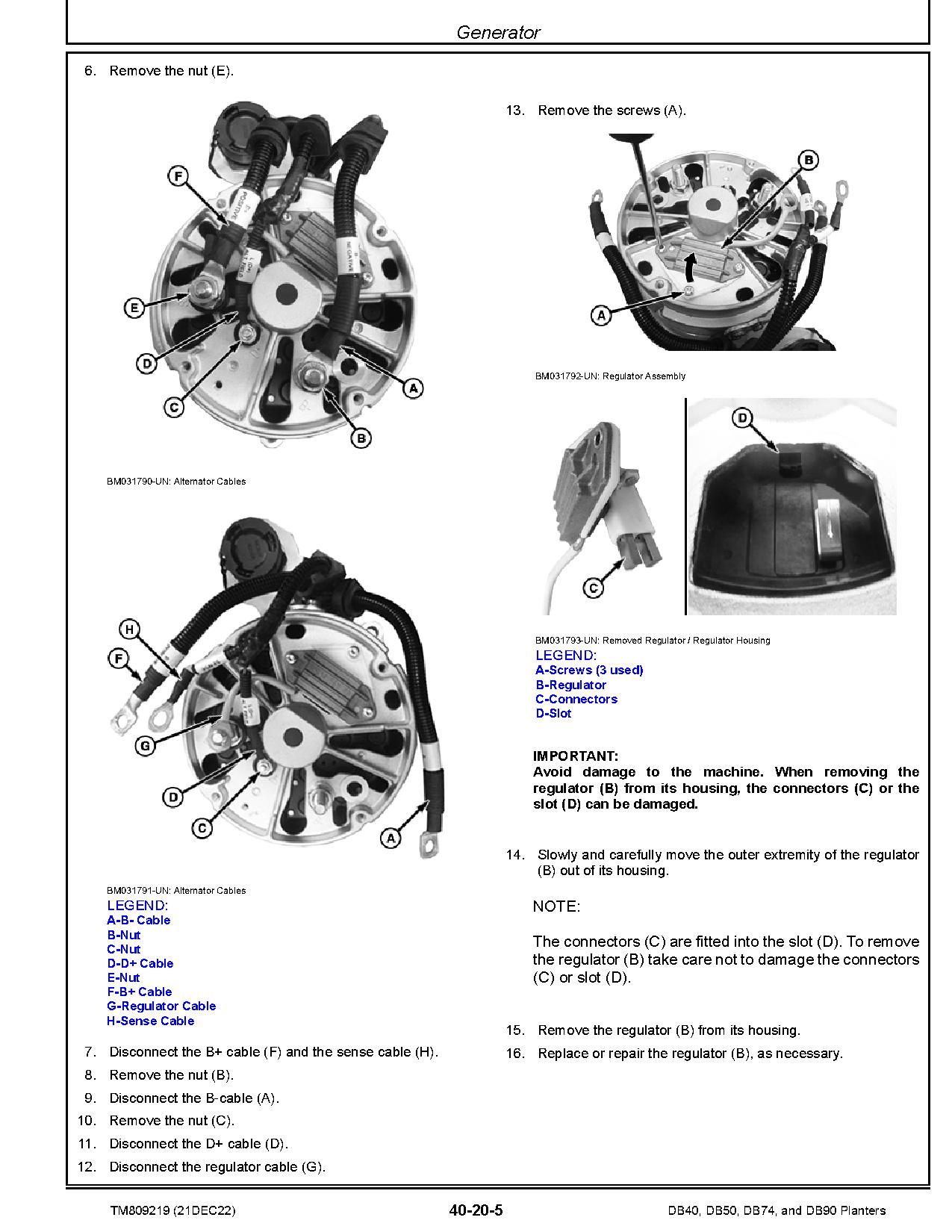

      Generator
   Electronic Control Units
      General Information
      Remove and Install Components-MaxEmerge 5-DB40, DB50, and DB74
      Remove and Install Components-MaxEmerge 5-DB90
      Remove and Install Components-MaxEmerge 5e and ExactEmerge
   Drives
      Drillshaft-MaxEmerge 5
      Variable Rate Drive

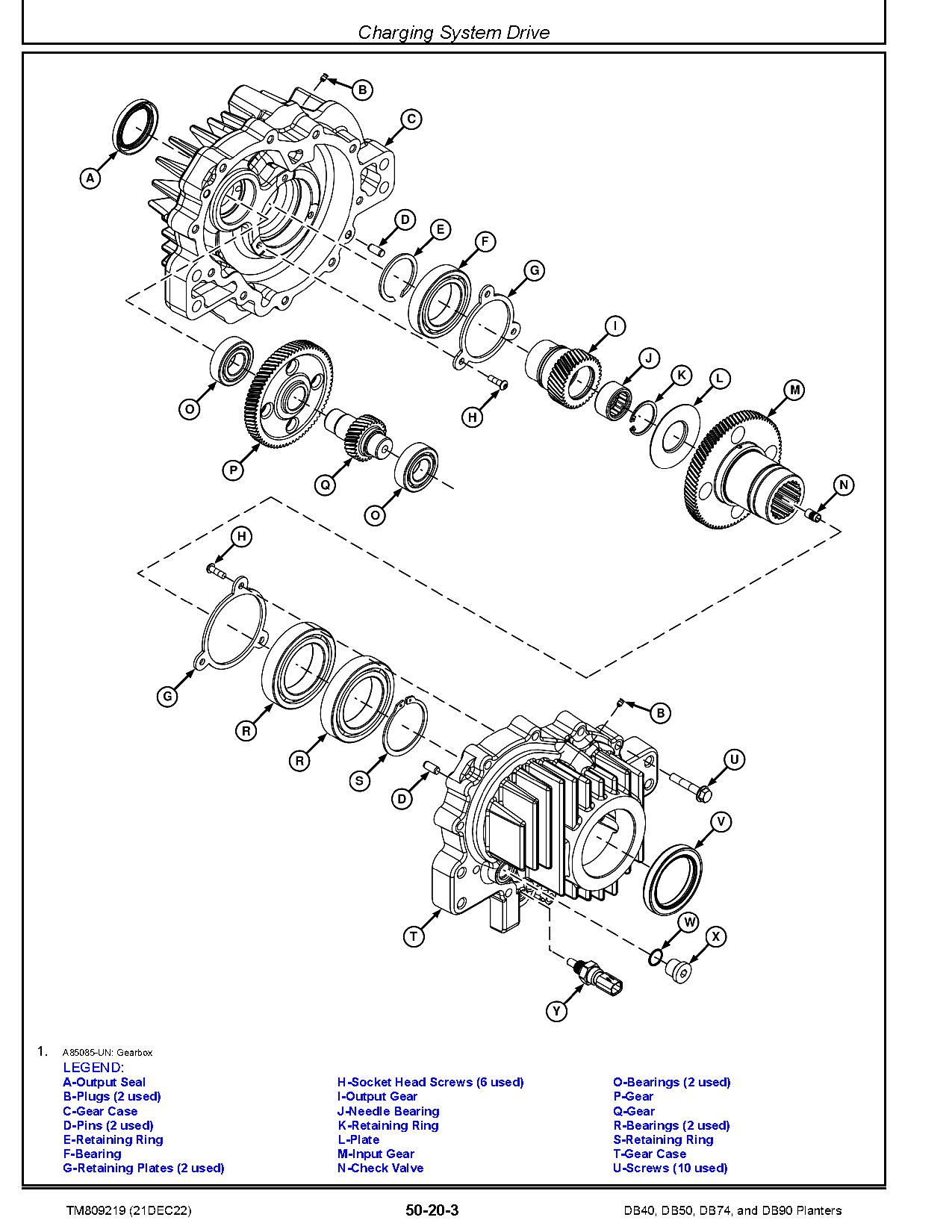

      Charging System Drive
      Electric Drives
   Hydraulics
      General Information
      Motors
      Valves
      Cylinders
      Miscellaneous
   Wheels, Hitch and Frame
      Repair and Welding
      Wheels
   Planting Units
      Coulters
      Double Disk Blade
      Depth Gauge Wheels
      Closing Wheels

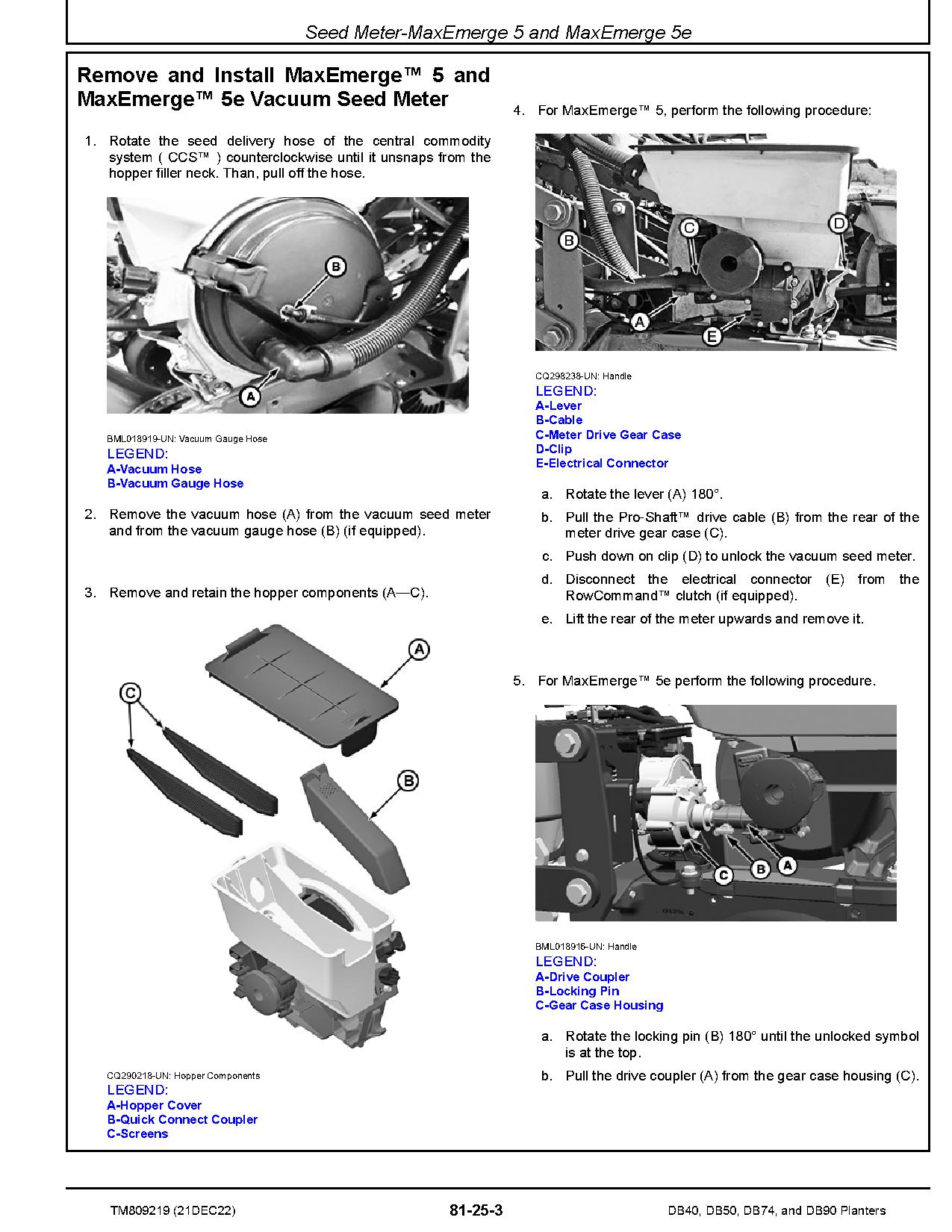

      Seed Meter-MaxEmerge 5 and MaxEmerge 5e
      Seed Meter-ExactEmerge
      Mechanical Row Unit Downforce
      Pneumatic Row Unit Downforce
   Vacuum System
      Vacuum System
      Vacuum Blower
   Central Commodity System (CCS)
      CCS Pressure System
      CCS Turbine
      CCS Tank
      Seed Distributor Collector
      Seed Delivery Hose
   Tools
      Dealer-Fabricated Tools
      Special Tools
