John Deere 6100J, 6115J, 6125J, 6135J, 6150J, 6170J, 6190J and 6210J Tractors (South America, SN. from 600000) Repair Manual (TM808719)

Number: 21177
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Tractor
  • Region
    South America
  • Model
    6100J, 6115J, 6125J, 6135J, 6150J, 6170J, 6190J, 6210J
  • Middle Tractors 6000 Series Serial Number
    600000-
Details
Table of Contents:
   Introduction
      Foreword
   Safety
      Safety
   General Information
      References for Technical Information
   Engine

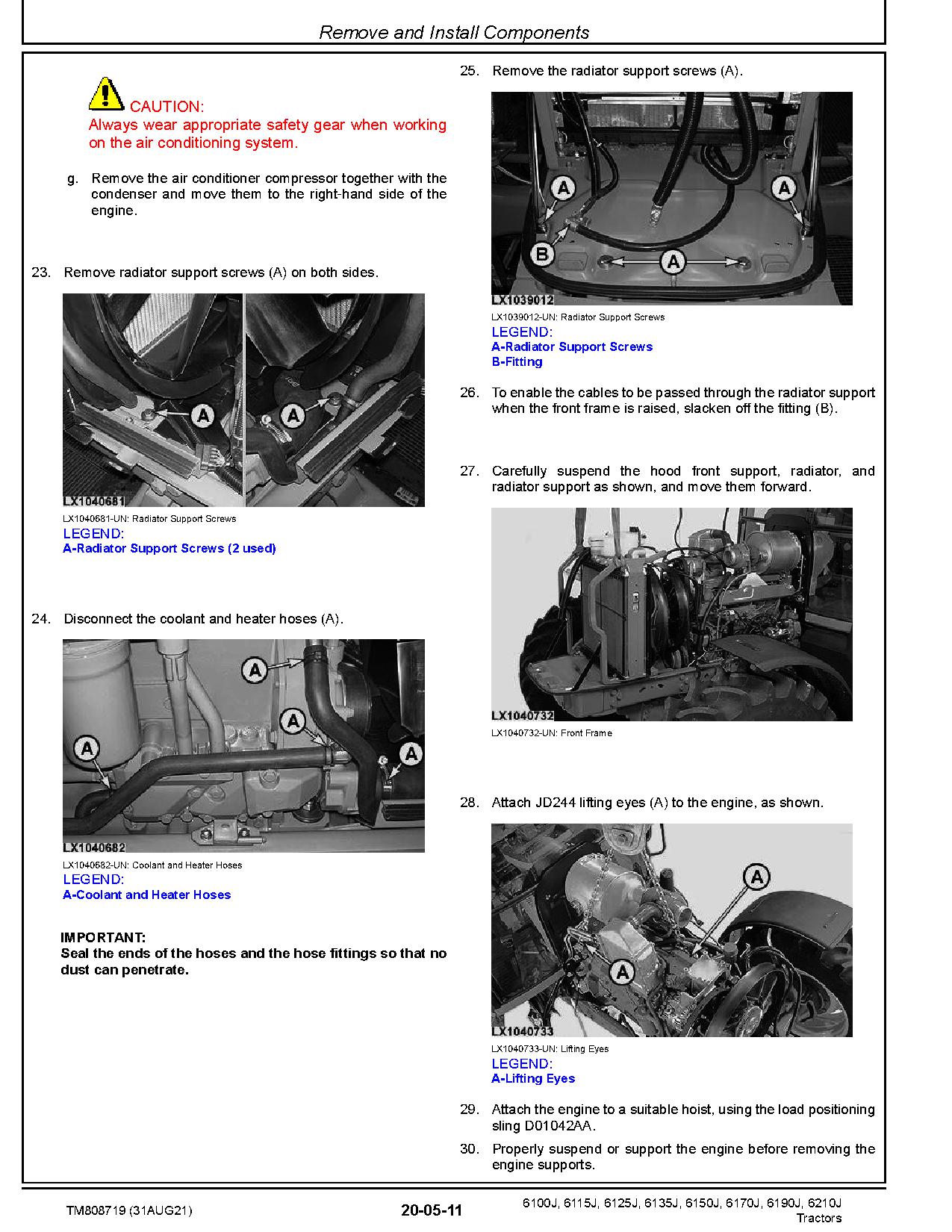

      Remove and Install Components
   Fuel, Air Intake, Cooling, and Exhaust System
      Speed Control
      Fuel System
      Air Intake System
      Cooling System
      Exhaust System
   Electrical System
      Harness and Connectors Repair
      Charging System
      Starter Motor Circuit
      Fuses, Relays, and Switches
      Electrical Components
      Monitoring Systems
   Electronic Control Units
      General Information
      Remove and Install Components
   Drivetrain
      Remove and Install Components-6100J, 6115J, 6125J and 6135J Tractors

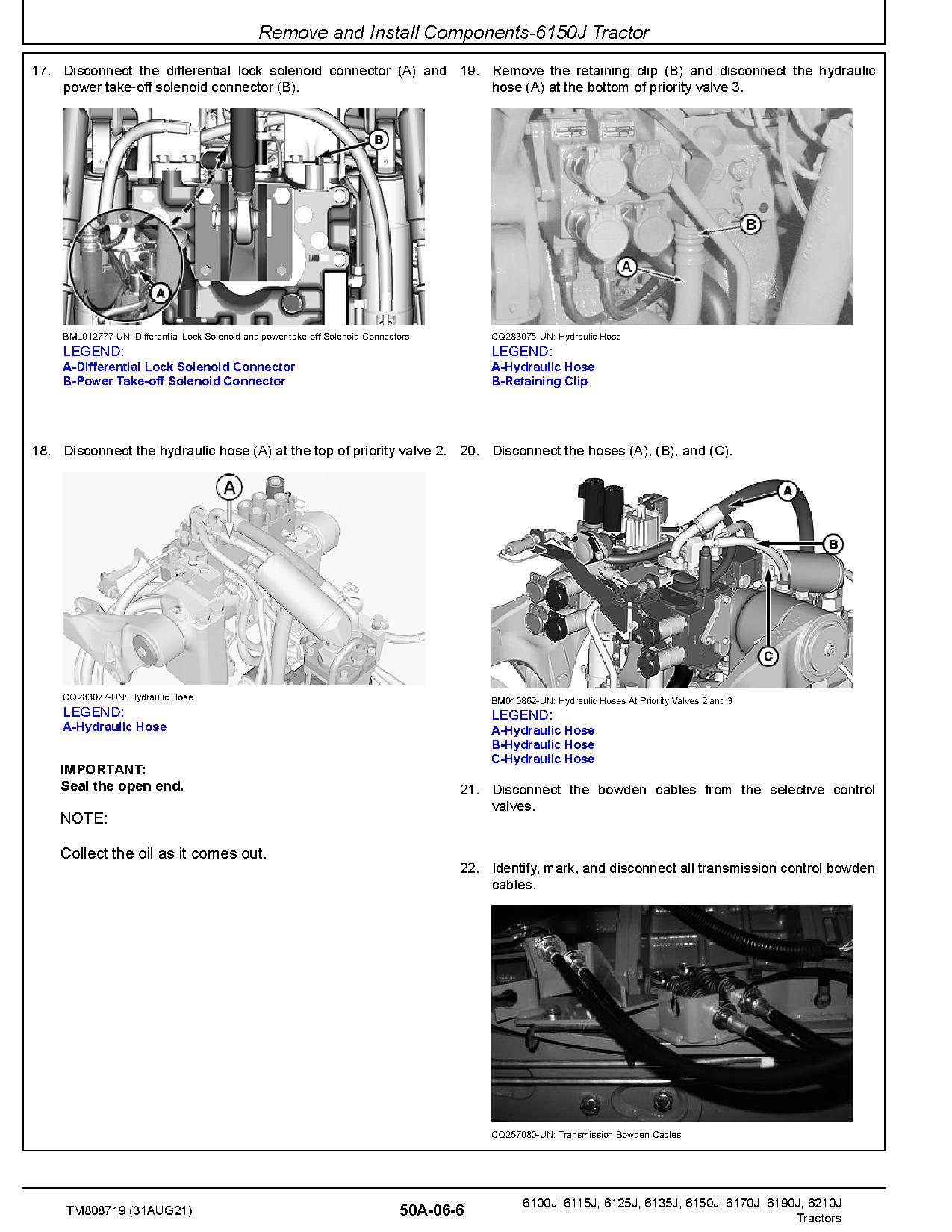

      Remove and Install Components-6150J Tractor
      Remove and Install Components-6170J, 6190J, and 6210J Tractor
      Universal Joints, Driveshafts, and Torsional Damper
      Front-Wheel Drive Clutch-6100J, 6115J, 6125J and 6135J Tractors
      Front-Wheel Drive Clutch-6150J Tractor
      Front-Wheel Drive Clutch-6170J, 6190J, and 6210J Tractors
      Rear Differential-6100J, 6115J, 6125J, and 6135J Tractors
      Rear Differential-6150J Tractor
      Rear Differential-6170J, 6190J, and 6210J Tractors
      Hydraulic Pump Drive
      Final Drives-6100J, 6115J, 6125J, and 6135J Tractors
      Final Drives-6150J, 6170J, 6190J, and 6210J Tractors
      Rear Power Take-Off-6100J, 6115J, 6125J, and 6135J Tractors
      Rear Power Take-Off-6150J, 6170J, 6190J, and 6210J Tractors
   SyncroPlus Transmission
      Remove and Install Components
      Transmission Selectors Control
      Clutch
      Gearbox
      Creeper Transmission
      Remove and Install Range Box
      Range Box
   PowrQuad Transmission
      Remove and Install PowrQuad Module
      Transmission Selectors Control
      PowrQuad Module
      Remove and Install Range Box
      Range Box
   Steering
      Hydrostatic Steering
      AutoTrac Integrated Steering
   Brakes

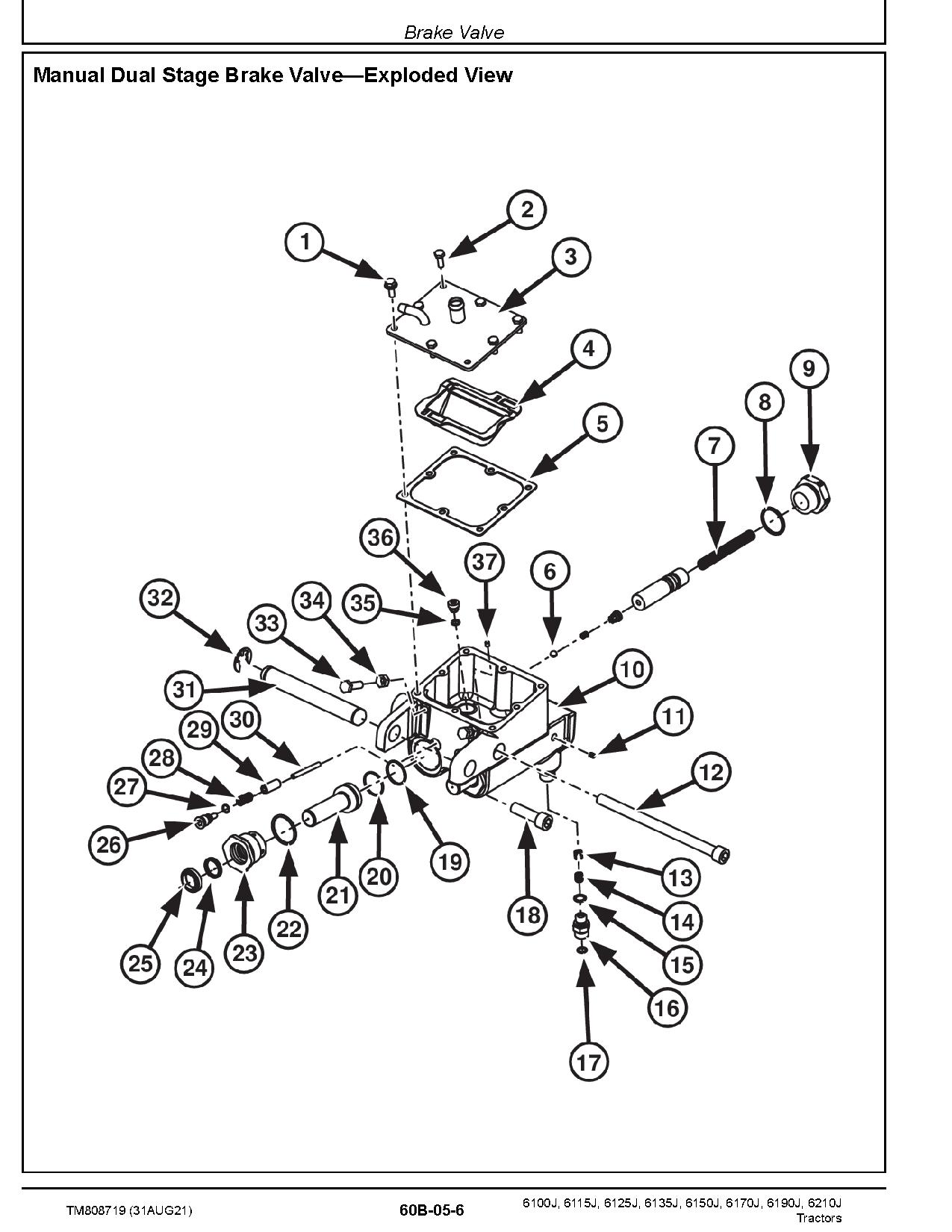

      Brake Valve
      Power-Fill Brake Valve
      Rear Wheel Brakes-6100J, 6115J, 6125J, and 6135J Tractors
      Rear Wheel Brakes-6150J, 6170J, 6190J, and 6210J Tractors
   Air Trailer Brake
      Air Brake System
   Hydraulic System
      Hydraulic System Identification
   Hydraulic System-Gear-Driven Pump (OOS Tractors)
      Rockshaft Controls
      Hydraulic Pump
      Priority Valve, Hitch Valve, and Hydraulic Oil Filter
      Rockshaft
      Selective Control Valves and Quick Couplers
   Hydraulic System-Gear-Driven Pump (Cab Tractors)
      Rockshaft Controls
      Hydraulic Pump
      Valve Block
      Rockshaft
      Selective Control Valves and Quick Couplers
   Hydraulic System-Axial Piston Pump (Cab Tractors)
      Rockshaft Controls
      Charge Pump and Hydraulic Pump
      Valve Block
      Rockshaft
      Selective Control Valves and Quick Couplers
   Miscellaneous
      Remove and Install Components
      Main Frame
      Front Wheels, Rear Wheels and Fenders
      Center Link Bracket and Swinging Drawbar
   Open Operator`s Station
      Remove and Install Components
      Open Operator`s Station
   Cab
      Remove and Install Components
      Air-Conditioning System
      Heating System
      Operator`s Cab
   Tools
      Special Tools (Dealer-Fabricated)
