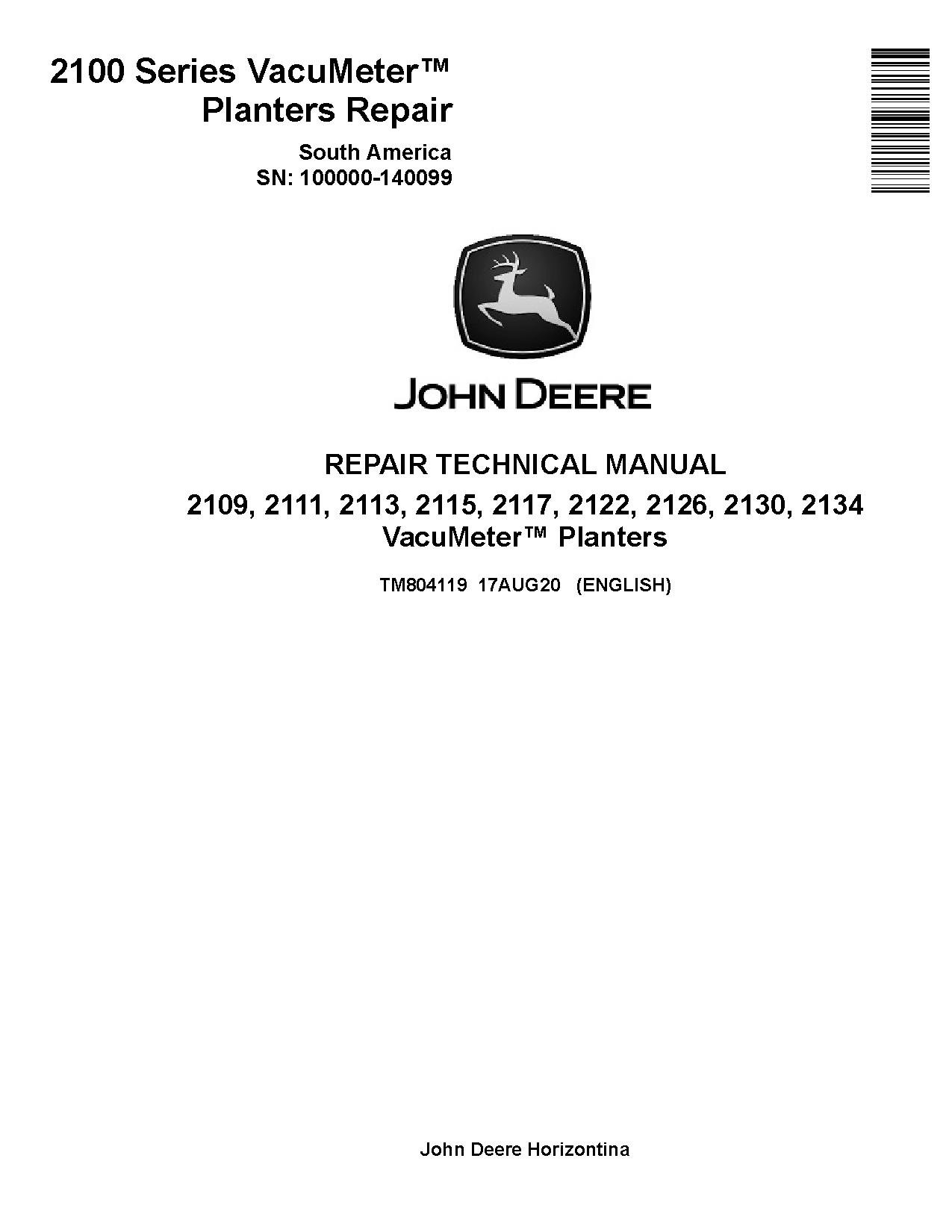

John Deere 2109, 2111, 2113, 2115, 2117, 2122, 2126, 2130 and 2134 VacuMeter™ Planters (South America, SN: 100000-140999) Repair Manual (TM804119)

Table of Contents:
   Introduction
      Foreword
   Safety
      Safety
   General Information
      Specifications
      Lubricants
      Serial Numbers

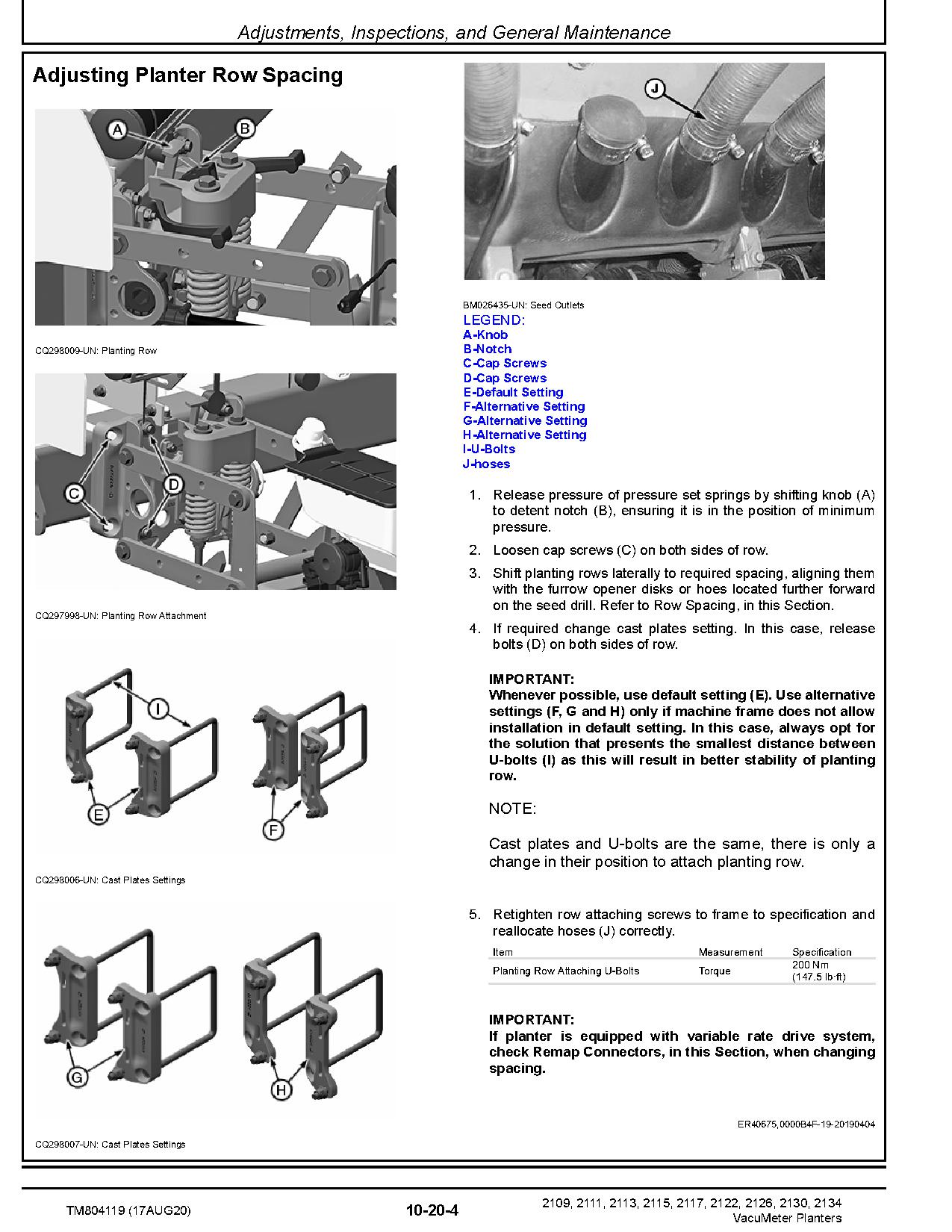

      Adjustments, Inspections, and General Maintenance
      References to Technical Information
   Frame, Hitch, Wheel Support and Row Markers
      Repair and Welding
      Chassis
      Single Hitch
      DualFlexPro Hitch

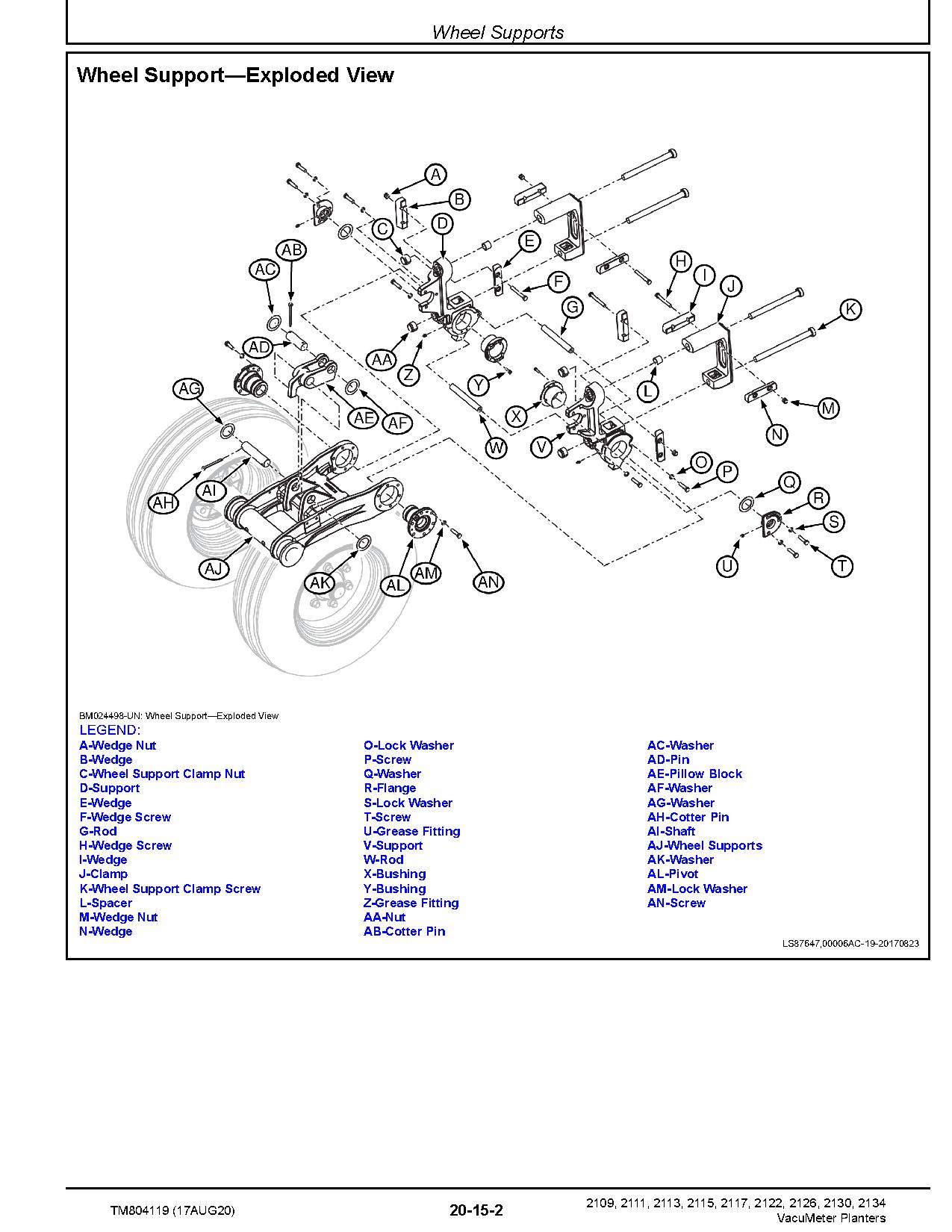

      Wheel Supports
      Wheel Hub
      Single Row Marker
      Bi-Fold Row Markers
      Monitoring Systems
   Mechanical Transmission
      Transmission Shafts
      Clutch and Drive
   Variable Rate Drive (VRD)
      Transmission Shafts
      Transmission
      Monitoring Systems
   Electrical System
      Connectors
      Wire Harnesses
      Electric Components
   Electronic Control Units
      General Information
      Removing and Installing Components
   Fertilizer Units
      Fertilizer Hoppers
      Fertilizer Meters
      Fertilizer Metering Disks
      Fertilizer Furrow Opener Hoe
      Opener Disks
   Planting Units
      Row Units

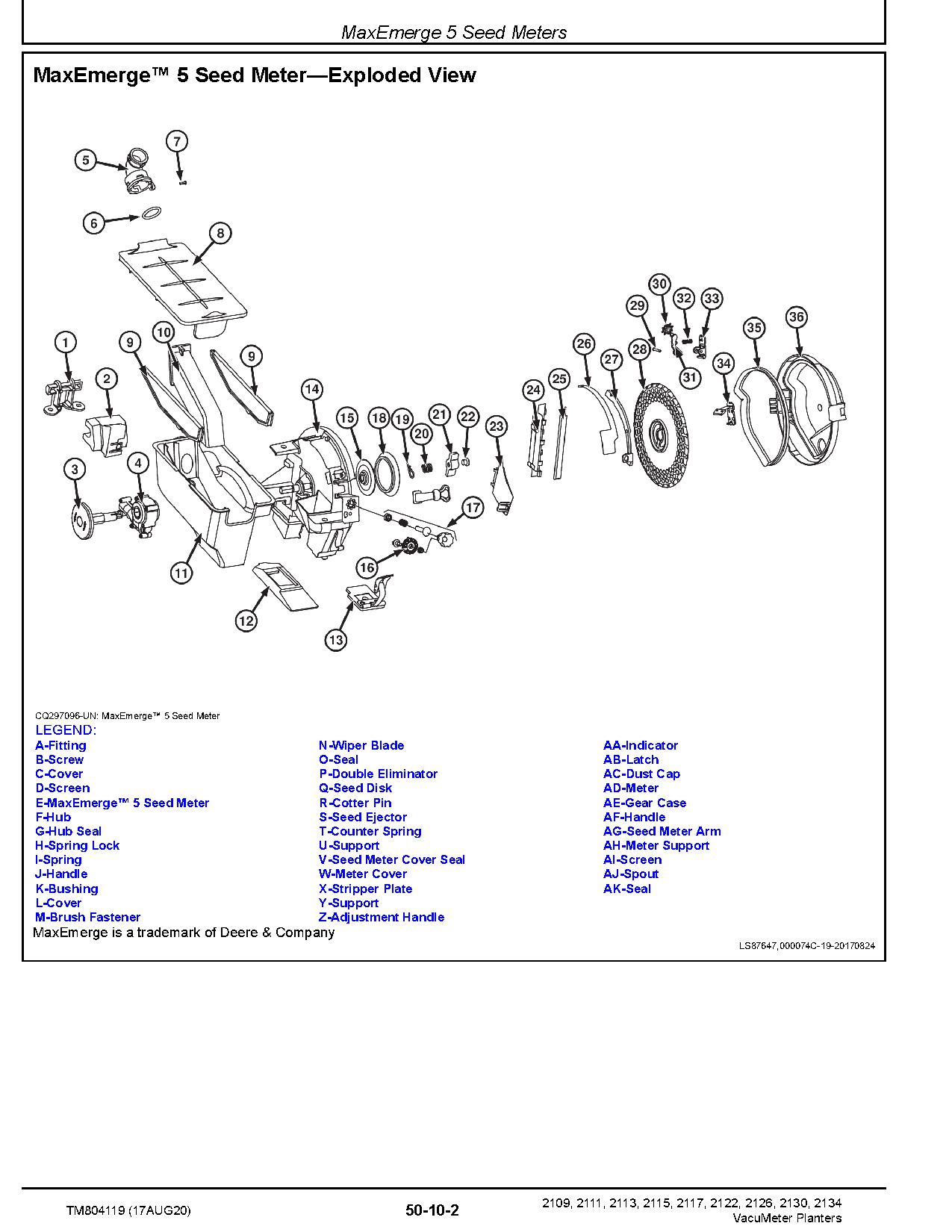

      MaxEmerge 5 Seed Meters
      Closing Wheels
      Depth Gauge Wheels
      Seed Furrow Opener Disks
      Planting Unit Pressure Assembly
      Row Cleaner
      Monitoring Systems
   Central Commodity System (CCS)
      CCS Pressure System
      CCS Turbine
      CCS Hopper
      Seed Delivery Manifold
      Delivery Hoses
      Monitoring Systems
   Hydraulic System
      Engines
      Valves
      Oil Cooler
      Hydraulic Cylinders
   Vacuum System
      Vacuum System
      Vacuum Turbine
   Dealer Fabricated Tools
      Dealer Fabricated Tools
