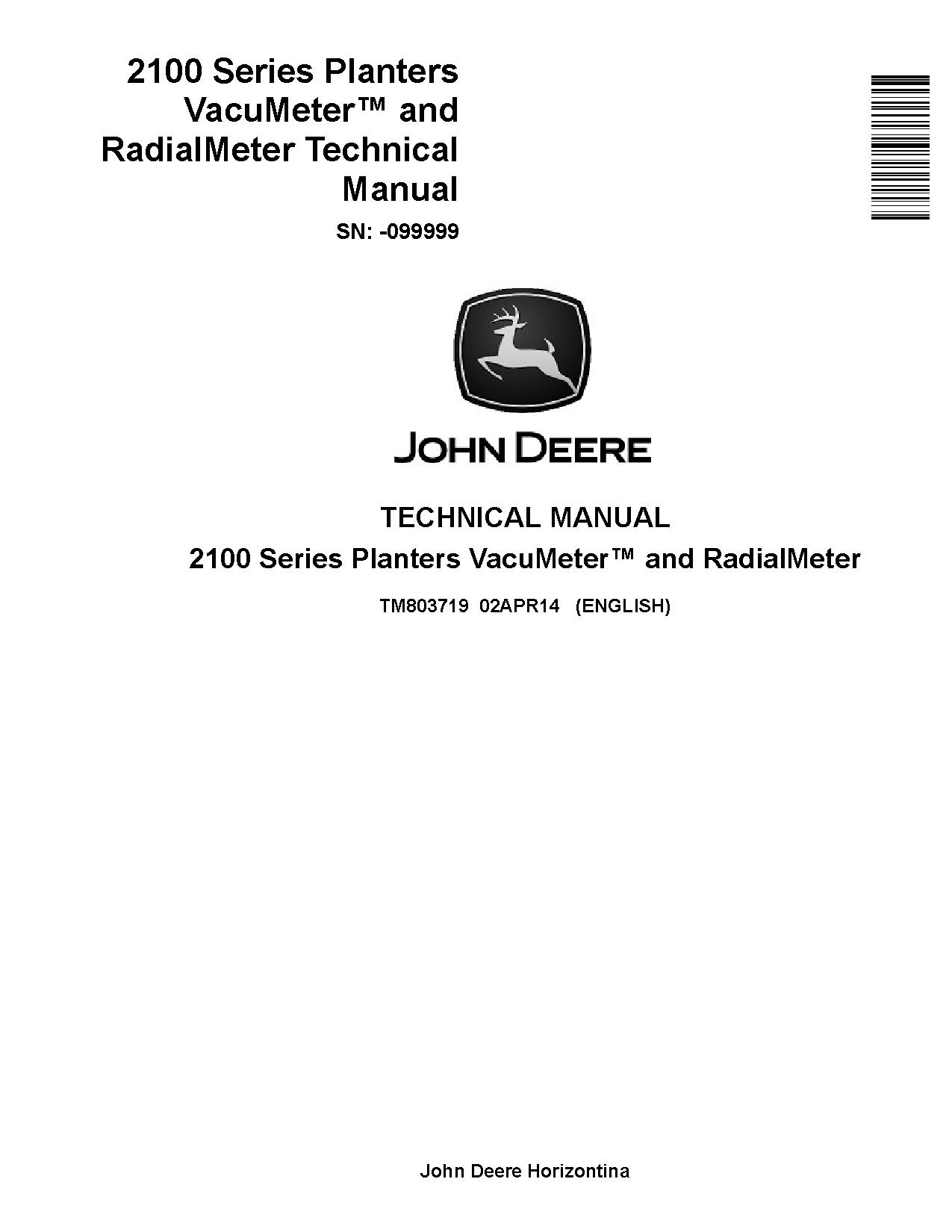

John Deere 2113, 2115, 2117, 2122, 2126, 2130 and 2134 Planters (SN. up to 099999) Technical Manual (TM803719)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

John Deere 2113, 2115, 2117, 2122, 2126, 2130 and 2134 Planters (SN. up to 099999) Technical Manual (TM803719)

Number: 20517
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Planter
  • Model
    2113, 2115, 2117, 2122, 2126, 2130, 2134
  • Serial Number
    000248-099999, 090225-099999, 090244-099999, 090394-099999, 090430-099999, 090740-099999, before 099999
Details
Table of Contents:
   Introduction
      Foreword
      Model Identification and Chassis Covered in this Manual
   General Information
      safety
      Lubricants
      General Information
      Specifications
   Planting Units (Seeds)
      Vacuum System
      Central Seed Box - Collectors and Seed Tanks
      Central Seed Box - Seed Distribution Hose
      Central Seed Box - Blower
      Row Units-2100
      Vacuum Seed Meters
      Closing Wheels
      Gauge Wheels
      Offset Seed Disks
      Row Unit Pressure-2100
   Fertilizer Unit
      Fertilizer Meters
      Fertilizer Metering Disks
      Cutter Disks
   Lance, Wheel Support and Row Markers
      Lance-2100
      Wheel Support-2100
      Wheel Hub-2100
      Row Markers
   Electrical System
      How To Use Diagnostic Information
      Repairing Wiring Harnesses
   Transmissions
      Clutch-2100
   Hydraulic System
      General Information
      Engines
      Valves
      Others
      Hydraulic Cylinders
   Others
      Repairing Polyethylene Tank
   Dealer Fabricated Tools
      Dealer Fabricated Tools
   Electrical Diagrams
      General Information
      Electrical System Schematics-2100
   Hydraulic Schematics
      General Information
      Hydraulic Schematics
      Hydraulic Diagnosis
