John Deere 624, 632 and 638 Trailed Crop Sprayers Diagnostic Manual (TM403319)

Number: 20379
Available
Add to Wishlist
Specifications
  • Type Of Document
    Diagnostic Manual
  • Type of equipment
    Trailed Crop Sprayer
  • Model
    624, 632, 638
Details
Table of Contents:
   Introduction
      Foreword
   General Information

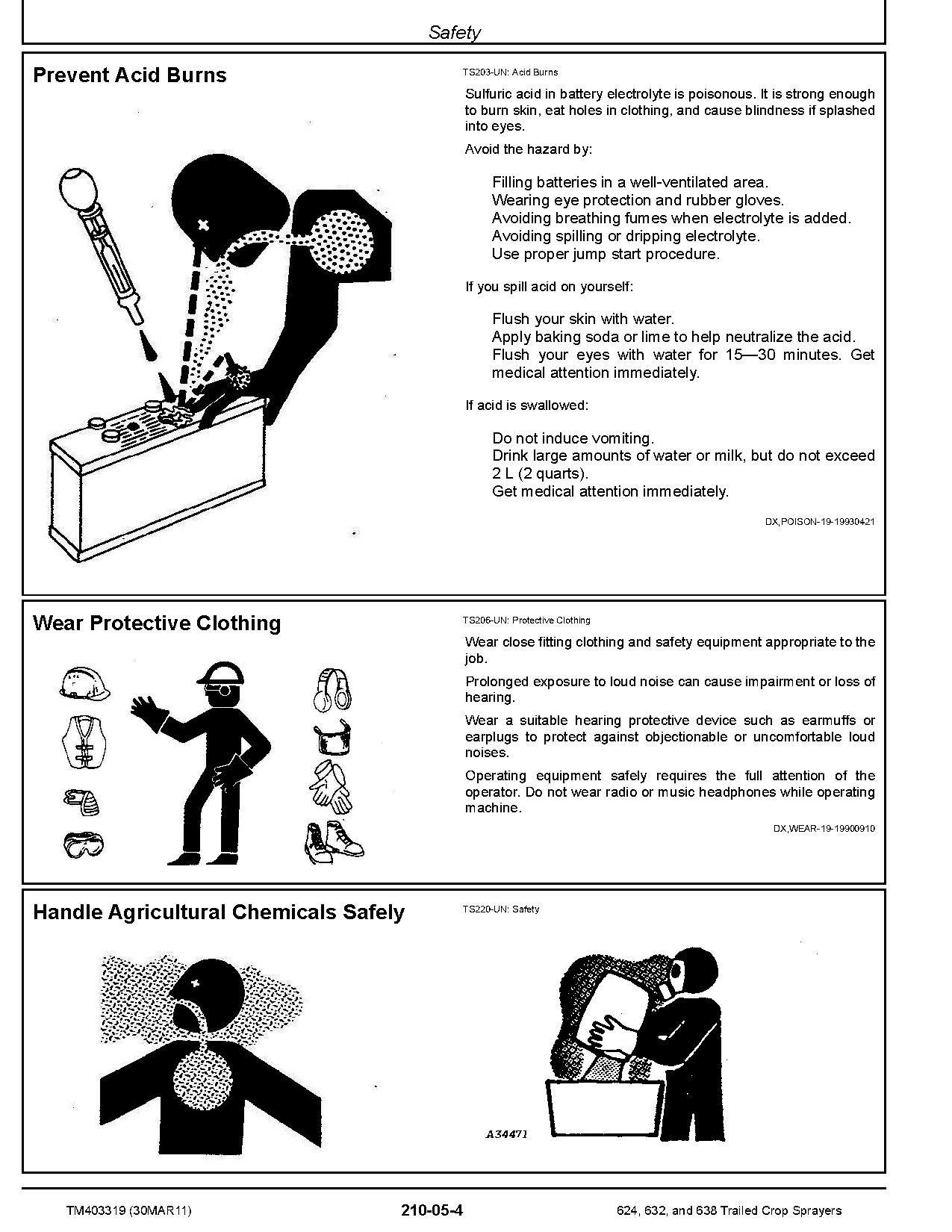

      Safety
   Electrical Diagnosis and Tests
      Power Supply EL4
      Drawbar Sensor Connection 800
      EL4+EHB2 Connection 624
      EL4+EHS1 Connection 624
      EL4 Electrical Connection 624
      Modification of Drawbar Sensors on EHB2
      EL4 Electrical Connection 624 V2
      EL4+EHS1 Connection 624 V2
      EL4+EHB2 Connection 624 V2
      Power Supply 3 Pole Cobo Connector
      Update to B-Motor
      Preparation of the Tractor

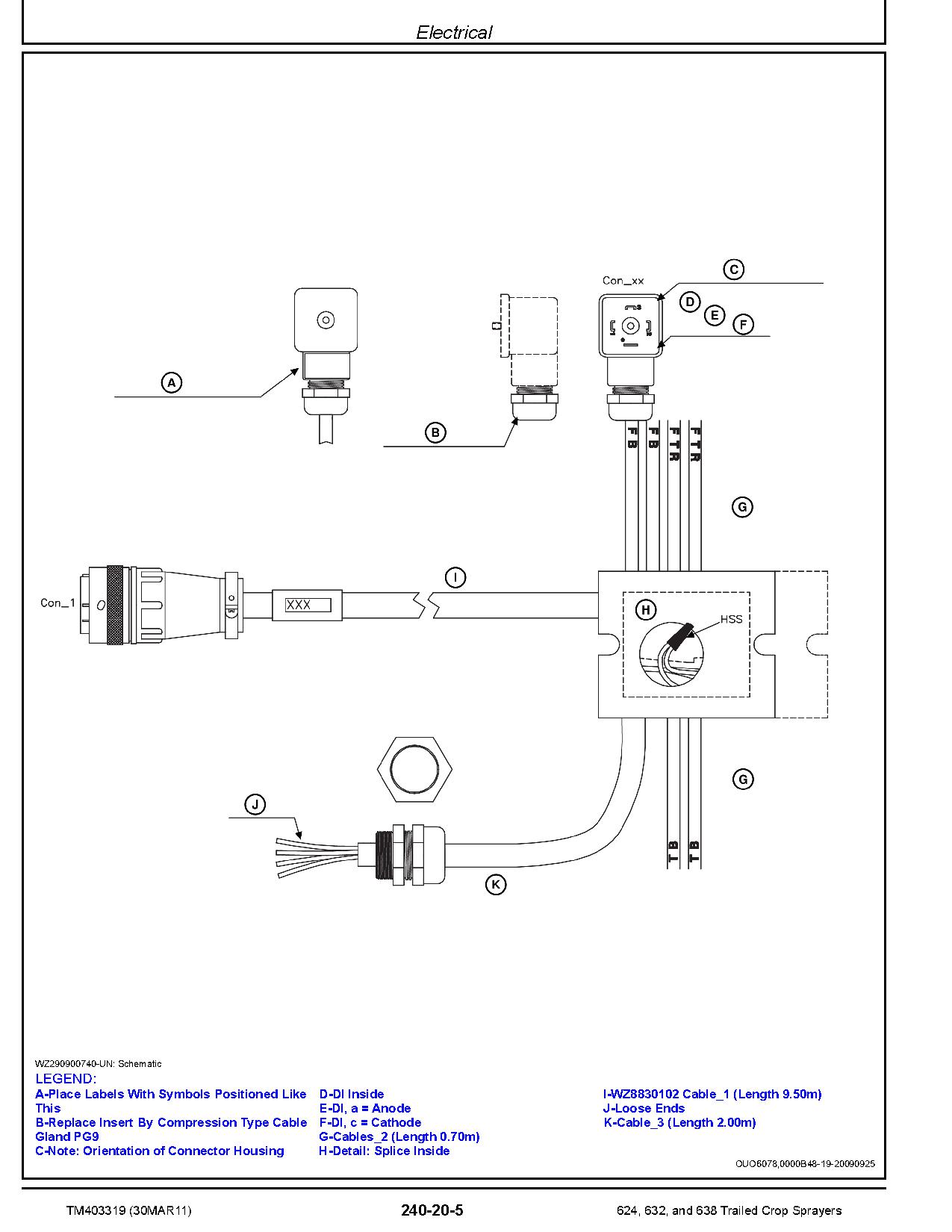

      Electrical
   Hydraulic Diagnosis and Tests
      EHS1 624
      EHB2 624
