Liebherr D9306, D9308, D9406 and D9408 Diesel Engines Technical Manual (TM2224)

Number: 23493
Available
Add to Wishlist
Specifications
  • Type Of Document
    Engine Technical Manual
  • Type of equipment
    Diesel Engine
  • Model
    D9306, D9308, D9406, D9408
Details
Table of Contents:
   Engine illustrations
   Technical description
   Engine description, engine data tag, cylinder description, direction of rotation and engine identification number
   Engine data, adjustment values, operating pressures, operating emperatures and fluid quantities
   Torque specifications

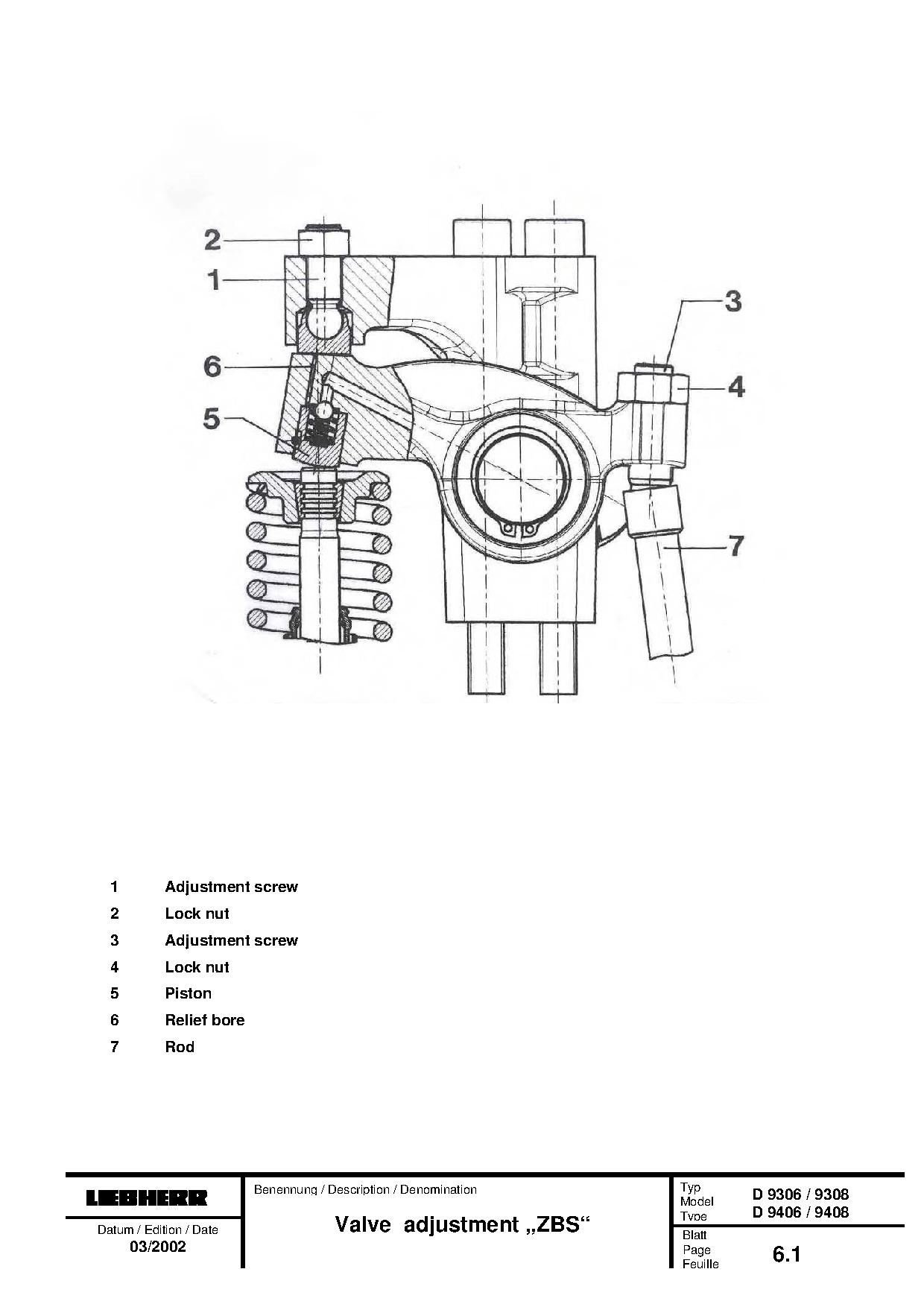

   Valve adjustment
   Cylinder head gaskets
   Cylinder head
   Cylinder liner
   Piston and connecting rod
   Check piston clearance
   Crankshaft and bearing
   Camshaft and valve drive
   Lube oil circuit
   Oil pans
   Lube oil pump
   Lube oil filter and oil cooler
   Coolant circuit
   Water filter

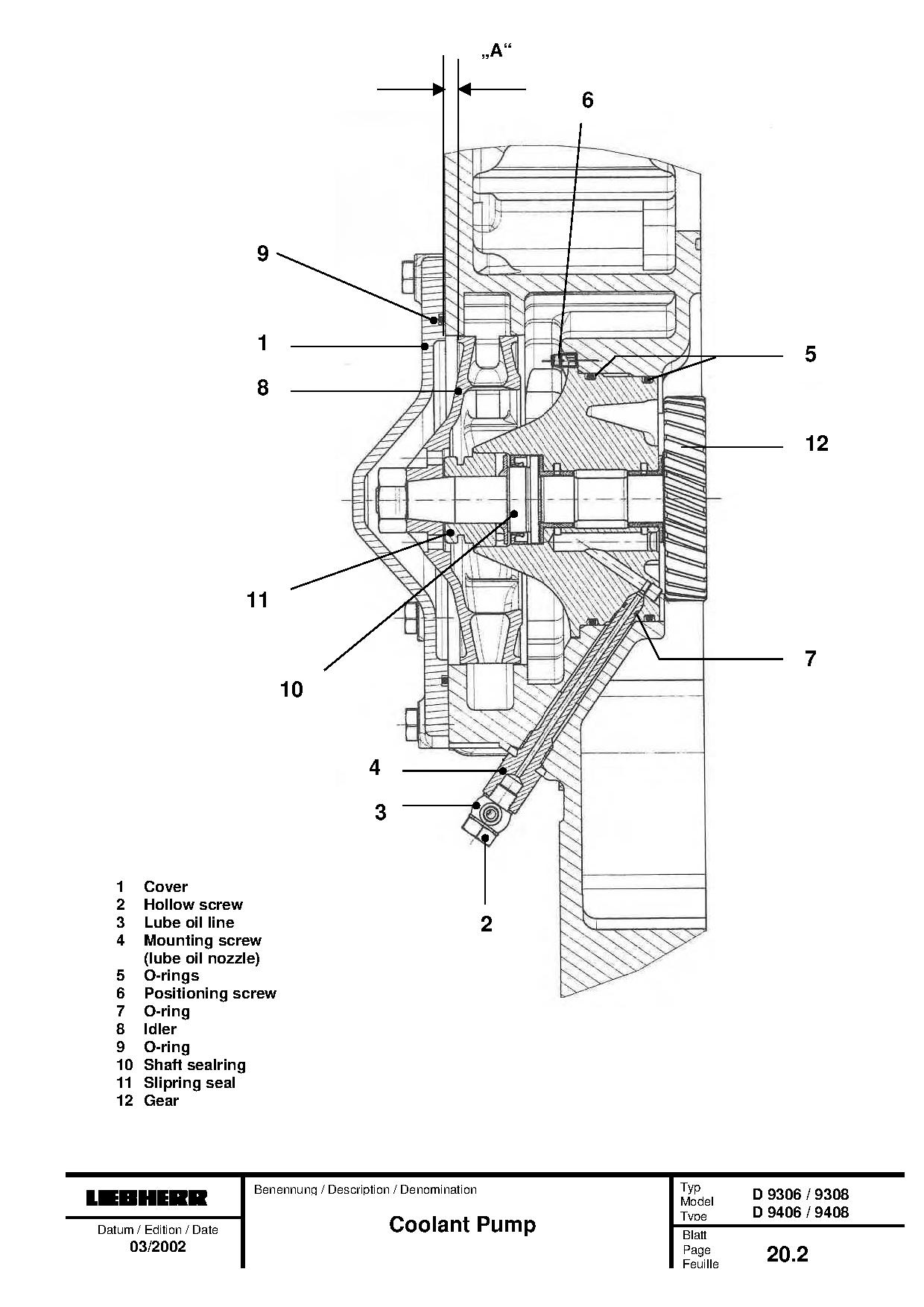

   Coolant pump
   Fan drive
   Fuel system
   Fuel pump
   Fuel filter
   Injection pump
   Injection pump drive, adjust begin of delivery
   Fuel injector
   Engine exhaust
   Fan and flywheel side crankshaft seal
   Hydraulic pump auxiliary drive
   Air compressor
   Starter

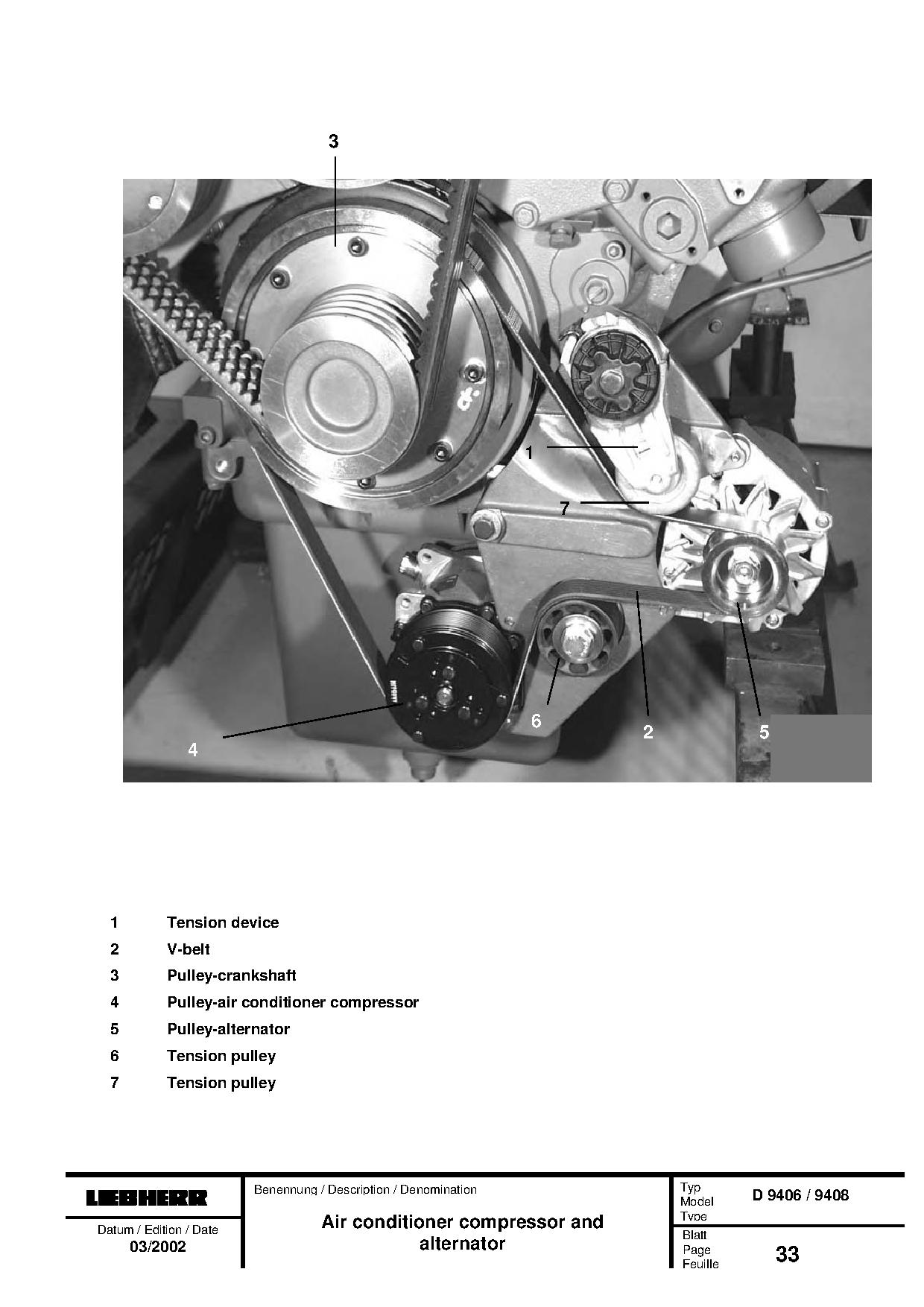

   Air conditioner compressor and alternator
   Starting aid
   Turbo charger
   Gear drive – flywheel side
   Gear drive – fan side
   Maintenance and inspections
   Service fluids
   Troubleshooting
   Special tools
