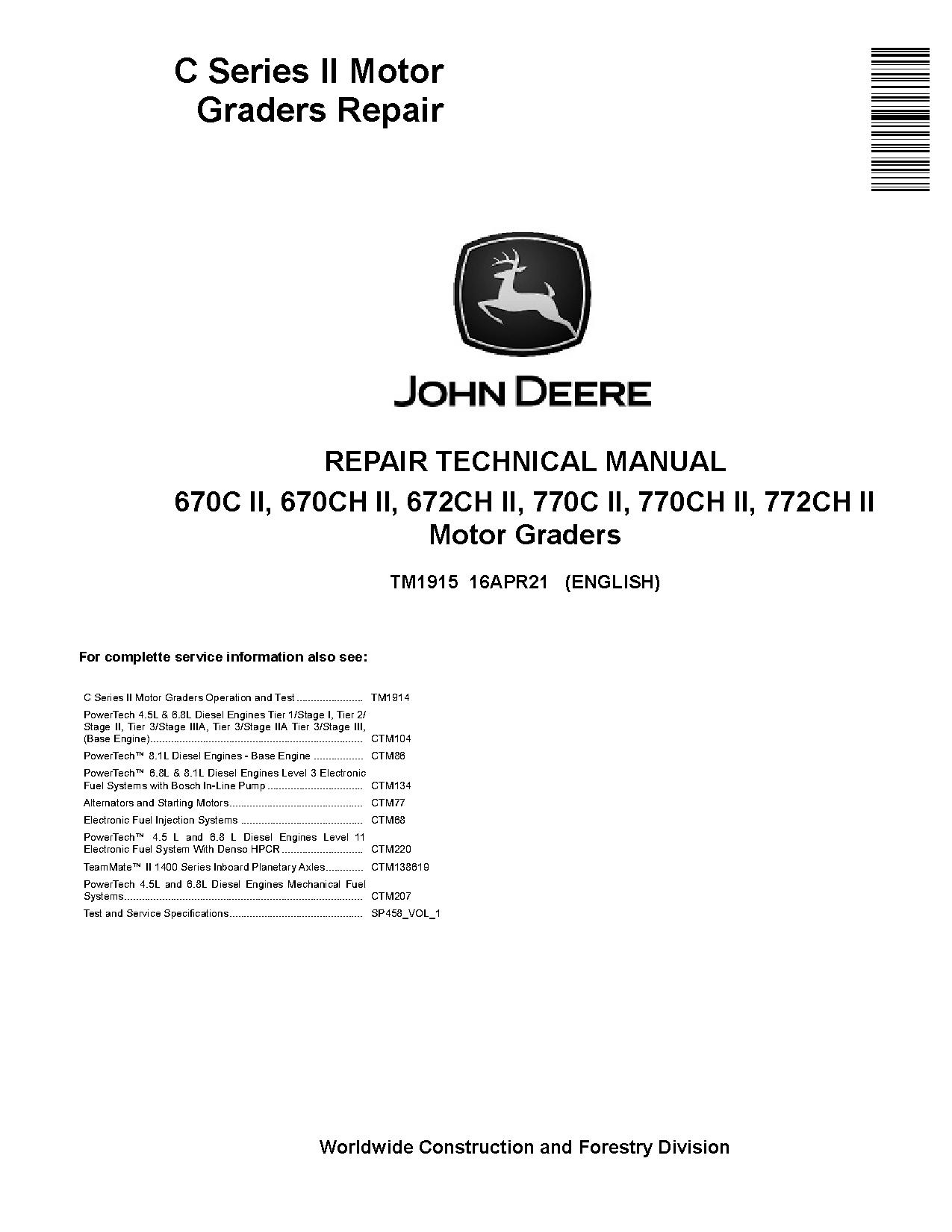

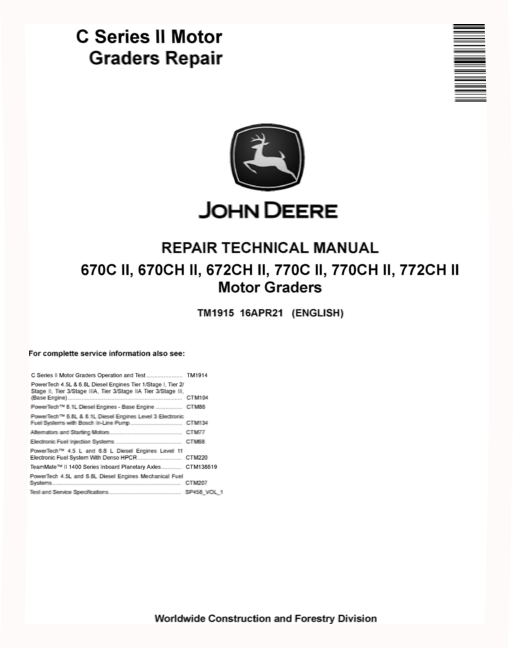

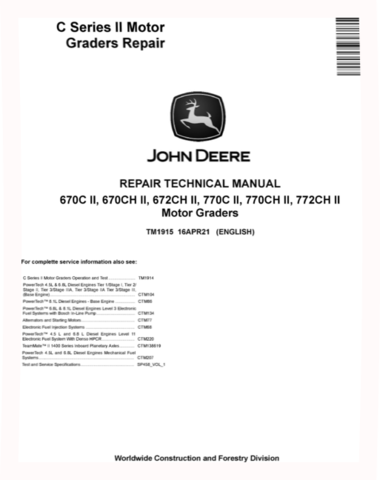

John Deere 670C, 670CH, 672CH, 770C, 770CH and 772CH Series II Motor Graders Repair Manual (TM1915)

Number: 22515
Available
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Motor Grader
  • Series
    II
  • Model
    670C, 670CH, 672CH, 770C, 770CH, 772CH
Details
Table of Contents:
   Introduction
      Foreword
      Technical Information Feedback Form
   General Information
      Safety
   Wheels
      Powered Wheels and Fastenings
   Axles and Suspension Systems
      Input Drive Shafts and U-Joints
      Non-Powered Wheel Axles

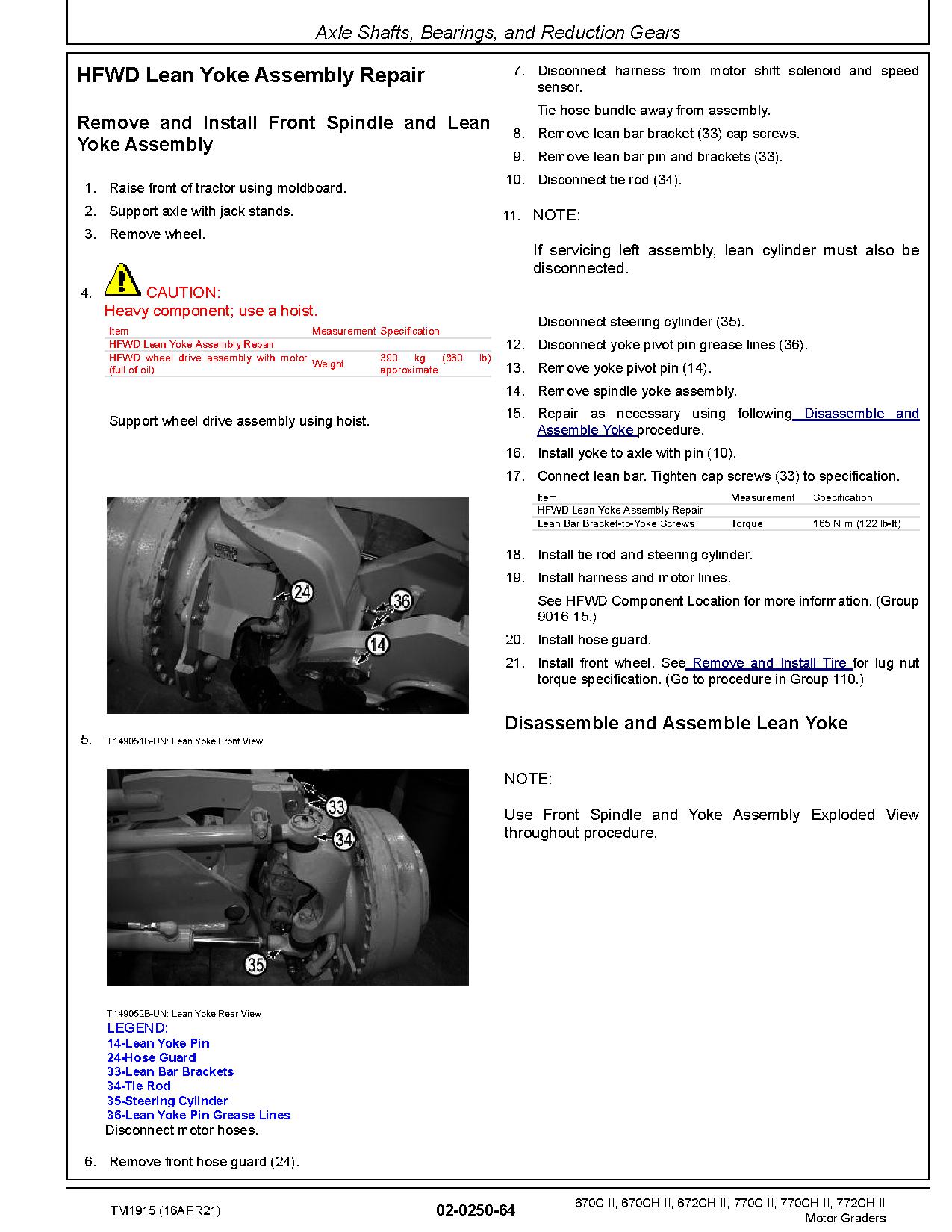

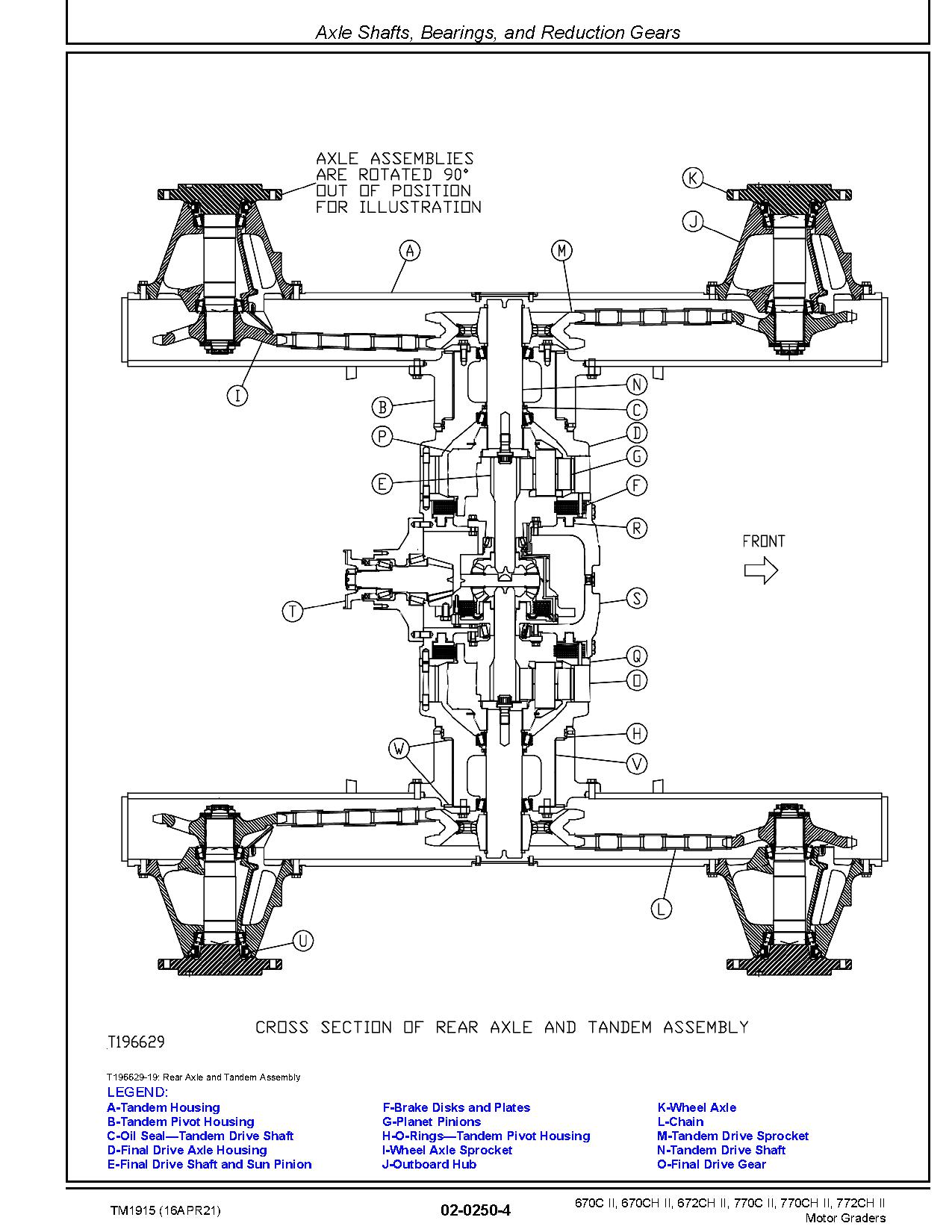

      Axle Shafts, Bearings, and Reduction Gears
      Hydraulic System
      Dealer Fabricated Tools
   Transmission
      Removal and Installation
      Gears, Shafts, Bearings and Power Shaft Clutch
      Hydraulic System
   Engine
      Removal and Installation
      Dealer Fabricated Tools
   Engine Auxiliary System
      Cold Weather Starting Aids
      Cooling System
      External Fuel Supply Systems
   Torsional Isolator
      Elements
   Steering System
      Power Steering
      Hydraulic System
   Service Brakes
      Active Elements
      Hydraulic System
   Park Brake
      Active Elements
   Frame, Chassis or Supporting Structure
      Frame Installation
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Seat and Seat Belt
      Heating and Air Conditioning
      Dealer Fabricated Tools
   Sheet Metal and Styling
      Covers and Guards
      Hood or Engine Enclosure
      Grille and Grille Housing
   Main Hydraulic System
      Hydraulic System
   Grading Device
      Controls Linkage
      Frames
      Circle Gearbox

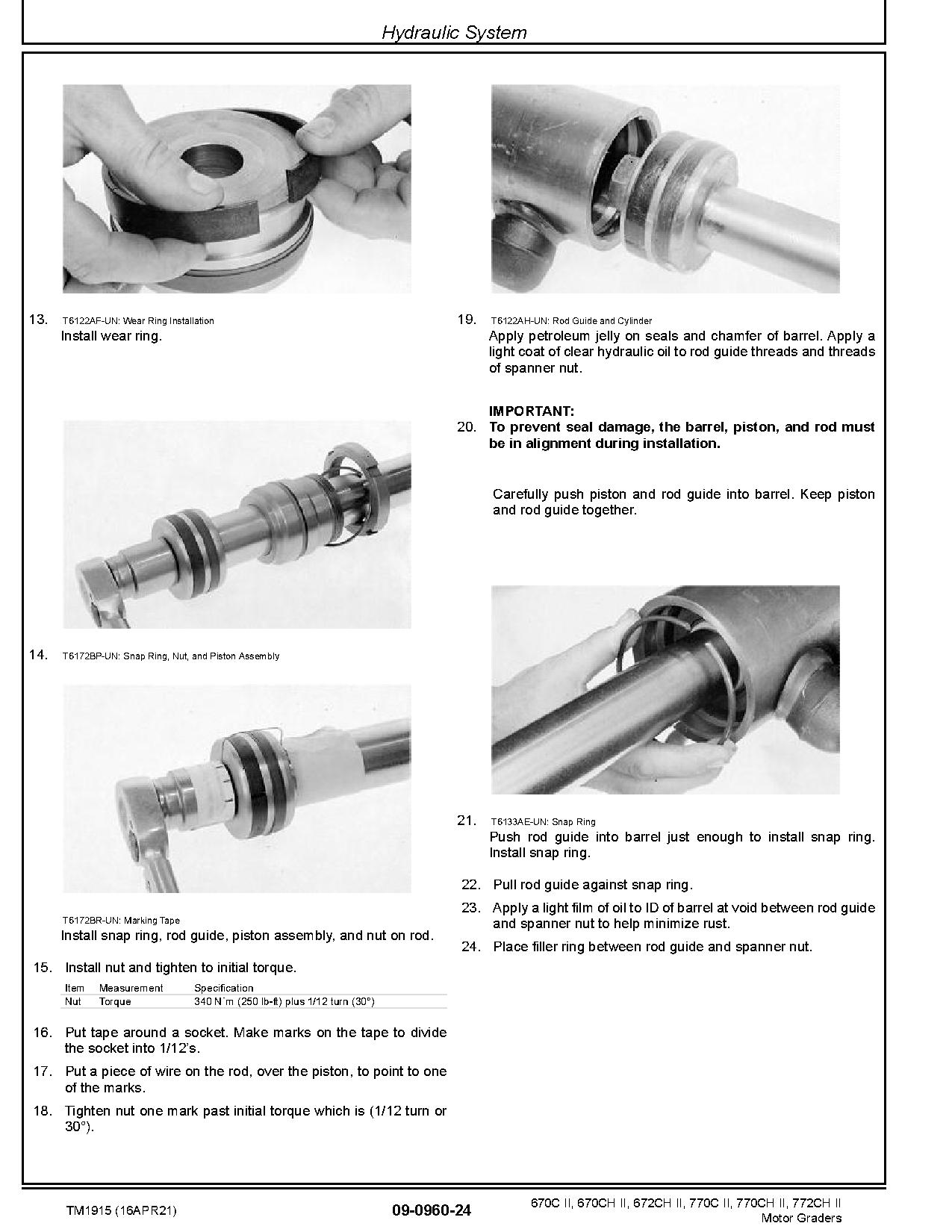

      Hydraulic System
   Ground Conditioning Tool
      Frames
      Hydraulic System
