John Deere 1700, 1710, 1720, 1730, 1750 and 1780 Drawn and Integral Planters Repair Manual (TM1721)

Number: 20496
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Planter
  • Model
    1700, 1710, 1720, 1730, 1750, 1780
  • Serial Number
    before 740100
Details
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      Lubricants
      General Information
   Vacuum System

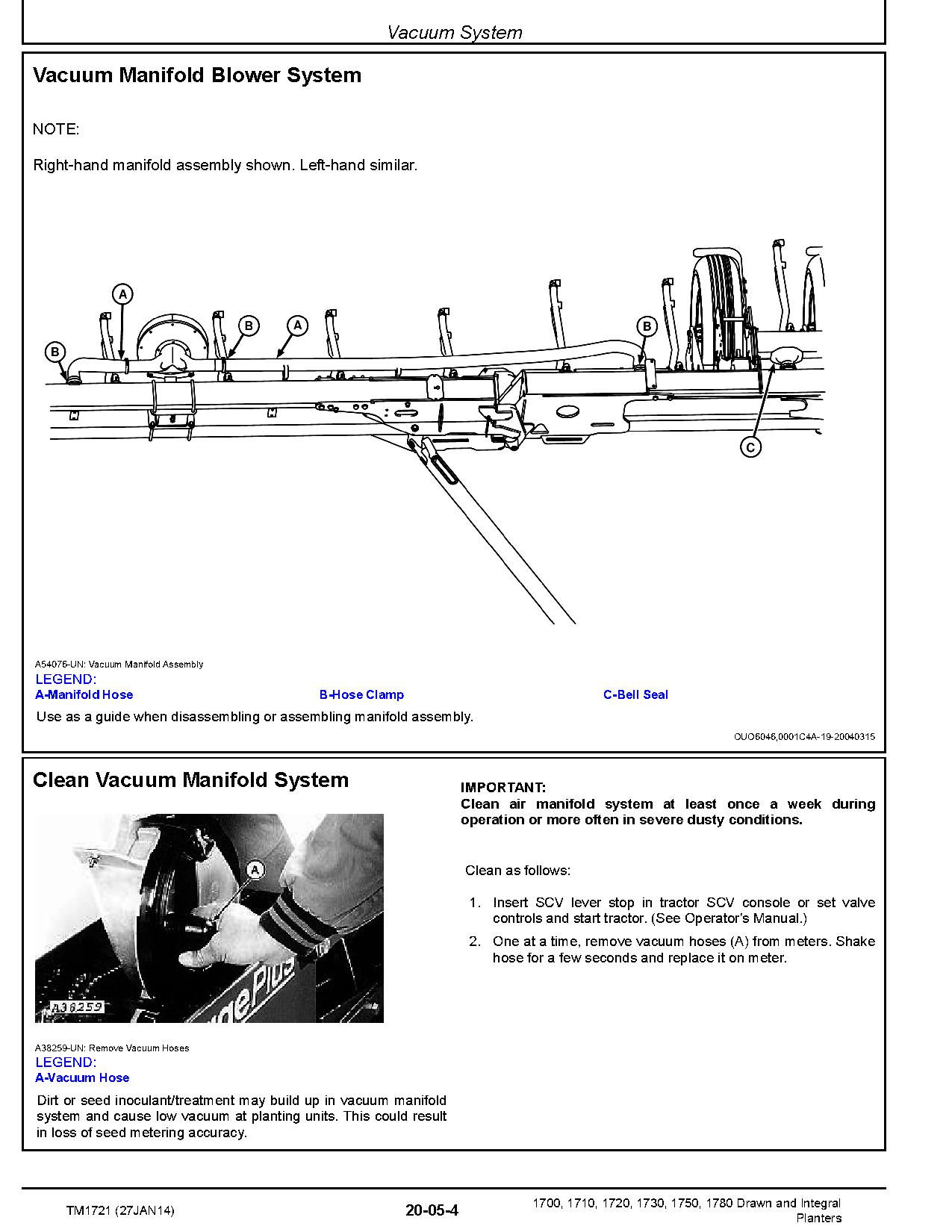

      Vacuum System
   Central Commodity System
      Seed Tanks and Manifolds
      Seed Delivery Hose
      Central Commodity System Fan
   Planting Units
      MaxEmerge Plus / MaxEmerge XP Vacuum Seed Meters
      MaxEmerge Plus / MaxEmerge XP Plateless Seed Meters
      MaxEmerge XP Twin Row Vacuum Seed Meters
      PRO-SERIES / Pro-Series XP / Pro-Series XP Twin Row Vacuum Seed Meters
      PRO-SERIES / Pro-Series XP Plateless Seed Meters
      Seed Openers
      Closing Wheels

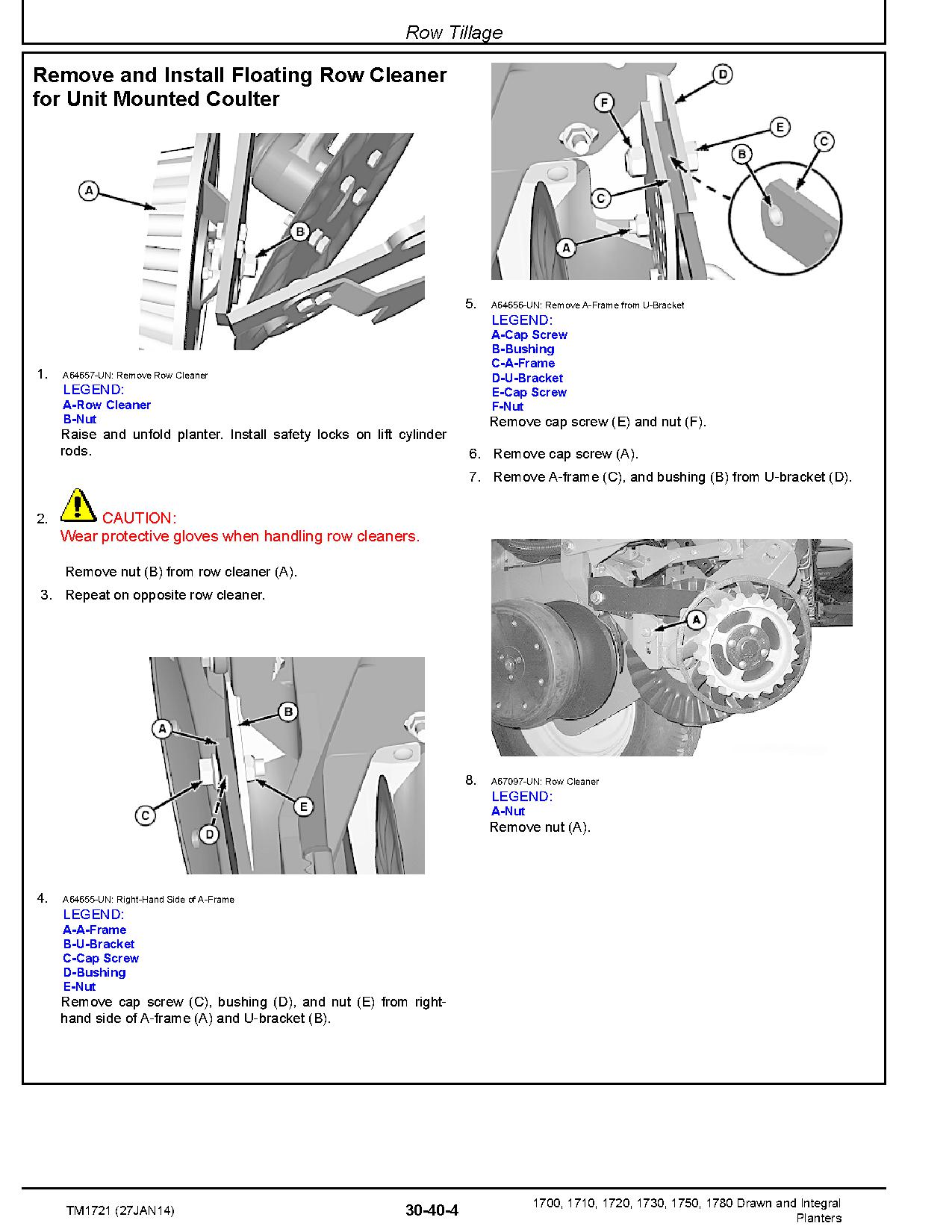

      Row Tillage
      Insecticide/Herbicide Meter
      Mechanical Row Unit Down Force
      Pneumatic Row Unit Down Force
   Electrical
      Connector Repair
      Sensors and Switches
      Lighting repair
   Drives
      Specifications
      Seed Drive Transmission
      Clutch
      Countershaft, Drillshaft and Jackshaft
      Fertilizer Drive
      Dry Fertilizer

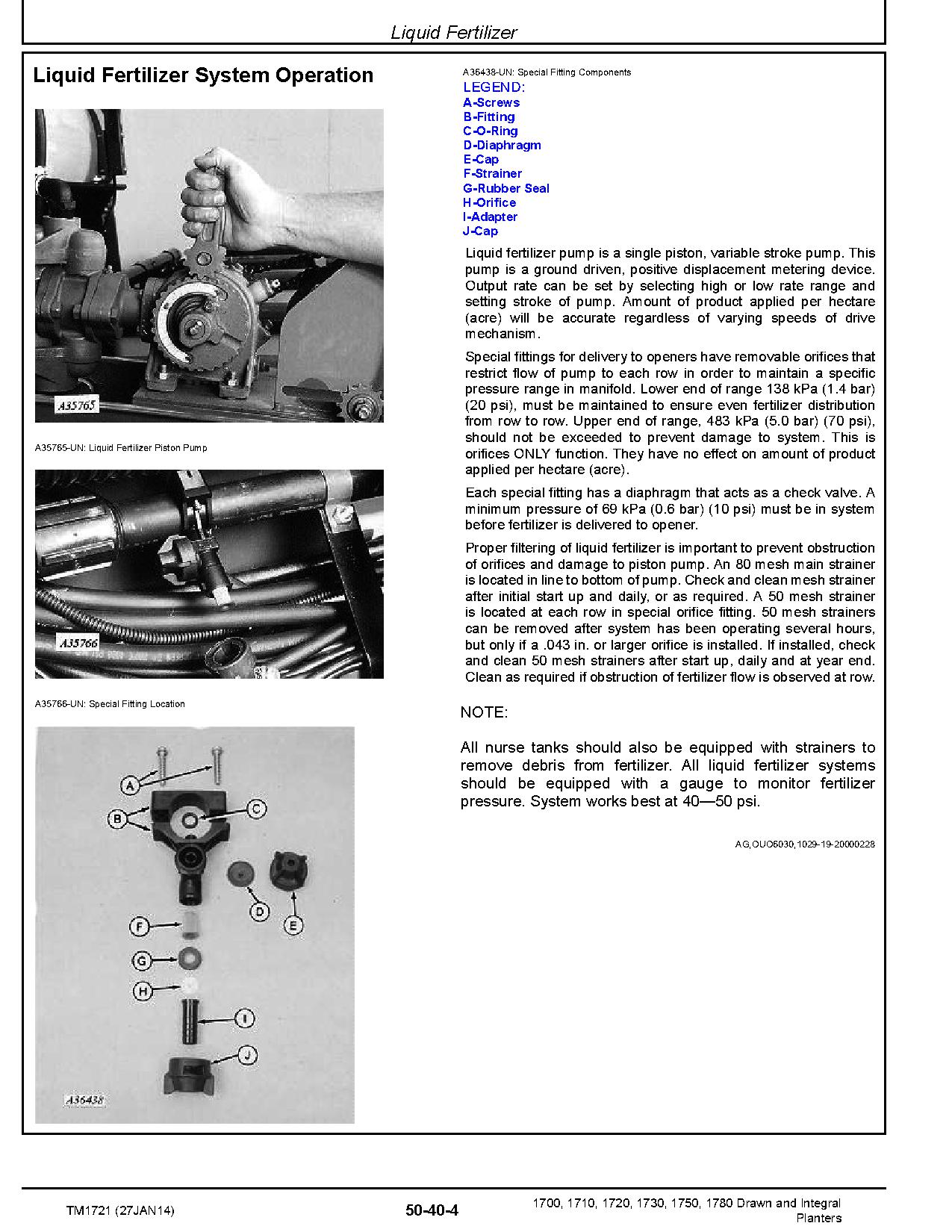

      Liquid Fertilizer
      Variable Rate Drive
   Frames
      Repair and Welding
      Wheel Module Repair
      Lift Assist
      Row Marker
   Hydraulics
      General Information
      Motors
      Master Cylinder
      Wheel Cylinders
      Marker Cylinders
      1710 Vertical Fold Cylinders
      1720, 1720 CCS, and 1720 CCS Twin Row Fold and Wing Lift Cylinders
      1720 CCS and 1720 CCS Twin Row Lift Assist Cylinders
      Valves
      PTO Pump
      Quik-FillQuik-Fill is a trademark of Deere & Company Hydraulic System-Dry Fertilizer
   Miscellaneous
      Polyethylene Tank Repair
   Dealer Fabricated Tools
      Master Cylinder Assembly
