John Deere 544G, 624G, 644G 4WD Loaders, 544G LL Log Loaders and 544G TC Tool Cariers Repair Manual (TM1530)

Number: 21880
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    4WD Wheeled Loader, Log Loader, Tool Carier
  • Model
    544G, 624G, 644G
  • Model
    544G, 624G, 644G
Details
Table of Contents:
   Introduction
   General Information
      Safety Information
      General Specifications
      Torque Values
      Fuels And Lubricants
      Inspection Procedures
   Wheels
      Powered Wheels And Fastenings
   Axles And Suspension Systems
      Removal And Installation
      Axle Shafts, Bearings And U-Joints
      Hydraulic System
   Transmission
      Removal And Installation
      Control Linkage
      Input Drive Shafts And U-Joints
      Gear, Shafts, Bearings And Power Shift Clutch
      Hydraulic System
   Engine
      Removal And Installation
   Engine Auxiliary Systems
      Cold Weather Starting Aids

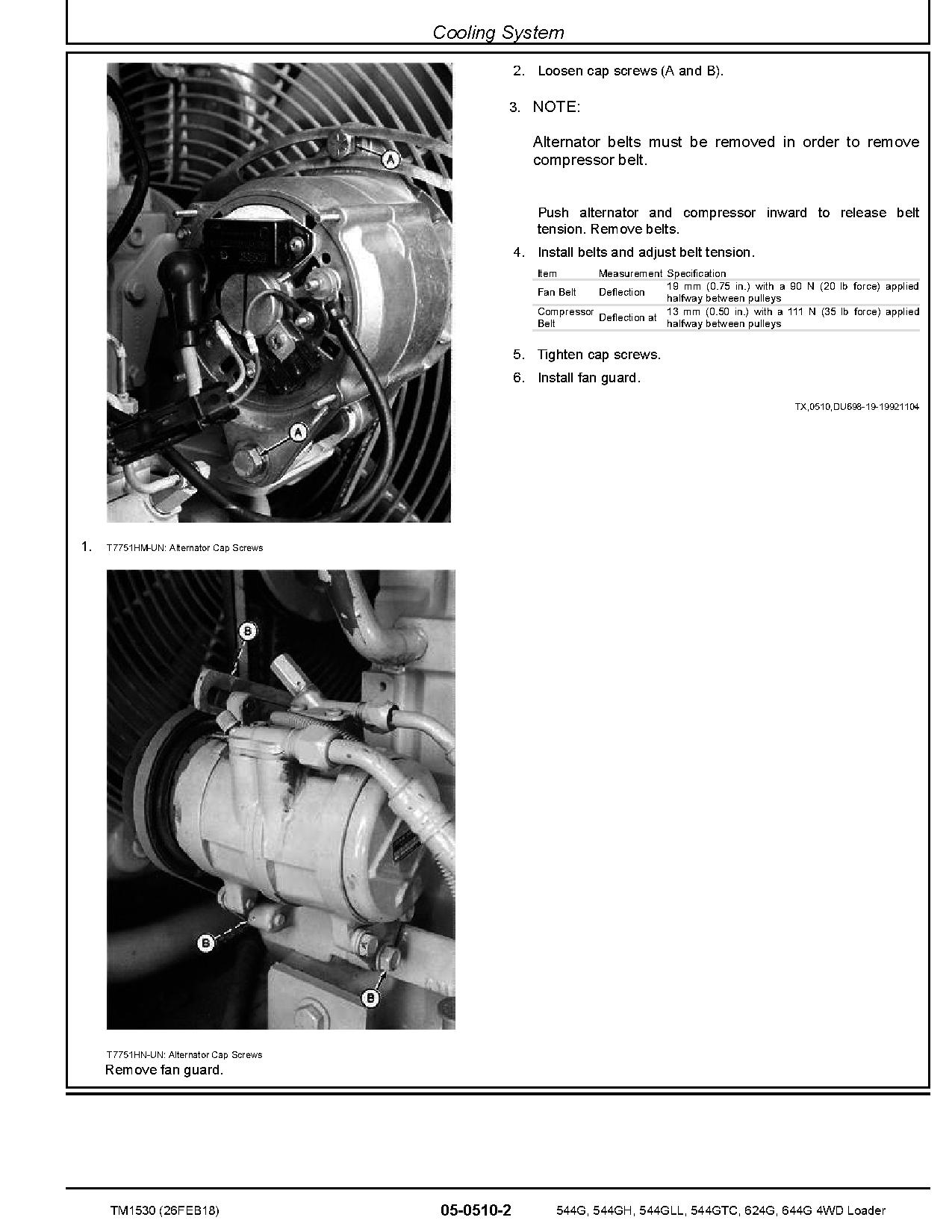

      Cooling System
      Speed Controls
      Intake System
      External Fuel Supply System
   Dampener Drive
      Elements
   Steering System
      Secondary Steering
      Hydraulic System
   Service Brakes
      Active Elements
      Hydraulic System
   Park Brake
      Active Elements
      Hydraulic System
   Equipment Attaching
      Drawbar
   Electrical Systems
      Batteries, Support And Cables
      Alternator, Regulator And Charging System Wiring
      Lighting System
      Wiring Harness And Switches
      Motors And Actuators
   Frame Or Supporting Structure

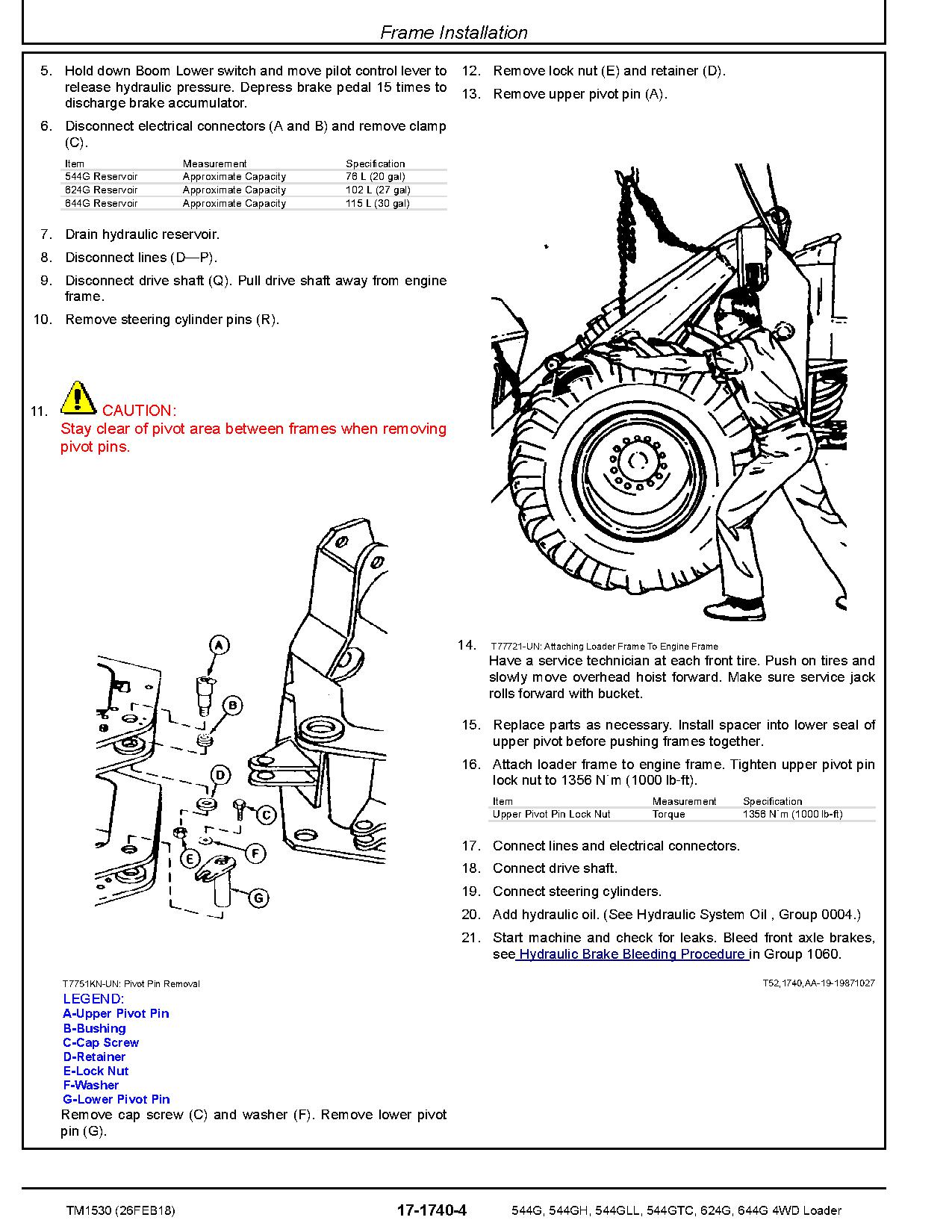

      Frame Installation
      Frame Bottom Guards
      Chassis Weights
   Operator`s Station

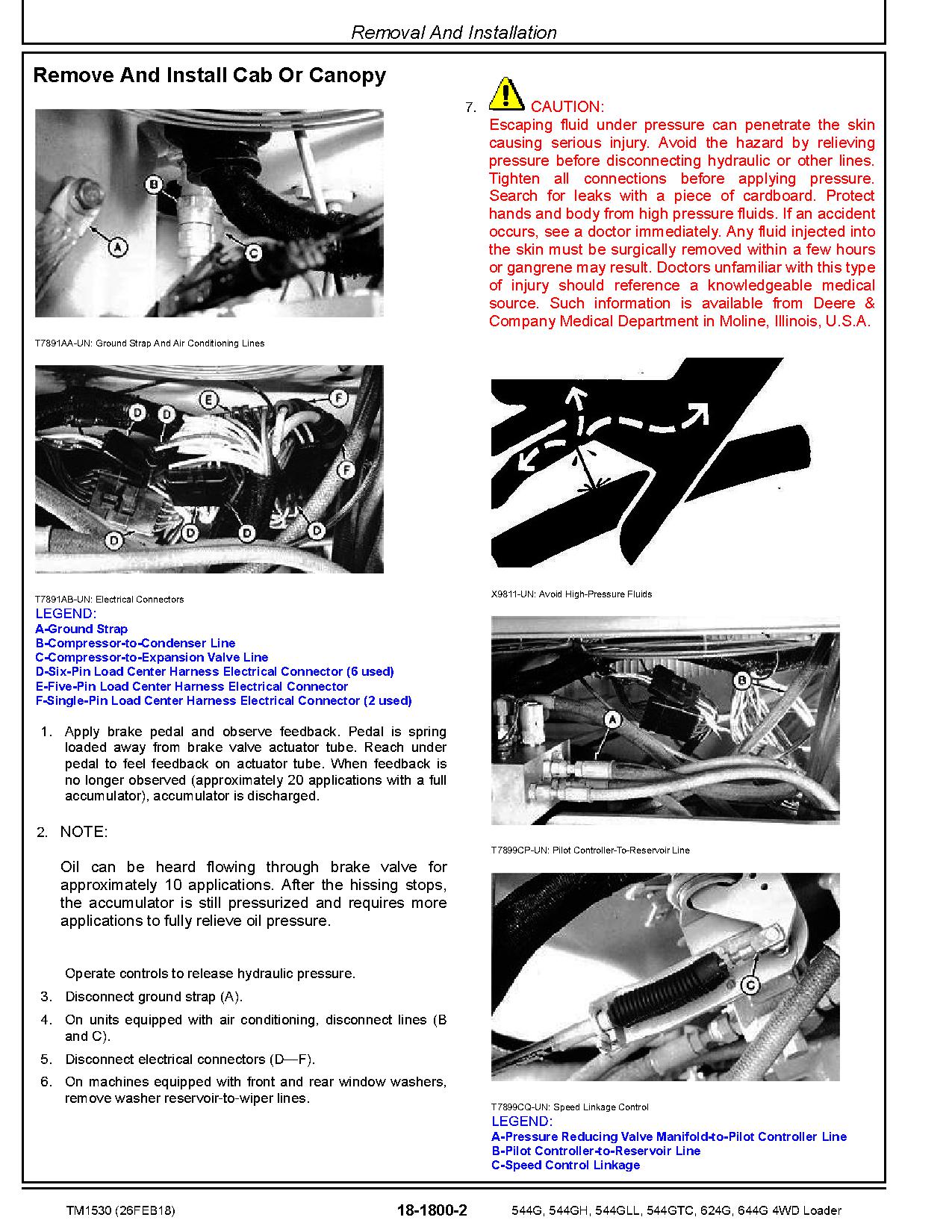

      Removal And Installation
      Operator Enclosure
      Seat And Seat Belt
      Heating And Air Conditioning
   Loader
      Bucket
      Frames
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools
