John Deere XUV825E, XUV825M and XUV825M S4 Gator Utility Vehicles (SN: 010001-040000) Technical Manual (TM150019)

Number: 20020
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Utility Vehicle
  • Series
    Gator
  • Model
    XUV825E, XUV825M
  • Serial Number
    010001-040000
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications
   Engine Repair

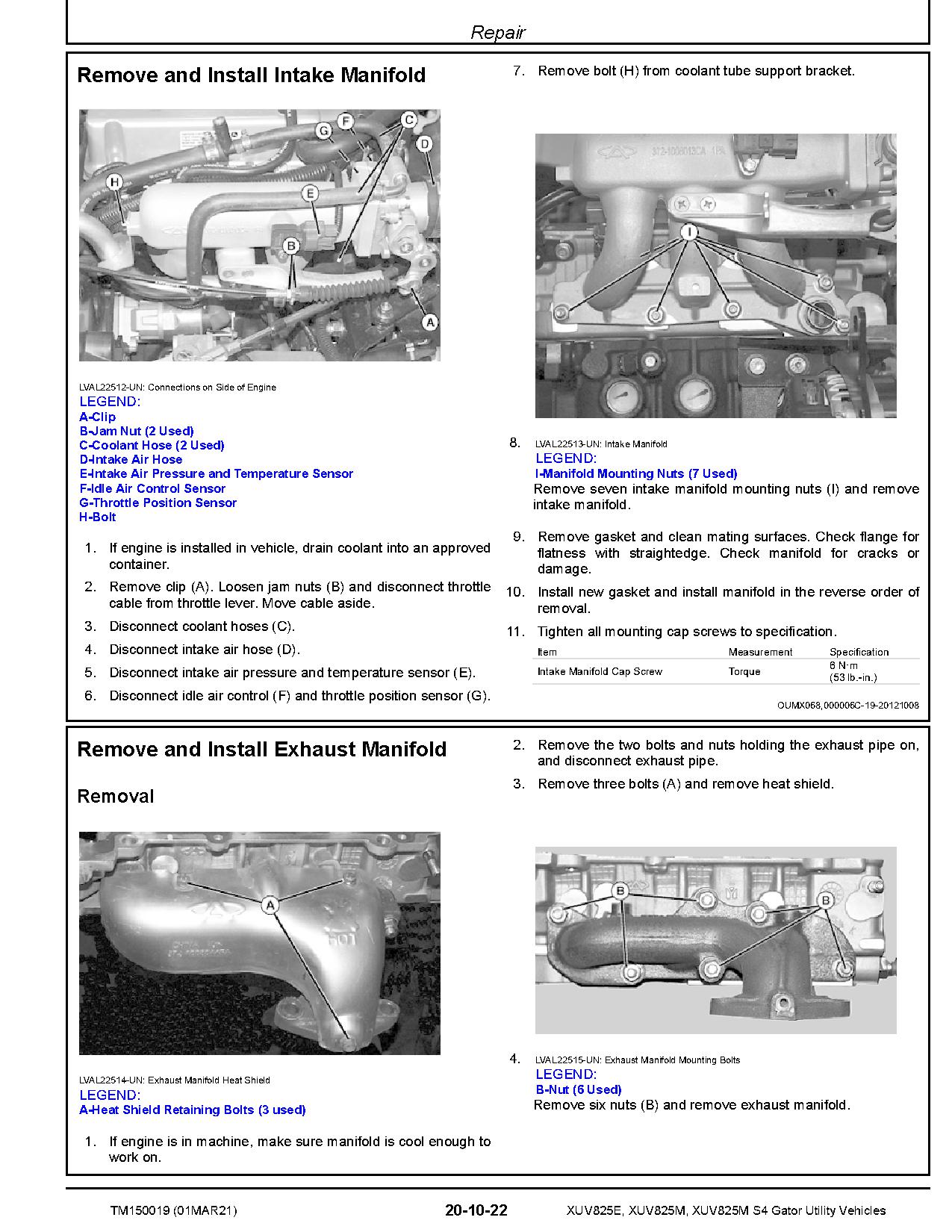

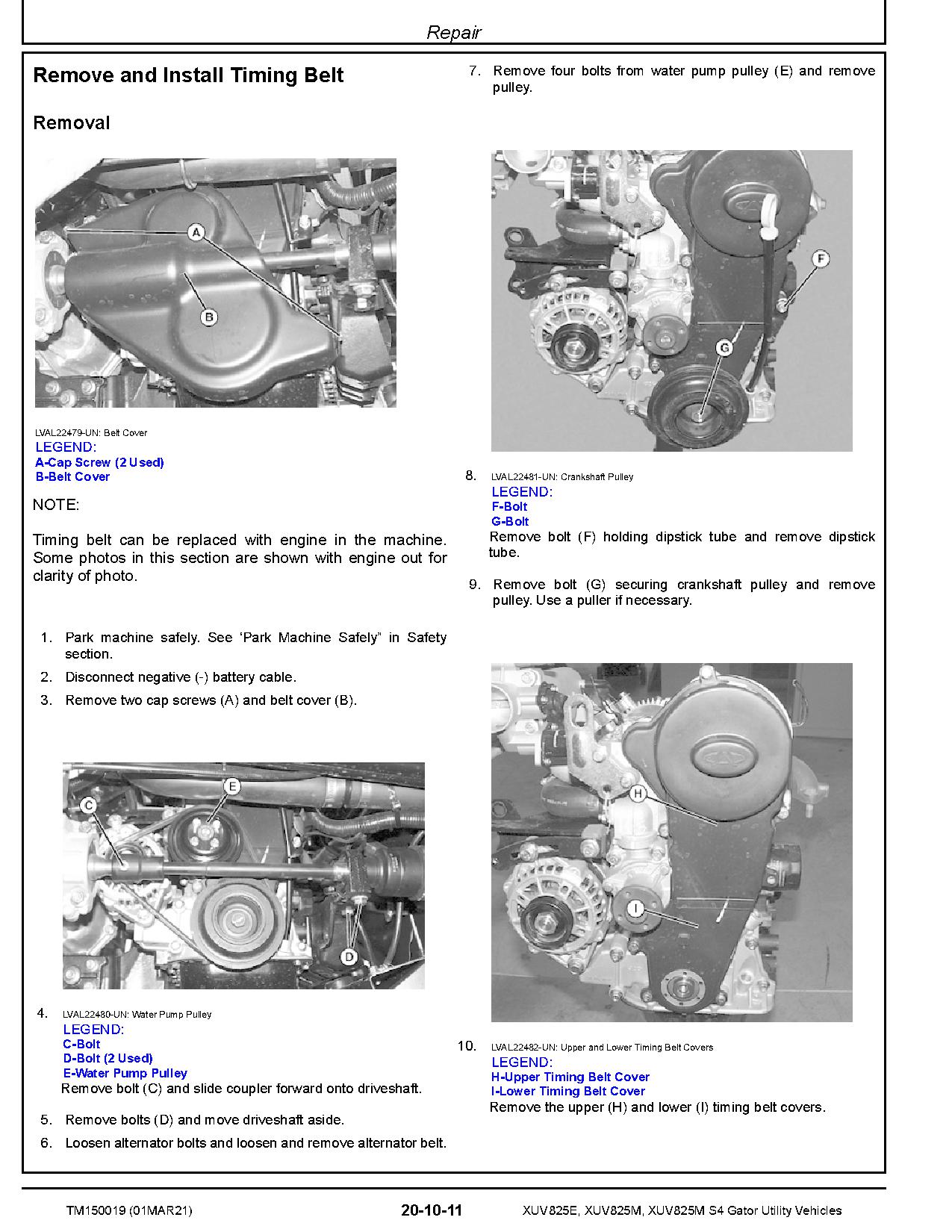

      Repair
   Electrical Repair
      Wiring Harnesses
      Wiring Harnesses, Kits
   Power Train Repair
      Transmission
      Axles and Drive Shaft
      Mechanical Four Wheel Drive
   Steering and Brake Repair
      Steering
      Brakes
   Miscellaneous Repair
      Wheels
      Hood, Cargo Box, and Bumper
      Miscellaneous
   Operator`s Station Repair
      Operator`s Station and Seat
      Occupant Protective Structure (OPS)
   Engine Operation, Tests, and Adjustments
      Component Location
      Diagnosis
      Tests and Adjustments
   Electrical Operation, Tests, and Adjustments
      General Information
      Component Location
      Theory of Operation
      Wiring Schematics
      Tests and Adjustments
      Connector Information
   Control Unit Operation, Tests, and Adjustments
      Theory of Operation

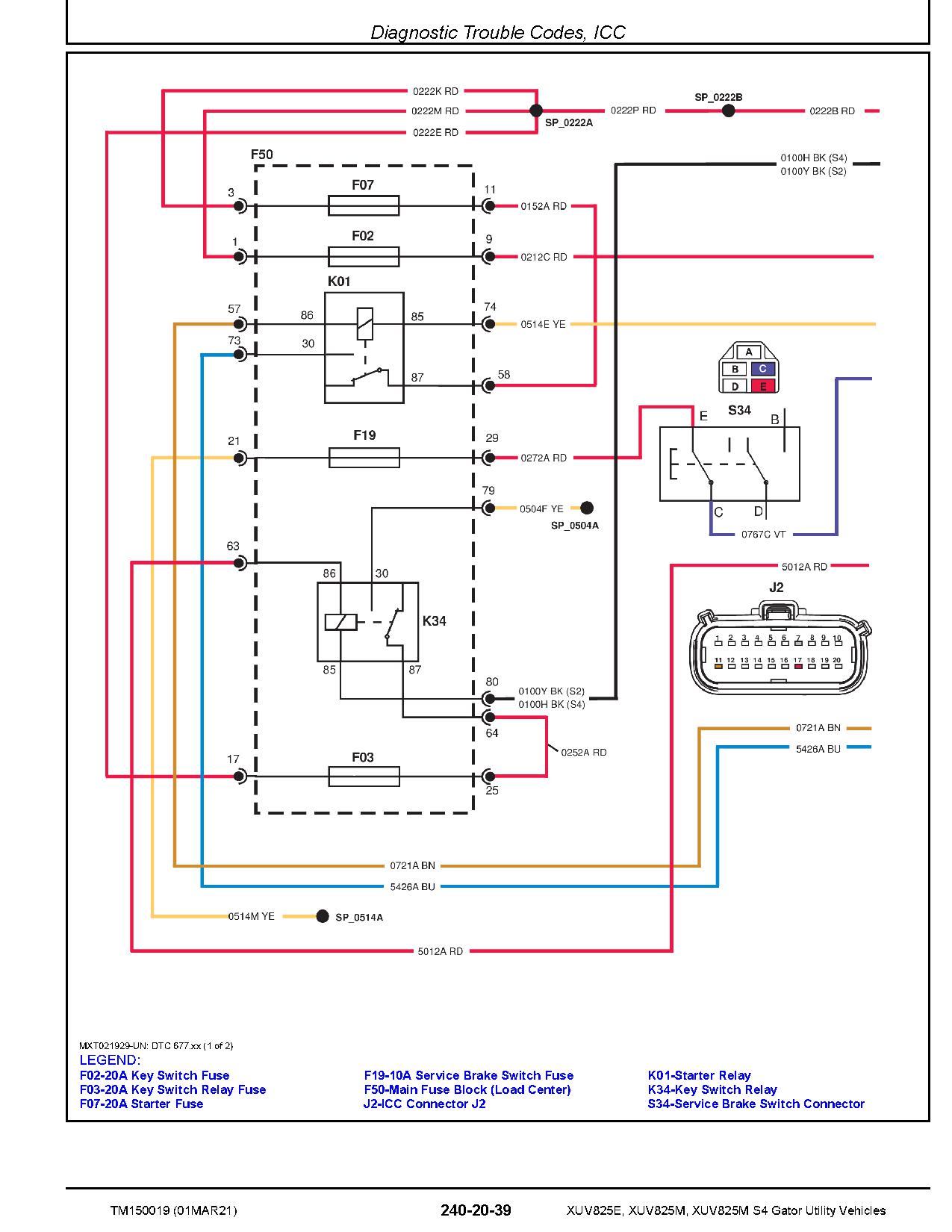

      Diagnostic Trouble Codes, ICC
      Diagnostic Trouble Codes, ECU
      Diagnostic Trouble Codes, SCU
   Power Train Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Steering and Brake Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Miscellaneous Operation, Tests, and Adjustments
      Component Location
      Tests and Adjustments
   Service Tools
      Service Tools and Kits
