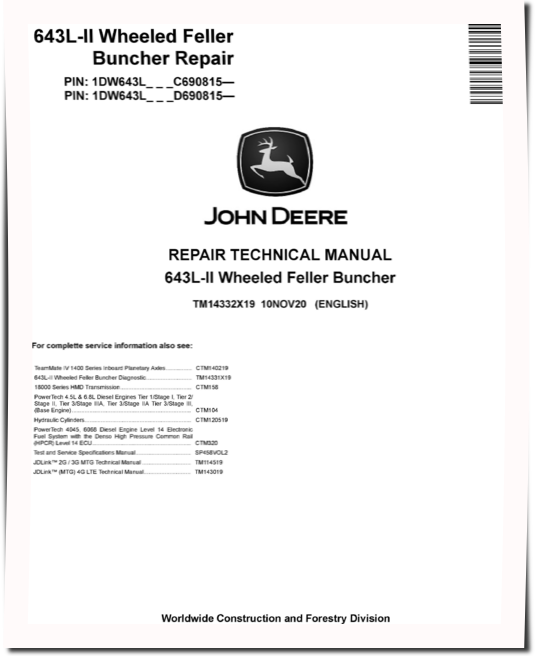

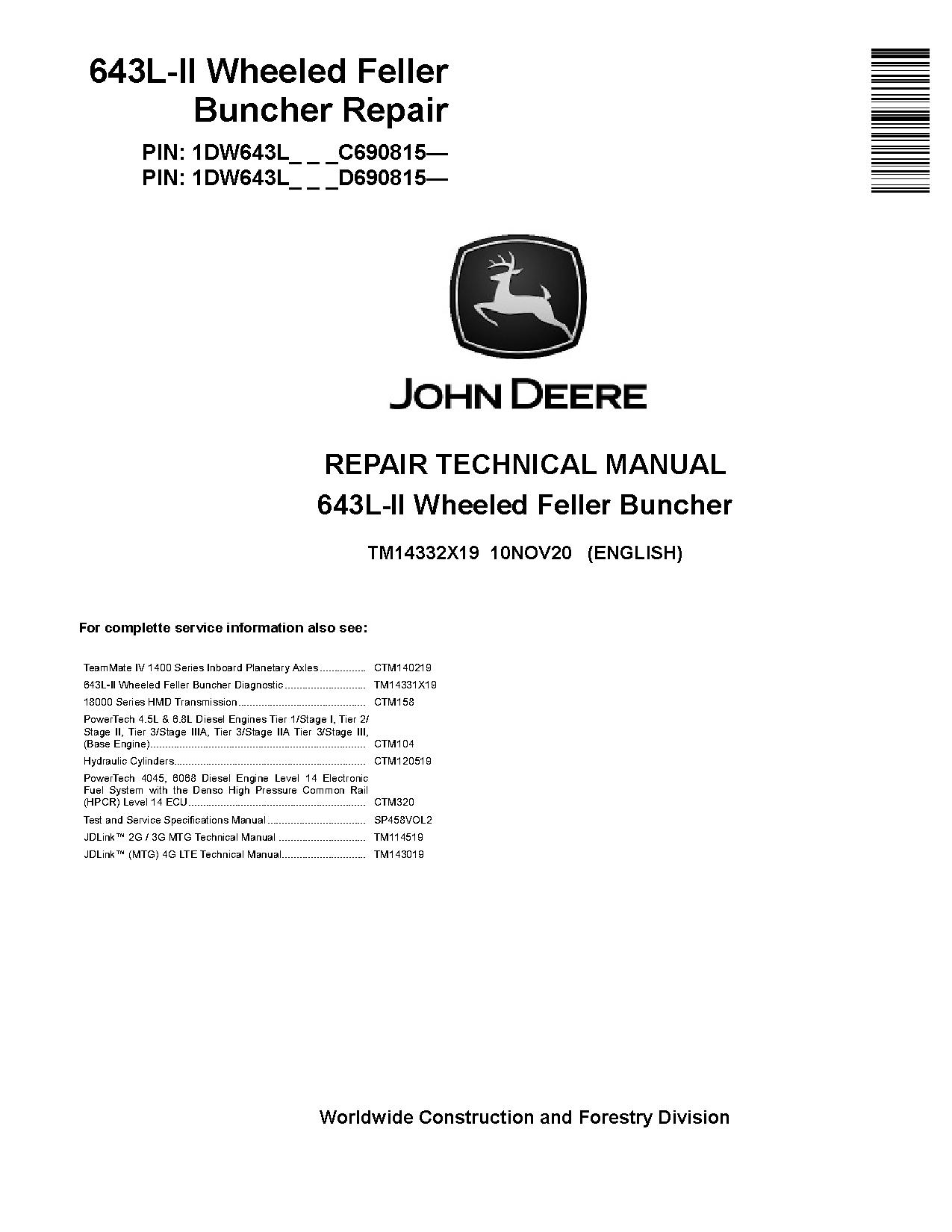

John Deere 643L-II (SN. from C690815, D690815) Wheeled Feller Bunchers Repair Manual (TM14332X19)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

John Deere 643L-II (SN. from C690815, D690815) Wheeled Feller Bunchers Repair Manual (TM14332X19)

Number: 22605
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Emission Standards
    Tier 2, Tier 3, Stage II, Stage IIIA
  • Type of equipment
    Wheeled Feller Buncher
  • Series
    II
  • Model
    643L
  • Serial Number
    690815-
  • Serial Number
    690815-
  • PIN
    1DW643L_ _ _ C690815-, 1DW643L_ _ _ D690815-
  • PIN
    1DW643L_ _ _ C690815-, 1DW643L_ _ _ D690815-
Details
Table of Contents:

   Foreword
      Manual Identification-READ THIS FIRST!
      General Information
         Safety
         Torque Values
      Wheels
         Powered Wheels and Fastenings
      Axles and Suspension Systems
         Removal and Installation
         Input Drive Shafts and U-Joints
         Hydraulic System
      Transmission
         Removal and Installation
         Controls
         Gear, Shafts, and Power Shift Clutches

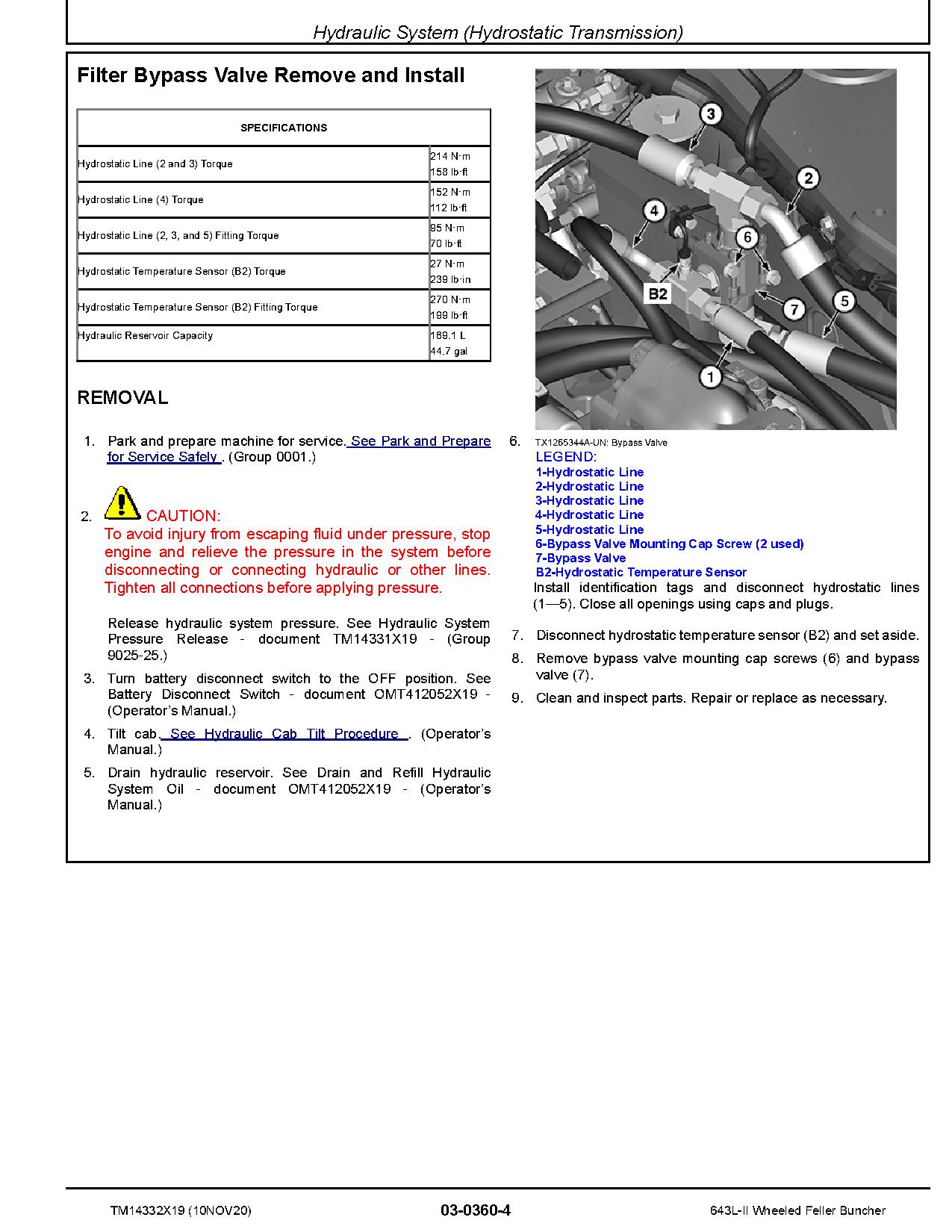

         Hydraulic System (Hydrostatic Transmission)
      Engine
         Removal and Installation
      Engine Auxiliary System
         Cooling Systems

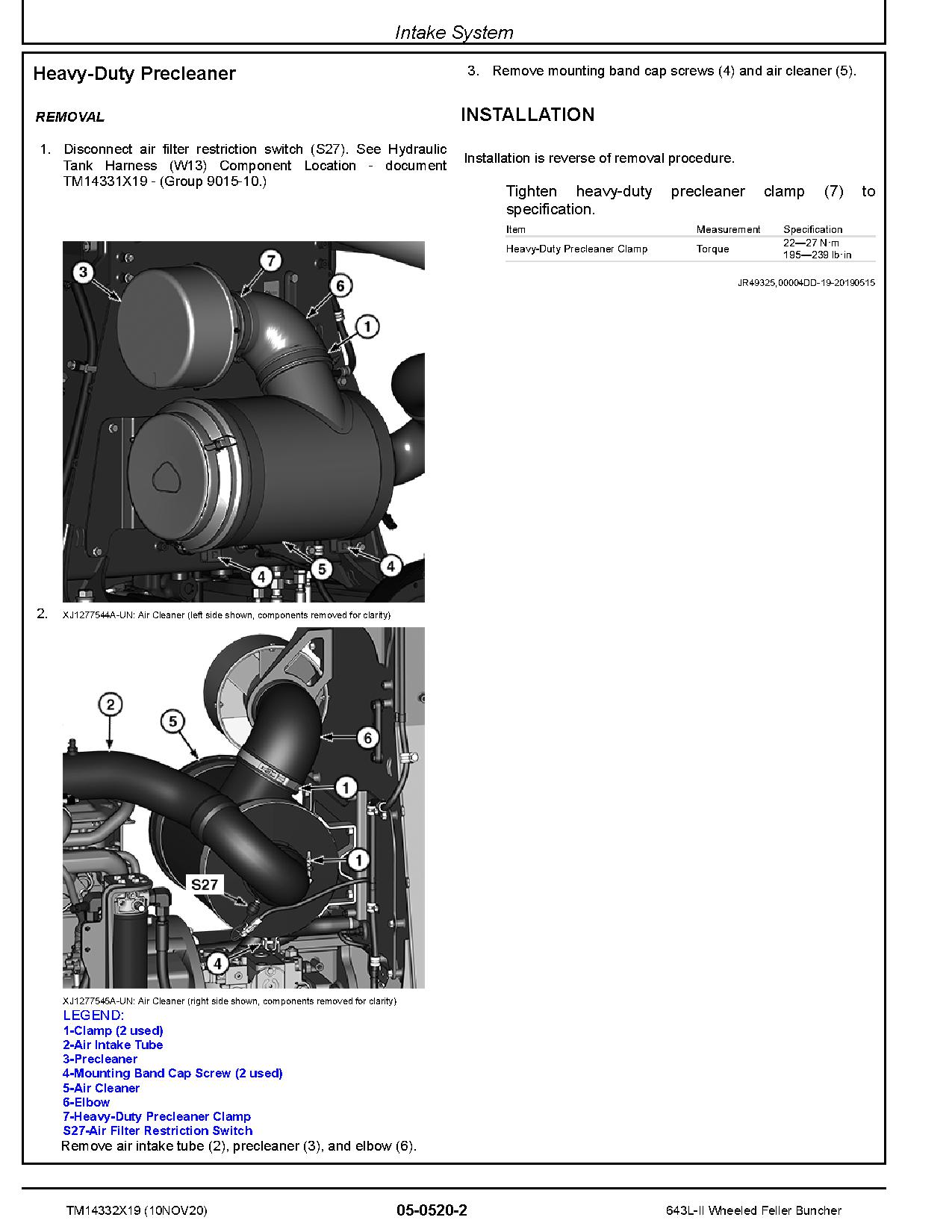

         Intake System
         Exhaust Systems
      Damper Drive
         Elements
      Steering System
         Hydraulic System
      Service Brakes
         Active Elements
         Hydraulic System
      Park Brake
         Active Elements
      Electrical System
         Removal and Installation
      Frame or Supporting Structure
         Frame Installation
         Frame Bottom Guards
      Operator`s Station
         Removal and Installation
         Operator Enclosure
         Pedal Assembly
         Seat and Seat Belt
         Heating and Air Conditioning
      Sheet Metal and Styling
         Hood or Engine Enclosure
      Safety, Convenience, and Miscellaneous
         Fire Extinguisher
      Main Hydraulic System
         Hydraulic System
      Booms
         Hydraulic System
      Dealer Fabricated Tools
         Dealer Fabricated Tools
